Name: Exhaust Snorkel Original
Brand: Nederman
SKU: FX2-Original
Availability: InStock

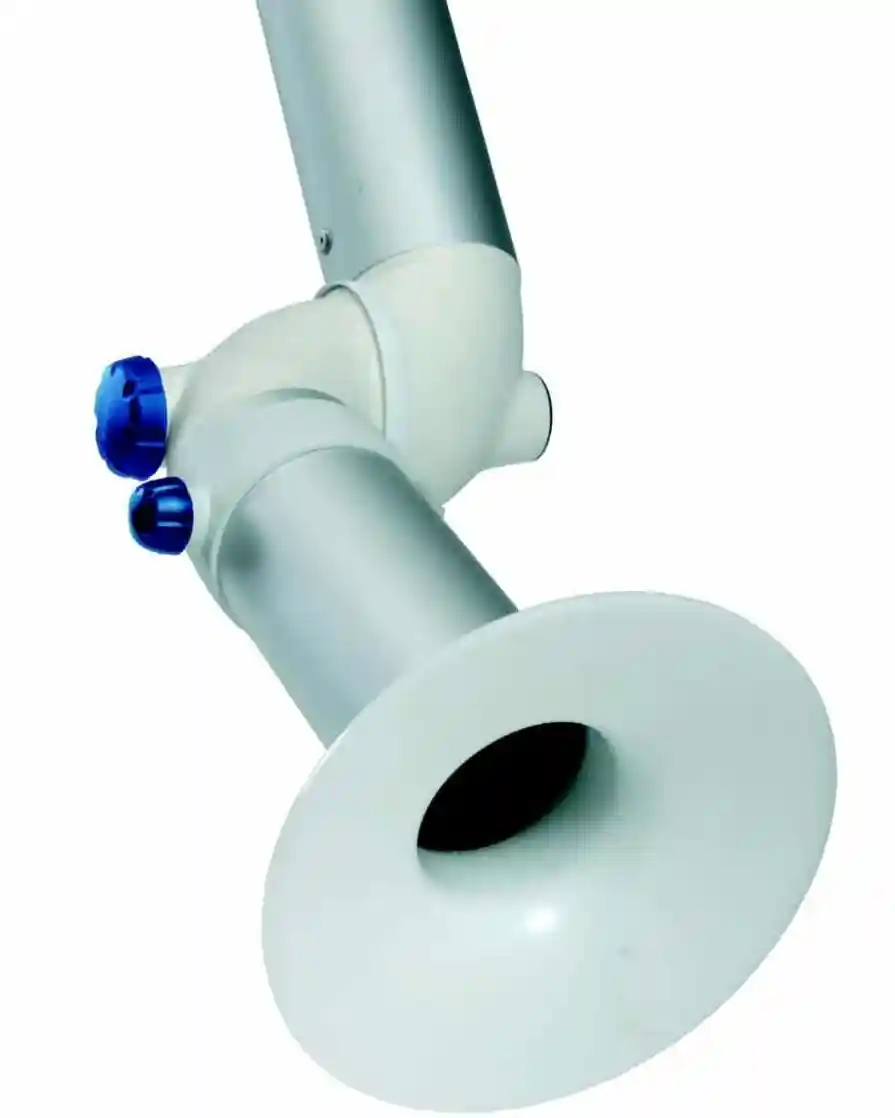

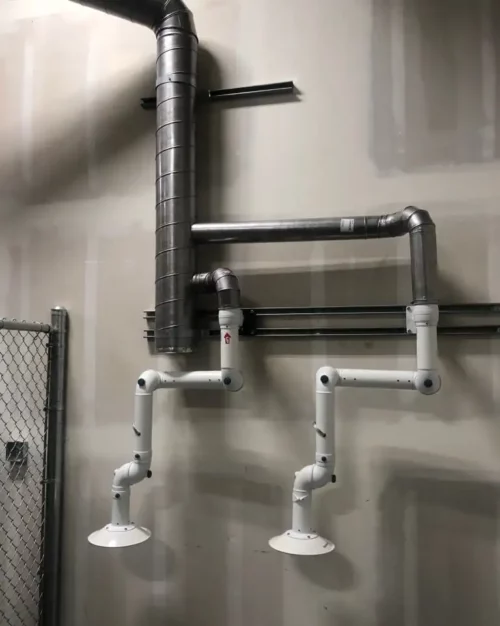

The ORIGINAL Model

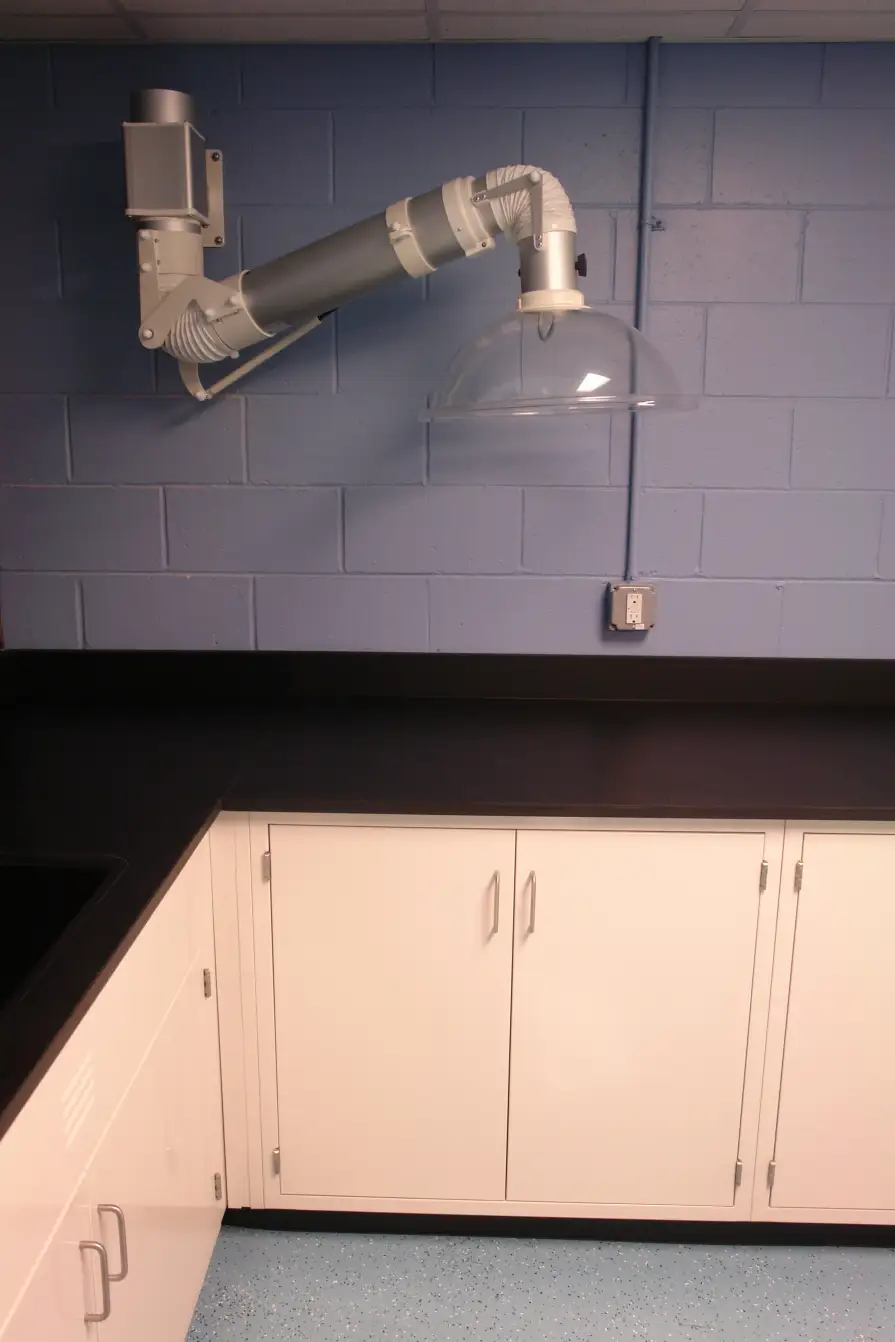

The ORIGINAL model is a robust and reliable all-around articulating arm for general applications and fumes, dust, where there is little to no electrical discharges or attack by aggressive chemicals. The extraction arm is shown fitted with a multi-purpose transparent hood. The new generation of Nederman BenchTop arms is available in 2, 3 and 4 in. (50, 75 and 100 mm) versions with corresponding capacity ranges of: FX50- 2″: 30-65 cfm (50-110 m3/h) Full Specs FX75- 3″: 65-140 cfm (110-240m3/h) Full Specs FX100- 4″: 120-265 cfm (200-450 m3/h) Full Specs Product Literature

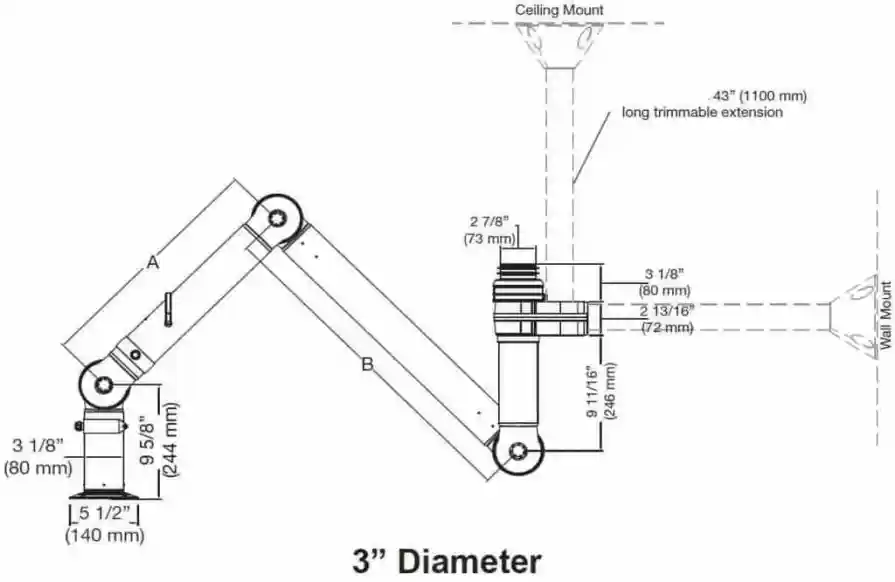

Mounting Options

Exhaust Snorkel Hoods

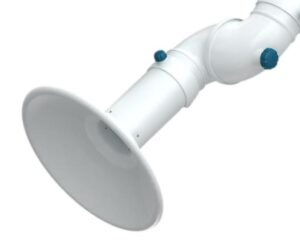

Aluminum White Powder Coated Hood

The powder-coated white metal hood is made of aluminum and is designed to capture contaminants. It is capable to handle aggressive fumes, high temperatures, and corrosion resistance, and dust splatter. It can be attached to the exhaust hood of any size articulating arm.

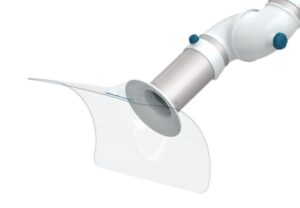

Transparent Flange Hood

Transparent flange hood, made of PET-G plastic, is designed to maximize the capture zone without hinder objects on the bench or the user. It can be attached directly on minihood, irrespective of arm size.

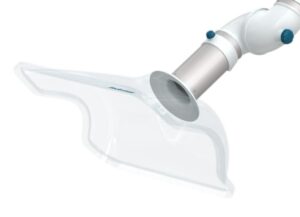

Transparent Combi Hood

Are designed to exhaust contaminants with low energy. The transparent combi hood is made of PET-G plastic. It can be attached directly to the lab exhaust snorkels regardless of the size of the arm. Handles on both sides of the hood make it maneuver easier.

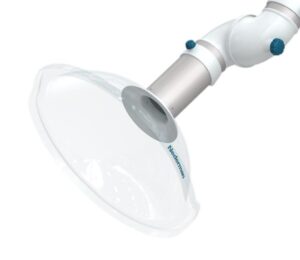

Transparent Dome Hood

FX-Dome Hood – PET-G Plastic – Our transparent dome hood, crafted from durable PET-G plastic, is expertly engineered to efficiently capture dispersing contaminants. It seamlessly attaches to the mini hood, regardless of arm size, providing versatility and ease of use. The thoughtful handle design on both sides of the hood enhances maneuverability for added ergonomic comfort.

Drop Ceilings Installation

You need to add the “43+ inch additional tube extension” which can be cut down to size to go thru the drop ceiling. You can also add the “ceiling cover plate” that will conceal the hole, but it is not required; it is only for aesthetic purposes.

Exhaust Snorkel Drop Ceiling Installation

Fan Options for Your Exhaust Snorkel System

The right fan will make sure your fume extraction arm works the way it should. Below are the fan options that work with the Nederman system. All fans have a blue powder-coated steel housing. The motors are direct-drive, which means fewer parts to break. 1/3 HP Fan – 3 Phase (208/460 V)
