Full Warehouse Design Solutions — Complete Facility Planning

Designing a warehouse is more than selecting pallet rack. It’s a complex integration of storage systems, material flow, space utilization, and operational efficiency that requires deep product knowledge across dozens of equipment categories. Material Handling USA serves as your single-source warehouse design partner — one point of contact for every product, every service, and every installation.

Our design team has completed over 500 warehouse projects ranging from 5,000 SF startup distribution centers to 500,000+ SF multi-temperature fulfillment campuses. We work with your operations team to understand product profiles, throughput targets, growth projections, and budget constraints before recommending a single piece of equipment.

The result is a warehouse that works as an integrated system — where rack heights match forklift reach, aisle widths optimize for your traffic patterns, pick locations match order velocity, and security cages protect high-value inventory without creating bottlenecks.

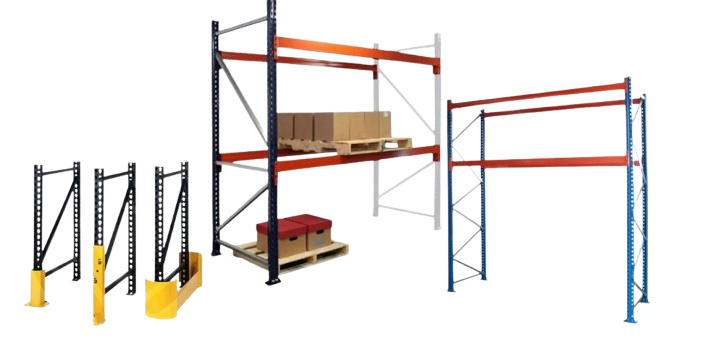

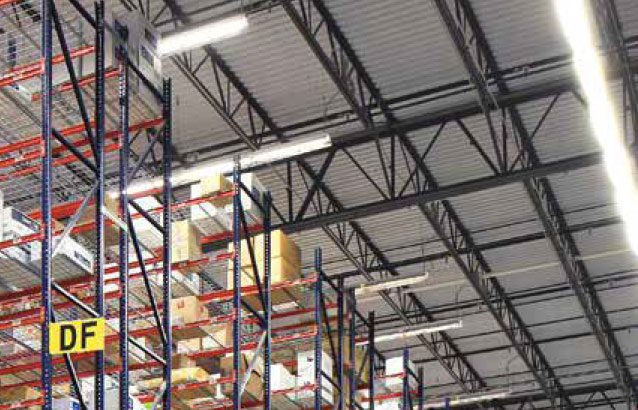

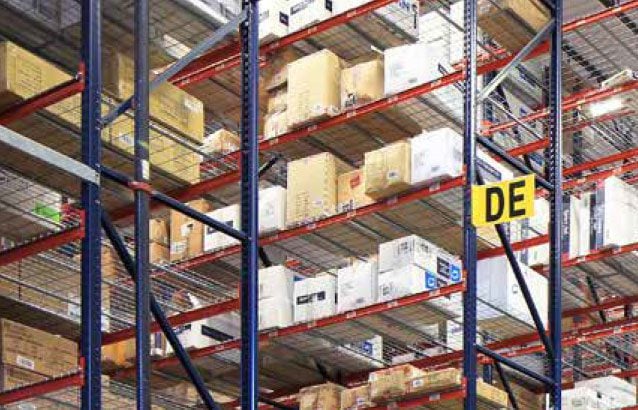

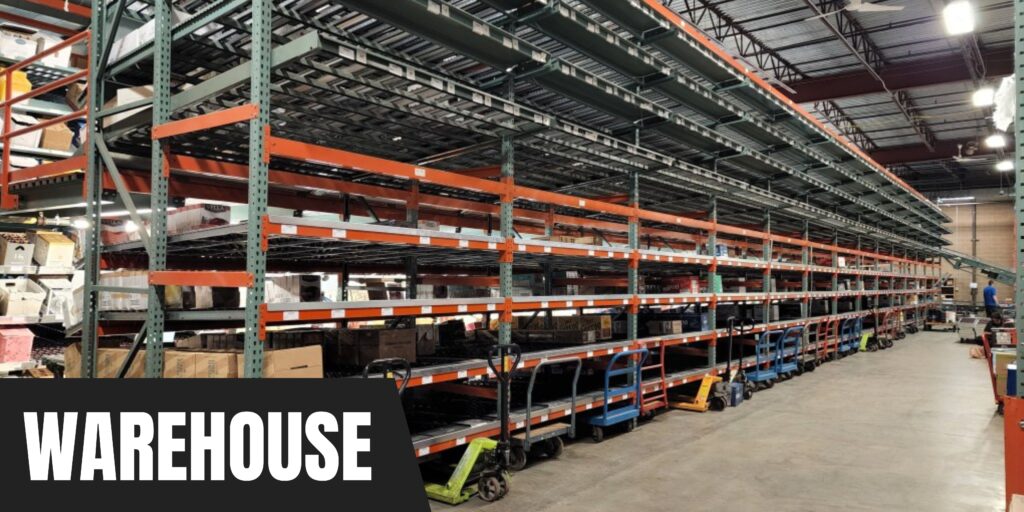

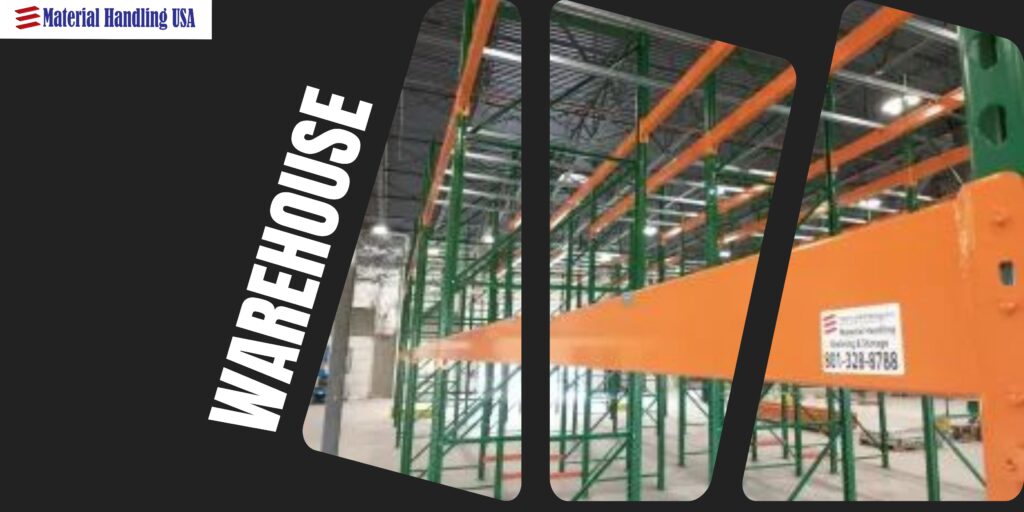

Pallet rack is the backbone of any warehouse. Material Handling USA partners with Interlake Mecalux — the world’s largest pallet rack manufacturer — and Jaken Corporation to offer the complete spectrum of rack configurations. Selective rack for direct pallet access, drive-in rack for deep lane FIFO or LIFO storage, push-back rack for high-density pick faces, and pallet flow rack for gravity-fed FIFO rotation.

Every pallet rack layout starts with your pallet profile — dimensions, weight, and stack height — combined with your forklift type, building clearance, and seismic zone classification. Our engineers calculate column capacities, beam deflection, base plate requirements, and anchoring specifications to produce a rack layout that maximizes storage density while meeting RMI and local code requirements.

Rack accessories including wire decking, pallet supports, row spacers, column protectors, and end-of-aisle guards are specified as part of every design to ensure long-term structural integrity and worker safety.

Third-party logistics providers need flexible warehouse designs that accommodate multiple clients with different product profiles, throughput requirements, and SLA commitments. E-commerce fulfillment centers require high-density pick modules, mezzanine levels, and conveyor-fed pack stations to handle thousands of daily orders efficiently.

Manufacturing facilities need raw material staging, work-in-process buffer storage, and finished goods warehousing integrated with production lines. Cold chain operations require temperature-zone separation, insulated modular rooms, and specialized rack systems rated for freezer environments.

Government and military warehouses must meet GSA and DLA storage standards for ammunition, equipment, and supply management. Automotive parts distribution centers need drawer cabinets, cantilever rack, and carousel storage for thousands of unique SKUs. Whatever your operation, our design team has the product knowledge and layout experience to maximize your warehouse performance.

How much does a warehouse design cost?

Our warehouse design service is free. We provide CAD layouts, product specifications, and budget pricing at no cost as part ofour consultative sales process.

How long does a complete warehouse project take?

Small projects (under 20,000 SF) typically complete in 4–8 weeks from design approval to installation. Larger projects may take 8–16 weeks depending on equipment lead timesand installation complexity.

Can you design for a building I haven’t leased yet?

Yes. We regularly produce speculative designs for buildings under consideration. This helps you evaluate whether a space can meet your operational requirements before committing to a lease.

Do you install nationwide?

Yes. We manage warehouse installations across the continental United States throughour network of certified installation partners.

Can you redesign my existing warehouse?

Absolutely. Many projects involve reorganizing existing operations for better efficiency. We survey your current layout, identify improvements, and implement changes in phases to minimize operational disruption.

Effective warehouse layout planning begins with understanding how product flows through your facility — from receiving dock to storage location to pick position to shipping dock. Every warehouse has unique characteristics that influence the optimal layout: building dimensionsand column spacing, clear height, dock door positions, fire lane requirements, and electrical/plumbing locations. Our design team evaluates all of these factors before placing a single rack bay.

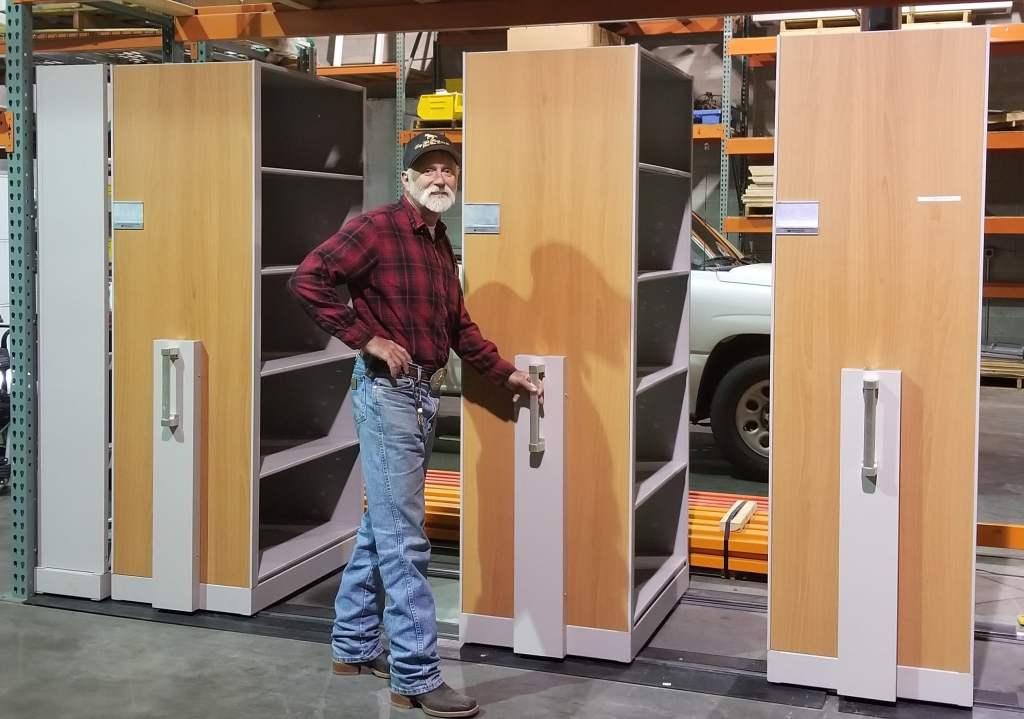

Inventory profiling drives storage system selection. ABC velocity analysis identifies your fast-movers (A items, typically 20% of SKUs generating 80% of picks), moderate-movers (B items), and slow-movers (C items). Fast-movers are positioned closest to shipping in easily accessible pick locations — selective rack, carton flow, or pick shelving. Moderate-movers go in standard selective rack. Slow-movers can be stored in higher-density systems like drive-in rack, push-back rack, or mobile shelving where access frequency is low and space efficiency is the priority.

Aisle width optimization balances storage density against equipment access requirements. Standard wide aisles (12–13 feet) accommodate conventional sit-down counterbalance forklifts — the most versatile but least space-efficient option. Narrow-aisle layouts (8–10 feet) use reach trucks to access deeper rack while recovering 25–30% of floor space versus wide aisles. Very-narrow-aisle (VNA) layouts (5–6 feet) use wire-guided turret trucks to achieve maximum rack density in the same building footprint. Each aisle width decision cascades into equipment selection, rack depth, and picking methodology choices.

Our CAD layouts include detailed rack bay counts, beam elevations, load capacities, aisle designations, and equipment paths. We model multiple layout scenariosand present the trade-offs between storage density, throughput capacity, and capital cost so you can make an informed decision that balances all three objectives.

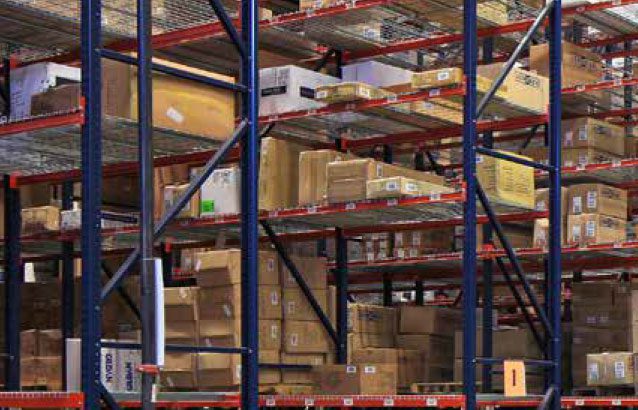

Selective pallet rack is the most common warehouse storage system — providing direct forklift access to every pallet position in the rack. Standard configurations use roll-formed or structural uprights with stepped beams at multiple levels. Selective rack is the most versatile system, accommodating any pallet size and providing 100% selectivity (instant access to any stored pallet), but it requires a dedicated aisle for every row of rack, which limits storage density.

Drive-in and drive-through rack systems dramatically increase storage density by allowing forklifts to drive directly into multi-deep rack lanes. Drive-in systems have one entry point (LIFO access — last pallet in is the first pallet out), while drive-through systems have entry points on both sides (FIFO access — first pallet in is the first pallet out). These systems are ideal for high-volume, low-SKU operations where you store large quantities of the same product — bulk commodities, seasonal inventory, and raw materials.

Push-back rack combines high-density storage with easy access. Pallets are placed on nested carts that ride on inclined rails — each new pallet pushes the previous pallets deeper into the lane. When a front pallet is removed, gravity rolls the next pallet forward to the pick face. Push-back systems provide 2–6 deep storage with LIFO accessand are the preferred high-density alternative when drive-in rack’s tight operating tolerances are a concern.

Pallet flow (gravity flow) rack uses roller conveyors within the rack structure to create first-in, first-out (FIFO) deep lane storage. Pallets are loaded at the high end and roll by gravity to the pick face at the low end. Pallet flow is the premium high-density solution for date-sensitive and perishable products where FIFO rotation is mandatory — cold chain distribution, food manufacturing, pharmaceutical warehousing, and beverage distribution.

Most warehouse projects involve equipment from multiple manufacturers — rack from one vendor, shelving from another, mezzanines from a third, and security cages from a fourth. When each product comes from a different dealer, you inherit the coordination burden: aligning delivery schedules, reconciling dimensional conflicts between systems, and managing multiple installations that must happen in sequence. One delayed shipment cascades into a weeks-long project delay.

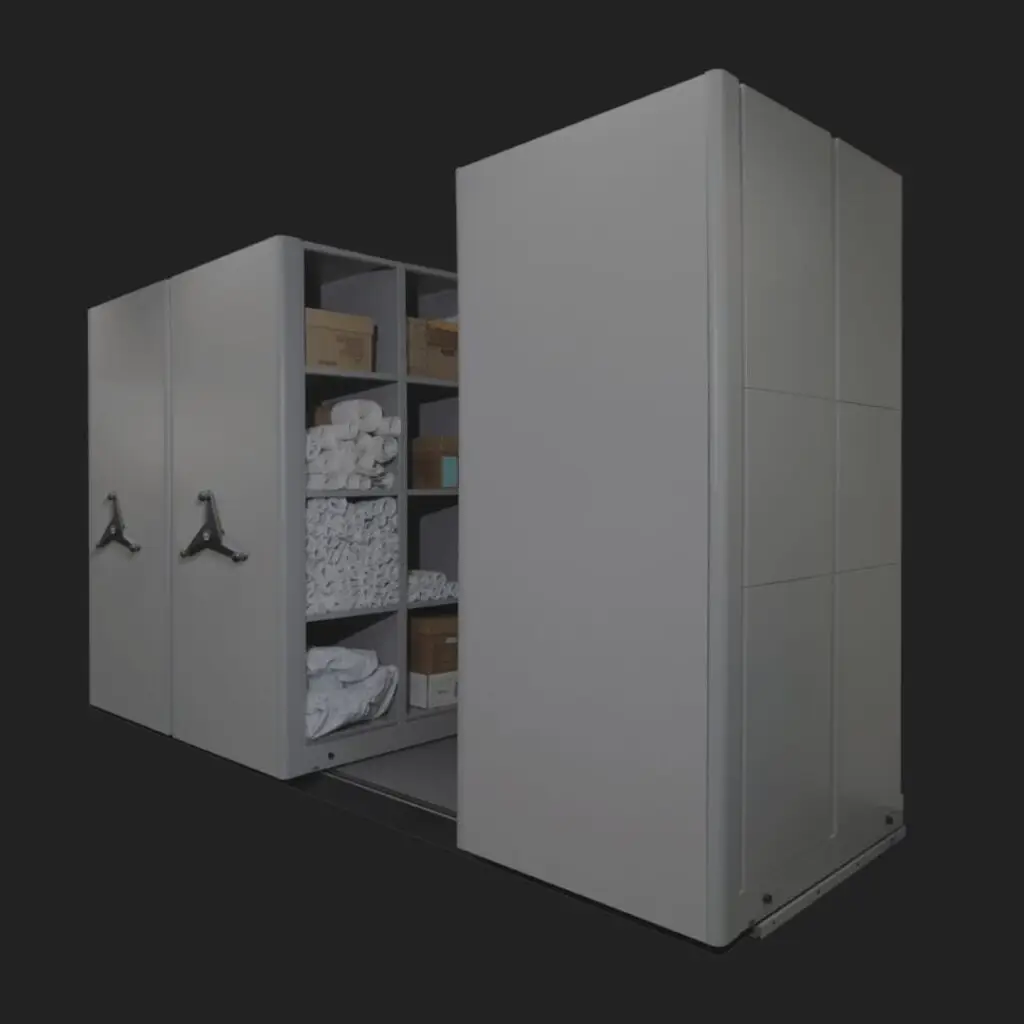

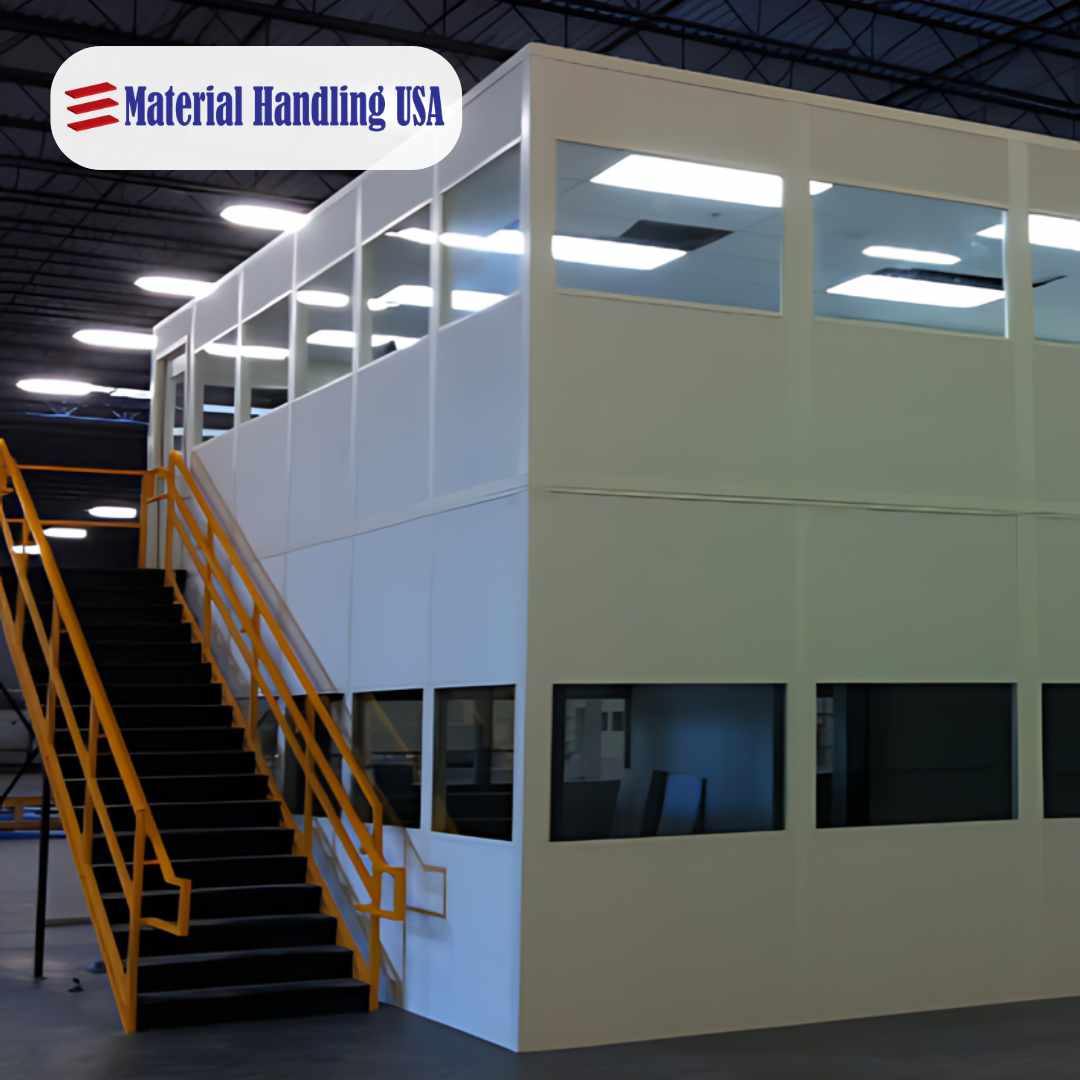

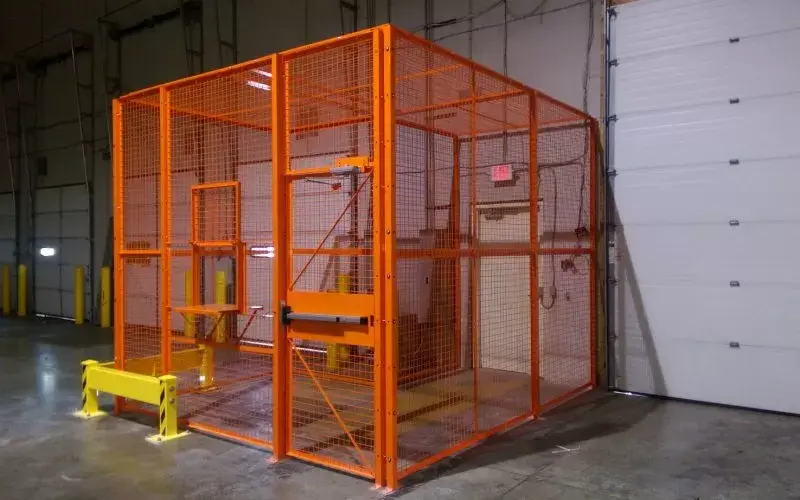

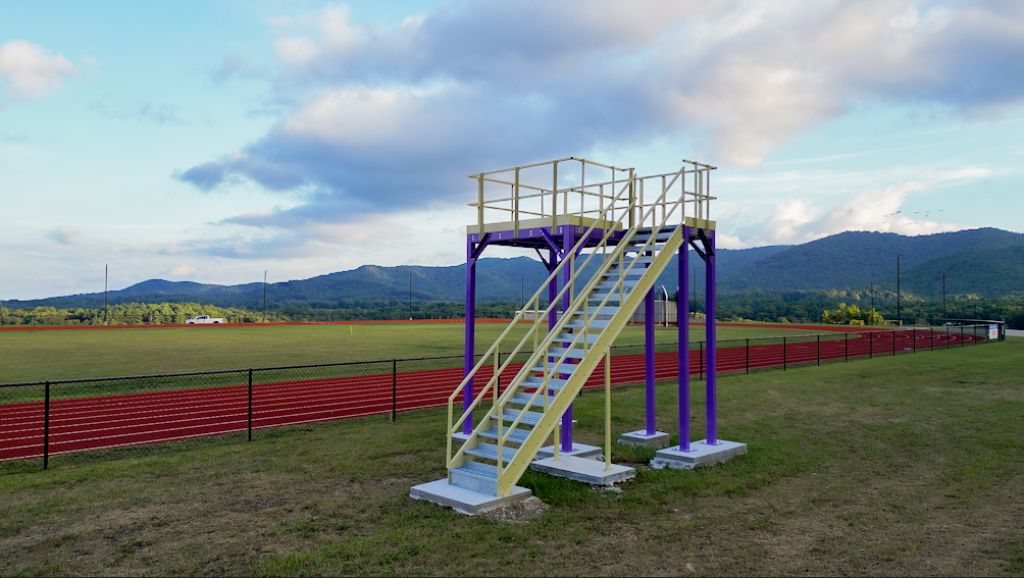

Material Handling USA eliminates multi-vendor coordination by serving as your single point of contact for every product category in the warehouse. We manage the design integration, procurement timing, and installation sequencing across all equipment lines — Interlake Mecalux pallet rack, Jaken shelving, SpaceGuard/BeastWire security cages, Panel Built mezzaninesand offices, and Aurora mobile shelving — delivering a completed warehouse project rather than a pile of individual product orders.

Single-source projects also produce better designs. When one team controls all the equipment specifications, they can optimize interactions between systems — rack heights that align with mezzanine clearances, cage placements that don’t block fire lanes, shelving depths that match aisle widths established by the rack layout. These integration details are where single-source design delivers the most value versus coordinating between independent vendors who don’t communicate with each other.

A warehouse design is incomplete without specifying the material handling equipment that moves product through the facility. Equipment selection and rack layout are interdependent decisions — the type of forklift determines minimum aisle width, which determines rack row spacing, which determines total storage capacity. Material Handling USA designs the complete system — rack, shelving, equipment, and layout — together, ensuring every component works in harmony.

Counterbalance forklifts are the most versatile warehouse vehicles, operating indoorsand outdoors on smooth and rough surfaces. They require 12–13 foot aisles for right-angle stacking, which provides comfortable operating room but limits storage density. Reach trucks extend their forks beyond the front wheels to access deeper rack in 8–10 foot aisles, recovering 25–30% of floor space versus counterbalance layouts. Order pickers elevate the operator to pick-face height for case and piece picking from elevated rack levels.

Conveyor systems automate horizontal material movement between work zones — receiving to storage, storage to pick, pick to pack, pack to ship. Gravity roller conveyor provides simple, low-cost material movement on a downhill grade. Powered belt and roller conveyors handle heavier loadsand horizontal or inclined transport. Sortation systems use diverters, pop-up wheels, or shoe sorters to route packages to specific shipping lanes based on carrier, destination, or priority.

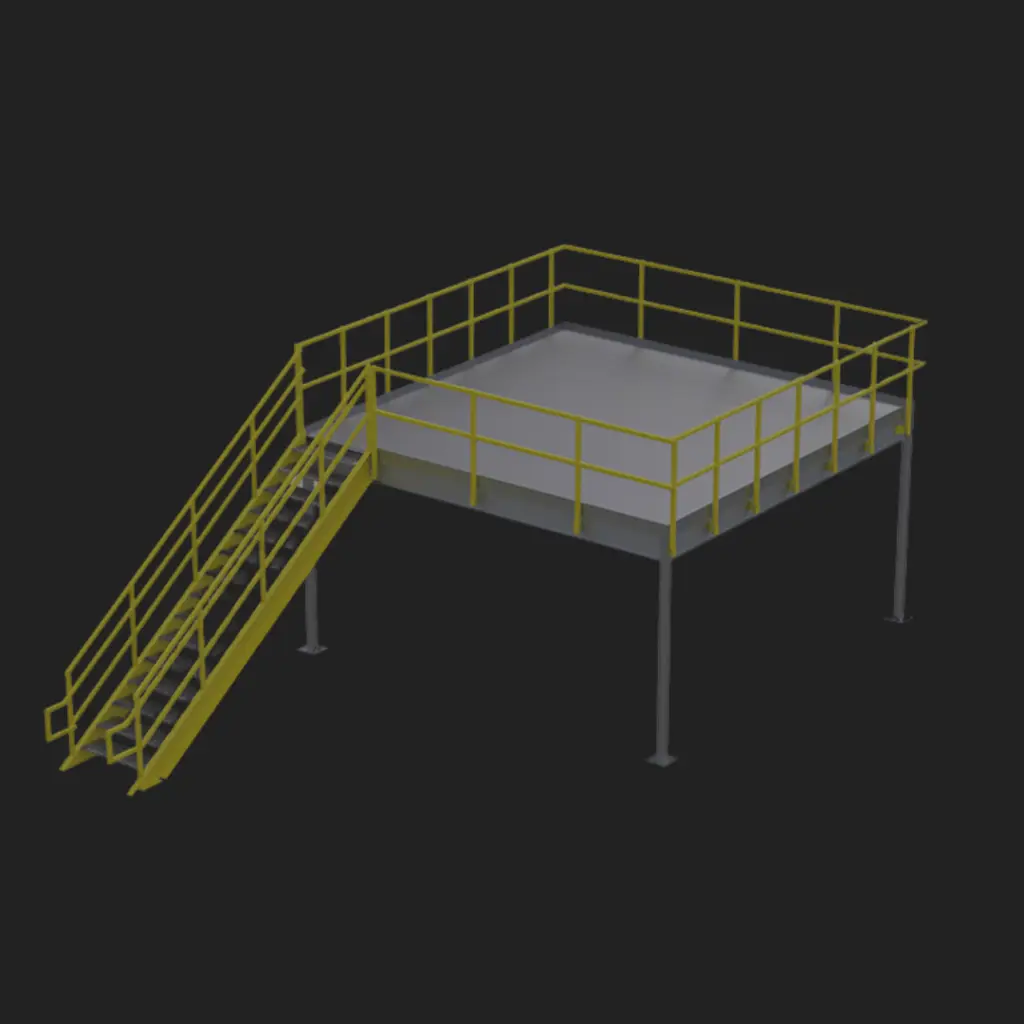

Vertical reciprocating conveyors (VRCs) move materials between mezzanine levels without requiring forklift ramp access. VRCs are safer than ramps (no forklift traffic on elevated surfaces), more space-efficient (a VRC footprint is a fraction of a ramp’s), and can be automated with conveyor connections at each level for continuous material flow. When combined with mezzanine pick modules, VRCs create fully integrated multi-level fulfillment systems that maximize throughput in compact building footprints.
