Interactive Product Design Tools
Configure pallet racks, cantilever systems, and automated storage solutions online. Visualize your layout in 3D, generate a bill of materials, and request a quote — all before speaking with a specialist.
Need help? Call (800) 326-4403 or Email Sales@MH-USA.com
Our Interactive Design Tools
Skip the guesswork. Use our free online configurators to design your ideal storage system, see it in 3D, and get an instant bill of materials with pricing.
Pallet Rack Designer
Design selective pallet rack systems withour interactive 3D tool. Choose beam lengths, upright heights, number of baysand levels, then see your layout rendered in real time. The configurator automatically generates a complete bill of materials you can submit for a quote.
Cantilever Rack Designer

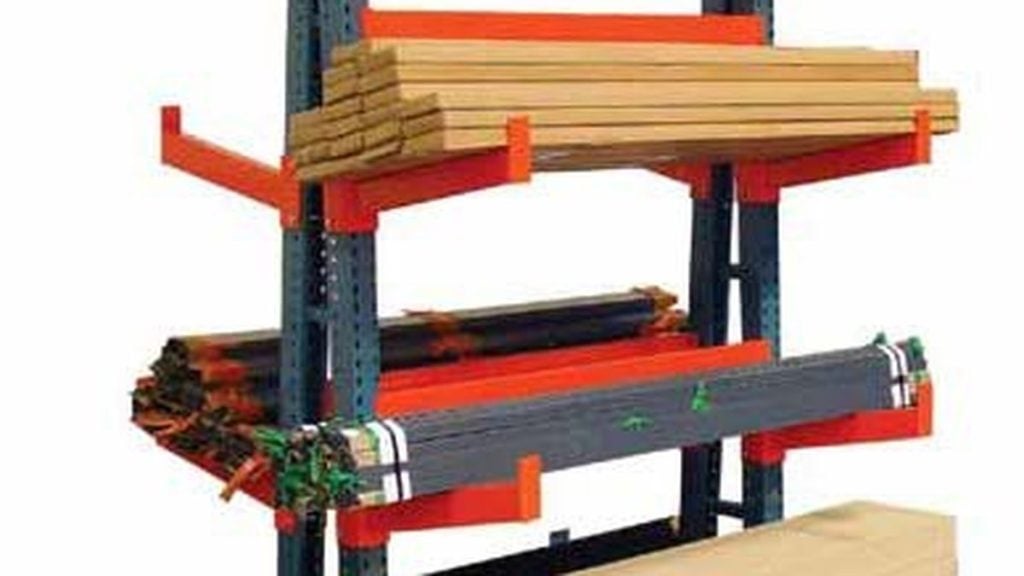

Configure cantilever rack systems for lumber, pipe, steel, and other long materials. Set arm lengths, upright heights, base depths, and number of towers. The 3D preview updates instantly so you can visualize your system before requesting a quote.
Automated Vertical Storage
Explore Vidir’s automated vertical storage systems — including vertical carousels for wire spools, tires, garments, sheet metal, and more. Answer a few questions about your storage needsand get a recommended system configuration with a detailed quote request.
How It Works
Our design tools walk you through the configuration process step by step — no engineering degree required.
Choose a Product
Select the storage system you need — pallet rack, cantilever rack, or automated vertical storage.
Configure Your Layout
Set dimensions, number of bays, load capacity, and accessories. The 3D preview updates in real time.
Review Your BOM
See a complete bill of materials with every component listed — uprights, beams, decking, and hardware.
Request a Quote
Submit your configuration directly to our sales team. We’ll respond with pricing and lead times within one business day.
Why Use Our Design Tools?
Our interactive configurators put the power of professional warehouse design in your hands. Whether you’re planning a new installation or expanding an existing system, these tools help you get accurate specifications without waiting for a site visit.
- Save Time — Get accurate specificationsand a bill of materials in minutes, not days. No need to wait for a site visit to start planning.
- Visualize Before You Buy — See your rack system rendered in 3D before placing an order. Adjust dimensionsand configurations until the layout is exactly right.
- Accurate Bill of Materials — Every component is accounted for — uprights, beams, braces, footplates, anchors, and accessories — so there are no surprises during installation.
- Instant Quote Requests — Submit your configuration directly to our engineering team. We’ll send you a detailed quote with pricing, availability, and estimated lead times.
- No Account Required — All design tools are free and available online with no sign-up. Start designing immediately.
Pallet Rack Designer — Build Your Warehouse Layout

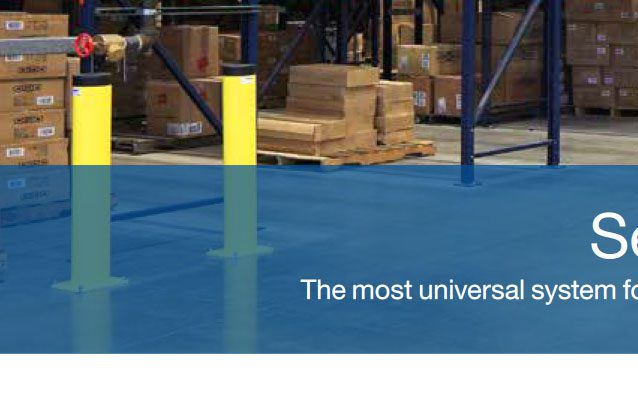

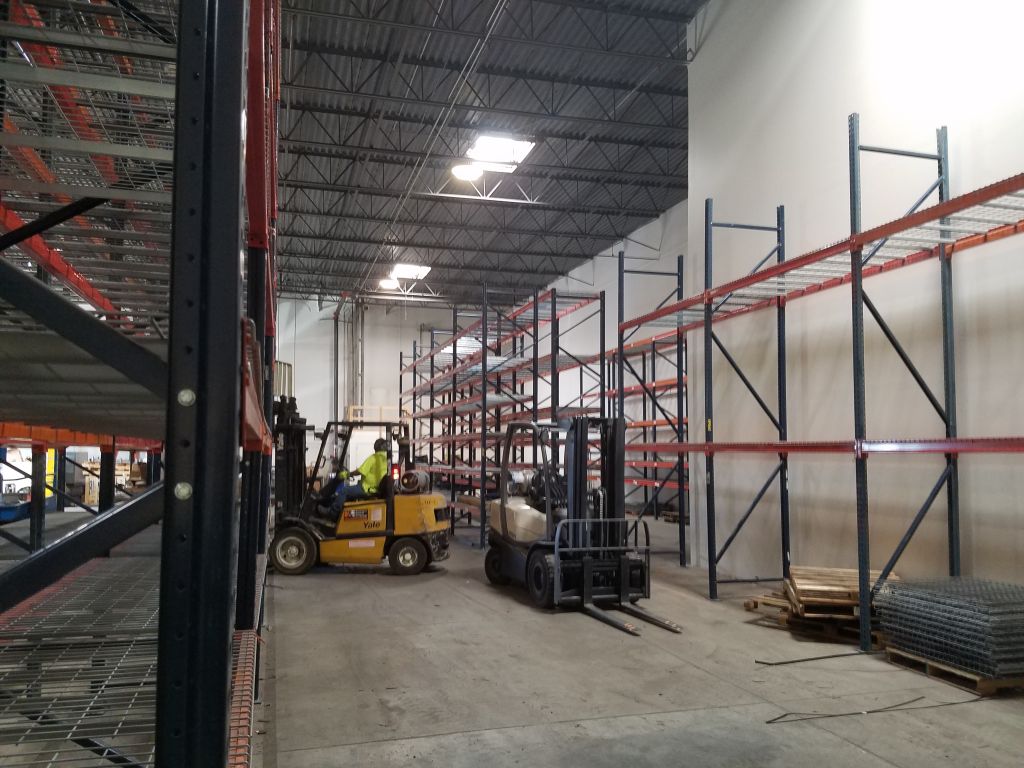

Our Pallet Rack Designer is the fastest way to plan a selective pallet rack installation. Configure every detail of your racking system with a live 3D preview that updates as you make changes.
Choose from standard beam lengths (96″ and 144″), upright heights up to 240″, and multiple bay configurations. Add wire decking, crossbars, and row spacers to complete your system. The designer supports single-row, back-to-back, and multi-bay layouts — the same configurations our engineers design for warehouses across the country.
Once your layout is finalized, the tool generates a detailed bill of materials listing every component, quantity, and part number. Submit the BOM directly through the designer to receive competitive pricing from our sales team — typically within one business day.
Cantilever Rack Designer — Plan Your Long-Material Storage
The Cantilever Rack Designer helps you plan storage systems for lumber, pipe, steel bar stock, tubing, and other long or irregularly shaped materials. Cantilever racks eliminate the front-column obstruction found in selective pallet rack, giving forklifts full access to every storage level.
Use the 3D configurator to set arm lengths, arm capacities, upright heights, base depths, and the number of towers in your system. Choose between single-sided and double-sided configurations depending on your floor plan and access requirements. The preview renders your system instantly so you can see exactly how it will look in your facility.
When your design is ready, submit the configuration for a quote. Our team will review your layout and provide pricing, including delivery and installation options for your location.
Automated Vertical Storage — Automated Vertical Systems

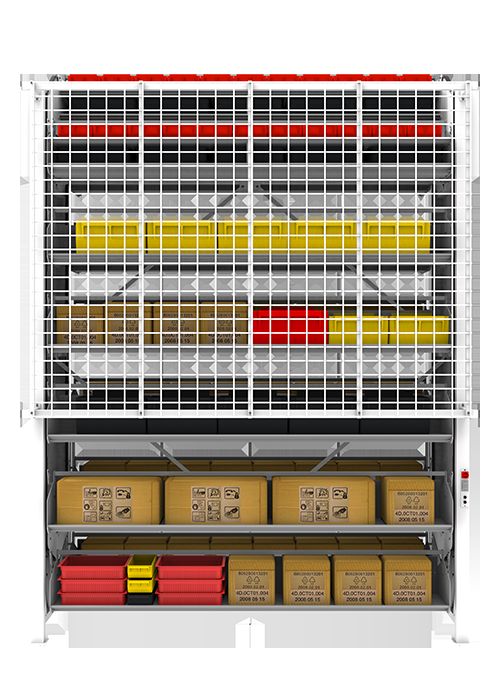

The Automated Vertical Storage is a guided wizard that helps you explore Vidir’s full line of automated vertical storage systems. Unlike conventional shelving, vertical carouselsand lift modules store materials in a compact vertical footprint — recovering up to 80% of your floor space.
The wizard walks you through a series of questions about your storage needs: What are you storing? How much do items weigh? How many do you need to access? Based on your answers, it recommends the ideal Vidir system — whether that’s a wire spool carousel, tire carousel, garment carousel, sheet metal carousel, or general-purpose shelving carousel.
Each recommendation includes a system overview, key specifications, and a quote request form so you can get pricing from our Vidir specialists.
Which Design Tool Is Right for You?
Not sure where to start? Use this quick comparison to find the right tool for your project.
| Feature | Pallet Rack Designer | Cantilever Rack Designer | Automated Vertical Storage |
|---|---|---|---|
| Best For | Palletized goods, boxes, cartons | Lumber, pipe, steel, long materials | Small parts, wire, tires, garments |
| Interface Type | 3D Configurator | 3D Configurator | Guided Wizard |
| 3D Preview | ✓ | ✓ | ✓ |
| Bill of Materials | ✓ | ✓ | ✓ |
| Quote Request | ✓ | ✓ | ✓ |
| Typical Industries | Warehouse, distribution, retail | Lumber yards, steel distributors, manufacturing | Auto parts, garment, electrical supply |
Frequently Asked Questions
Common questions aboutour interactive design tools.
Are the design tools free to use?
Yes. All ofour interactive design tools are completely free and available online. No account, login, or download is required. Simply open the tool, configure your system, and submit a quote request when you’re ready.
How accurate are the configurations?
The designers use the same component dimensionsand specifications we use for professional installations. The bill of materials generated by each tool accounts for all required components — uprights, beams, braces, baseplates, and hardware. Our engineering team reviews every submitted configuration before providing a final quote.
Can I save my design and come back to it later?
Currently, designs are session-based. We recommend submitting a quote request when your design is ready — our team will store your configuration and can make adjustments as needed. We’re actively working on adding save and share features to all design tools.
What if I need a product that isn’t covered by these tools?
Our design tools cover our most popular product lines, but Material Handling USA offers a much wider range of warehouse and storage solutions — including mobile shelving, mezzanines, modular buildings, and security cages. Contactour team at (800) 326-4403 or request a quote for any product.
How quickly will I get a quote after submitting?
Our sales team typically responds within one business day with detailed pricing, lead times, and delivery options. For complex or multi-system configurations, we may schedule a brief consultation to confirm specifications before providing a final quote.
Do you offer installation services?
Yes. Material Handling USA provides professional installation services nationwide. When you submit a quote request through any ofour design tools, let us know you need installation and we’ll include labor pricing in your quote. Our certified installers handle everything from floor anchoring to seismic bracing.
Need a Custom Solution?
Our design tools are a great starting point, but some projects need a custom approach. If you have a complex layout, mixed product requirements, or need a full warehouse design, our team can help.
Call Us
Speak with a storage specialist who can help you plan your project from start to finish.
Email Us
Send us your requirementsand we’ll respond with a detailed proposal within one business day.
Request a Quote
Fill outour quote form with project detailsand a specialist will follow up with pricing.
Industries We Serve
Our design tools are built for the same industries we’ve been serving for over 25 years. Whether you’re outfitting a distribution center or organizing a retail backroom, our configurators help you plan smarter.
Warehousing & Distribution
Distribution centersand third-party logistics (3PL) providers use our Pallet Rack Designer to plan high-density storage layouts that maximize cube utilization. Configure selective, double-deep, or drive-in rack systems for palletized inventory, then request a quote that includes delivery to your dock.
Lumber & Building Materials
Lumber yards, building supply dealers, and steel service centers rely on cantilever rack to store long, heavy materials. Our Cantilever Rack Designer lets you configure single-sided and double-sided systems with the exact arm capacitiesand tower heights your operation requires — eliminating costly over-engineering or under-spec’d systems.
Manufacturing & Assembly
Manufacturers use our design tools to plan raw material storage, work-in-process staging, and finished goods areas. The Pallet Rack Designer handles traditional shelving needs while the Automated Vertical Storage recommends automated vertical systems for high-value partsand components that benefit from controlled access.
Automotive & Tire Storage
Auto dealerships, tire retailers, and fleet maintenance shops use our Automated Vertical Storage to plan Vidir tire carousels that store hundreds of tires in a fraction of the floor space. These automated systems eliminate manual stacking and reduce the risk of tire damage from improper storage.
Electrical & Wire Supply
Electrical distributorsand wire supply houses use our Automated Vertical Storage to configure Vidir wire spool carousels. These vertical systems store spools of all sizes in a compact footprint, with motorized retrieval that brings the right spool to the operator — reducing pick times by up to 70 percent.
Retail & E-Commerce
Retailersand e-commerce fulfillment operations use our Pallet Rack Designer to plan pick-and-pack areas, overstock storage, and receiving zones. The tool supports standard 42-inch deep selective rack as well as 48-inch deep systems for retail-ready pallets, with wire decking options for fire code compliance.
From Design to Installation — We Handle Everything
Our design tools are just the beginning. Material Handling USA provides end-to-end service from initial planning through installation and beyond.
Professional Engineering Review
Every quote request submitted throughour design tools is reviewed byour engineering team. We verify load capacities, seismic requirements, local building codes, and fire protection compliance before issuing a final proposal. If your configuration needs adjustments, we will recommend changesand explain why — no surprises during installation.
Nationwide Delivery & Installation
We ship rack systems to all 50 statesand provide professional installation throughour network of certified installers. Our team handles permitting, floor anchoring, seismic bracing, and final inspection. Most standard pallet rack and cantilever installations are completed within 1 to 3 days depending on system size.
Ongoing Support & Expansion
As your business grows, your storage needs change. Our design tools make it easy to plan expansions that integrate with your existing systems. Need to add bays, extend an aisle, or upgrade to higher-capacity beams? Use the designer to configure your addition and submit a quote — we will match your existing system specifications.
Multi-Product Warehouse Design
Many warehouses need more than one type of storage system. Use our Pallet Rack Designer for palletized goods, our Cantilever Rack Designer for long materials, and our Automated Vertical Storage for automated vertical storage — then combine all three quote requests into a single project. Our team will coordinate a unified proposal with integrated pricing.
Why Customers Trust Material Handling USA
With over 25 years of experience designing and installing warehouse storage systems, Material Handling USA has earned the trust of businesses across every major industry.
Expert Engineering
Our engineering team brings decades of experience in warehouse layout design, structural analysis, and building code compliance. Every system we design meets or exceeds RMI (Rack Manufacturers Institute) standards, and we provide stamped engineering drawings when required by your local jurisdiction. Our designers also factor in forklift aisle widths, sprinkler clearances, and seismic zone requirements specific to your location.
Direct Manufacturer Pricing
We work directly with leading manufacturers — including Interlake Mecalux, Unarco, Steel King, and Vidir — to offer competitive pricing without middleman markups. Our volume purchasing relationships mean you get better pricing on components, faster lead times on custom orders, and access to manufacturer warranties that protect your investment for years to come.
Turnkey Project Management
From the moment you submit a design through one ofour interactive tools, our project managers take ownership of the entire process. We handle order coordination, shipment scheduling, site preparation guidance, professional installation, and post-installation inspection. Our team keeps you informed at every stage with progress updates, tracking numbers, and installation timelines — so your warehouse stays productive during the transition.
More Design Resources
Explore additional pages to help you plan your warehouse storage project.
Pallet Rack Systems
Learn about selective, drive-in, push-back, and other pallet rack configurations.
Cantilever Rack Systems
Explore cantilever solutions for lumber, pipe, steel, and long materials storage.
Request a Custom Quote
Have a unique project? Contact us for a tailored warehouse storage solution.
Getting Started Is Simple
If you have never used an online product configurator before, here is what to expect. Each ofour design tools runs directly in your web browser — no downloads, plugins, or account registration required. Simply click one of the designer links above and start configuring your storage system immediately.
The Pallet Rack Designer and Cantilever Rack Designer both feature interactive 3D previews powered by WebGL. You will see a three-dimensional rendering of your rack system that updates in real time as you adjust dimensions, add bays, change heights, and select accessories. You can rotate, zoom, and pan the 3D view to inspect your design from any angle. The bill of materials panel on the side lists every component with quantitiesand part descriptions.
The Automated Vertical Storage takes a different approach. Instead of a freeform configurator, it uses a guided wizard that asks you a series of questions about what you are storing, how much space you have, and what your throughput requirements are. Based on your answers, it recommends the best Vidir vertical storage system for your application and generates a quote request pre-filled with your specifications.
When you are ready, click the quote request button in any of the designers. Fill in your contact information, add any notes about your project, and submit. Our sales team will receive your complete configuration — including all dimensions, component lists, and any special requirements — and respond with pricing within one business day. There is no obligation and no pressure. We are here to help you find the right storage solution for your facility.
Ready to Design Your Storage System?
Choose a design tool above to get started — or contactour team for a custom solution.
