Complete Mobile Shelving System Guide

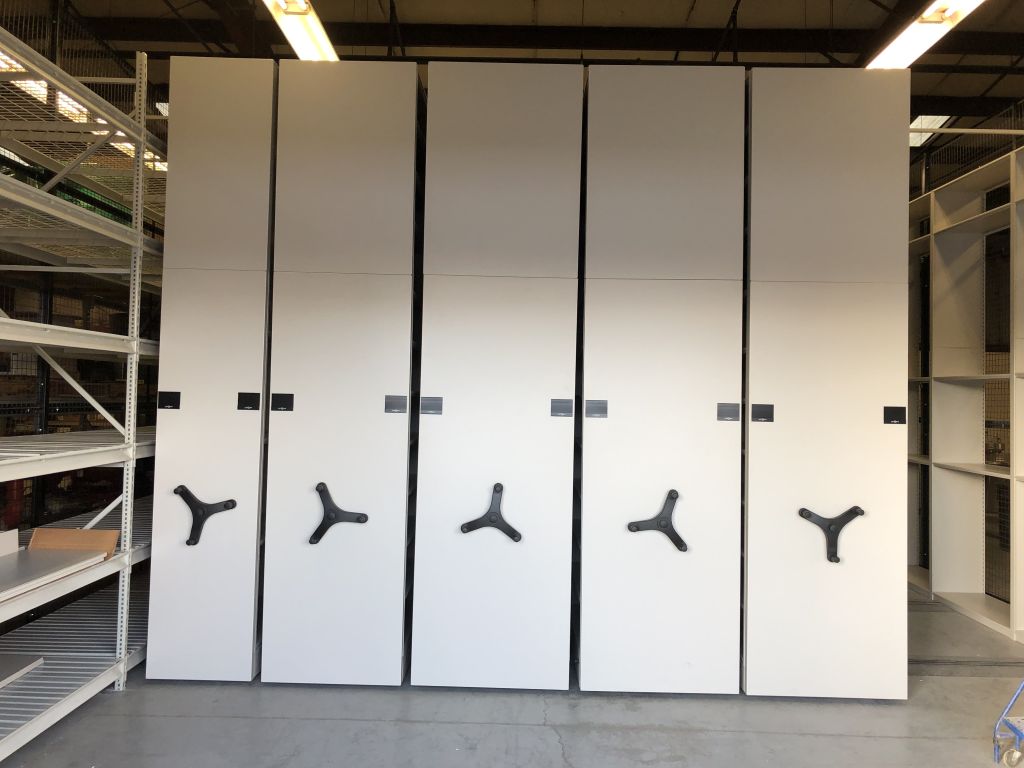

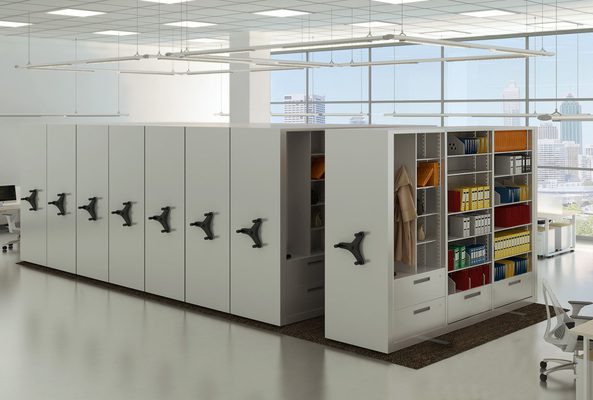

Mobile shelving — also called compact shelving, high-density shelving, or movable shelving — places standard shelving units on wheeled carriages that roll along floor-mounted tracks. Instead of fixed aisles between every row, only one aisle opens at a time between the rows you need to access. The result: double the storage capacity in the same floor area, or the same capacity in half the space.

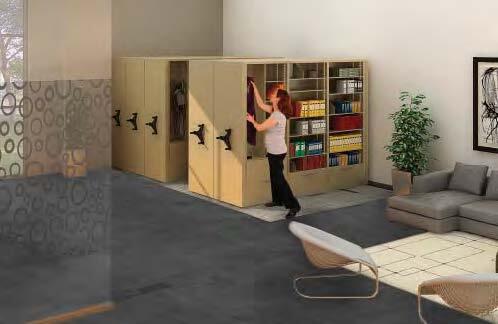

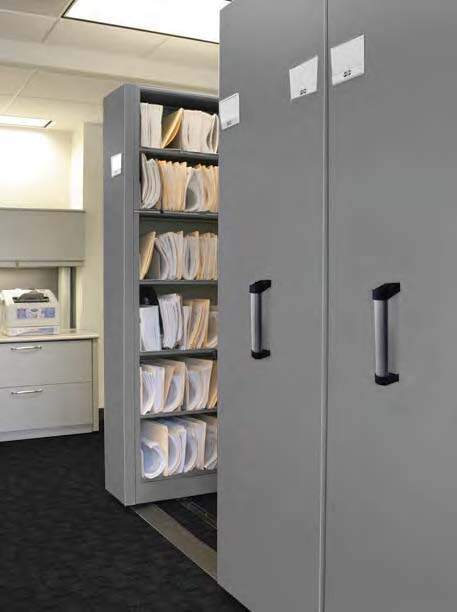

Material Handling USA partners with Aurora Storage Products, America’s leading mobile shelving manufacturer, to deliver manual, mechanical-assist, and powered mobile shelving systems for every application — from office file rooms to warehouse parts storage to museum collection archives.

The concept is simple but the engineering is sophisticated. Carriages must support thousands of pounds of loaded shelving while rolling smoothly on precision-machined wheels. Anti-tip mechanisms prevent multiple aisles from opening simultaneously. Safety systems detect obstructions and halt carriage movement. And the floor track system must distribute load across the subfloor without structural reinforcement in most cases.

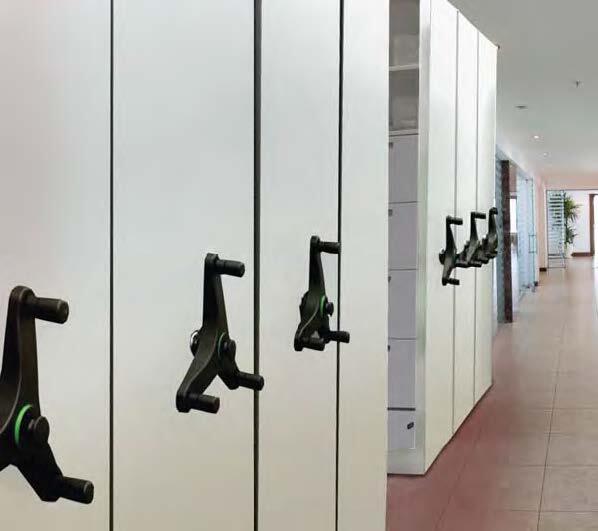

Aurora Storage Products has manufactured high-density mobile shelving since 1988 from their Millwood, West Virginia facility. Their Times-2 and Quik-Lok product lines set the industry standard for build quality, load capacity, and operational reliability. Aurora systems are specified by the GSA for federal government installations and are found in libraries, hospitals, courthouses, museums, and military facilities nationwide.

Aurora’s carriage system uses precision-machined steel wheels running on heavy-duty floor tracks. Anti-tip safety mechanisms prevent more than one aisle from opening simultaneously. Powered systems include photoelectric safety sweeps that stop carriage movement when an obstruction is detected in the aisle. Optional features include LED aisle lighting, digital aisle-end displays, and RFID inventory tracking integration.

Every Aurora system is backed by a 15-year carriage warranty and lifetime structural warranty. The powder-coated steel shelving and components deliver 25+ years of reliable service in demanding commercial and industrial environments.

Office and government file rooms use mobile shelving to consolidate decades of paper records in minimal floor space — critical when lease rates are high and digital conversion isn’t complete. Healthcare facilities store pharmaceuticals, surgical supplies, and patient records on mobile shelving to maximize clean-room storage density.

Museums, libraries, and archives use mobile shelving with climate-control compatibility to protect paintings, books, specimens, and artifacts while maximizing collection-accessible storage. Military armories store weapons and equipment on mobile shelving that meets AR 190-11 physical security requirements.

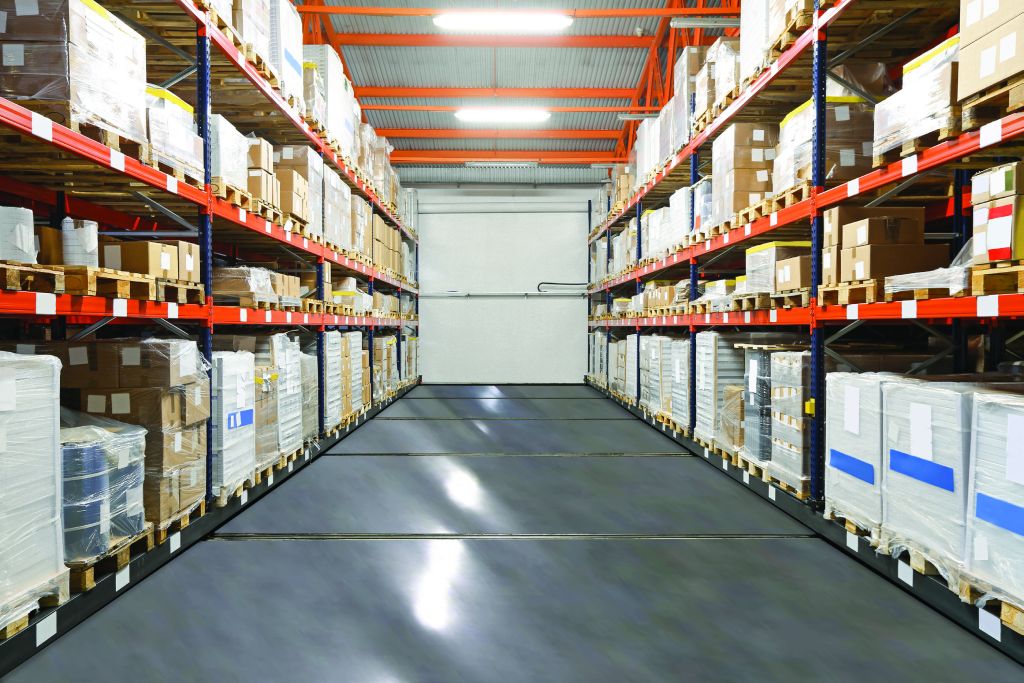

Warehouses and distribution centers deploy mobile shelving for slow-moving parts, maintenance supplies, and overflow inventory that doesn’t justify full pallet-rack bays. Law enforcement evidence rooms use mobile shelving to organize and secure chain-of-custody items in compliance with CJIS and accreditation standards.

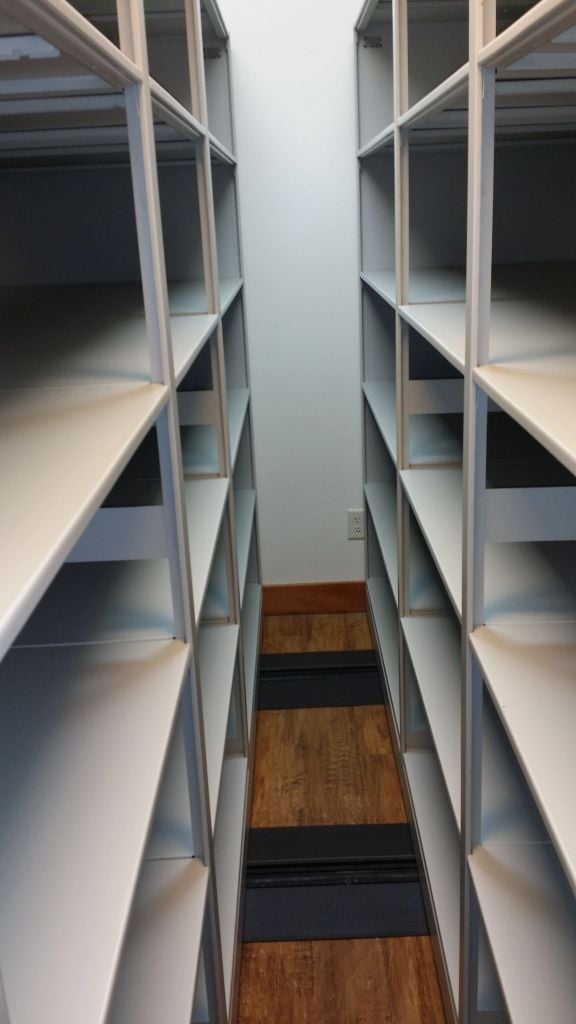

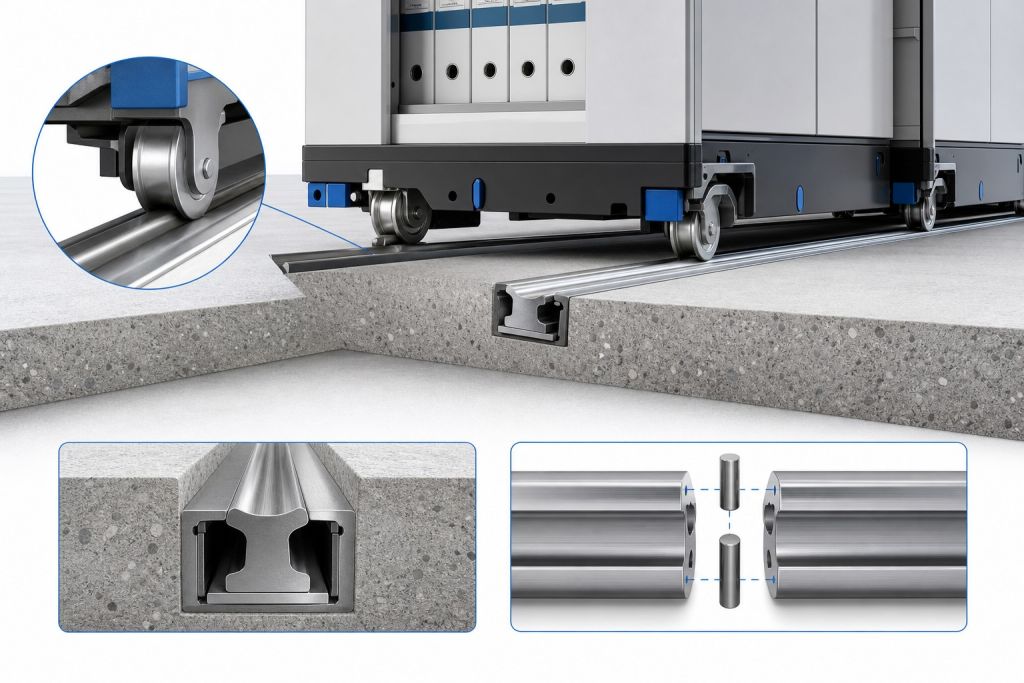

Mobile shelving carriages ride on precision-machined steel rails bolted to the floor. Track installation is the most critical phase of a mobile shelving project — level, straight, and securely anchored tracks ensure smooth carriage operation and even load distribution for the life of the system. Aurora’s installation teams use laser-leveling equipment to align tracks within 1/16-inch tolerance across the full run length.

Floor requirements vary by system weight and building construction. Most standard commercial concrete floors (4-inch slab, 125+ PSF rating) support mobile shelving systems without modification. Aurora engineers perform a structural load analysis before every project, calculating the concentrated load at each wheel point and the distributed load across the track system. If floor reinforcement is needed — which is uncommon — we identify this during the design phase before any equipment is ordered.

Track systems can be surface-mounted (bolted on top of the existing floor) or recessed into the slab for flush-floor installation. Surface-mounted tracks are faster and less expensive to install but create a small step at the system perimeter. Recessed tracks provide a smooth, trip-free transition from aisle floor to adjacent floor areas — preferred in healthcare, office, and ADA-priority environments. Both methods provide equal structural performance; the choice is primarily one of aesthetics and accessibility requirements.

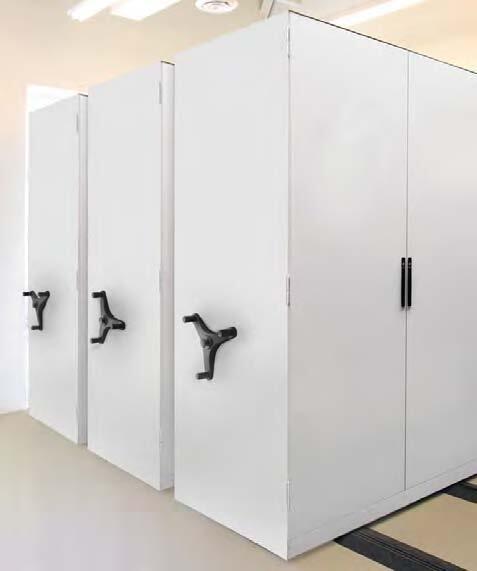

Museums, libraries, and archives face a unique storage challenge: they must protect irreplaceable collections in climate-controlled environments while providing researcher and curator access to individual items on demand. Mobile shelving solves this equation by maximizing collection-accessible storage within limited climate-controlled square footage — every item is on a shelf, organized, labeled, and retrievable without moving other items.

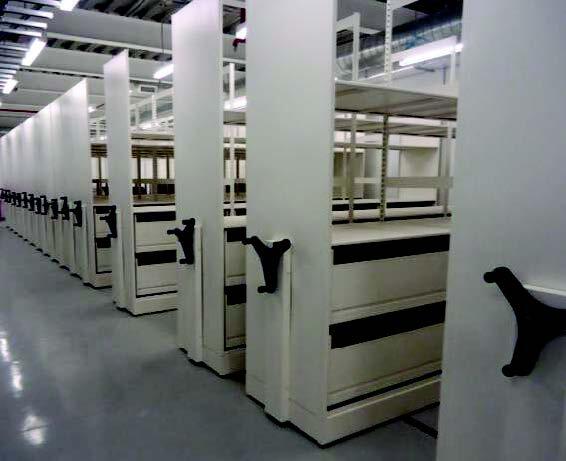

Museum collection storage on mobile shelving uses specialized carriages with vibration-damping mounts that isolate stored objects from the mechanical motion of carriage travel. Shelf surfaces are padded or lined with archival-quality materials that prevent scratching and off-gassing damage. Oversized bays accommodate paintings on sliding screens, textiles on rolled storage systems, and sculptures on adjustable-height platforms. Custom carriage widths and depths are engineered to match the specific dimensions of the collection items being stored.

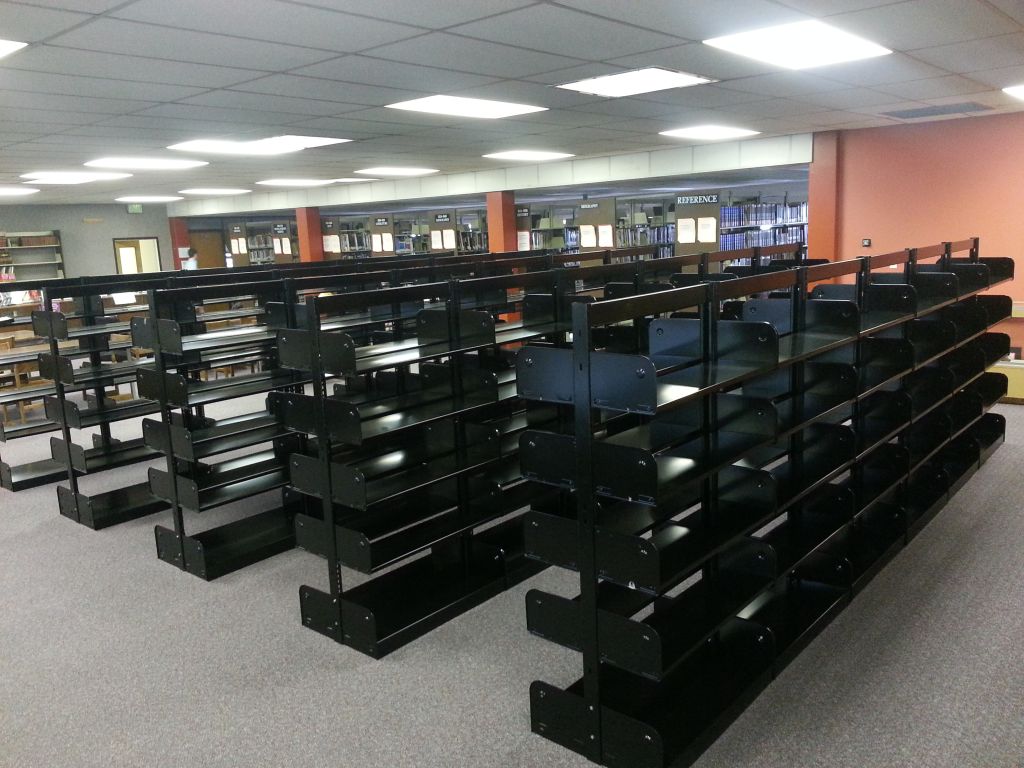

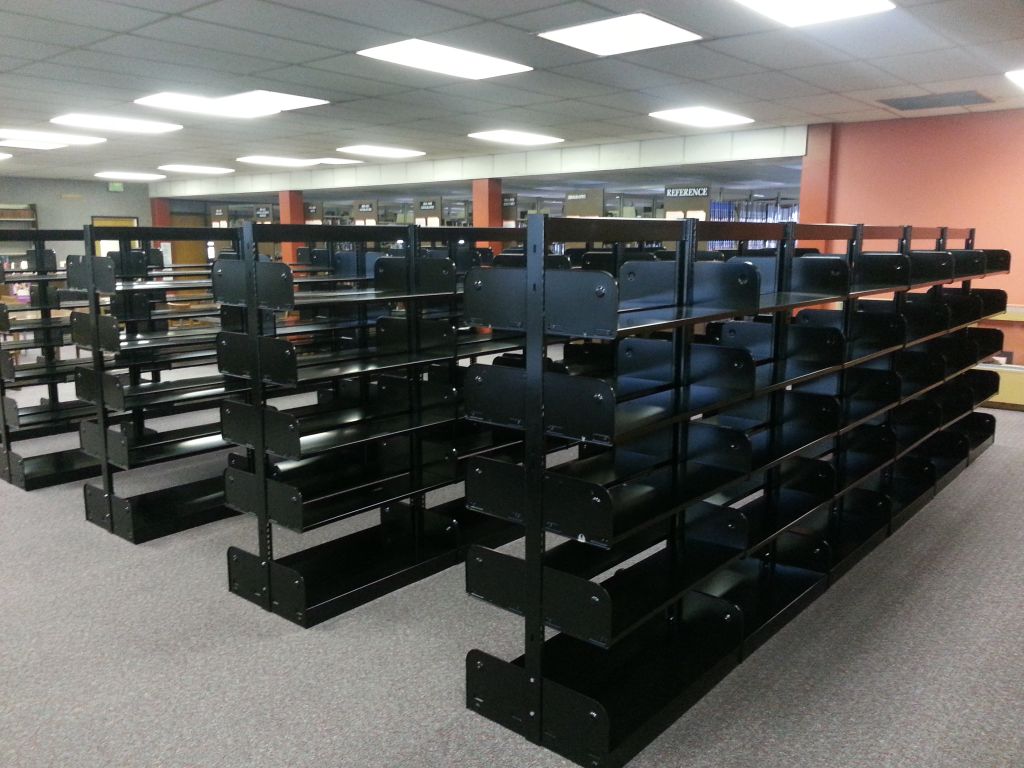

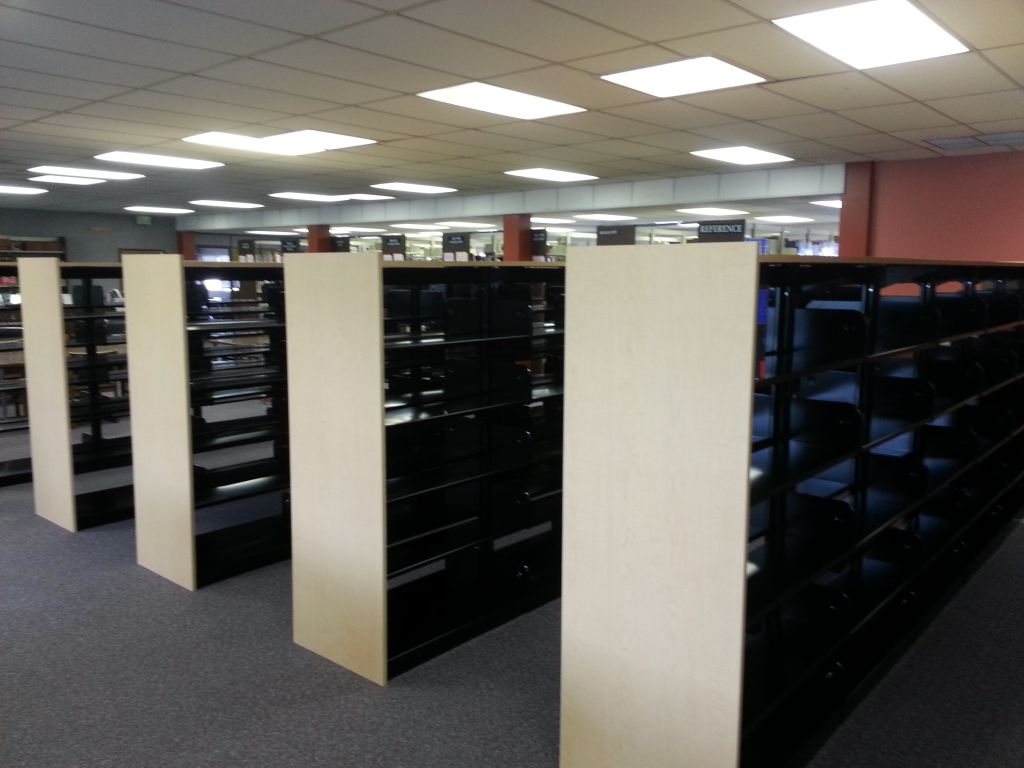

Library and archival mobile shelving systems handle the enormous weight of book and document collections — a single 36-inch shelf of bound volumes can weigh 150+ pounds, and a fully loaded carriage may exceed 10,000 pounds. Aurora’s heavy-duty carriage frames and track systems are engineered for these extreme loads with reinforced wheel assemblies, wider track profiles, and oversized drive mechanisms. Powered drive systems are standard on library installations because the carriage weights make manual operation impractical.

Climate compatibility is essential — mobile shelving systems must not interfere with the precise temperature and humidity control required for collection preservation. Aurora carriages are designed with open-bottom construction that allows conditioned air to circulate beneath and around the stored collections. System layouts incorporate end-panel ventilation gaps and aisle-lighting configurations that support the building’s HVAC distribution strategy.

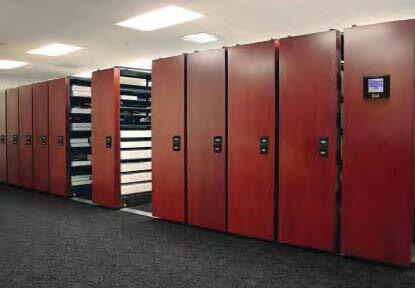

Powered mobile shelving systems use electric motors to drive carriages along floor tracks at the push of a button. Aurora’s powered systems feature touchscreen aisle-end displays that show carriage position, aisle status, and can integrate with inventory management software to direct workers to specific shelf locations. LED aisle lighting activates automatically when an aisle opens, illuminating the work area for efficient picking.

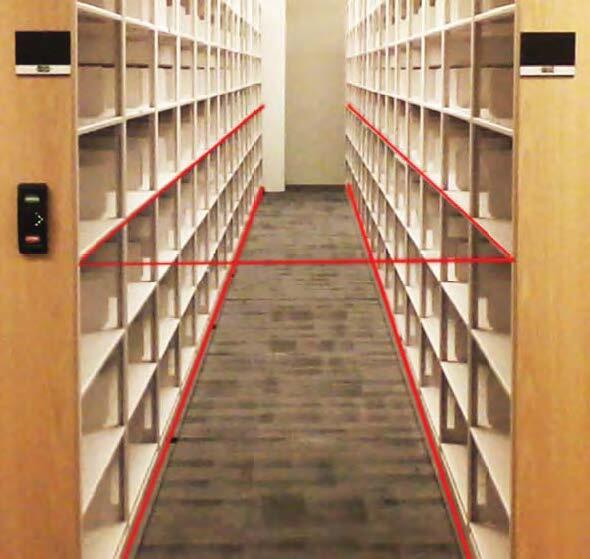

Safety is engineered into every powered system. Photoelectric safety sweeps span the full height of each aisle opening — if any person or object breaks the beam while carriages are moving, motion stops immediately. Floor-level safety bars detect low obstructions like feet, pallets, or dropped items that might not break the photoelectric beam. Emergency stop buttons at both ends of every aisle provide manual override. These redundant safety systems meet ANSI/BIFMA X5.21 standards and satisfy OSHA requirements for automated equipment in occupied spaces.

Powered systems are the preferred choice for heavy loads (over 5,000 lbs per carriage), frequent access (more than 20 aisle openings per hour), and ADA-priority environments where manual cranking creates an accessibility barrier. Operating power is standard 120V single-phase — no special electrical service required. Energy consumption is minimal because motors only run during the brief carriage-travel period, which typically lasts 5–15 seconds per aisle opening.

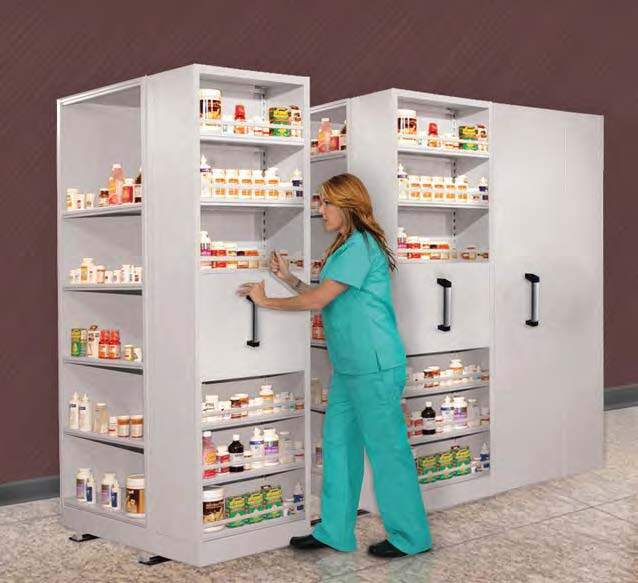

Healthcare facilities are among the largest users of mobile shelving systems because they face a unique combination of high inventory density, strict regulatory requirements, and expensive real estate. Hospital supply rooms, sterile processing departments, pharmacy storage areas, and medical records rooms all benefit from mobile shelving’s ability to double storage capacity within existing spaces that cannot be expanded due to building constraints.

The Joint Commission (TJC) and state health departments require healthcare facilities to maintain organized, accessible, and properly stored supplies and medications. Mobile shelving satisfies these requirements while maximizing the use of limited storage space. Open-wire shelving on mobile carriages provides the air circulation and visibility that infection control policies require, while the compacted storage eliminates the dust-collecting dead space between fixed shelving aisles.

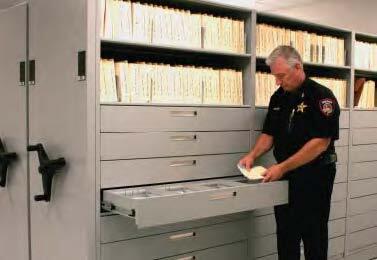

Law enforcement evidence rooms and property/evidence facilities use mobile shelving to store the enormous and ever-growing volume of physical evidence — firearms, drugs, clothing, electronics, documents, and biological samples — that must be preserved for years or decades pending case resolution. Mobile shelving systems designed for evidence storage include features like shelf-level barcode labels, chain-of-custody tracking integration, climate control compatibility for biological evidence, and specialized racks for firearms, bicycles, and oversized items.

Government records management facilities — city clerks, county recorders, state archives, and federal agencies — store millions of documents in mobile shelving systems that maximize the useful life of their existing buildings. Moving to mobile shelving typically postpones the need for a new records facility by 15–25 years, saving millions of dollars in construction costs. Aurora’s heavy-duty carriage systems handle the extreme concentrated loads of government records storage — a fully loaded records carriage can weigh over 15,000 pounds — with reinforced frames, oversized wheels, and extra-capacity drive mechanisms.
