Manufacturer Part Number: C539-CLDC-4-BU | Brand: Metro

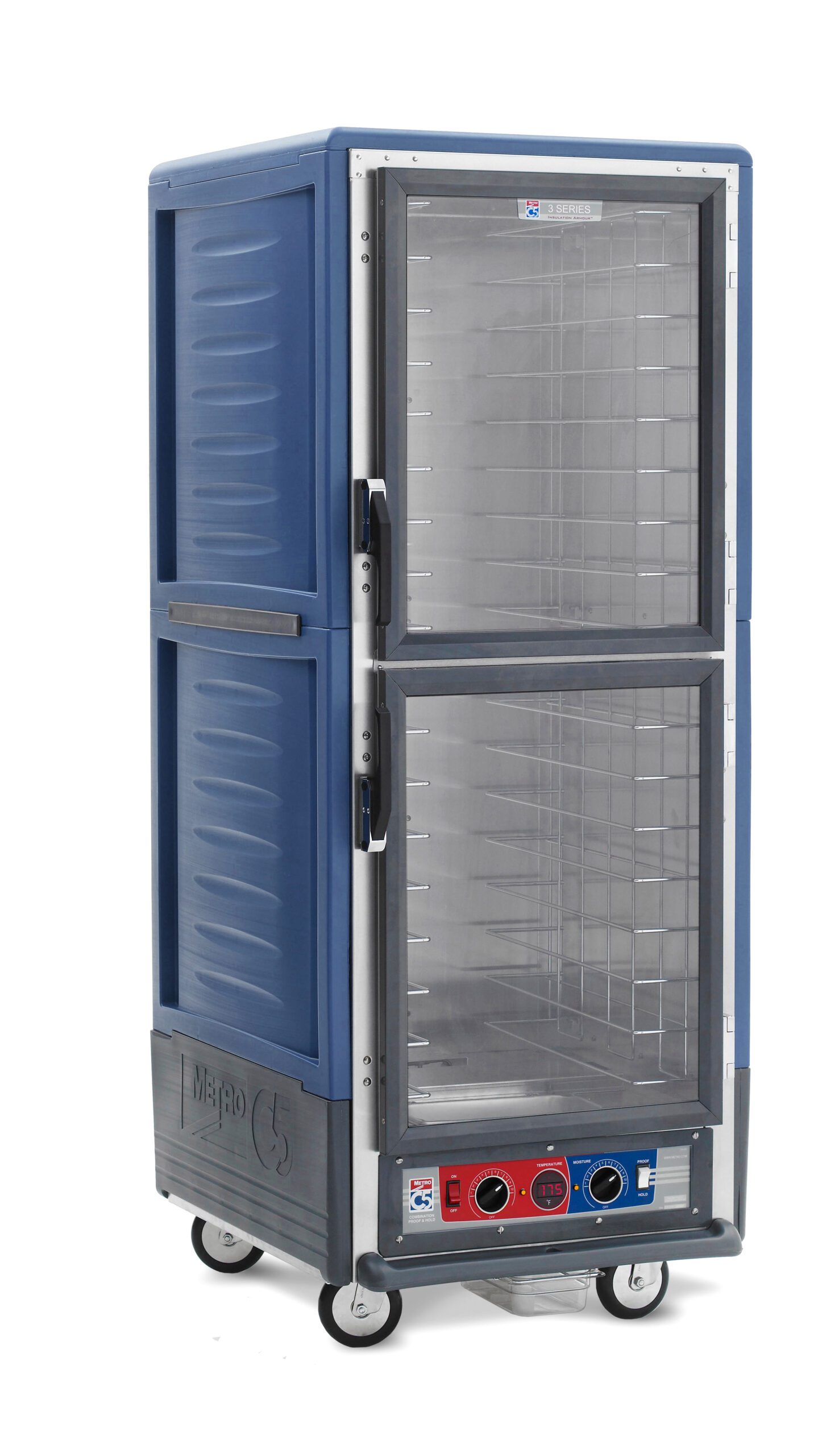

Metro C539-CLDC-4-BU C5 3 Series Insulated Holding/Proofing Cabinet
The Metro C539-CLDC-4-BU is a top-of-the-line insulated holding and proofing cabinet designed to meet the rigorous demands of commercial kitchens. This full-height cabinet features Dutch clear doors, providing easy access and excellent visibility of the contents. Its innovative design and robust construction make it an essential addition to any foodservice operation.
Key Features and Benefits
- Energy Efficiency: The cool-to-touch design and patented insulation technology ensure optimal energy efficiency, reducing operational costs.
- Durable Construction: Made with 0.063″ (1.8mm) aluminum and a 0.125″ (3.2mm) aluminum chassis, this cabinet is built to last. The polymer Insulation Armour is dent, impact, and stain resistant.
- Clear Dutch Doors: The clear Dutch doors with extruded aluminum frames and 0.090″ (2.3mm) polycarbonate windows offer excellent visibility and easy access.
- Mobility: Equipped with 5″ casters with donut neoprene wheels, double ball bearing swivel, and ball bearing axle, this cabinet is easy to move and position. Two casters have brakes for added stability.
- Precise Control: The removable bottom mount control module features an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights. The thermostat can be set up to 200F.
- High Capacity: This cabinet can hold up to (17) 26″ x 18″ sheet pans or (32) GN 1/1 pans 2.5″ deep. It also has a full-size hotel pan capacity of (34) 12″ x 20″ pans.
Technical Specifications
- Model: C539-CLDC-4-BU
- Series: C5 3 Series
- Type: Insulated Holding/Proofing Cabinet
- Doors: Dutch Clear Doors
- Slides: Fixed Wire Slides
- Voltage: 120V
- Frequency: 60Hz
- Wattage: 1440W
- Amperage: 12 amps
- Plug: NEMA 5-15P
- Material: Aluminum/Polymer
- Color: Blue
- Temperature Range: 80F (27C) to 200F (93C)
- Humidity: 95% RH at 95F (35C)
- Dimensions: Width: 27.6 Inches (27.625″), Depth: 31.5 Inches, Height: 71 Inches
- Weight: 250 Pounds
Common Uses
The Metro C539-CLDC-4-BU is ideal for a variety of foodservice applications, including:
- Bakeries: Perfect for proofing dough and holding baked goods at optimal temperatures.
- Restaurants: Great for holding hot food items, ensuring they remain fresh and ready to serve.
- Catering Services: Provides a reliable solution for transporting and holding food at events.
- Commercial Kitchens: An essential piece of equipment for maintaining food quality and safety.
FAQs
- What is the temperature range of this cabinet?
The operating temperature range is 80F (27C) to 200F (93C). - What is the capacity of this cabinet?
It can hold up to (17) 26″ x 18″ sheet pans or (32) GN 1/1 pans 2.5″ deep. - Is this cabinet mobile?
Yes, it is equipped with 5″ casters, two of which have brakes. - What are the electrical requirements?
It requires 120v/60/1-ph, 1440 watts, and 12 amps with a NEMA 5-15P plug.
Certifications
- UL Listed
- CUL Listed
- NSF Listed
- cULus Certified
