Manufacturer Part Number: C565-SFC-LPFS | Brand: Metro
Metro C565-SFC-LPFS C5 6 Series Insulated Pass-Thru Holding Cabinet
The Metro C565-SFC-LPFS is a versatile heated holding cabinet designed to keep food at optimal serving temperatures in busy commercial environments. As part of the C5 6 Series, this pass-thru cabinet offers exceptional temperature control and convenience.
Key Features and Benefits
- Pass-Thru Design: Allows access from both sides, streamlining workflow between kitchen and serving areas.
- Precise Temperature Control: Thermostatically controlled ducted heating system maintains temperatures between 70 and 200°F (21 to 93°C).
- Consistent Monitoring: An always-on analog thermometer provides continuous temperature monitoring, even when the unit is off.
- Humidity Control: Integral water pan system adds humidity, preventing food from drying out.
- Durable Construction: Made from high-quality stainless steel with 2.5″ thick, high-density fiberglass insulation for minimal temperature loss.
- Mobile Design: Equipped with 5″ casters (two with brakes) for easy maneuverability.
- High Capacity: Accommodates up to (17) 18″ x 26″ full-size sheet pans.
- cULus and NSF Certified: Meets strict safety and sanitation standards.
Technical Specifications
- Model: C565-SFC-LPFS
- Dimensions: 29.125″ W x 34.625″ D x 44.75″ H
- Material: 304 Stainless Steel
- Door Style: Full Length Clear Door / Full Length Solid Door
- Slide Type: Lip Load Aluminum Slides
- Electrical: 120V, 60Hz, 2000W, 16.7 Amps, NEMA 5-20P
- Weight: Approximately 210 lbs
Common Uses
- Restaurants: Keep prepared dishes warm and ready to serve.
- Catering Services: Transport and hold food at safe temperatures during events.
- Hotels: Maintain food quality for buffets and room service.
- Commercial Kitchens: Optimize workflow with pass-through access.
Frequently Asked Questions (FAQs)
- What is the temperature range of this holding cabinet?The thermostat can be set from 70 to 200 degrees Fahrenheit.
- Does this unit require special electrical connections?Yes, it requires a 120V outlet with a NEMA 5-20P plug.
- Is this cabinet insulated?Yes, it features 2.5″ thick, high-density fiberglass insulation.
- Can I add humidity to the cabinet?Yes, it includes an integral water pan system for humidity control.
Certifications
- cULus certified
- NSF certified

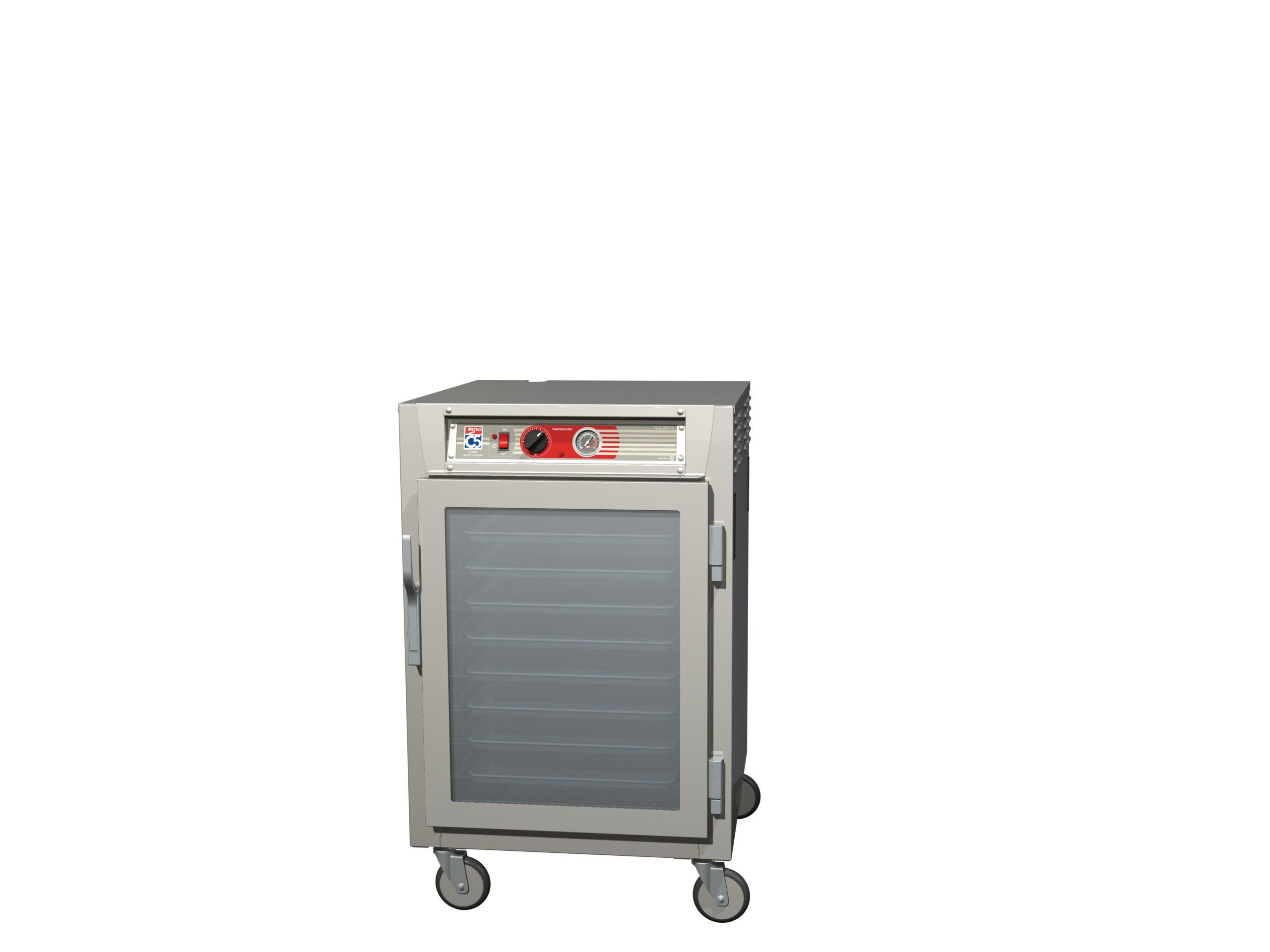

See product image above for visual details of the clear and solid door configuration.
