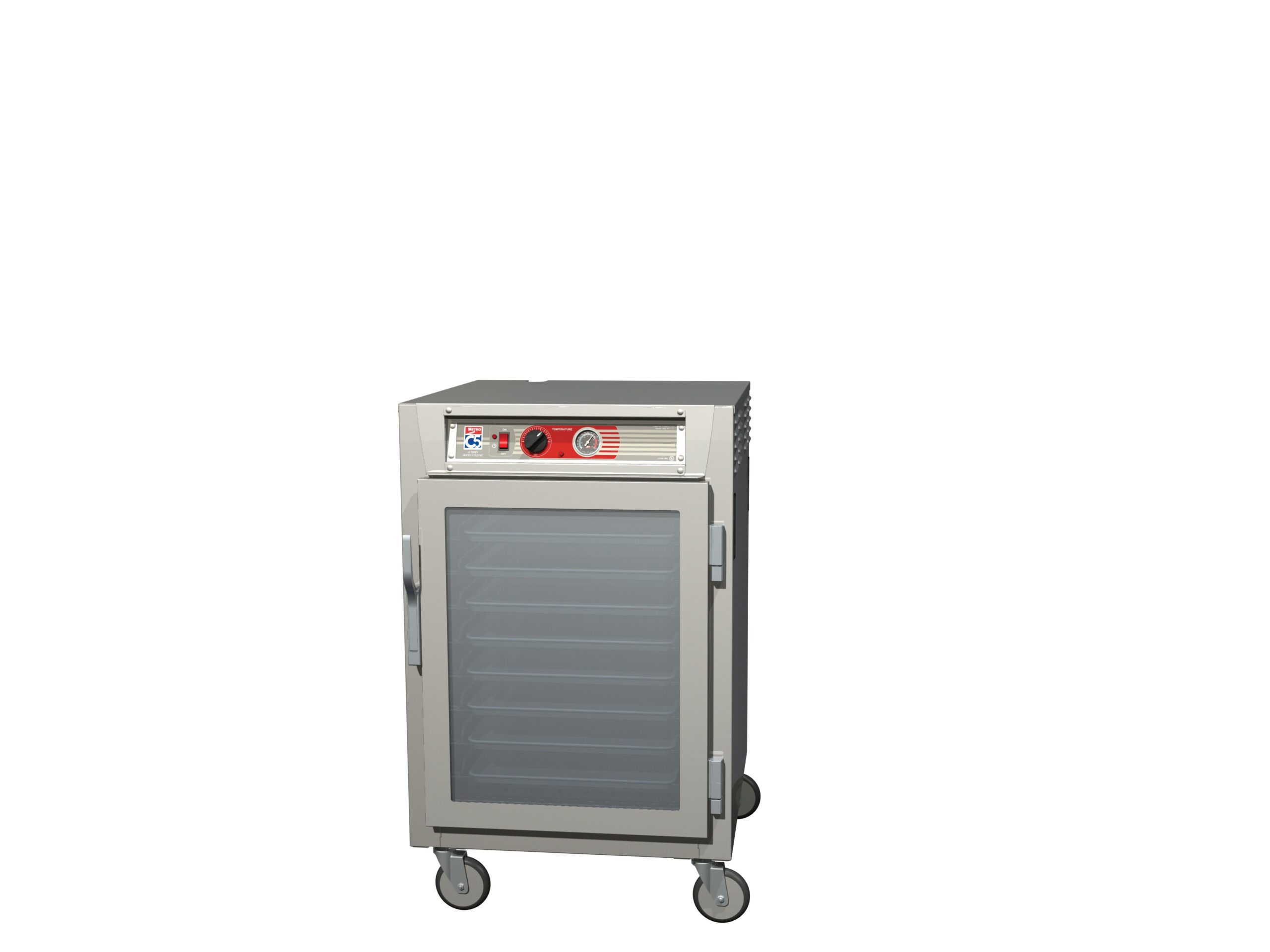

Metro C565-SFC-UPFS C5 6 Series Insulated Pass-Thru Holding Cabinet
Manufacturer Part Number: C565-SFC-UPFS | Brand: Metro
Key Features
- Pass-Thru Design: Allows for easy loading from the kitchen and convenient access for serving staff.
- Insulated Cabinet: 2.5″ thick, high-density fiberglass insulation ensures excellent heat retention.
- Stainless Steel Construction: Durable and easy-to-clean Type 304 stainless steel.
- Ducted Heating System: Provides rapid and even heat distribution.
- Humidity Control: Integral water pan system keeps food moist and prevents drying.
- Universal Wire Slides: Adjustable slides accommodate various pan sizes.
- Mobile Design: 5″ casters (2 with brakes) for easy maneuverability.
- Analog Thermometer: “Always-on” thermometer for continuous temperature monitoring.
Benefits
- Maintains Food Quality: Keeps food at optimal serving temperatures for extended periods.
- Increases Efficiency: Pass-thru design streamlines kitchen operations.
- Saves Energy: High-density insulation minimizes heat loss.
- Easy to Clean: Stainless steel construction simplifies cleaning and maintenance.
- Versatile: Accommodates various pan sizes and configurations.
Technical Specifications
- Model: C565-SFC-UPFS
- Voltage: 120V
- Frequency: 60Hz
- Wattage: 2000W
- Amperage: 16.7 amps
- Plug Type: NEMA 5-20P
- Temperature Range: 70°F to 200°F
- Capacity: (8) 18″ x 26″ full-size sheet pans or (16) 12″ x 20″ x 2-1/2″ pans
Common Uses
- Restaurants: Keep entrees, sides, and desserts at serving temperature.
- Catering Services: Transport and hold food for off-site events.
- Commercial Kitchens: Maintain food quality during peak service hours.
- Hotels: Buffet service and room service.
FAQs
Q: What is the difference between insulated and non-insulated holding cabinets?
A: Insulated cabinets are better for frequent door openings, while non-insulated cabinets are more suitable for applications where doors remain closed.
Q: What is the temperature range of this holding cabinet?
A: The temperature is thermostat controlled from 70 to 200F.
Certifications
- cULus
- NSF
Specifications
- Dimensions: 29.125″ W x 34.625″ D x 44.75″ H
- Material: Stainless Steel
- Color: Silver
- Weight: Approximately 218 lbs
