Manufacturer Part Number: C565-SFS-UPFC | Brand: Metro
Metro C565-SFS-UPFC C5 6 Series Insulated Pass-Thru Holding Cabinet

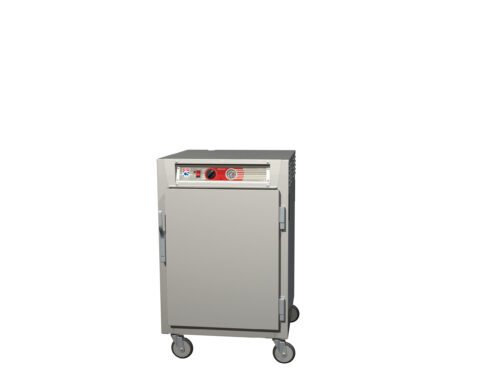

The Metro C565-SFS-UPFC is a versatile heated holding cabinet designed to maintain food at serving temperatures in commercial kitchens, catering operations, and other food service environments. This pass-thru cabinet features a half-height design, making it easy to move and position as needed. See product image above.
Key Features
- Pass-Thru Design: Allows access from both sides, improving workflow efficiency.
- Insulated Construction: Stainless steel build with 2.5-inch thick fiberglass insulation for minimal temperature loss.
- Precise Temperature Control: Thermostatically controlled, ducted heating system with a temperature range of 70-200 degrees Fahrenheit.
- Humidity Control: Integral water pan system to add humidity and prevent food from drying out.
- Mobile: Equipped with 5-inch casters (two with brakes) for easy mobility.
- Adjustable Slides: Universal wire slides adjustable in 1 1/2-inch increments to accommodate various pan sizes.
- Durable Doors: One full-length solid door and one full-length clear door for easy monitoring of contents.
Benefits
- Maintains food at optimal serving temperatures for extended periods.
- Improves workflow efficiency with pass-thru design.
- Reduces food waste by preventing drying and temperature loss.
- Easy to move and reposition as needed.
- Durable construction ensures long-lasting performance.
Technical Specifications
- Model: C565-SFS-UPFC
- Series: C5 6 Series
- Type: Insulated Pass-Thru Holding Cabinet
- Height: 1/2 Height
- Doors: Full Length Solid Door / Full Length Clear Door
- Slides: Universal Wire Slides
- Voltage: 120V
- Frequency: 60Hz
- Power: 2000W
Common Uses
- Commercial Kitchens: Ideal for holding prepared foods at serving temperatures.
- Catering Services: Perfect for transporting and holding food at events.
- Restaurants: Keeps menu items hot and ready for service.
- Buffets: Maintains food quality and temperature for extended periods.
FAQs
- What is the temperature range of this cabinet?The temperature range is 70-200 degrees Fahrenheit.
- Does this cabinet require any special electrical connections?It requires a 120V/60 Hz/1 ph power supply with a NEMA 5-20P plug.
- Can the doors be reversed?Yes, the doors are field reversible.
Specifications
- Dimensions: 29 1/8 in. W x 34 5/8 in. D x 44 3/4 in. H
- Material: Stainless Steel
- Insulation: 2.5-inch thick high-density fiberglass
- Capacity: (8) 18-inch x 26-inch pans or (16) 12-inch x 20-inch x 2 1/2-inch pans
- Casters: 5-inch (two with brakes)
- Weight: (Provide actual weight if available)
