Metro C569-SDC-LPDS C5 6 Series Insulated Pass-Thru Holding Cabinet, Full Height, Dutch Clear Doors/ Dutch Solid Doors, Lip Load Aluminum Slides, 120V, 60Hz, 2000W

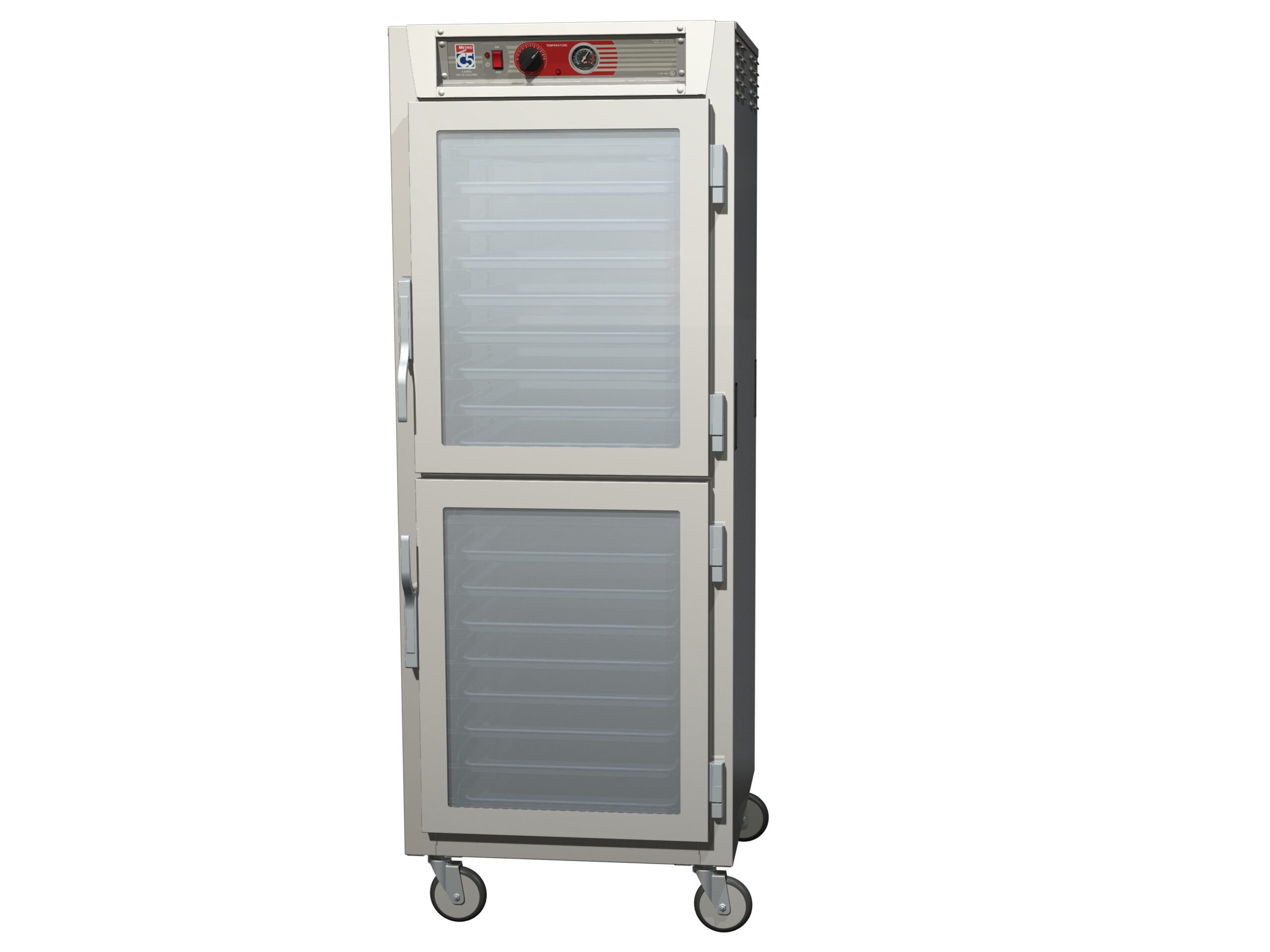

Metro C569-SDC-LPDS C5 6 Series Insulated Pass-Thru Holding Cabinet

Manufacturer Part Number: C569-SDC-LPDS | Brand: Metro

Key Features

• Pass-Thru Design: Allows access from both sides, improving kitchen workflow.
• Precise Temperature Control: Thermostatically controlled ducted heating system for rapid heat-up and recovery.
• Durable Construction: Stainless steel build with 2.5″ thick high-density fiberglass insulation.
• Humidity Control: Integral water pan system to maintain optimal food moisture.
• High Capacity: Holds up to 35 full-size (18″ x 26″) sheet pans.
• Easy Monitoring: ‘Always-on’ analog thermometer for continuous temperature checks.
• Mobile: Equipped with 5″ donut neoprene casters for easy mobility.

Benefits

• Maintains Food Quality: Keeps food at optimal serving temperatures for extended periods.
• Enhances Kitchen Efficiency: Pass-thru design streamlines food preparation and service.
• Ensures Food Safety: Precise temperature control prevents bacterial growth.
• Reduces Food Waste: Humidity control prevents drying and spoilage.
• Long-lasting Durability: Stainless steel construction ensures years of reliable use.

Technical Specifications

• Model: C569-SDC-LPDS
• Dimensions: 29 1/8″ W x 32 5/8″ D x 74 3/4″ H
• Material: Stainless Steel
• Insulation: 2.5″ High-Density Fiberglass
• Capacity: Up to 35 Full-Size Sheet Pans (18″ x 26″)
• Temperature Range: 70°F to 200°F
• Power: 120V, 60Hz, 2000W
• Certification: NSF Listed

Common Uses

• Restaurants: Holding prepared dishes before serving.
• Catering Services: Transporting and holding hot food at events.
• Institutional Kitchens: Keeping large quantities of food warm in schools, hospitals, and cafeterias.

FAQs

1. What is the maximum temperature this cabinet can reach?
   The maximum temperature is 200°F.
2. How many sheet pans can it hold?
   It can hold up to 35 full-size (18″ x 26″) sheet pans.
3. Is this cabinet mobile?
   Yes, it comes with 5″ donut neoprene casters for easy mobility.
4. Does it require special electrical connections?
   No, it operates on a standard 120V outlet.

Certifications

• NSF Listed: Ensures the product meets public safety, health, and environmental standards.

Optional Accessories

• Stainless steel tubular handle for mobile applications (C5-HANDLE)
• Same-side pass-thru door hinging option (C5-SAMESIDE)
• 6″ stainless steel legs (C5-SSLEGS)
• Twist lock plug option (C5-RTWSTPLG-)

Contact Us

Contact us for more information and to purchase the Metro C569-SDC-LPDS C5 6 Series Insulated Pass-Thru Holding Cabinet.
