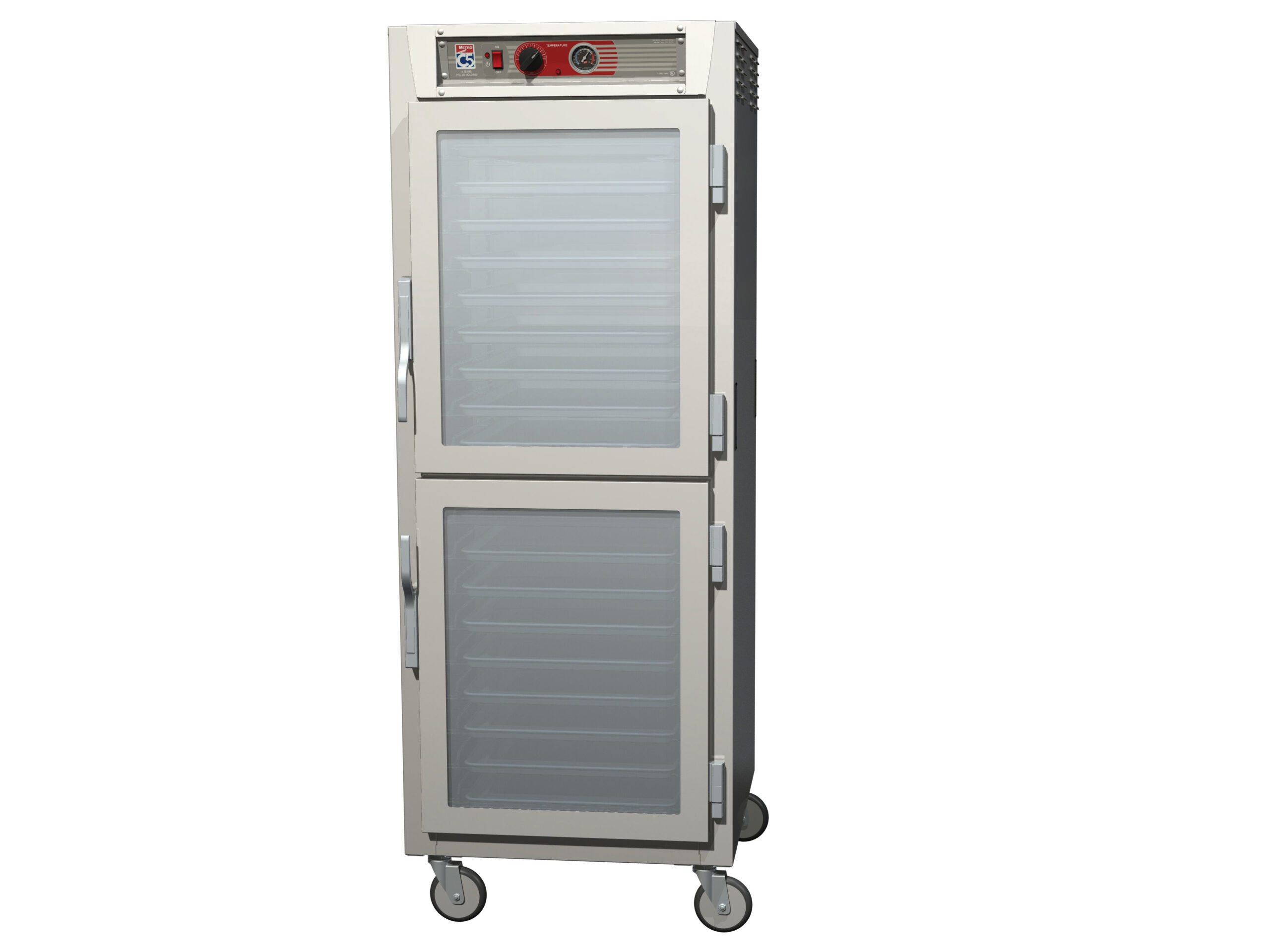

Metro C569-SDC-LPDSA C5 6 Series Insulated Pass-Thru Holding Cabinet
Manufacturer Part Number: C569-SDC-LPDSA | Brand: Metro
Key Features
- Pass-Thru Design: Allows for convenient loading and unloading from either side.
- Precise Temperature Control: Thermostatically controlled ducted heating system maintains consistent temperatures.
- High Capacity: Accommodates up to 34 18″ x 26″ pans.
- Durable Construction: Stainless steel build with 2.5″ thick high-density fiberglass insulation.
- Passive Humidity: Integral water pan system adds humidity to prevent food from drying out.
- Mobile: Equipped with four 5-inch donut casters (2 braking) for easy mobility.
Benefits
- Maintains Food Quality: Keeps food at optimal temperatures and humidity levels.
- Increases Efficiency: Pass-thru design streamlines workflow.
- Ensures Food Safety: Consistent temperature control prevents bacterial growth.
- Saves Energy: Insulated design minimizes temperature loss.
- Easy to Use: Top-mounted controls with analog thermometer for simple operation.
Technical Specs
- Model: C569-SDC-LPDSA
- Dimensions: 29 1/8″ W x 32 5/8″ D x 74 3/4″ H
- Capacity: 34 18″ x 26″ pans
- Temperature Range: 70 to 200 degrees Fahrenheit
- Electrical: 120V, 60Hz, 2000W
- Weight: 435 lbs
- Material: Stainless Steel
- Doors: Dutch Clear/Solid
- Casters: 5″ Donut (2 Braking)
Common Uses
- Restaurants: Holding prepared food before serving.
- Catering Services: Transporting and holding food at events.
- Hospitals: Keeping patient meals warm and ready.
- Schools: Serving hot lunches.
- Buffets: Maintaining food temperatures for extended periods.
FAQs
- What is the temperature range of this holding cabinet?
- How many pans can it hold?
- Is it mobile?
- What is the electrical requirement?
The temperature range is 70 to 200 degrees Fahrenheit.
It can hold up to 34 18″ x 26″ pans.
Yes, it has four 5-inch donut casters, two of which have brakes.
It requires 120V, 60Hz, and 2000W.
Specifications
- Manufacturer: Metro
- Part Number: C569-SDC-LPDSA
- Application: Heat & Humidity
- Construction: Stainless Steel
- Control Location: Top
- Door Design: Dutch
- Door Type: Glass/Solid
- Heat: Electric
- Size: Full Height
- Voltage: 120
- Width: 29.13 inches
- Depth: 32.63 inches
- Height: 74.75 inches
- Weight: 435 lbs
