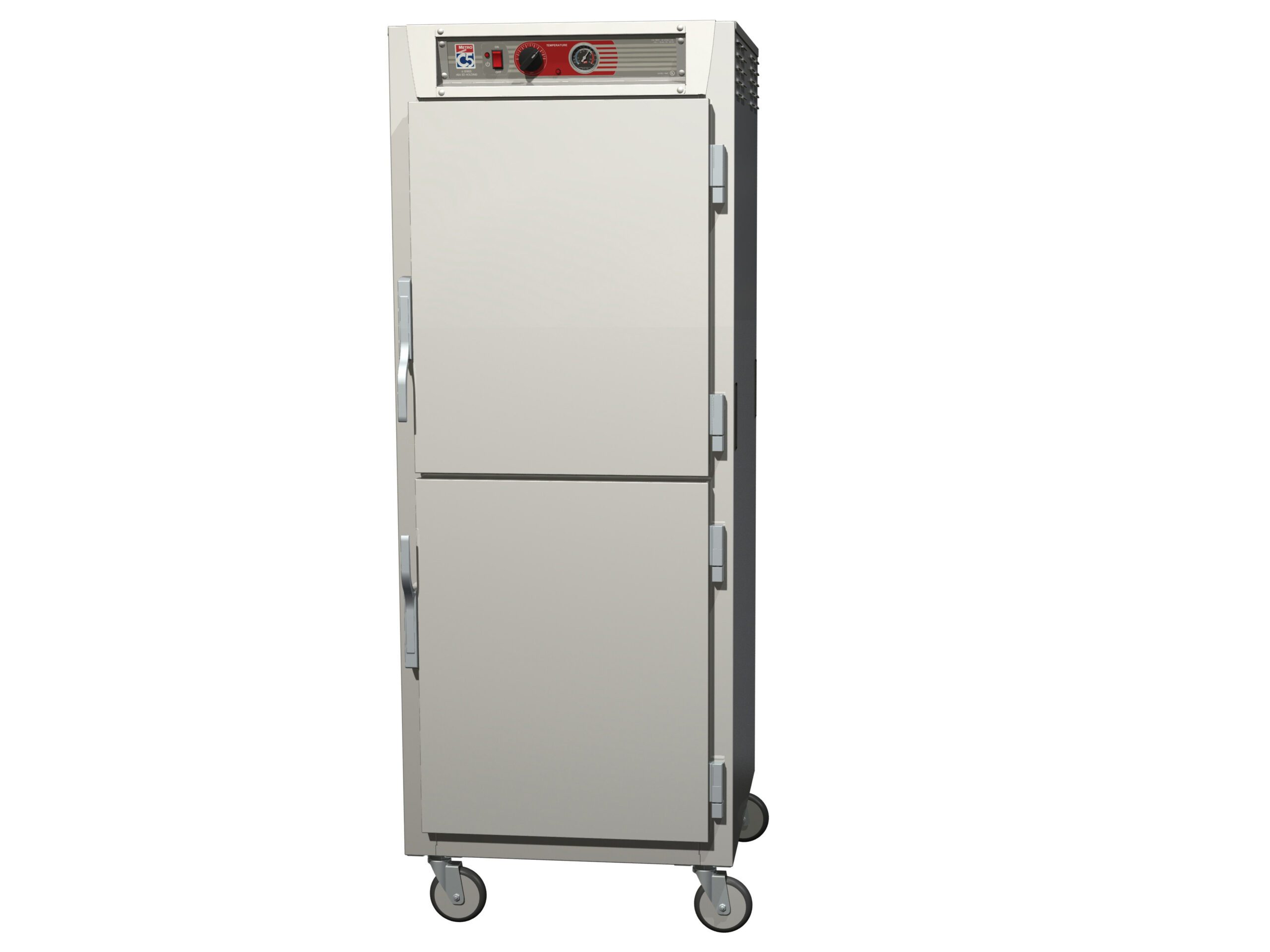

Metro C569-SDS-U C5 6 Series Insulated Reach-In Holding Cabinet, Full Height, Dutch Solid Doors, Universal Wire Slides, 120V, 60Hz, 2000W

Manufacturer Part Number: C569-SDS-U | Brand: Metro

Metro C569-SDS-U C5 6 Series Insulated Reach-In Holding Cabinet: Maintain Food Quality and Temperature

The Metro C569-SDS-U is a robust, full-height, insulated, and mobile heated holding cabinet designed for demanding commercial foodservice environments. This cabinet is engineered to maintain food at safe and optimal serving temperatures, ensuring food quality and reducing waste. With its advanced features and durable construction, the C569-SDS-U is an excellent choice for restaurants, catering businesses, and other establishments that require reliable food holding solutions.

Key Features and Benefits:

• Superior Insulation: 2.5-inch thick, high-density fiberglass insulation minimizes heat loss, ensuring consistent temperatures and energy efficiency.
• Precise Temperature Control: The cabinet maintains temperatures between 70 and 200 degrees Fahrenheit, controlled by a thermostat.
• Rapid Heating: A thermostatically controlled, ducted heating system provides rapid heat-up and recovery times.
• Dutch Doors: Solid, double-panel Dutch doors allow access to the top or bottom sections separately, minimizing temperature fluctuations.
• Humidity Control: An integral water pan system adds passive humidity to prevent food from drying out.
• Easy Monitoring: An always-on analog thermometer provides continuous monitoring of the cabinet temperature, even when unplugged.
• Mobility: Equipped with 5-inch neoprene casters, two with brakes, for easy maneuverability.
• Durable Construction: Constructed from durable Type 304 stainless steel, with a 20-gauge polished exterior and a 22-gauge interior.

Technical Specifications:

• Model: C569-SDS-U
• Capacity: Holds (17) 18″ x 26″ sheet pans or (32) 12″ x 20″ x 2 1/2″ steam pans
• Temperature Range: 70°F to 200°F (21°C to 93°C)
• Doors: Solid Dutch Doors
• Insulation: 2.5″ thick, high-density fiberglass
• Heating System: Thermostatically controlled, ducted
• Electrical: 120V/60 Hz/1-ph, 2000 watts, 16 amps, NEMA 5-20P plug
• Dimensions: 29 1/8″ W x 32 5/8″ D x 74 3/4″ H
• Weight: 385 lbs
• Casters: 5-inch neoprene, two with brakes
• Certifications: cULus, NSF, ENERGY STAR
• Warranty: 1-year warranty against manufacturing defects

Common Uses:

The Metro C569-SDS-U is ideal for a variety of applications, including:

• Holding prepared foods at serving temperatures
• Buffet lines
• Catering events
• Restaurants
• Commercial kitchens

Frequently Asked Questions (FAQs):

1. What is the benefit of insulated doors? Insulated doors help to maintain a consistent internal temperature, reducing energy consumption and preventing temperature fluctuations when the doors are opened.
2. How does the humidity system work? The integral water pan system adds passive humidity to the cabinet environment, preventing food from drying out and maintaining its quality.
3. What type of electrical outlet is required? The cabinet requires a standard 120V outlet with a NEMA 5-20P plug.

Comparison: Insulated vs. Non-Insulated Holding Cabinets

Insulated cabinets, like the C569-SDS-U, are better suited for applications where doors are frequently opened and closed, as they retain heat more effectively. Non-insulated cabinets are suitable for situations where doors remain closed for extended periods.

Certifications:

The Metro C569-SDS-U is cULus, NSF, and ENERGY STAR certified, ensuring it meets the highest standards for safety and energy efficiency.

For more information or to place an order, contact us today.
