Manufacturer Part Number: C569-SDS-UPDC | Brand: Metro

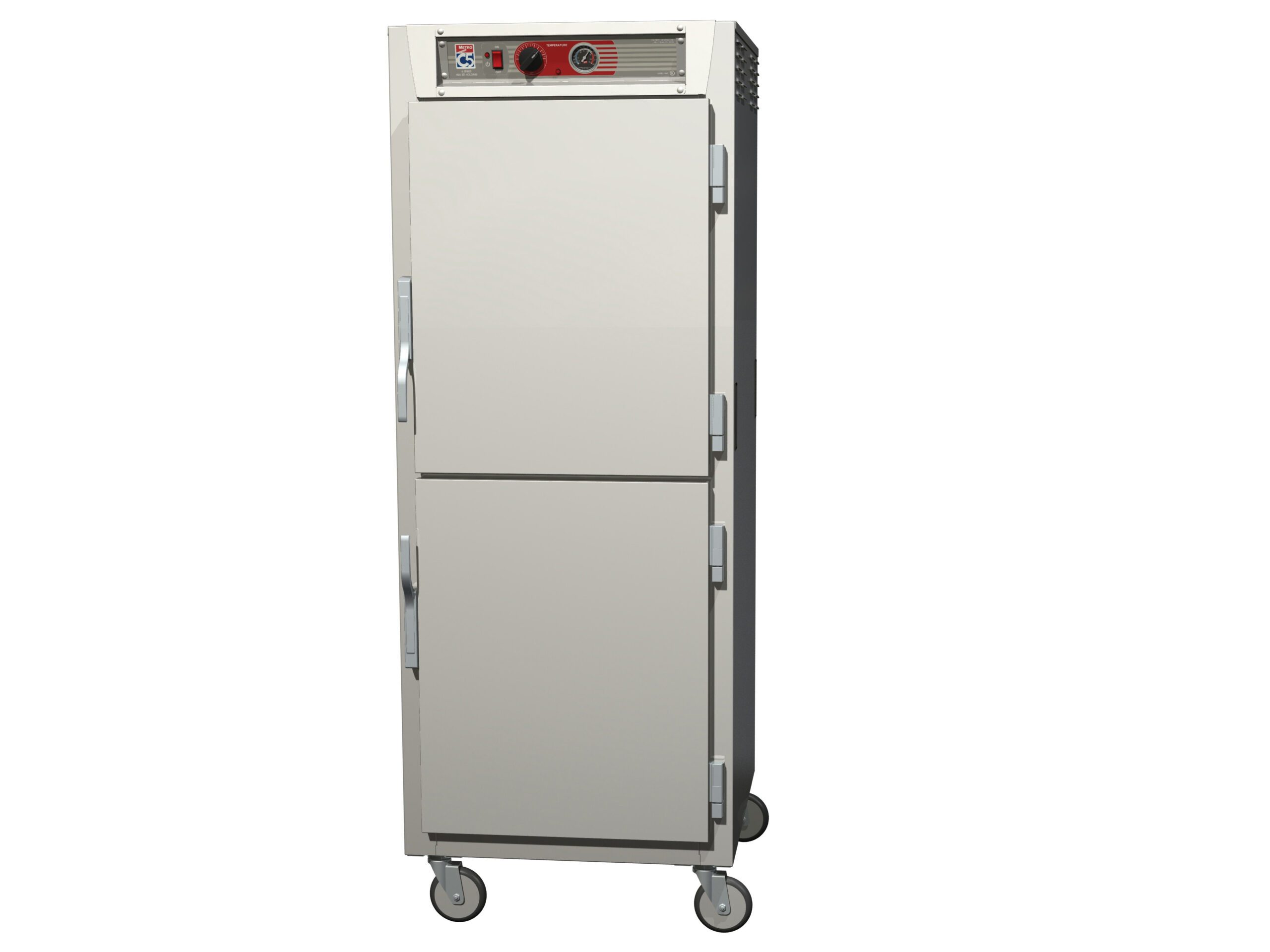

Metro C5 6 Series Insulated Pass-Thru Holding Cabinet: Keep Food Hot and Fresh
The Metro C569-SDS-UPDC is a full-height, reach-in, pass-through heated holding cabinet designed to maintain food at optimal serving temperatures in busy commercial kitchens. Its durable construction and thoughtful design make it a reliable and efficient solution for restaurants, catering services, and other foodservice operations.
Key Features
- Pass-Through Design: Enables convenient placement between the kitchen and serving areas for easy restocking and access.
- Superior Insulation: Full perimeter, 1″ thick, high-density fiberglass insulation ensures minimal heat loss and energy efficiency.
- Precise Temperature Control: Thermostatically controlled, ducted heating system maintains consistent temperatures between 70 and 200 degrees Fahrenheit (21 to 93 degrees Celsius).
- Analog Thermometer: An always-on analog thermometer provides continuous monitoring of the cabinet temperature, even when the unit is off or unplugged.
- Humidity Control: Integral water pan system adds humidity to the cabinet environment, preventing food from drying out and maintaining its quality.
- Adjustable Slides: Universal wire pan slides adjustable on 1 1/2″ increments offer flexible storage options for various pan sizes.
- High Capacity: Holds up to (17) 18″ x 26″ full-size sheet pans or (32) 12″ x 20″ x 2 1/2″ steam table pans.
- Durable Construction: Made from durable Type 304 stainless steel, with a 20 gauge polished exterior and a 22 gauge interior, ensuring long-lasting performance.
- Dutch Doors: Solid/clear Dutch doors allow access to only the needed section, minimizing heat loss and maximizing energy efficiency.
- Easy Mobility: Four 5″ donut neoprene casters (2 with brakes) provide improved floor protection and quiet operation.
- User-Friendly Controls: Top-mounted controls offer clear readability and prevent damage, simplifying cleaning.
Technical Specifications
- Model Number: C569-SDS-UPDC
- Voltage: 120V
- Wattage: 2000W (1950W heating element)
- Amperage: 16 amps
- Plug: NEMA 5-20P
- Dimensions:
- Width: 29 1/8″ (29.125″)
- Depth: 34 5/8″ (34.625″)
- Height: 74 3/4″ (74.75″)
- Weight: Approximately 430 lbs (approximate package weight)
- Material: Stainless Steel (Type 304 stainless steel exterior and interior)
- Insulation: 2.5″ thick, high-density fiberglass
- Series: C5⢠6 Series
- Certification: UL Listed, NSF Listed
Common Uses
- Heated holding for a wide range of food items in commercial kitchens
- Maintaining optimal food temperatures for extended periods
- Ideal for use in restaurants, catering services, and other foodservice operations
FAQs
- What is the optimal temperature range for holding different types of food? The ideal temperature depends on the food type, but generally, aim for 140-160°F (60-71°C) for most cooked foods to prevent bacterial growth.
- How does the water pan system work? The integral water pan adds humidity to the cabinet, preventing food from drying out and maintaining its quality. Simply fill the pan with water as needed.
- What is the difference between an insulated and non-insulated holding cabinet? Insulated cabinets are better suited for keeping food hot when the doors will be opened and closed much more frequently, since they are better equipped at retaining the heat.
- What if I don’t have the right outlets for this model’s standard 5-20P plug? The manufacturer offers a low wattage option, which comes with a 5-15P plug. Contact us prior to placing your order.
Warranty
This Metro holding cabinet comes with a 1-year warranty against manufacturing defects.
See product image above.
