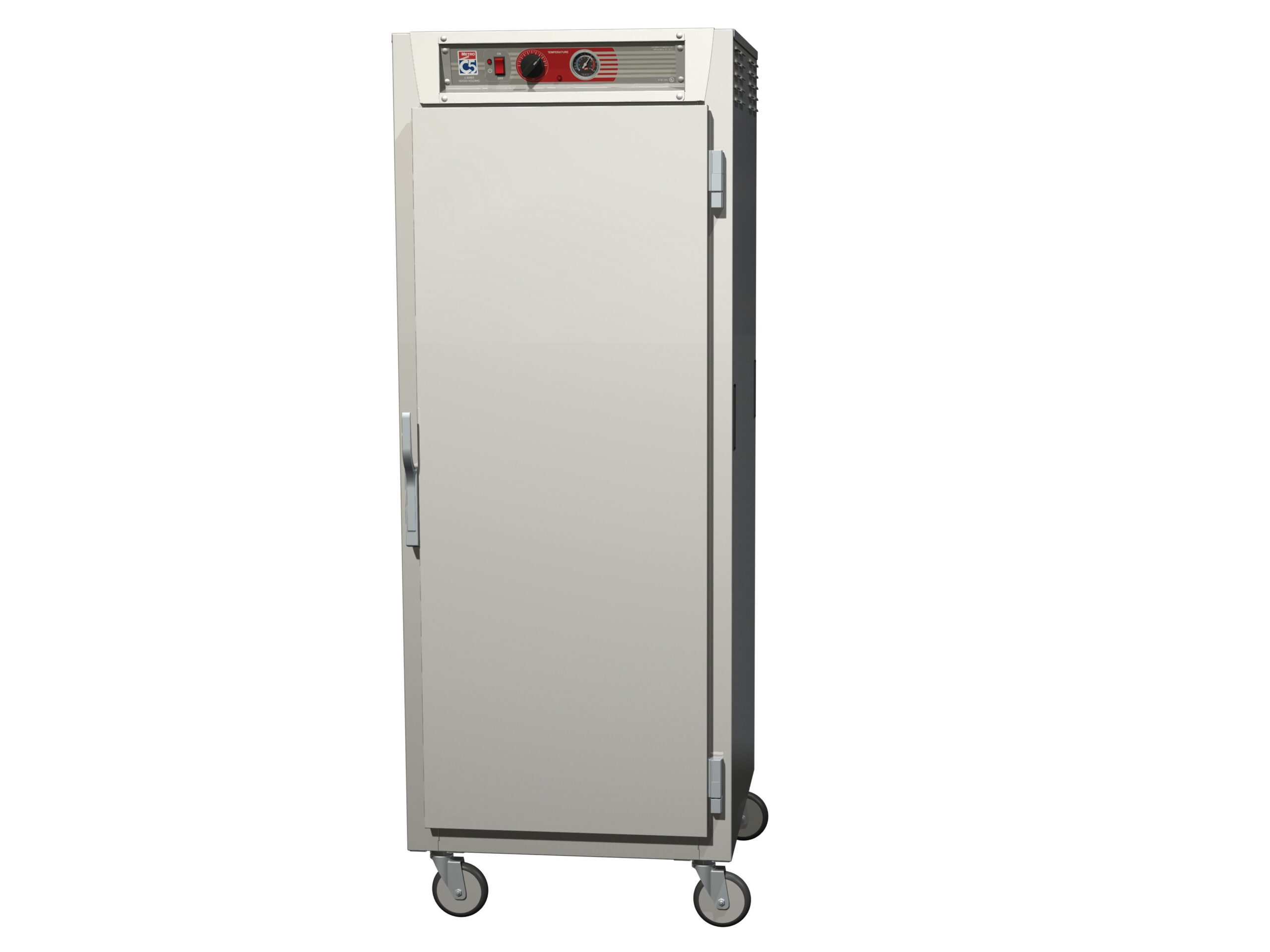

Metro C569-SFS-UPFS C5 6 Series Insulated Pass-Thru Holding Cabinet
Manufacturer Part Number: C569-SFS-UPFS | Brand: Metro
Key Features
- Pass-Thru Design: Enables convenient loading from the kitchen and easy access from the serving area.
- Precise Temperature Control: Thermostatically controlled ducted heating system ensures rapid heat-up and consistent temperatures (70 to 200 degrees Fahrenheit).
- Superior Insulation: 2.5″ thick, high-density fiberglass insulation minimizes heat loss, saving energy and maintaining food quality.
- Humidity Control: Integral water pan system adds moisture to prevent food from drying out.
- Universal Wire Slides: Adjustable slides accommodate various pan sizes, including 18″ x 26″ sheet pans and 12″ x 20″ steam table pans.
- Durable Construction: Stainless steel exterior and interior for long-lasting performance and easy cleaning.
- Mobile Design: Equipped with 5″ casters (two with brakes) for easy maneuverability.
- Analog Thermometer: “Always-on” thermometer provides continuous temperature monitoring.
Benefits
- Maintains food at optimal serving temperatures for extended periods.
- Improves food quality by preventing drying and maintaining moisture.
- Increases efficiency with pass-through design and easy access.
- Provides flexibility with adjustable wire slides.
- Ensures durability with stainless steel construction.
Technical Specs
- Model: C569-SFS-UPFS
- Dimensions: 29 1/8″ W x 34 5/8″ D x 74.75″ H
- Capacity: (18) 18″ x 26″ sheet pans or (34) 12″ x 20″ x 2-1/2″ steam pans
- Temperature Range: 70 to 200 degrees Fahrenheit
- Voltage: 120V
- Hertz: 60Hz
- Wattage: 2000W
- Amperage: 16.7 amps
- Plug: NEMA 5-20P
- Weight: 375 lbs
- Material: Stainless Steel
- Insulation: 2.5″ High-Density Fiberglass
- Casters: 5″ (2 with brakes)
Common Uses
- Restaurants
- Catering services
- Commercial kitchens
- Hospitals
- Schools
- Buffets
FAQs
- What is a pass-through holding cabinet?
A pass-through holding cabinet has doors on both sides, allowing access from two different areas, such as the kitchen and serving area.
- What is the temperature range of this cabinet?
The temperature range is 70 to 200 degrees Fahrenheit.
- Does this cabinet require plumbing?
No, it has an integral water pan system that you fill manually.
- Is this cabinet mobile?
Yes, it is equipped with 5″ casters, two of which have brakes.
Certifications
- cULus certified
- NSF certified
Specifications
- Exterior Material: 20-Gauge Polished Stainless Steel
- Interior Material: 22-Gauge Stainless Steel
- Door Type: Full Length Solid Door
- Slide Type: Universal Wire Slides
- Control Type: Top-Mounted Controls
- Thermometer: Always-On Analog Thermometer
