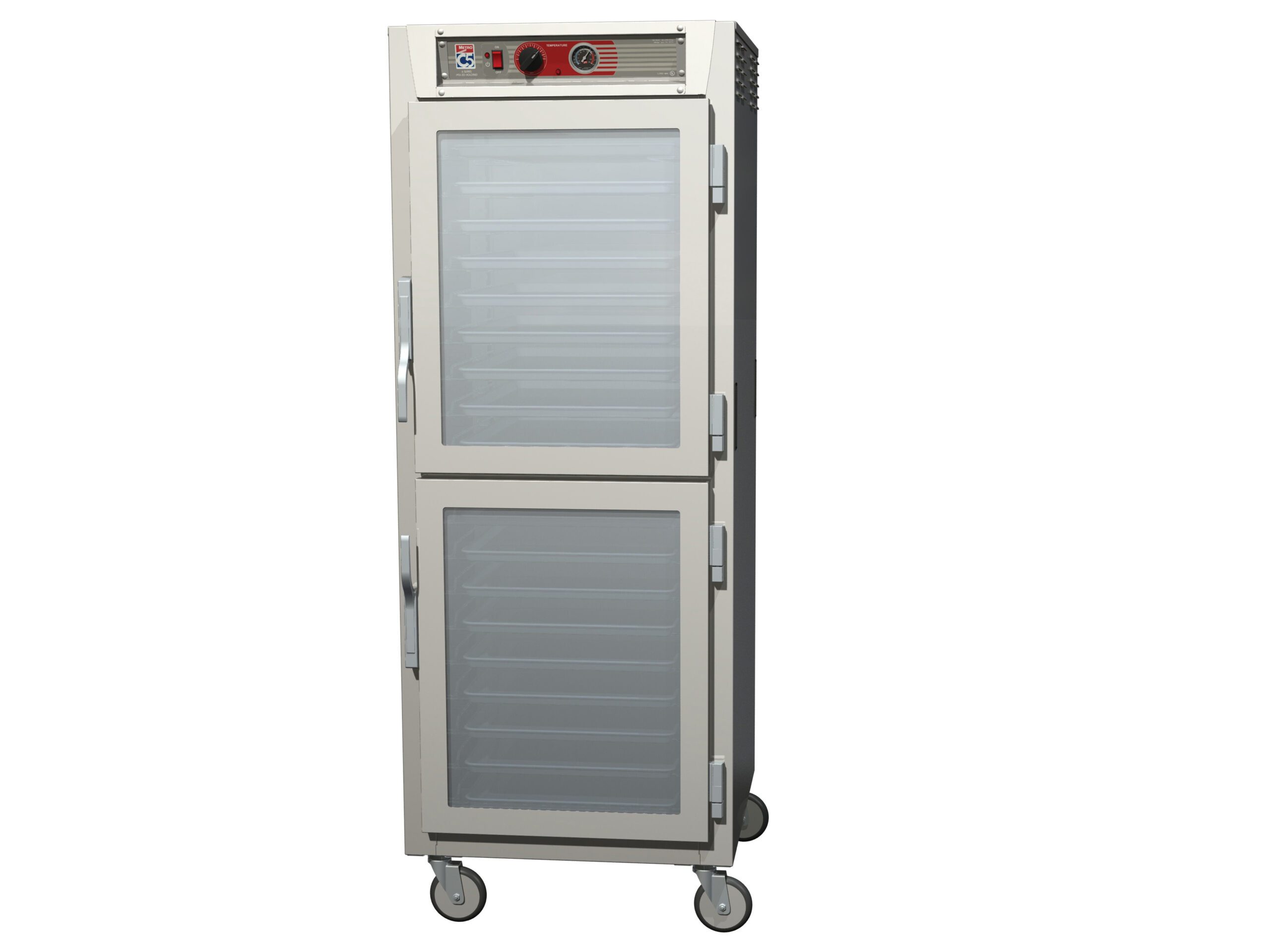

Metro C569L-SDC-UPDC C5 6 Series Insulated Pass-Thru Holding Cabinet, Full Height, Dutch Clear Doors/ Dutch Clear Doors, Universal Wire Slides, 120V, 60Hz, 1440W

Metro C569L-SDC-UPDC C5 6 Series Insulated Pass-Thru Holding Cabinet

Manufacturer Part Number: C569L-SDC-UPDC | Brand: Metro

Key Features

• Pass-Thru Design: Allows for convenient loading and unloading from either side, improving workflow efficiency.
• Insulated Cabinet: Features 2.5″ thick, high-density fiberglass insulation to minimize temperature loss and maintain consistent heat.
• Dutch Clear Doors: Provides easy access and clear visibility of the cabinet’s contents without compromising temperature control.
• Universal Wire Slides: Accommodates a variety of pan sizes, including (17) 18″ x 26″ sheet pans or (32) 12″ x 20″ x 2-1/2″ pans.
• Precise Temperature Control: Thermostatically controlled ducted heating system ensures rapid heat-up and recovery times, with temperatures up to 200°F.
• Analog Thermometer: “Always-on” analog thermometer for continuous monitoring of the cabinet temperature, even when turned off or unplugged.
• Stainless Steel Construction: Durable and easy-to-clean stainless steel construction ensures long-lasting performance.
• Integral Water Pan: Adds humidity to the cabinet environment, improving food quality and preventing drying.
• Mobile Design: Equipped with 5-inch casters (2 with brakes) for easy mobility and positioning.
• Energy Efficient: Low wattage design helps reduce energy consumption.

Benefits

• Maintains Food Quality: Keeps food at optimal serving temperatures, preserving flavor and texture.
• Enhances Workflow: Pass-thru design streamlines kitchen operations.
• Saves Energy: Insulated design and efficient heating system reduce energy costs.
• Ensures Food Safety: Consistent temperature control helps prevent bacterial growth and ensures food safety.
• Durable and Reliable: High-quality construction provides years of reliable service.

Technical Specifications

• Model: C569L-SDC-UPDC
• Dimensions: Approximately 29 1/8 inches (W) x 34 5/8 inches (D) x 74 3/4 inches (H)
• Electrical: 120V, 60Hz, 1440W
• Plug: NEMA 5-15P
• Capacity: (17) 18″ x 26″ sheet pans or (32) 12″ x 20″ x 2-1/2″ pans
• Material: Stainless Steel
• Insulation: 2.5″ High-Density Fiberglass
• Temperature Range: Up to 200°F
• Casters: 5″ (2 with brakes)
• Weight: Approximately 410 lbs (package weight)

Common Uses

• Restaurants: Keeping prepared dishes hot and ready to serve.
• Catering Services: Transporting and holding food at safe temperatures for events.
• Commercial Kitchens: Maintaining food quality and safety in high-volume environments.
• Healthcare Facilities: Ensuring meals are served hot to patients.
• Buffets: Holding food at optimal temperatures for extended periods.

FAQs

1. What is the temperature range of this holding cabinet?
   The temperature can be controlled up to 200°F.
2. Does this unit require special electrical connections?
   No, it operates on a standard 120V outlet with a NEMA 5-15P plug.
3. Can the shelves be adjusted?
   Yes, the universal wire slides can be adjusted to accommodate different pan sizes.
4. Is this cabinet insulated?
   Yes, it features 2.5″ thick, high-density fiberglass insulation.
5. Does it have a water pan for humidity control?
   Yes, it includes an integral water pan system to add humidity.

Certifications

• NSF Certified
• UL Listed (US & Canada)
• Energy Star Qualified (on some models)

Specifications

• Product Type: Insulated Pass-Thru Holding Cabinet
• Series: C5 6 Series
• Doors: Dutch Clear Doors
• Slides: Universal Wire Slides
• Voltage: 120V
• Wattage: 1440W
• Material: Stainless Steel
• Color: Silver
