Manufacturer Part Number: C569L-SDC-UPDCA | Brand: Metro

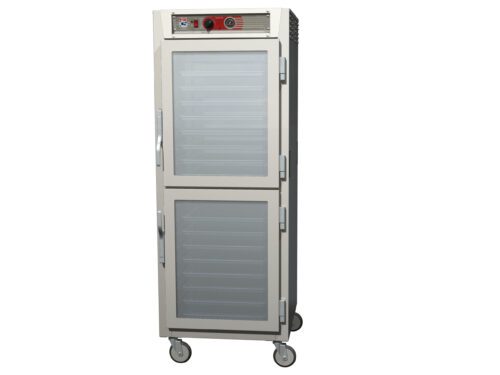

Metro C569L-SDC-UPDCA C5 6 Series Insulated Pass-Thru Holding Cabinet
The Metro C569L-SDC-UPDCA is a top-of-the-line insulated pass-thru holding cabinet designed to keep your food at the perfect temperature until it’s ready to serve. This full-height cabinet is ideal for busy commercial kitchens, restaurants, and catering operations where maintaining food quality and safety is paramount. See product image above.
Key Features and Benefits
- Pass-Thru Design: Allows for easy loading and unloading from either side, improving workflow efficiency.
- Insulated Cabinet: 2.5″ thick, high-density fiberglass insulation minimizes temperature loss, saving energy and maintaining consistent temperatures.
- Dutch Clear Doors: Double-pane tempered glass doors provide excellent visibility of the cabinet’s contents while retaining heat.
- Universal Wire Slides: Accommodates a variety of pan sizes, including (17) 18″ x 26″ or (32) 12″ x 20″ x 2-1/2″ pans.
- Adjustable Wire Slides: Wire slides are adjustable on 1-1/2″ centers, providing flexibility to accommodate different food items.
- Analog Thermometer: Provides continuous temperature monitoring, even when the cabinet is turned off or unplugged.
- Ducted Heating System: Thermostatically controlled ducted heating system ensures rapid heat-up and recovery times.
- Humidity Control: Integral water pan system can be used to add humidity to the cabinet environment, improving food quality and preventing food from drying out.
- Stainless Steel Construction: Durable and easy-to-clean 304 stainless steel construction ensures long-lasting performance.
- Mobile Design: Equipped with casters for easy mobility and placement within your kitchen.
Technical Specifications
- Model: C569L-SDC-UPDCA
- Series: C5 6 Series
- Type: Insulated Pass-Thru Holding Cabinet
- Height: Full Height
- Doors: Dutch Clear Doors / Dutch Clear Doors
- Slides: Universal Wire Slides
- Voltage: 120V
- Frequency: 60Hz
- Wattage: 1440W
- Amperage: 12 Amps
- Plug: NEMA 5-15P
- Temperature Range: 70 to 200F
- Material: 304 Stainless Steel
- Insulation: 2.5″ High-Density Fiberglass
- Dimensions: 29.125″ W x 34.625″ D x 74.75″ H
- Weight: Approximately 410 lbs
Common Uses
- Restaurants: Keep prepared dishes warm and ready to serve.
- Catering Services: Transport and hold food at safe temperatures for off-site events.
- Commercial Kitchens: Maintain food quality and safety in high-volume food production environments.
- Hotels: Keep breakfast buffets and room service orders warm and fresh.
- Hospitals: Ensure patients receive meals at the correct temperature.
FAQs
- What is the temperature range of this holding cabinet?The temperature range is 70 to 200 degrees Fahrenheit.
- What size pans can this cabinet accommodate?It can hold (17) 18″ x 26″ or (32) 12″ x 20″ x 2-1/2″ pans.
- Is this cabinet insulated?Yes, it features 2.5″ thick, high-density fiberglass insulation.
- Does this cabinet have humidity control?Yes, it includes an integral water pan system for humidity control.
- Is this cabinet mobile?Yes, it is equipped with casters for easy mobility.
Certifications
- cULus
- NSF
The Metro C569L-SDC-UPDCA C5 6 Series Insulated Pass-Thru Holding Cabinet is a reliable and efficient solution for keeping your food hot, fresh, and safe. Its durable construction, precise temperature control, and convenient features make it an excellent investment for any food service operation. Contact us today to learn more!
