Manufacturer Part Number: C569L-SDS-LPDC | Brand: Metro
Metro C5 6 Series Insulated Pass-Thru Holding Cabinet
The Metro C569L-SDS-LPDC is a full-size, insulated, low-wattage, pass-through holding cabinet designed to keep food at optimal serving temperatures. With its robust construction and thoughtful design, this cabinet is an essential addition to any commercial kitchen.
Key Features
- Pass-Through Design: Allows access from both the kitchen and serving area, improving workflow efficiency.
- Insulation: High-quality insulation ensures quick heating and recovery, maintaining temperatures up to 200 degrees Fahrenheit.
- Humidity Control: An integral water pan system can be used to add humidity, preventing food from drying out.
- Temperature Control: Features a built-in temperature controller with a temperature dial and an analog thermometer for easy monitoring.
- Durable Construction: Made with 304 type stainless steel and double-hinged, solid Dutch doors that swing out 180 degrees for easy access and durability.
- Mobility: Equipped with (4) 5″ donut neoprene wheels, two with brakes, making it easy to move and secure the cabinet.
- Pan Capacity: Holds up to (34) 18″ x 26″ sheet pans on 1 1/2″ increments, providing ample space for various food items.
Technical Specifications
- Dimensions: 29 1/8″ wide, 34 5/8″ deep, and 74 3/4″ high
- Electrical: 120V, 60Hz
- Wattage: 1440W
- Amps: 11.7 Amps (or 12 Amps according to Katom)
- Plug: NEMA 5-15P (or NEMA 5-20P according to Katom)
- Material: 304 Type Stainless Steel
- Color: Silver
Common Uses
- Restaurants: Ideal for holding prepared dishes at serving temperature.
- Catering Services: Ensures food remains hot and fresh during transport and events.
- Institutional Facilities: Perfect for hospitals, schools, and cafeterias needing to hold large quantities of food.
FAQs
- What is the temperature range of this cabinet?
The temperature can be adjusted from 70 to 200 degrees Fahrenheit. - Does this cabinet require special electrical connections?
It requires a 120V electrical connection with a NEMA 5-15P or NEMA 5-20P plug. - Is this cabinet mobile?
Yes, it comes with (4) 5″ donut neoprene wheels, two with brakes.
Certifications
- UL Listed
- NSF Listed
- Energy Star Qualified
- Made in America
Warranty
This Metro holding cabinet comes with a 1-year warranty against manufacturing defects.

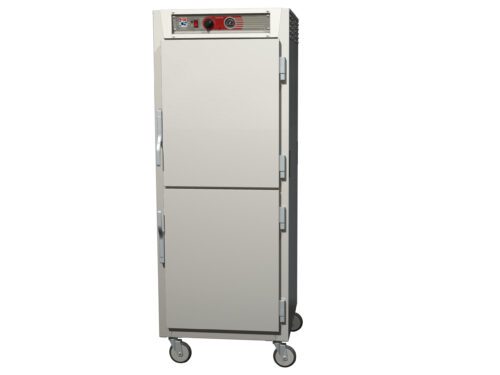

See product image above for a visual representation of the cabinet’s features.
For more information or to place an order, Contact us today!
