Metro C569L-SDS-LPDS C5 6 Series Insulated Pass-Thru Holding Cabinet, Full Height, Dutch Solid Doors/ Dutch Solid Doors, Lip Load Aluminum Slides, 120V, 60Hz, 1440W

Manufacturer Part Number: C569L-SDS-LPDS | Brand: Metro

Metro C569L-SDS-LPDS C5 6 Series Insulated Pass-Thru Holding Cabinet

The Metro C569L-SDS-LPDS is a full-height, pass-thru, insulated mobile heated holding cabinet designed to maintain food quality and temperature in commercial kitchens and catering environments. Part of the renowned Metro C5 6 Series, this cabinet combines durability, efficiency, and ease of use to meet the demands of busy foodservice operations.

Key Features

• Pass-Thru Design: Allows for convenient loading and unloading from either side, improving workflow efficiency.
• Dutch Solid Doors: Provide easy access to contents while minimizing temperature loss.
• Lip Load Aluminum Slides: Securely hold and transport food pans, preventing spills and damage.
• Stainless Steel Construction: Ensures durability and resistance to corrosion, making it ideal for demanding kitchen environments.
• 2.5″ Thick Fiberglass Insulation: Minimizes temperature loss, maintaining consistent heat and reducing energy consumption.
• Integral Water Pan System: Adds humidity to the cabinet environment, preventing food from drying out and maintaining optimal texture and flavor.
• Ducted Heating System: Provides rapid heat-up and recovery times, ensuring consistent temperature throughout the cabinet.
• Analog Thermometer: Offers continuous monitoring of the cabinet temperature, even when turned off or unplugged.

Technical Specifications

• Model: C569L-SDS-LPDS
• Series: C5 6 Series
• Type: Insulated Pass-Thru Holding Cabinet
• Height: Full Height
• Doors: Dutch Solid Doors
• Slides: Lip Load Aluminum Slides
• Voltage: 120V
• Frequency: 60Hz
• Wattage: 1440W
• Material: Stainless Steel
• Color: Silver
• Dimensions:
  • Depth: 34.63 inches
  • Height: 74.75 inches
  • Width: 29.13 inches
• Capacity: 34 18″ x 26″ pans
• Electrical: 120V/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P

Common Uses

• Restaurants: Ideal for holding prepared dishes at serving temperature until ready to serve.
• Catering Services: Perfect for transporting and holding hot food at off-site events.
• Hotels: Great for keeping breakfast items warm and fresh for guests.
• Hospitals: Suitable for maintaining the temperature of patient meals.
• Schools: Useful for holding lunch items at serving temperature in cafeterias.

Frequently Asked Questions (FAQs)

1. What is the temperature range of the holding cabinet?
   The temperature range is 70 to 200°F.
2. Does the cabinet require any special electrical connections?
   Yes, the cabinet requires a 120V electrical connection. Cabinets rated at 120V 1440W may be plugged into either a 15 amp or 20 amp receptacle.
3. Can the humidity level inside the cabinet be adjusted?
   Yes, the cabinet includes an integral water pan system that can be used to add humidity to the cabinet environment.
4. Is the cabinet mobile?
   Yes, the cabinet is equipped with 5″ casters, two of which have brakes, for easy mobility and secure placement.

Certifications

• NSF Certified
• UL Listed

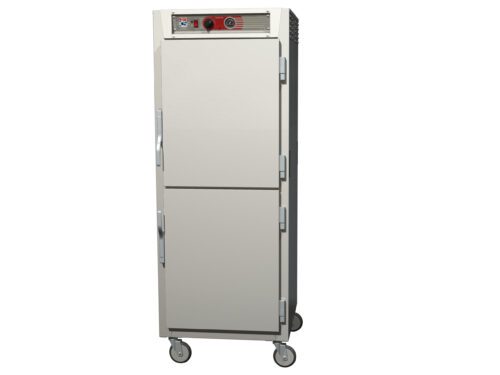

See product image above for visual details.
