Manufacturer Part Number: **C569L-SDS-UPDCA** | Brand: **Metro**

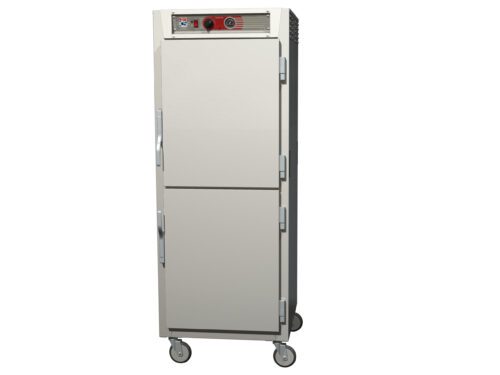

Metro C569L-SDS-UPDCA C5 6 Series Insulated Pass-Thru Holding Cabinet: Keep Food Hot & Fresh
The **Metro C569L-SDS-UPDCA** is a **high-quality, insulated pass-thru holding cabinet** designed to maintain the temperature and quality of your hot food. This **mobile, full-height cabinet** is perfect for **commercial kitchens, restaurants, catering events**, and other **food service** applications. Its **pass-thru design** allows for easy loading and unloading from either side, improving efficiency and workflow.
Key Features and Benefits
- **Precise Temperature Control:** The **thermostatically controlled ducted heating system** ensures consistent temperatures between 70°F and 200°F, keeping your food safely and deliciously hot.
- **Superior Insulation:** With **2.5″ thick, high-density fiberglass insulation**, this cabinet minimizes heat loss and maintains optimal holding temperatures.
- **Humidity Control:** The **integral water pan system** adds humidity to the cabinet, preventing food from drying out and maintaining its quality.
- **Durable Construction:** Made from **304 stainless steel**, this cabinet is built to withstand the rigors of a busy **commercial kitchen**.
- **Easy to Use:** The **analog thermometer** provides continuous temperature monitoring, even when the cabinet is off. The **easy-to-use dial** puts you in control of the cabinet temperature.
- **Mobile Design:** Equipped with **5″ casters (2 with brakes)**, this cabinet is easy to move and position wherever you need it.
- **Pass-Thru Convenience:** The **pass-thru design** allows for easy loading and unloading from either side, improving efficiency and workflow.
- **Dutch Doors:** Features **Dutch doors** (one solid, one tempered glass double pane) for easy access and temperature retention.
Technical Specifications
- **Model:** C569L-SDS-UPDCA
- **Series:** C5 6 Series
- **Type:** Insulated Pass-Thru Holding Cabinet
- **Height:** Full Height
- **Doors:** Dutch Solid Doors/ Dutch Clear Doors
- **Slides:** Universal Wire Slides
- **Voltage:** 120V
- **Frequency:** 60Hz
- **Wattage:** 1440W
- **Amperage:** 12 amps
- **Plug:** NEMA 5-15P
- **Material:** 304 Stainless Steel
- **Casters:** 5″ (2 with brakes)
- **Dimensions:** Width: 29.125″, Depth: 34.625″, Height: 74.75″
- **Pan Capacity:** (17) 18″ x 26″ or (32) 12″ x 20″ x 2-1/2″ pans
- **Weight:** Approximate Package Weight: 430 lbs
- **Certifications:** cULus and NSF
Common Uses
- **Restaurants:** Keep prepared dishes hot and ready to serve.
- **Catering Services:** Transport and hold food at safe temperatures for off-site events.
- **Hotels:** Maintain food quality for buffets and room service.
- **Hospitals:** Ensure food is served at the correct temperature for patients.
- **Schools:** Keep lunches hot and ready for students.
FAQs
- **What is the temperature range of this holding cabinet?**
The temperature range is 70°F to 200°F. - **Does this cabinet have humidity control?**
Yes, it has an integral water pan system for humidity control. - **Is this cabinet mobile?**
Yes, it has 5″ casters (2 with brakes) for easy mobility. - **What is the pan capacity of this cabinet?**
It can accommodate (17) 18″ x 26″ or (32) 12″ x 20″ x 2-1/2″ pans.
Certifications
The Metro C569L-SDS-UPDCA is **cULus and NSF certified**, ensuring it meets the highest standards for safety and sanitation.
For more information or to place an order, Contact us today!
