Manufacturer Part Number: C569L-SDS-UPDS | Brand: Metro
Metro C5 6 Series Insulated Pass-Thru Holding Cabinet – Maximize Efficiency in Your Kitchen
The Metro C569L-SDS-UPDS is a top-of-the-line insulated pass-thru holding cabinet designed to meet the demanding needs of commercial kitchens. This full-height cabinet features Dutch solid doors, universal wire slides, and a robust construction to ensure your food stays hot and safe until serving.
Key Features and Benefits
- Pass-Thru Design: Allows convenient loading and unloading from either side, optimizing kitchen workflow.
- Precise Temperature Control: Maintains consistent temperatures with its thermostatically controlled ducted heating system.
- Analog Thermometer: An always-on analog thermometer provides continuous temperature monitoring, even when the cabinet is off.
- Durable Construction: Made with stainless steel and 2.5″ thick, high-density fiberglass insulation for minimal temperature loss.
- Humidity Control: An integral water pan system adds humidity to the cabinet, preserving food quality.
- Adjustable Wire Slides: Nickel-chrome universal wire slides adjustable in 1 1/2-inch increments.
- Mobile: Equipped with 5″ casters, two with brakes, for easy mobility and secure placement.
Technical Specifications
- Model: C569L-SDS-UPDS
- Dimensions: 29.13″ W x 34.63″ D x 74.75″ H
- Pan Capacity: (17) 18″ x 26″ sheet pans or (32) 12″ x 20″ x 2-1/2″ steam table pans
- Electrical: 120V, 60Hz, 1-PH, 1440 Watts, 12 Amps
- Plug: NEMA 5-15P
- Material: 304 Stainless Steel
- Insulation: 2.5″ High-Density Fiberglass
- Temperature Range: 70 to 200°F
- Weight: 380 lbs
Common Uses
This heated holding cabinet is perfect for:
- Restaurants: Keep prepared dishes warm and ready to serve.
- Catering Services: Transport and hold food at safe temperatures for events.
- Institutional Facilities: Ideal for hospitals, schools, and cafeterias needing to hold large quantities of food.
FAQs
- What is the temperature range of this cabinet?
The temperature range is 70 to 200°F. - Does it require special electrical connections?
No, it operates on a standard 120V outlet with a NEMA 5-15P plug. - Is this cabinet mobile?
Yes, it is equipped with 5″ casters, two with brakes.
Certifications
- cULus certified
- NSF certified

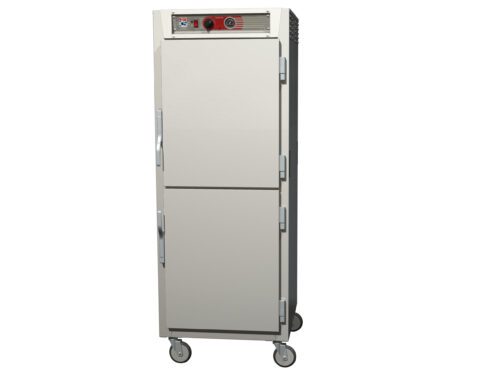

See product image above for visual details.
Ensure your kitchen operates efficiently with the reliable Metro C569L-SDS-UPDS Insulated Pass-Thru Holding Cabinet. Contact us today for more information!
