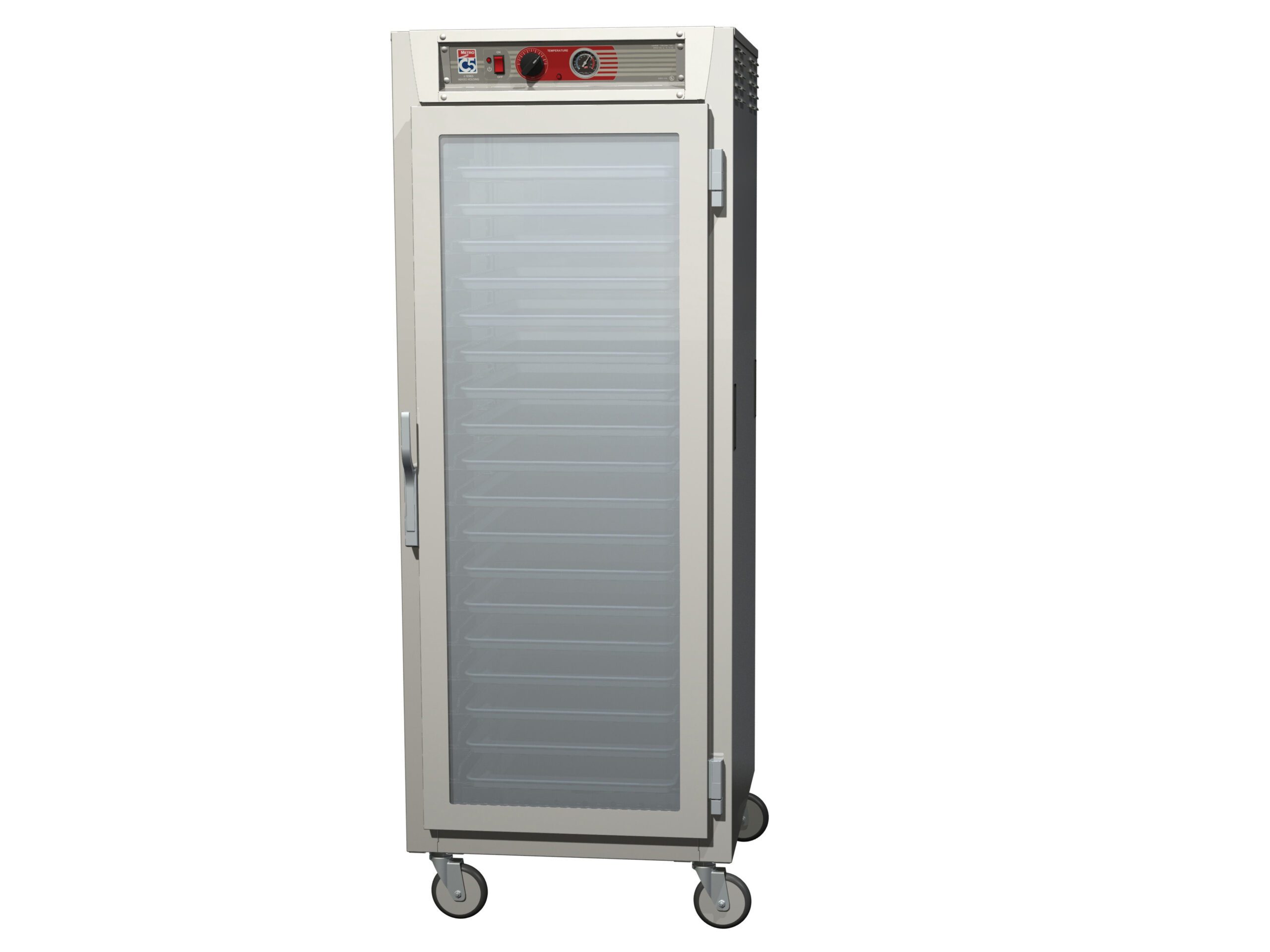

Metro C569L-SFC-LPFS C5 6 Series Insulated Pass-Thru Holding Cabinet
Manufacturer Part Number: C569L-SFC-LPFS | Brand: Metro
Key Features
- Pass-Thru Design: Enables loading and unloading from either side, optimizing kitchen workflow.
- Precise Temperature Control: Thermostatically controlled ducted heating system maintains temperatures between 70 and 200°F.
- Durable Construction: 304 stainless steel build ensures longevity and ease of maintenance.
- Insulated Cabinet: Full perimeter, 2.5″ thick, high-density fiberglass insulation minimizes heat loss.
- Humidity Control: Integral water pan system adds humidity to prevent food from drying out.
- Mobile Design: 5″ casters, two with brakes, provide easy mobility and secure placement.
- Clear and Solid Doors: One double-pane tempered glass door for visibility and one solid door for maximum insulation.
- High Capacity: Lip load slides accommodate (35) to (36) 18″ x 26″ sheet pans.
Benefits
- Enhanced Efficiency: Pass-thru design streamlines kitchen operations.
- Consistent Food Quality: Maintains optimal serving temperatures and humidity levels.
- Long-lasting Performance: Robust stainless steel construction ensures years of reliable use.
- Energy Efficient: Energy Star qualified with insulated design to reduce energy consumption.
- Easy to Use: User-friendly controls and clear temperature display for hassle-free operation.
Technical Specifications
- Model: C569L-SFC-LPFS
- Dimensions: 29.13″ W x 74.75″ H x 32.63″-34.625″ D
- Capacity: (35) to (36) 18″ x 26″ sheet pans
- Voltage: 120V
- Wattage: 1440W
- Amperage: 12 Amps
- Plug: NEMA 5-15P
- Temperature Range: 70-200°F
- Material: 304 Stainless Steel
- Insulation: 2.5″ High-Density Fiberglass
- Casters: 5″ Donut Neoprene, Two with Brakes
- Certification: cULus, NSF, Energy Star
- Weight: Approximately 435 lbs
- Color: Silver
Common Uses
- Restaurants: Ideal for holding prepared dishes at serving temperature.
- Catering Services: Keeps food hot and fresh during transport and events.
- Hotels: Perfect for buffets and room service.
- Hospitals: Maintains food quality for patient meals.
- Schools: Ensures hot lunches are ready for students.
FAQs
- What is the temperature range of this holding cabinet?
The temperature ranges from 70 to 200°F. - Does this unit require a water connection?
No, it features an integral water pan system for humidity. - Is this cabinet mobile?
Yes, it has 5″ casters, two with brakes. - What type of plug does it use?
It uses a NEMA 5-15P plug. - Is this unit energy efficient?
Yes, it is Energy Star qualified.
Certifications
- cULus Certified
- NSF Listed
- Energy Star Qualified
- Made in America
