Manufacturer Part Number: C569L-SFS-UPFC | Brand: Metro
Metro C569L-SFS-UPFC C5 6 Series Insulated Pass-Thru Holding Cabinet

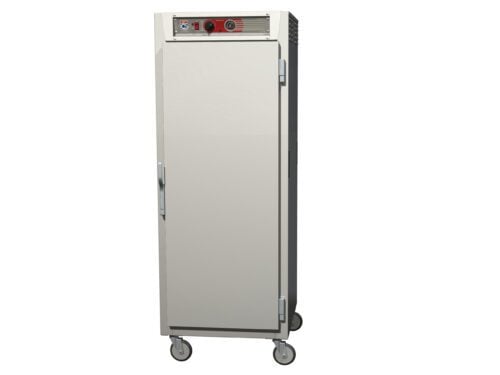

The Metro C569L-SFS-UPFC is a full-height, insulated mobile heated cabinet designed for pass-thru applications. This C5 6 Series Holding Cabinet provides exceptional temperature control and is perfect for keeping food hot and fresh in commercial kitchens, restaurants, and other foodservice environments. See product image above.
Key Features
- Pass-Thru Design: Allows for easy loading and unloading from either side, improving workflow efficiency.
- Insulated Cabinet: Features 2.5″ thick, high-density fiberglass insulation to minimize temperature loss and maintain consistent heat.
- Precise Temperature Control: Equipped with a ducted heating system and a thermostat that can be set between 70 and 200 degrees Fahrenheit.
- Analog Thermometer: Provides continuous temperature monitoring, even when the unit is off.
- Universal Wire Slides: Adjustable in 1 1/2-inch increments to accommodate various pan sizes.
- High Capacity: Holds up to (18) 18″ x 26″ sheet pans or (34) 12″ x 20″ x 2 1/2″ steam pans.
- Stainless Steel Construction: Ensures durability and easy cleaning.
- Mobile Design: Rolls on 5-inch casters, two with brakes, for easy maneuverability.
- Integral Water Pan: Adds humidity to the cabinet environment, improving food quality and preventing drying.
Technical Specifications
- Model: C569L-SFS-UPFC
- Dimensions: 29 1/8″ W x 34 5/8″ D x 74 3/4″ H
- Material: Stainless Steel
- Voltage: 120V/60 Hz/1-ph
- Wattage: 1440W
- Amperage: 12 amps
- Plug: NEMA 5-15P
- Cord Length: 7 1/2 ft
- Weight: 365 lbs
- Certification: cULus and NSF
Common Uses
- Restaurants: Ideal for holding prepared dishes before serving.
- Catering Services: Keeps food hot and fresh during transport and events.
- Hotels: Perfect for maintaining food temperature in buffet lines.
- Commercial Kitchens: Ensures food safety and quality in high-volume environments.
FAQs
- What is the temperature range of this holding cabinet?
The temperature can be set between 70 and 200 degrees Fahrenheit. - What is the capacity of the cabinet?
The cabinet can hold up to (18) 18″ x 26″ sheet pans or (34) 12″ x 20″ x 2 1/2″ steam pans. - Is this cabinet mobile?
Yes, it rolls on 5-inch casters, two of which have brakes. - Does this unit require special wiring?
No, it operates on a standard 120V outlet with a NEMA 5-15P plug.
Warranty Information
The Metro C569L-SFS-UPFC comes with a 1-year warranty against manufacturing defects.
