Manufacturer Part Number: C569X-SDC-LPDSA | Brand: Metro
Metro C569X-SDC-LPDSA C5 6 Series Insulated Pass-Thru Holding Cabinet

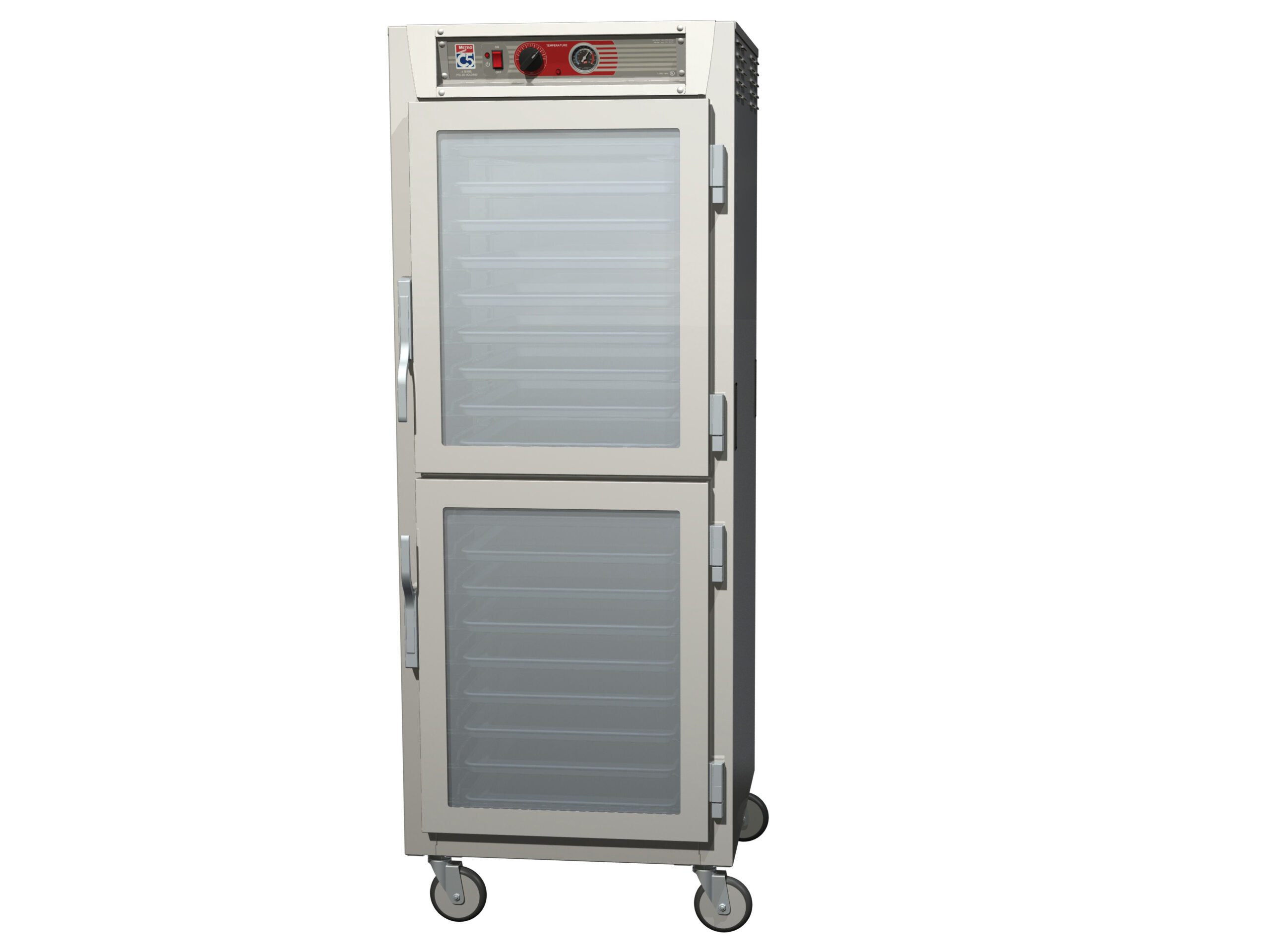

The Metro C569X-SDC-LPDSA is a top-of-the-line C5 6 Series Heated Holding Cabinet designed to keep your food at the perfect temperature. This mobile, full-height, pass-thru cabinet is equipped with insulated Dutch double pane tempered glass doors on one side and Dutch solid doors on the other, providing easy access and excellent temperature retention. See product image above.
Key Features
- Pass-Thru Design: Allows for convenient loading and unloading from either side, improving workflow efficiency.
- Precise Temperature Control: The thermostatically controlled ducted heating system ensures consistent temperatures between 70 and 200 degrees Fahrenheit.
- Durable Construction: Made from 304 stainless steel with 2.5″ thick, high-density fiberglass insulation for maximum durability and temperature retention.
- High Capacity: Features lip load aluminum slides that can hold up to (34) 18″ x 26″ pans with 1-1/2″ wire slides.
- Humidity Control: An integral water pan system adds humidity to the cabinet environment, preventing food from drying out.
- Easy to Monitor: The analog thermometer provides continuous temperature monitoring, even when the unit is off.
- Mobile: Equipped with casters for easy mobility and placement in your kitchen or catering environment.
Benefits
- Maintains Food Quality: Keeps food hot, fresh, and flavorful for extended periods.
- Increases Efficiency: Pass-thru design streamlines kitchen operations.
- Reduces Food Waste: Precise temperature and humidity control prevent food from spoiling.
- Saves Energy: The insulated design minimizes temperature loss, reducing energy consumption.
Technical Specs
- Model: C569X-SDC-LPDSA
- Voltage: 220-240V, 50/60Hz
- Wattage: 1681-2000W
- Dimensions: 29.13″ W x 32.63″ D x 74.75″ H
- Capacity: (34) 18″ x 26″ pans
- Material: 304 Stainless Steel
- Insulation: 2.5″ High-Density Fiberglass
- Temperature Range: 70 to 200 degrees Fahrenheit
- Weight: 435 lbs (shipping)
Common Uses
This insulated pass-thru holding cabinet is ideal for:
- Commercial Kitchens: Keeping prepared food hot and ready to serve.
- Catering Events: Transporting and holding food at the correct temperature.
- Restaurants: Maintaining food quality during peak service hours.
- Buffets: Providing a convenient and efficient way to keep food hot for customers.
FAQs
Q: What is the temperature range of this holding cabinet?
A: The thermostat temperature ranges from 70 to 200 degrees Fahrenheit.
Q: How many pans can this cabinet hold?
A: It can hold up to (34) 18″ x 26″ pans with 1-1/2″ wire slides.
Q: Is this cabinet mobile?
A: Yes, it is equipped with casters for easy mobility.
Q: What is the electrical configuration?
A: It operates at 220-240V, 50/60Hz, 1681-2000W.
Certifications
This cabinet is certified by:
- cULus
- NSF
Specifications
- Product Type: Insulated Pass-Thru Holding Cabinet
- Model Number: C569X-SDC-LPDSA
- Brand: Metro
- Dimensions: 29.13″ W x 32.63″ D x 74.75″ H
- Weight: 435 lbs (shipping)
- Material: 304 Stainless Steel
- Color: Silver
- Doors: Dutch Clear Doors/Dutch Solid Doors
- Capacity: (34) 18″ x 26″ pans
- Electrical: 220-240V, 50/60Hz, 1681-2000W
