Metro C569X-SDC-UPDSA C5 6 Series Insulated Pass-Thru Holding Cabinet, Full Height, Dutch Clear Doors/ Dutch Solid Doors, Universal Wire Slides, 220-240V, 50/60Hz, 1681-2000W

Manufacturer Part Number: C569X-SDC-UPDSA | Brand: Metro

Metro C569X-SDC-UPDSA Insulated Pass-Thru Holding Cabinet: Keep Food Hot & Fresh

The Metro C569X-SDC-UPDSA is a premium insulated holding cabinet designed to maintain the quality and temperature of your hot food items. As part of the Metro C5 6 Series, this pass-thru cabinet offers exceptional temperature control, energy efficiency, and durability, making it an essential addition to any busy commercial kitchen.

Key Features and Benefits

• Precise Temperature Control: Maintain consistent temperatures with the thermostatically controlled ducted heating system, ranging from 70 to 200°F (21 to 93°C).
• Energy Efficiency: The dutch door design minimizes heat loss, allowing access to only a section of the cabinet at a time.
• Superior Insulation: Constructed with stainless steel and 2.5″ thick, high-density fiberglass insulation for minimal temperature loss.
• Humidity Control: An integral water pan system adds humidity to the cabinet environment, preventing food from drying out.
• Pass-Thru Design: Allows convenient loading from the kitchen and unloading at the serving area, improving workflow.
• Universal Wire Slides: Accommodates various pan sizes, including (17) 18″ x 26″ or (32) 12″ x 20″ x 2-1/2″ pans.
• Mobile Design: Equipped with 5″ casters (2 with brakes) for easy mobility and positioning.
• Durable Construction: Made from 304 stainless steel for long-lasting performance and easy cleaning.
• Certified: NSF certified, ensuring compliance with food safety standards.

Technical Specifications

• Model: C569X-SDC-UPDSA
• Series: C5 6 Series
• Type: Insulated Pass-Thru Holding Cabinet
• Door Type: Dutch Clear Doors (front), Dutch Solid Doors (pass-thru)
• Slide Type: Universal Wire Slides
• Voltage: 220-240V
• Frequency: 50/60Hz
• Power: 1681-2000W
• Material: 304 Stainless Steel
• Dimensions: 29.13″ W x 34.63″ D x 74.75″ H
• Weight: 435 lbs

Common Uses

The Metro C569X-SDC-UPDSA is ideal for a variety of food holding applications, including:

• Restaurants: Keeping entrees, sides, and desserts at optimal serving temperatures.
• Catering Services: Transporting and holding food for events.
• Hotels: Maintaining food quality for buffets and room service.
• Institutional Kitchens: Serving large volumes of food in schools, hospitals, and cafeterias.

FAQs

1. What is the temperature range of this holding cabinet?
   The temperature can be adjusted from 70 to 200°F (21 to 93°C).
2. Does this cabinet require special electrical connections?
   Yes, it operates on 220-240V and uses a NEMA 6 configuration power cord.
3. Is this cabinet NSF certified?
   Yes, it is NSF certified for food safety.
4. Can I add humidity to the cabinet?
   Yes, it features an integral water pan system for humidity control.

Certifications

• NSF Certified
• cULus Listed

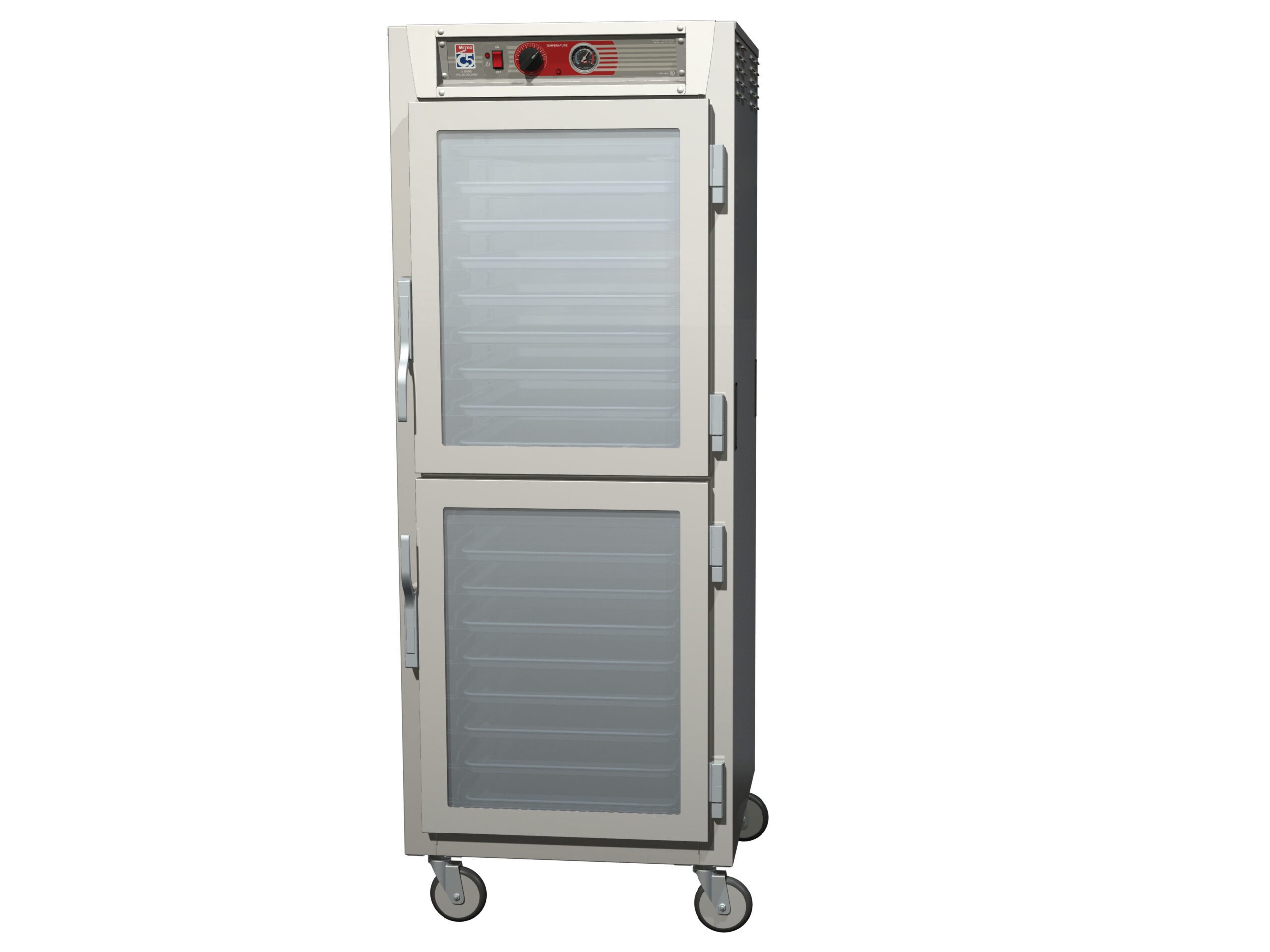

See product image here.
