Manufacturer Part Number: C569X-SDS-UPDS | Brand: Metro

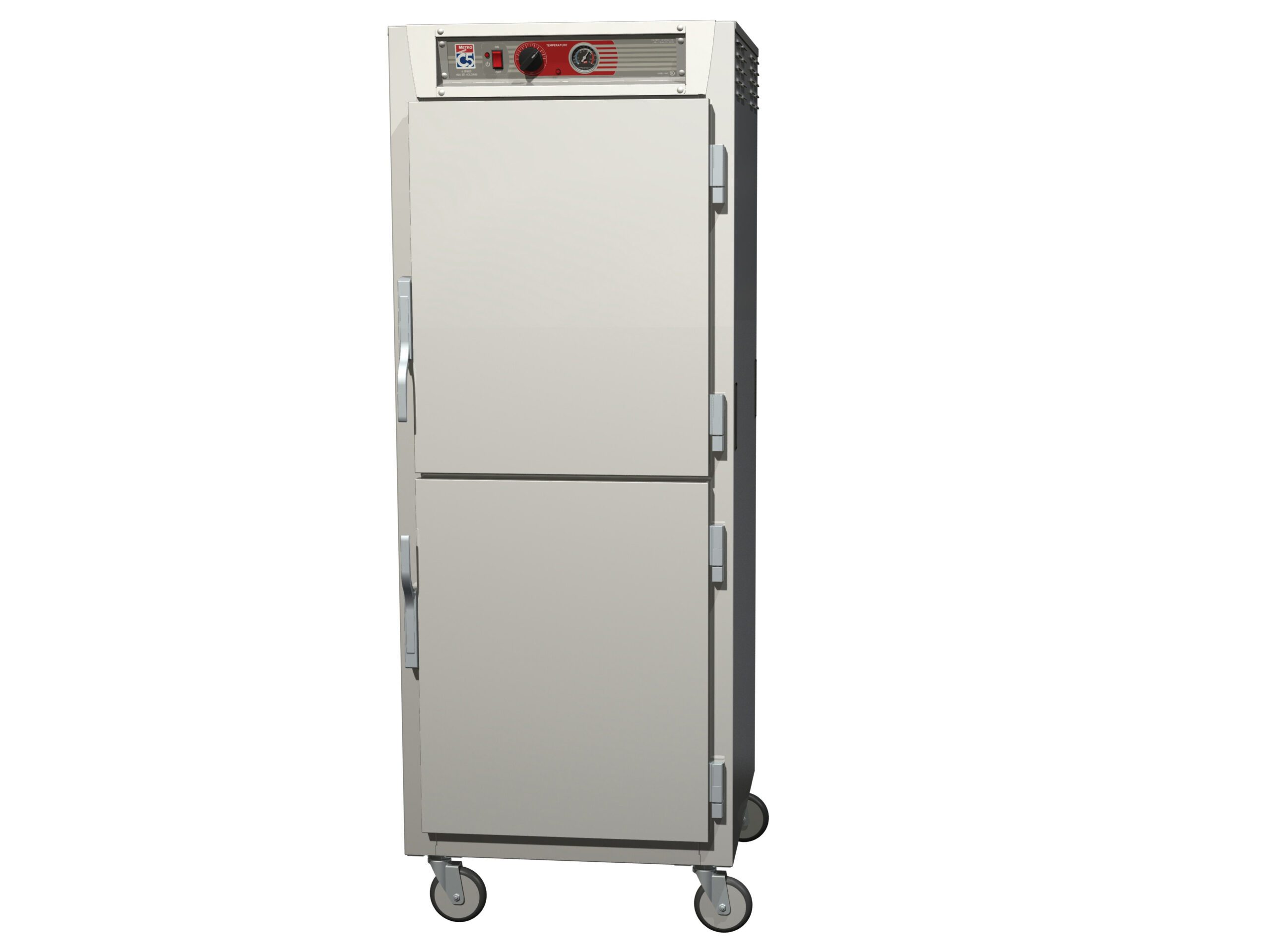

Metro C5 6 Series Insulated Pass-Thru Holding Cabinet – Full Height, Dutch Solid Doors
The Metro C569X-SDS-UPDS is a C5 6 Series Insulated Pass-Thru Holding Cabinet designed for full-height, pass-through applications in commercial kitchens and foodservice environments. This heated holding cabinet features dutch solid doors on both sides, providing convenient access and efficient workflow. Constructed from stainless steel with 2.5″ thick high-density fiberglass insulation, it ensures minimal temperature loss and maintains optimal food quality.
Key Features and Benefits
- Pass-Thru Design: Allows easy access from both sides, streamlining operations in busy kitchens.
- Precise Temperature Control: Maintains consistent temperatures up to 200F, ensuring food safety and quality.
- Stainless Steel Construction: Offers durability and easy cleaning, meeting the highest hygiene standards.
- High-Density Fiberglass Insulation: Minimizes heat loss, reducing energy consumption and maintaining consistent temperatures.
- Integral Water Pan System: Adds humidity to the cabinet environment, preventing food from drying out.
- Universal Wire Slides: Accommodate 18″x26″ sheet pans or 12″x20″ steam table pans on adjustable 1 1/2″ centers.
- Mobile Design: Equipped with four 5″ donut neoprene casters for easy maneuverability.
- Ducted Heating System: Provides rapid heat-up and recovery times, ensuring consistent temperature throughout the cabinet.
- Analog Thermometer: Always-on analog thermometer for continuous monitoring of the cabinet temperature, even when turned off or unplugged.
Technical Specifications
- Model: C569X-SDS-UPDS
- Cabinet Height: Full Height
- Door Style: Dutch Solid Doors / Dutch Solid Doors
- Slide Type: Universal Wire Slides
- Electrical: 220-240V, 50/60Hz, 1681-2000W, NEMA 6-15P plug
- Dimensions: 34.625″ x 29.125″ x 74.75″
- Material: Stainless Steel
- Insulation: 2.5″ High-Density Fiberglass
- Casters: 5″ Donut Neoprene
- Temperature Range: Up to 200°F
Common Uses
- Restaurants: Ideal for holding prepared foods at serving temperatures.
- Catering Services: Perfect for transporting and holding hot food for events.
- Hospitals: Ensures food is kept at safe temperatures for patients.
- Schools: Maintains food quality for student meals.
- Hotels: Keeps breakfast buffets and room service items hot and ready.
FAQs
- What type of pans can the cabinet accommodate?
- The universal wire slides can accommodate 18″x26″ sheet pans or 12″x20″ steam table pans.
- Is the temperature adjustable?
- Yes, the cabinet features a thermostat for precise temperature control up to 200°F.
- Is the cabinet mobile?
- Yes, it is equipped with four 5″ donut neoprene casters for easy mobility.
Certifications
- Check the product spec sheet for specific certifications.
