Manufacturer Part Number: C589-SDC-UPDS | Brand: Metro
Metro C589-SDC-UPDS C5 8 Series Insulated Pass-Thru Holding Cabinet
The Metro C589-SDC-UPDS is a top-of-the-line insulated holding cabinet designed for commercial kitchens. This full-height cabinet features a pass-through design with Dutch solid and clear doors, making it perfect for efficient workflow between the kitchen and serving areas. Constructed from stainless steel, this cabinet offers durability and ease of cleaning.
Key Features
- Pass-Thru Design: Allows easy access from both sides, streamlining kitchen operations.
- Insulated Cabinet: Full perimeter, high-density fiberglass insulation minimizes temperature loss, ensuring food stays warm longer.
- Universal Wire Slides: Adjustable in 1 1/2″ increments, accommodating up to (17) 18″ x 26″ full-size sheet pans or (32) 12″ x 20″ pans.
- Precise Temperature Control: Adjustable from 70 to 200 degrees Fahrenheit with a top-mounted digital control and low-temperature alarm.
- Mobile: Equipped with 5″ donut neoprene casters for easy mobility.
- Water Pan: Integral water pan system to add humidity, improving food quality.
Technical Specifications
- Model: C589-SDC-UPDS
- Dimensions: 29 1/8 in. W x 34 5/8 in. D x 74 3/4 in. H
- Electrical: 120 V/60 Hz/1 ph, 2000 W, 16 7/10 A
- Plug: NEMA 5-20P
- Material: Type 304 stainless steel with a 20-gauge polished exterior and .063″ aluminum interior
- Insulation: Full perimeter, 1″ thick, high-density fiberglass
Common Uses
This insulated holding cabinet is ideal for restaurants, catering services, and other commercial kitchens that need to keep food warm and ready to serve. The pass-through design makes it especially useful in high-volume environments where efficiency is key.
FAQs
- What is the temperature range of this cabinet?
The temperature is adjustable from 70 to 200 degrees Fahrenheit. - How many sheet pans can it hold?
It can hold up to (17) 18″ x 26″ full-size sheet pans or (32) 12″ x 20″ pans. - Is this cabinet mobile?
Yes, it is equipped with 5″ donut neoprene casters for easy mobility.
Certifications
- NSF Listed
- UL Listed
- Made in the USA

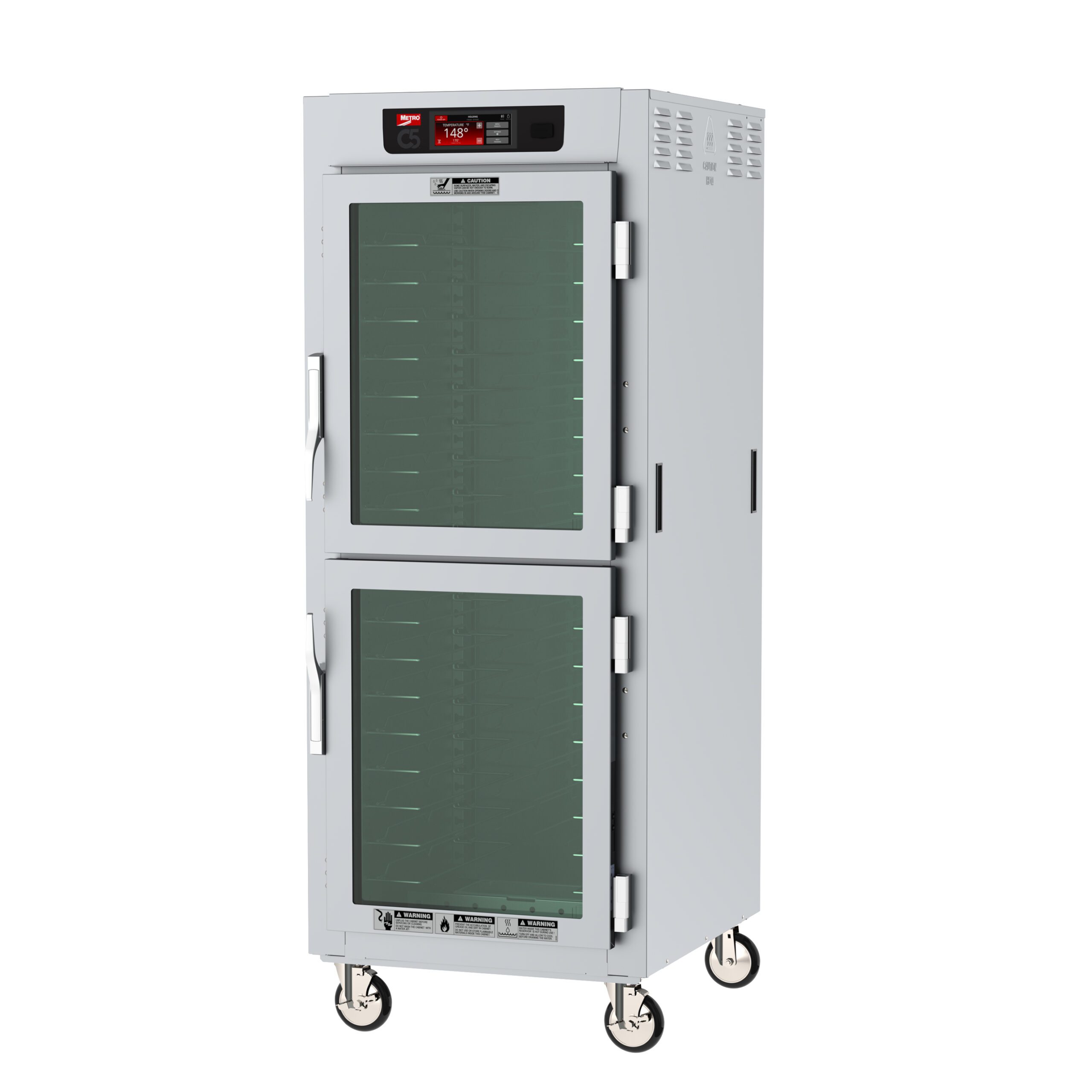

See product image above.
For more information or to place an order, Contact us today!
