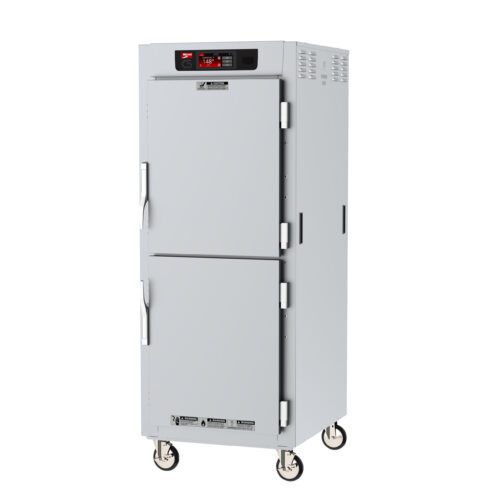

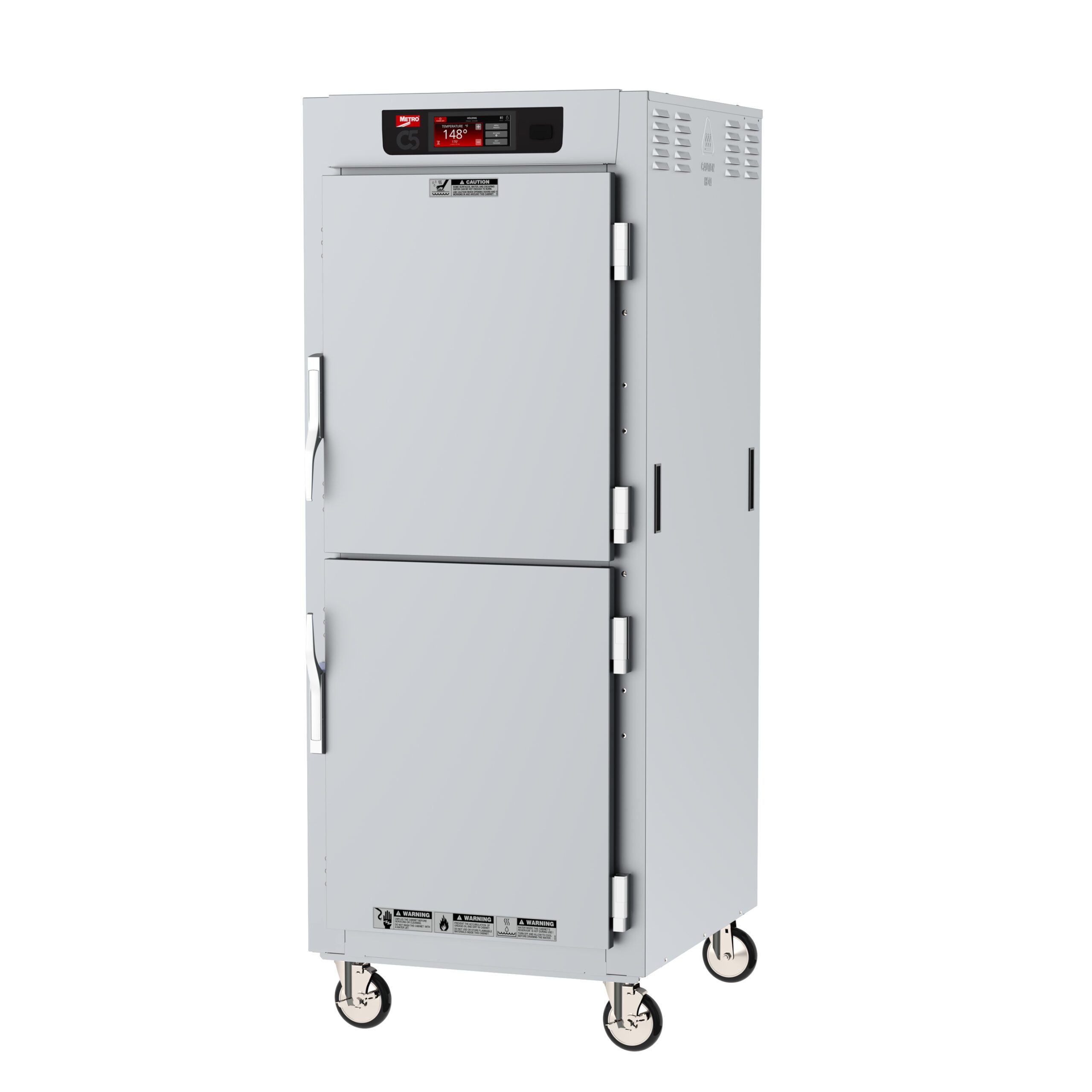

Metro C589-SDS-UPDS C5 8 Series Insulated Pass-Thru Holding Cabinet
Manufacturer Part Number: C589-SDS-UPDS | Brand: Metro
Key Features
- 6.8″ High-Resolution Touch-Screen Display: Provides intuitive and precise temperature control.
- Menu Presets and Programmable Timers: Allows for consistent food quality and easy operation.
- Natural Convective Airflow: Maintains consistent temperature levels throughout the cabinet.
- Stainless Steel Construction: Ensures durability and ease of cleaning.
- 2.5″ Thick Fiberglass Insulation: Minimizes temperature loss and maximizes energy efficiency.
- Integral Water Pan System: Adds humidity to the cabinet, preventing food from drying out.
- Pass-Thru Design: Enables convenient loading and unloading from either side.
- Universal Wire Slides: Accommodates various pan sizes and configurations.
Benefits
- Improved Food Quality: Consistent temperature and humidity control keep food fresh and flavorful.
- Energy Efficiency: Superior insulation reduces energy consumption and lowers operating costs.
- Ease of Use: Intuitive touch-screen controls simplify operation and minimize training time.
- Versatile Pan Compatibility: Universal wire slides accommodate a wide range of pan sizes.
- Durable Construction: Stainless steel build ensures long-lasting performance in demanding environments.
Technical Specs
- Material: Stainless Steel, Aluminum
- Color: Silver
- Doors: Dutch Solid Doors
- Size: Full Height
- Voltage: 120V
- Amperage: 16A
- Power: 2000W
- Temperature Range: 70°F to 200°F
- Capacity: Up to 17 18″ x 26″ full-size sheet pans
- Dimensions: 74.75″ H x 29.125″ W x 34.625″ D
- Weight: Approximately 380 lbs
Common Uses
- Restaurants: Holding cooked food at optimal temperatures until serving.
- Catering Services: Transporting and holding food for events.
- Hotels: Keeping breakfast items warm for extended service periods.
- Institutional Food Operations: Maintaining food quality in hospitals, schools, and cafeterias.
FAQs
- What is the temperature range of this holding cabinet?
The temperature range is 70°F to 200°F. - How many sheet pans can it hold?
It can hold up to 17 full-size (18″ x 26″) sheet pans. - Is this cabinet mobile?
Yes, it is designed as a mobile unit for easy transport. - What type of doors does it have?
It features Dutch solid doors, allowing for partial opening to minimize temperature loss.
Certifications
- NSF Listed
- UL Listed
- Energy Star Rated
- cULus
- NSF
- Made in USA
Specifications
- Model: C589-SDS-UPDS
- Type: Insulated Pass-Thru Holding Cabinet
- Construction: Stainless Steel
- Door Type: Dutch Solid Doors
- Slides: Universal Wire Slides
- Voltage: 120V
- Power: 2000W
- Dimensions: 74.75″ H x 29.125″ W x 34.625″ D
For more information or to place an order, contact us today!
