Manufacturer Part Number: C589L-SDC-UPDC | Brand: Metro

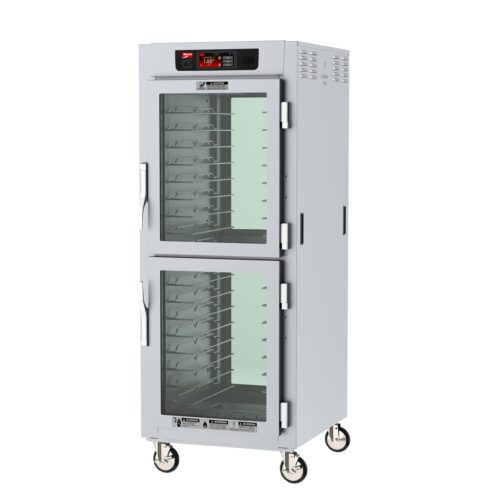

Metro C5 8 Series Insulated Pass-Thru Holding Cabinet
The Metro C589L-SDC-UPDC is a state-of-the-art insulated pass-thru holding cabinet designed for demanding commercial kitchen environments. Part of the renowned Metro C5 8 Series, this cabinet ensures your hot food stays at the perfect temperature, maintaining quality and consistency.
Key Features
- 6.8″ Touch-Screen Control: Offers precise temperature control and easy-to-use menu presets.
- Pass-Thru Design: Allows access from both sides, improving kitchen workflow.
- Dutch Clear Doors: Provide easy visibility of contents while maintaining temperature control.
- Universal Wire Slides: Accommodate a variety of pan sizes, offering flexibility in your kitchen.
- Energy-Efficient Insulation: 2.5″ thick, high-density fiberglass insulation minimizes temperature loss.
- Integral Water Pan: Adds humidity to the cabinet, preventing food from drying out.
- Stainless Steel Construction: Ensures durability and easy cleaning.
Technical Specifications
- Model: C589L-SDC-UPDC
- Dimensions: 29.125″ W x 34.625″ D x 74.75″ H
- Capacity: 17 (18″ x 26″) or 34 (12″ x 20″ x 2-1/2″) pans
- Electrical: 120V, 60Hz, 1440W, 12 Amps
- Material: 304 Stainless Steel
- Door Type: Dutch Clear Doors
- Slide Type: Universal Wire Slides
- Weight: 410 lbs (approximate)
Common Uses
This holding cabinet is perfect for:
- Restaurants
- Catering services
- Hotels
- Institutional kitchens
- Any commercial kitchen needing to hold food at precise temperatures
Frequently Asked Questions (FAQs)
- What is a pass-thru holding cabinet?A pass-thru cabinet has doors on both sides, allowing access from multiple points in the kitchen.
- What temperature range does this cabinet support?The 6.8″ touch screen allows for precise temperature control to meet various food holding requirements.
- Is this cabinet energy-efficient?Yes, it features 2.5″ thick, high-density fiberglass insulation and is Energy Star Qualified.
Certifications
- cULus
- NSF
- Made in USA
- Energy Star Qualified
See product image above.
