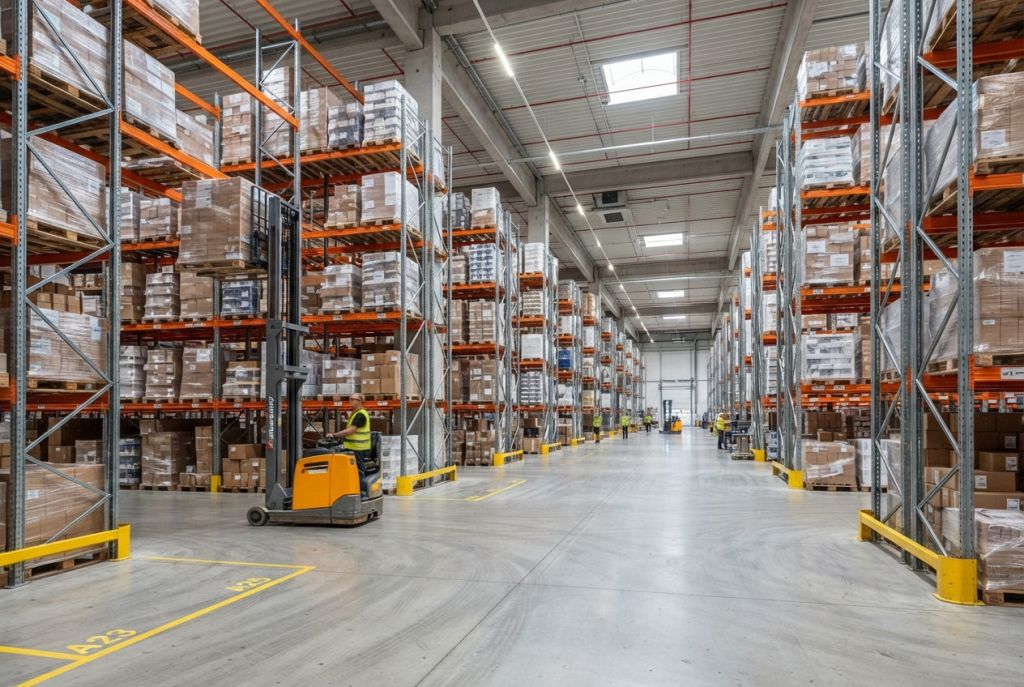

You’re probably looking at one of two situations right now.
Either you have empty floor space and need to fill it correctly the first time, or you already have racks in place and you know the layout isn’t working as well as it should. In both cases, the same issue sits underneath the problem. The sizing decisions made early on affect everything that follows.
That’s why warehouse racking sizes matter more than many buyers expect. A pallet dimension seems like a small detail until it determines your frame depth. Frame depth then affects aisle width, forklift travel, beam selection, storage density, and how safely operators can place loads all day.
Most expensive rack mistakes don’t start with the steel. They start with one bad assumption about the load.
Why Getting Warehouse Racking Sizes Right Matters
A warehouse manager rarely gets in trouble because a rack looked good on paper. Problems show up later, when pallets hang off beams, forklifts struggle in tight aisles, or usable vertical space gets lost because the original layout never matched the inventory.
That’s the domino effect of warehouse racking sizes. One choice drives the next.
The stakes are not small. The global warehouse racking market was valued at USD 9.61 billion in 2024 and is projected to reach USD 13.56 billion by 2033, reflecting how central racking has become to modern warehouse operations, especially for facilities planning scalable storage for 25,000 to 60,000 lbs per bay in medium to heavy duty applications according to Straits Research.
Small sizing errors create big operating problems
A rack system can be structurally sound and still be operationally wrong.
Common examples include:
- Pallet mismatch: A frame depth that doesn’t suit the pallet creates poor overhang or unstable placement.
- Vertical waste: Beam levels spaced too generously leave sellable or usable cube untouched.
- Forklift conflict: Aisles sized without reference to actual lift equipment slow every putaway and retrieval move.
- Growth limits: A layout that fits today’s SKU mix may fail when inventory profiles change.
Practical rule: Don’t start with “How many rows can I fit?” Start with “What exactly am I storing, how high does it sit, and what truck is handling it?”
The cost of getting it right is mostly planning
The good news is that most sizing mistakes are preventable before installation.
A sound sizing process usually follows this order:
- Identify the pallet and load dimensions
- Match frame depth and beam length to those loads
- Check vertical clearance and ceiling limits
- Set aisle widths based on forklift requirements
- Add safety and compliance requirements before finalizing the layout
That sequence matters. When teams reverse it and try to force inventory into a preselected rack size, compromise starts immediately. Some compromises are manageable. Others stay in the building for years.
Better sizing improves more than storage
Good sizing doesn’t only improve pallet count.
It also helps with:
- Safer loading practices
- Cleaner traffic flow
- More predictable replenishment
- Better use of floor and cube
- Easier future expansion
A new operations manager usually wants one clear answer. Which rack size should we buy?
The honest answer is that there isn’t one correct size in the abstract. There is only the right size for your pallet, your product, your equipment, and your building.
Understanding Core Racking Components and Dimensions
A rack bay looks simple until one sizing choice starts forcing the next one.
Choose a 48-inch deep pallet, and frame depth is no longer a style preference. It sets beam overhang, affects how cleanly operators can place loads, and influences how much forgiveness the slot has during putaway. Pick a longer beam to gain one more pallet position, and now beam capacity, deflection, and forklift placement tolerance all need a second look.
That chain reaction is why I always break pallet rack into three decisions first. Frame depth, beam length, and upright height. Get those three right and the rest of the layout gets easier to control.
Upright frame depth follows the pallet first
In selective pallet rack, common upright depths are 36 inches, 42 inches, and 48 inches.
For a standard 48-inch deep pallet, a 42-inch frame depth is a common match because it leaves a small pallet overhang at the front and back. That overhang helps operators seat pallets without forcing them tight against the frame, and it reduces the chance of clipping uprights during normal handling.
A practical rule is simple:
Frame depth = pallet depth minus about 6 inches
That rule is a starting point, not a shortcut. It works well for many standard pallet loads, but it can break down with weak pallets, unusual overhang limits, slip sheets, or loads that are not centered consistently. Those are the jobs where a standard depth on paper turns into damaged product on the floor.
If you need a quick refresher on how frame depth, beam levels, and load ratings fit together, this guide to pallet rack specifications is a useful reference.
Beam length decides how many pallets actually work in each bay
Beam length is not just a storage-count decision. It is also an operating-clearance decision.
A 96-inch beam is common because it often fits two standard pallets per level in selective rack. The reason it shows up so often is practical. It balances slot count with workable loading clearance for standard forklift handling, as noted earlier in the QMH guide.
That does not mean longer is better. Add beam length too aggressively and you may gain another pallet position while making placement tighter, increasing beam deflection, or limiting the loads you can store safely on that level. Every extra pallet position needs clearance around the load, not just enough room on paper.
A simple way to choose beam length
Use this sequence before settling on a bay width:
- Start with pallet width and depth
- Confirm how many pallets you want per level
- Add operating clearance between pallets and near uprights
- Check beam capacity at that span
- Verify that the forklift can place loads cleanly at that width
That order matters because beam length affects more than capacity. It changes how forgiving the bay is during real forklift traffic.
| Beam Length | Pallet Positions per Level | Typical Application |
|---|---|---|
| 96 inches | 2 | Standard selective rack for common North American pallets |
| Longer beams | More positions depending on pallet width and clearances | Higher slot count where load weights and deflection limits still work |
| Shorter beams | 1 or specialized use | Single-pallet bays, odd loads, or constrained layouts |
Some operations also compare pallet rack with nontraditional storage structures before committing. For teams evaluating those options, this overview of Shipping Container Shelving Brackets is a useful contrast because those systems are sized around the container shell itself, not around pallet overhang, beam spans, and forklift approach angles.
Upright height is set by the load, not just the roof
Height is where expensive mistakes hide.
A tall frame can look efficient in a layout drawing and still fail in daily use if loaded pallet heights vary, top beam elevations leave poor working clearance, or lift trucks cannot place loads comfortably at upper levels. Ceiling height matters, but usable rack height comes from the full stack of constraints below the roof.
Use this framework:
- Depth follows the pallet footprint
- Beam length follows pallet count plus handling clearance
- Height follows loaded pallet height, required clearances, and truck reach
That is the domino effect in rack sizing. One early decision changes the next three. If the pallet size is wrong, frame depth is wrong. If frame depth and pallet count are wrong, beam length is wrong. If those are wrong, aisle planning and equipment selection usually drift with them.
Sizing Your Racking Around Your Inventory
The right question isn’t “What rack size is standard?” The right question is “What are we storing?”
Inventory should dictate the rack. That sounds obvious, but many layouts still begin with a preferred beam length or a target row count. That approach usually creates friction because the products, pallets, and handling patterns were never the starting point.
Why selective pallet rack is the default choice
Selective pallet racking holds a 45.0% revenue share of the global warehouse racking market in 2024, largely because it adapts well to standard pallet dimensions such as the 40 x 48 inch GMA pallet, according to Grand View Research.
That market position makes sense on the floor. Selective rack works well when you need direct access to many SKUs, mixed replenishment patterns, and straightforward forklift handling.
For a new operations manager, that means selective rack is often the baseline system unless inventory characteristics point strongly toward something denser or more specialized.
The inventory audit that prevents bad rack sizing
Before choosing any frame or beam size, gather four pieces of information for every major load type:
- Pallet footprint: Measure the actual pallet, not just the spec sheet version.
- Loaded height: Include the pallet itself plus product.
- Loaded weight: Use the heaviest realistic load, not the average.
- Handling pattern: Note whether loads are fast-moving, slow-moving, uniform, mixed, fragile, or irregular.
If your team doesn’t have clean data on product dimensions and packaging details, building a simple product data sheet for each load profile can make rack planning much more accurate.
For a broader planning lens, this guide to selecting pallet rack for your warehouse helps connect inventory data to rack type selection.
The fastest way to overspend on rack is to buy capacity you can’t use. The fastest way to underspec it is to measure only your average load and ignore your tallest or heaviest one.
One pallet decision drives the next three layout decisions
Here’s the domino sequence in simple terms:
Your pallet type determines the likely frame depth.
Your required pallet positions per level determine the likely beam length.
Your loaded pallet height determines beam spacing and upright height.
That means a buyer who knows the inventory well can usually narrow the correct warehouse racking sizes quickly. A buyer who doesn’t know the inventory usually ends up revising the plan late.
A simple decision framework
Use this when reviewing layout options with a supplier or engineer:
- Start with the largest routine load
- Choose frame depth that supports stable pallet overhang
- Select beam length based on pallet count per level
- Build vertical levels around actual loaded height
- Confirm forklift access before approving aisle widths
That order keeps the rack design anchored to operational reality instead of catalog convenience.
How to Calculate Vertical Clearance and Bay Capacity
Vertical planning is where good layouts separate themselves from crowded ones.
A rack bay can look efficient in elevation drawings and still fail in use because the beam levels were set without enough working clearance. Operators then fight every putaway, top levels become underused, and the building loses valuable cube.
Start with loaded pallet height, not rack height
Standard upright heights range from 8 feet to over 20 feet, and the sizing method is based on (pallet load height + pallet height) × levels + beam height + 4 inches clearance, with 18 to 24 inches of ceiling clearance needed for sprinklers according to Conger’s warehouse racking guide.
That formula matters because rack height is the result, not the starting input.
A practical workflow looks like this:
- Measure the loaded pallet height
- Add clearance between the top of the load and the next beam level
- Multiply by the number of storage levels
- Add beam face height
- Reserve top clearance to the ceiling and sprinkler plane
A simple working method for beam level spacing
Think in terms of level-by-level stacking rather than total frame height.
If one palletized load is especially tall, that load may dictate the spacing for the entire bay unless you separate SKUs by zone. Uniform product profiles make vertical design easier. Mixed heights often require more planning discipline.
Field advice: The top beam level that looks good in CAD can become useless if operators can’t comfortably place the load without scraping the beam above.
Bay capacity is weight plus positions
Bay capacity gets misunderstood all the time because people use one phrase for two different things.
There is position capacity, meaning how many pallet positions exist in a bay. There is also load capacity, meaning how much weight the beams and uprights can safely support.
Both matter.
Check these items before approving a bay design
- Beam capacity: Make sure each beam pair is rated for the actual load per level.
- Upright capacity: Confirm the frame can handle the total applied load across all beam elevations.
- Beam spacing: The vertical distance between levels affects what fits and how safely it can be handled.
- Load consistency: A bay designed for uniform pallets behaves differently from one handling mixed products.
- Top-of-rack clearance: Don’t use all available height if it leaves sprinkler clearance unresolved.
A warehouse built for higher cube utilization often benefits from a more deliberate high-density strategy. This discussion of maximizing cube with high-density storage design is a good next step when standard low-rise layouts leave too much air in the building.
Where buyers make preventable mistakes
The most common vertical sizing problems are not complicated engineering failures. They are planning shortcuts.
Typical errors include
- Using product height instead of loaded pallet height
- Ignoring pallet thickness
- Setting all levels equal when inventory heights vary
- Forgetting sprinkler clearance
- Assuming forklift mast height guarantees usable rack height
The last point matters more than many teams expect. A truck may technically lift high enough, but practical placement at top levels can still be slow or awkward if clearances are too tight.
A short planning checklist
| Checkpoint | Why it matters |
|---|---|
| Loaded pallet height verified | Prevents underestimating beam spacing |
| Beam face height confirmed | Affects total vertical calculation |
| Ceiling and sprinkler clearance checked | Avoids compliance and access issues |
| Bay load reviewed | Ensures upright and beam ratings align |
| Forklift lift and handling limits reviewed | Confirms top levels are usable |
A good bay design doesn’t chase maximum height blindly. It creates usable, repeatable storage positions that operators can service safely every shift.
Aisle Width and Forklift Selection Guide
Aisle width is not a separate decision from warehouse racking sizes. It is one of the consequences of those choices.
When a layout feels too tight, too sparse, or oddly inefficient, the issue often sits in the relationship between the rack rows and the truck fleet. A great rack layout on paper can become a frustrating operation if the aisles don’t match the forklift.
Wide aisle, narrow aisle, and very narrow aisle
Each aisle strategy comes with a trade-off.
Wide aisle
This layout gives standard counterbalance forklifts more room to turn and place loads. It tends to be simpler operationally and more forgiving for mixed-use warehouses.
The drawback is straightforward. Wider aisles consume floor space that could otherwise hold rack rows.
Narrow aisle
Narrow aisle layouts use reach-truck-friendly spacing to gain more storage density than wide aisle designs. They can be a strong middle ground when an operation wants more pallet positions without moving into a highly specialized system.
The trade-off is equipment dependence. If the warehouse is designed around narrow aisles, truck selection and operator discipline matter much more.
Very narrow aisle
VNA pushes density further and usually requires specialized equipment and tighter operating control. It can be the right move in the right building, but it is rarely a casual upgrade.
What doesn’t work is choosing VNA because it looks efficient on a plan while ignoring equipment cost, throughput rhythm, maintenance expectations, and operator training.
Choose the truck first or validate the one you already own
If your fleet is already in place, design around its turning and stacking requirements.
If you’re buying both rack and lift equipment, evaluate them together. Separating those decisions usually creates compromise for one side or the other.
Aisles that are too wide waste space. Aisles that are too tight waste labor. The better design is the one your operators can run smoothly for years, not the one that looks densest in a proposal.
Practical questions to ask before locking in aisle width
- What truck will handle the majority of pallet moves
- What is the heaviest and most awkward load
- Are operators placing pallets at full intended height
- Will traffic be one-way, two-way, or mixed with picking
- Does seasonal volume change how the aisles function
Those questions often reveal whether a layout needs more maneuvering room or whether it can support a denser plan.
What works and what usually doesn’t
A few patterns show up repeatedly in successful projects:
| Approach | Usually works when | Usually fails when |
|---|---|---|
| Wide aisle | Mixed operations need flexibility | Storage density is the top goal |
| Narrow aisle | SKU access matters and density needs to improve | Existing trucks can’t support the layout |
| VNA | Building, equipment, and process are aligned | Teams expect standard forklift flexibility |
The right aisle width isn’t the smallest one possible. It’s the one that matches the equipment, the loads, and the pace of the operation.
Advanced Sizing Factors for Safety and Compliance
Basic dimensions get the rack into the building. Safety and compliance determine whether it belongs there.
Many first-time buyers underestimate the project. They’ve chosen frame depth, beam length, and bay height, but the final layout still isn’t complete because accessories, anchoring, and local conditions can change what works.
Seismic and local engineering requirements matter
In some facilities, standard assumptions are not enough.
Seismic conditions, slab condition, and local code requirements can affect:
- Base plate and anchoring details
- Frame engineering
- Bracing requirements
- Permitted rack height and configuration
That’s why a layout that works perfectly in one building may need changes in another, even with the same inventory.
Safety accessories influence usable design
These items are often treated as add-ons, but they affect the final result:
- Wire decking: Helps support loads and improve retention.
- Column protectors: Reduce damage at vulnerable rack uprights.
- End-of-aisle guards: Protect high-traffic impact points.
- Pallet support bars: Help with loads that don’t sit ideally on beams.
Skipping these in early planning can leave too little space later, especially around row ends and traffic zones.
Not every product belongs in selective pallet rack
Selective rack is flexible, but it isn’t universal.
Some examples where another system may fit better:
- Long or awkward materials: Cantilever rack often suits these better than pallet rack.
- Low-SKU, deep storage profiles: Push-back or drive-in systems may use space more efficiently.
- Non-palletized inventory: Shelving or specialty storage may create cleaner access.
That’s an important sizing lesson in itself. Sometimes the right answer is not a different warehouse racking size. It’s a different storage system.
If the product fights the rack every day, the issue may not be the beam length. It may be that the rack type was wrong from the start.
Your Next Steps to a Perfectly Sized Warehouse
The cleanest warehouse racking decisions follow a simple sequence.
Start with the load. Measure the pallet footprint, loaded height, and weight. Match that to frame depth and beam length. Build vertically around real clearance needs. Then confirm the aisles fit the actual forklift, not the one someone assumes will be used later.
That process avoids most expensive corrections.
It also shortens the path to installation because fewer design issues need to be solved after quoting, ordering, or delivery scheduling. In a market where quality rack components stay in demand, getting the plan settled earlier usually means better project timing, smoother coordination, and fewer avoidable delays.
If you’re comparing options right now, don’t focus only on how many bays fit on the drawing. Focus on whether the full chain of decisions makes operational sense. That’s what keeps a rack system useful years after the install crew leaves.
Frequently Asked Questions About Warehouse Racking Sizes
What is the most common pallet rack depth?
For selective pallet racking, the most common upright depths are 36 inch, 42 inch, and 48 inch. For many North American pallet applications, 42 inch depth is a common fit for 48 inch deep pallets because it supports proper overhang and stable placement.
How do I know what beam length I need?
Beam length depends on pallet width, the number of pallet positions per level, and required clearances. A common example is a 96 inch beam for two standard 40 x 48 inch pallets.
Should I size racking around average inventory or the largest load?
Use the largest routine load that the system must handle. Designing around average loads often creates problems when taller or heavier pallets arrive.
Can I just build as high as the ceiling allows?
No. Rack height must account for loaded pallet height, beam spacing, forklift reach, and the required 18 to 24 inches of top clearance for sprinklers.
Is selective pallet rack always the best choice?
No. It’s often the best general-purpose option, but long materials, deep-lane storage, or non-palletized inventory may call for a different system.
If you’re ready to turn these sizing decisions into a workable layout, Material Handling USA can help with free layouts and designs with no obligation, free quotes, quality materials and products, and some of the fastest shipping and delivery in the industry. To discuss your project, Request a Quote, Contact Us, email Sales@MH-USA.com, or Call (800) 326-4403. If you already know what you need and want to move quickly, you can also Shop Now or Buy Online through the MH-USA store.
