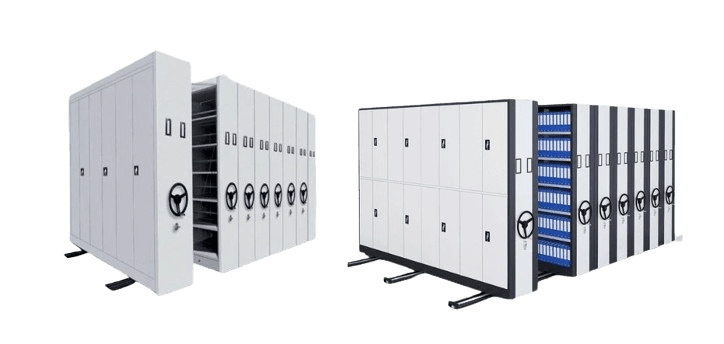

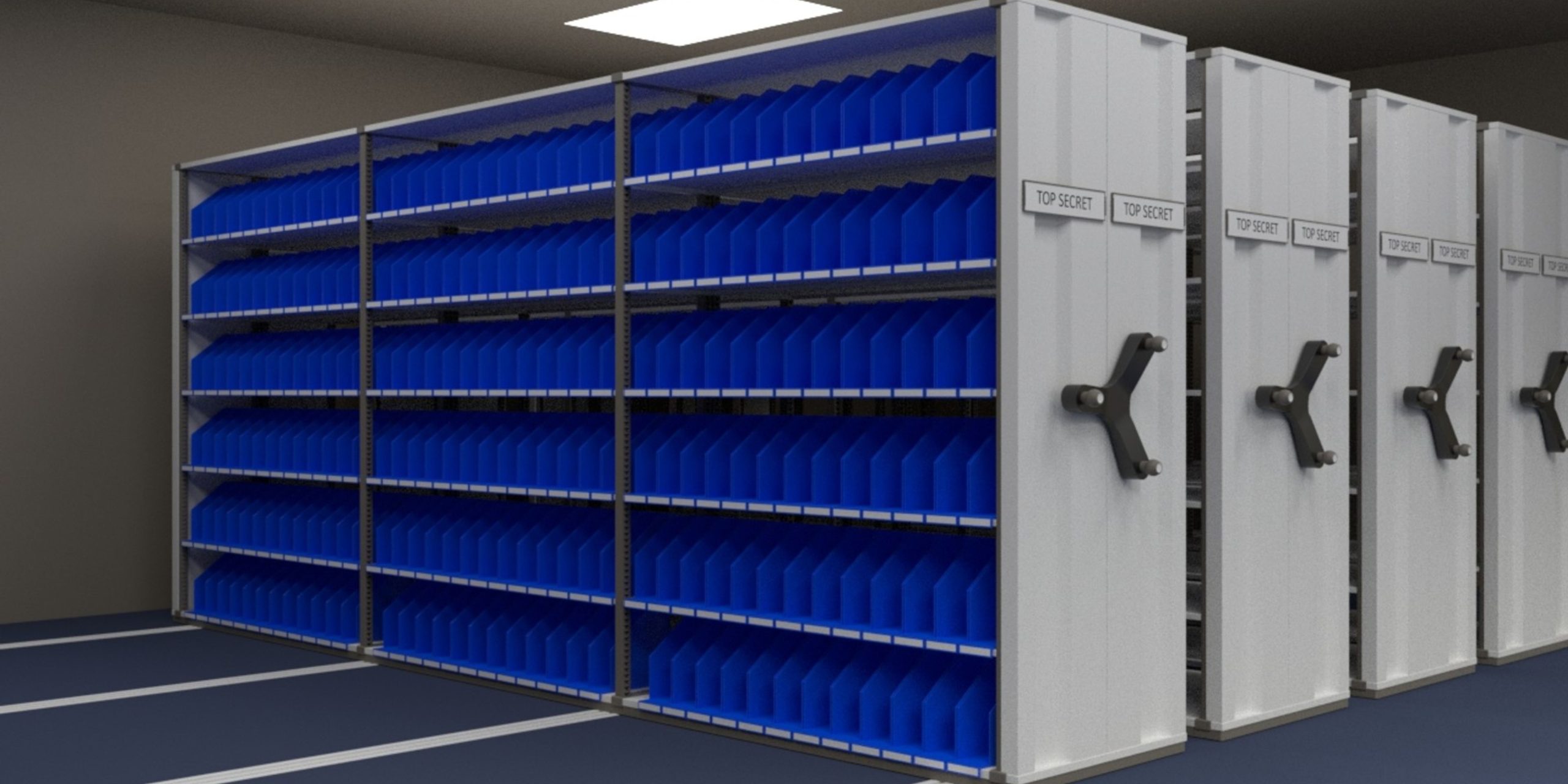

What is Mobile Shelving?

Mobile shelving is a versatile storage solution that allows shelves to move along t racks, creating compact storage areas. This system maximizes space by eliminating the need for multiple aisles, thus increasing storage capacity.

Advantages of Mobile Shelving:Optimize Your Space Efficiently

Maximize Storage Capacity

Utilize up to 50% more space compared to traditional shelving.

Increase Accessibility

Quickly locate items without navigating through multiple aisles.

Lockable systems keep your items safe and secure.

Customizable shelving units cater to specific storage needs.

Improve Aes the tics

Sleek designs enhance the visual appeal of any space.

Conclusion

Utah Mobile Shelving offers unparalleled solutions for all your storage needs. Our experience and commitment to quality ensure that you receive the best service and products. Contact us today to learn how we can help you optimize your space.

How It Works

Experience the streamlined process of Material Handling USA’s Warehouse Solutions, guiding you from consultation to implementation with personalized solutionsand ongoing support.

Don’t let your storage space go to waste. Learn how our mobile shelving can increase your storage capacity by up to 50%. Get in touch now!

The Team provided a highly professional service from start to finish.

“ They always available for meetingsand questions, firsts, in figuring out what system would work best for our needs then by assessinh how much shelving space would be required for our existing as well as future needs, and , finally, by insuring the timely delivery and quality installation of the product. ”

First District TCE of Administrative Office of the Courts

We Also appreciated, at the time of installation, the courteousand professional manner in which the installers conducted themselves.

“ We have been using the system now for about six mothsand are happy to report that it has been a wonderful addition to our office. It is easy to operate and keeps our filing area neat and organized, and most importanly, providers us with unlemited space for growth at this time. We are completely satisfied with your product. ”

Visual Arts Co or ndinator of Utah Arts Council

You guys are great! Thanks so much for working so hard to getus into our new space.

“ Thank you a million times for the these killer Jazz tickets! I am just so excited to go and rub shoulders with every other “pretentious” person in Material Handling USA! How Awesome! ”

Join the Revolution!

Optimize Your Library!Enhance your library’s functionality and aes the tics withour mobile shelving solutions. Schedule a demo to see how it works.

Specifications Summary for High-Density Mobile Storage Units (Mechanically Assisted Movement)

The high-density mobile storage system by Material Handling USAis designed for efficient space utilization and optimal storage performance. Below is a summary of the key specifications:

• General Requirements:Includes mechanically assisted carriages with tri-spoke handlesand related equipment to support new or existing storage housings. Requires a base floor capable of withstanding system weight and a finished floor material installed within the system footprint.
• System Description:Storage housings are mounted on wheeled carriages that ride on steel rails, creating roving aisles to optimize space. Carriages are welded structural steel with machined wheelsand permanently lubricated bearings. Drive controls include triple-arm ergonomic handles with ADA-compliant reach. Safety locking mechanisms are integrated into each carriage control to prevent unintentional movement.
• Performance Requirements:Carriages support up to 4,000 lbs. of load with only 1 lb. of user effort. System complies with ANSI, ASTM, and seismic codes. Railand carriage designs ensure precise alignment and smooth, non-slipping movement.
• Materialsand Finishes:Metal components are finished with a durable, non-VOC Gloss-Tek™ powder coat, resistant to scuffsand scratches. Optional finishes include antimicrobialand electrostatic dissipation (ESD) coatings. Laminate panels are available in high-pressure and low-pressure finishes, with customizable colorsand patterns.
• Manufactured Components:Rails: Constructed of Type 1045 steel with zinc-phosphate coating for rust prevention. Rails are leveled with grout and anch or ed to the floor, ensuring precise alignment and load transfer. Carriages: Welded steel construction with powder-coated finishes, vibration-proof fasteners, and a load capacity of 1,000 lbs. per linear foot. Wheels: Precision-machined cast ductile iron with permanently lubricated bearings rated for 4,400 lbs. dynamic load per wheel. Drive Systems: Options include direct drive, line shaft drive, or synchro drive mechanisms for smooth operation and precise movement.
• Safety Features:User-activated safety locks on each carriage. Optional features include dual-aisle locking mechanismsand self-contained safety brakes. End panels cover drive mechanisms for aes the ticsand safety, with options in steel, laminate, or solid wood finishes.
• Submittalsand Documentation:Includes dimensional drawings, product data, warranty, and maintenance manuals. Samples of finishesand reference lists for similar installations are provided upon request.
• Installation and Quality Control:Systems are installed on level flo or s per manufacturer instructions. Post-installation verification ensures alignment, smooth operation, and aes the tic consistency. Adjustments are made for proper t racking and gap alignment.
• Maintenance and Training:Comprehensive training is provided for owner personnel on system operation, preventative maintenance, and minor repairs.

This high-density mobile storage system ensures long-term reliability, ergonomic functionality, and space-saving performance, tail or ed to meet project-specific requirements.

Specifications Summary for High-Density Mobile Storage Units (Low Profile Electrically Assisted Movement)

The High-Density Mobile Storage Unitsby Material Handling USAoptimize space using low-profile, electrically powered carriages with advanced safety features.

• Construction: Welded steel carriages with machined wheels,1/8 HP 24 VDC motors, andpermanently lubricated bearings.
• Drive System: Smooth, non-slipping motion via direct, line shaft, or synchro drive. Carriages move at up to 3 inches/second.
• Safety Features: Includesinfrared safety sweeps, aisle entry sensors, and optional dual safety sweeps.
• Performance: Supports750 lbs./linear foot, meets ANSI, ASTM, UL, ADA, and seismic requirements.
• Finishes: Gloss-Tek™ powder coat with optional antimicrobial or ESD coatings; laminate and solid wood panel options available.
• Optional Accessories: Aisle lighting, programmable controls, UPS battery backup, and fire/night park modes.

Installation: Installed per manufacturer’s guidelines on leveled rails with grout. Field adjustments ensure proper alignment and smooth operation.

Training: Includes operational demonstrationsand maintenance instructions for owner personnel.

This system provides durable, efficient, and customizable storage with advanced safety and control options. Visitmh-usa.comfor more details.

Key Features

• Locks: Keyed or combination options with master-key capability.
• Shelves: Full-width and L-shaped half shelves made from 16-gauge steel, with optional back rails for extra support.
• Foot lockers: 14-gauge recessed lids with rubber bumpers for quiet operation and reinforced channels for added strength.
• Coat Rods: Full or half-length options compatible with partitions.
• Security Boxes: Lockable 16-gauge do or s with reinforced frames.
• Benches: Adjustable metal or lacquered hardwood options.

Installation and Maintenance

Accessories are securely installed per manufacturer guidelines. Products are delivered in protective packaging to maintain finish quality.

For more details, visitpencoproducts.com.
