An efficient warehouse layout can cut picking times by 40%, increase storage capacity by 30%, and reduce labor costs by 20-30%. On the other hand, a poor design can lead to costly mistakes like a 15% drop in order accuracy or a 25% increase in labor costs.
Here’s a 6-step process to optimize your warehouse layout:
- Define Your Needs: Use ABC analysis to categorize inventory and map workflows.
- Pick a Layout Style: Choose from U-shaped, I-shaped, or L-shaped layouts based on your operations.
- Maximize Space: Use vertical storage, optimize aisle widths, and organize zones by item velocity.
- Select Equipment: Match tools like forklifts or automation systems to your layout and space.
- Ensure Safety: Follow safety standards for work areas, emergency routes, and lighting.
- Test and Improve: Pilot your layout, track performance metrics, and refine based on data.
Quick Comparison of Layout Styles
| Layout Type | Best For | Benefits |
|---|---|---|
| U-shaped | Multi-SKU, small orders | Shorter travel distances, adjacent receiving and shipping areas |
| I-shaped | High-volume facilities | Straight-line flow, reduced congestion |
| L-shaped | Specialized needs | Flexible for temperature zones or cross-docking |
Follow these steps to design a warehouse layout that works for your business today and scales for tomorrow.
How to Optimize Your Warehouse Layout & Design for Efficient Workflow
Step 1: Define Your Warehouse Needs
Before jumping into layout planning, it’s important to understand your warehouse’s specific operations. A detailed assessment helps avoid expensive missteps and ensures your layout can handle both current and future demands.
Evaluate Your Inventory Types
Start with an ABC analysis of your inventory. This approach shows that 20% of items typically account for 80% of sales [5]. Group your products into the following categories:
| Category | Characteristics | Storage Needs |
|---|---|---|
| A Items | High-value, fast-moving | Easy access, prime picking spots |
| B Items | Moderate turnover | Standard storage locations |
| C Items | Low-value, slow-moving | Remote or high-density storage |
After categorizing, review workflow patterns to spot inefficiencies. If you handle temperature-sensitive items or products with compatibility issues, designate specific zones. For example, food distributors often separate refrigerated goods from dry storage.
Map Your Workflow
Match your workflow to the ABC inventory categories to streamline the movement of high-priority items. Efficient mapping can significantly cut down on picker travel time [2].
Focus on:
- Key movement paths: receiving → picking → packing → shipping
- Opportunities for cross-docking
Take Stock of Tools and Space
Audit your current equipment and space to identify areas for improvement. Upgrading to advanced tracking systems can increase productivity by 15-20% [3].
Key areas to assess:
- Equipment performance
- Storage density options
- Use of vertical space
- Auxiliary spaces like offices or staging areas
- Room for future growth
This audit ensures your layout supports your existing setup while leaving room for expansion. With these insights, you’ll have a solid foundation for choosing the best layout style.
Step 2: Pick Your Layout Style
Once you’ve assessed your warehouse needs, it’s time to choose a layout that suits your operations. This decision builds directly on the inventory analysis and workflow mapping from Step 1.

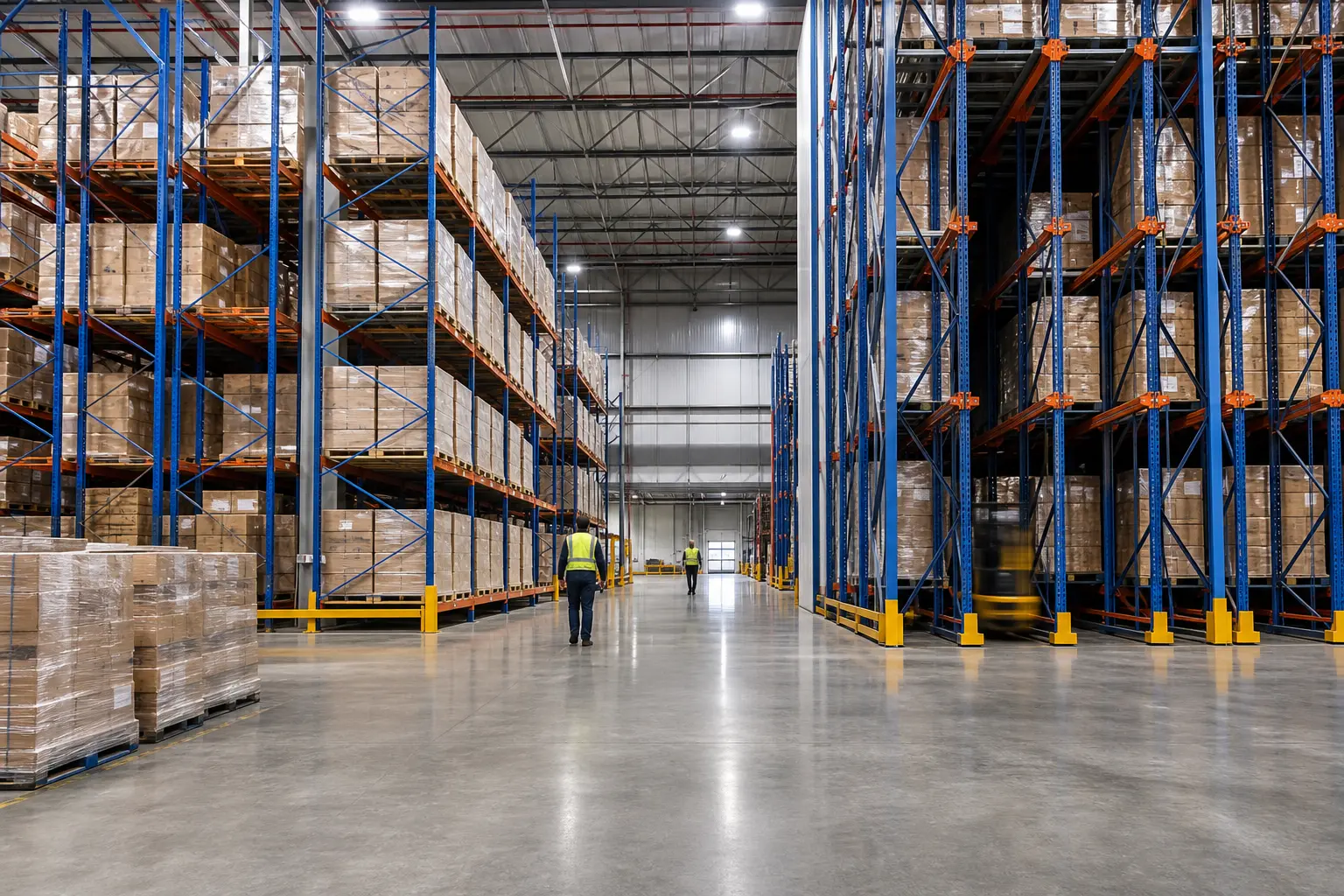

Comparing Layout Options
Here are three common warehouse layouts and their key features:
| Layout Type | Best For | Benefits | Use Cases |
|---|---|---|---|
| U-shaped | Small to medium warehouses | – Receiving and shipping areas are adjacent – Shorter travel distances – Increases storage capacity by 20-30% compared to older designs [1] |
Multi-SKU operations, frequent small orders |
| I-shaped | Large facilities | – Straight-line product flow – Reduces congestion – Handles high volumes efficiently |
Bulk storage, single product types |
| L-shaped | Specialized operations | – Flexible space allocation – Ideal for cross-docking |
Temperature-controlled storage, cross-docking setups |
The U-shaped layout is perfect for warehouses handling multiple SKUs and frequent small orders. By placing receiving and shipping areas next to each other, it creates a streamlined workflow and minimizes travel distances.
The I-shaped layout works best for high-volume facilities. Its straight-line flow reduces congestion and suits operations requiring wide aisles for heavy equipment [4].
The L-shaped layout is ideal for specialized needs like temperature-controlled storage or cross-docking. Its flexibility allows for efficient use of space while keeping operations smooth.
Choosing the Right Layout for Your Business
Your layout choice should align with your business model and operational needs, building on your ABC inventory analysis from Step 1. Here’s how different layouts fit specific industries:
E-commerce Operations
- U-shaped layouts are ideal for e-commerce due to shorter picking paths and faster order fulfillment.
Cold Storage Facilities
- L-shaped layouts help separate temperature zones and reduce unnecessary door openings.
Cross-Docking Operations
- I-shaped or L-shaped layouts are great for quick product movement, especially when paired with conveyor systems.
Make sure your layout matches the equipment and growth space identified in Step 1. For more complex requirements, consider consulting warehouse design experts to ensure smooth operations and compliance. This solid layout choice sets the stage for better space optimization in Step 3.
Step 3: Maximize Space Use
This step builds on the layout decisions from Step 2 while tackling the space limitations you identified in your initial assessment.
Make the Most of Vertical Space
Take advantage of your facility’s height by using these solutions:
| Solution | Height Range | Best For |
|---|---|---|
| Mezzanine Floors | 12-15′ | Small items |
| High-Bay Racking | Up to 100′ | Pallets |
| Vertical Lift Modules | 20-30′ | Small parts |
Optimize Aisle Widths
Match aisle widths to your equipment needs for better navigation:
- 12-13′ for standard forklifts
- 8-10′ for reach trucks
- 6′ for very narrow aisle (VNA) systems [6]

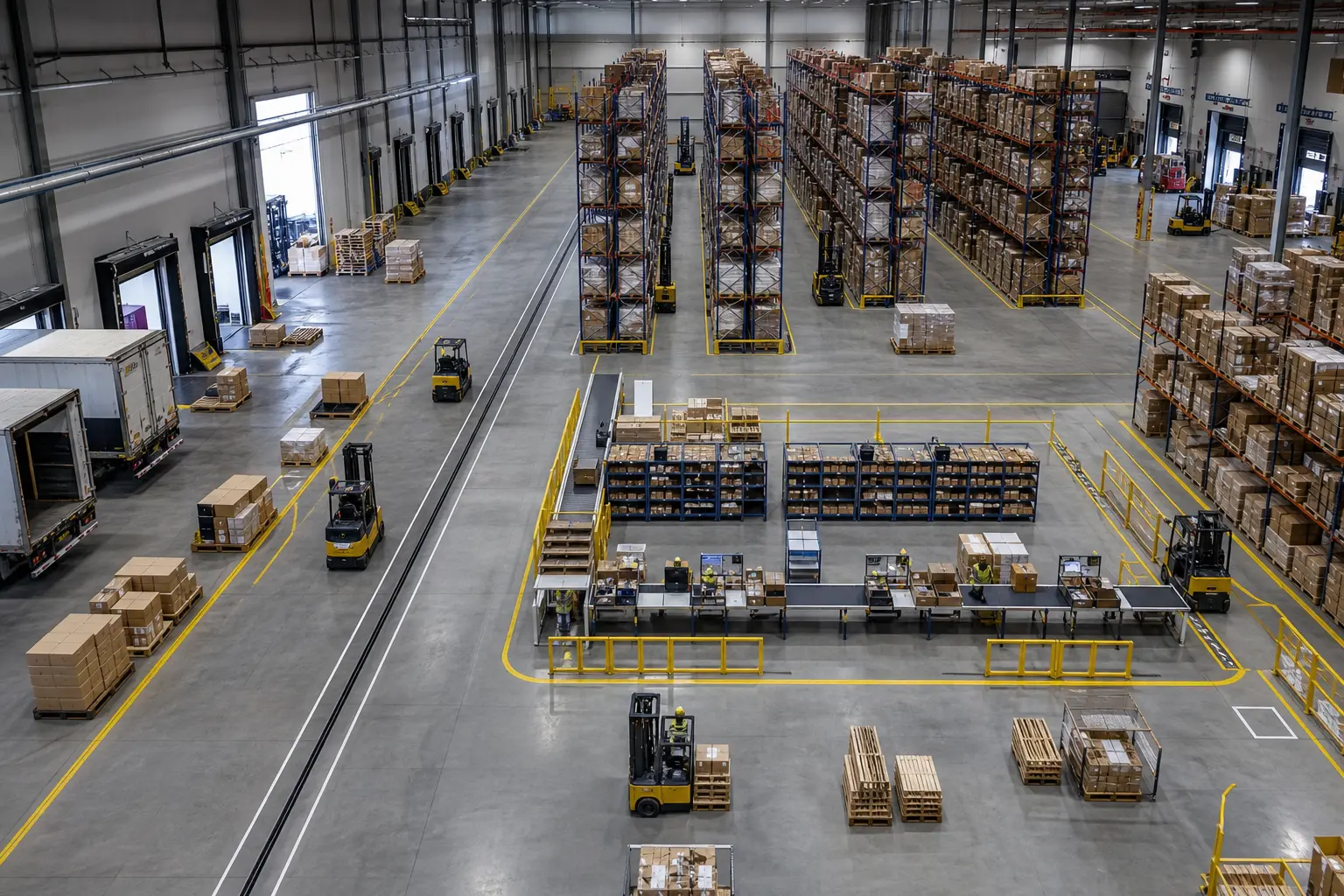

Organize Work Zones
Divide your space into zones to streamline workflow. Base the zones on the layout style you chose in Step 2:
- Fast-moving items: Place near shipping areas.
- Medium-velocity items: Store in central zones.
- Slow-moving items: Use high-density storage areas.
- Staging areas: Position close to docks.
This zoning strategy complements your layout and aligns with workflow patterns identified in Step 1.
sbb-itb-0eadf15
Step 4: Select Moving Equipment
The equipment you choose should fit your layout design (from Step 2) and the space limitations you tackled in Step 3.
Explore Automation Options
| Automation Tier | Solutions | Best For |
|---|---|---|
| Entry-Level | RFID, semi-automated pallet trucks | Smaller operations |
| Mid-Range | Conveyor systems | Medium-sized warehouses |
| Advanced | AS/RS, AMRs | Large-scale facilities |
Warehouses today have access to a range of automation tools, each suited to different needs and sizes:
- RFID systems: Ideal for tracking high-priority items with precision.
- Semi-automated pallet trucks: A practical choice for smaller setups.
- Conveyor systems: Useful when workflows demand continuous product movement.
- Automated Storage and Retrieval Systems (AS/RS): Perfect for maximizing dense storage spaces.
- Autonomous Mobile Robots (AMRs): Designed to navigate dynamically in larger, flexible environments.
For smaller setups, modular tools like Crown’s QuickPick can integrate smoothly into existing layouts [6].
Align Equipment with Layout
Your tools and equipment should match the workflow and space constraints you identified earlier. Key factors to consider include:
- Storage density
- Product flow and movement patterns
- Order volumes and how often orders are processed
- Available space
- Budget limitations
These choices form the backbone of your warehouse operations. Once in place, they’ll need to be tested, which is covered in Step 6.

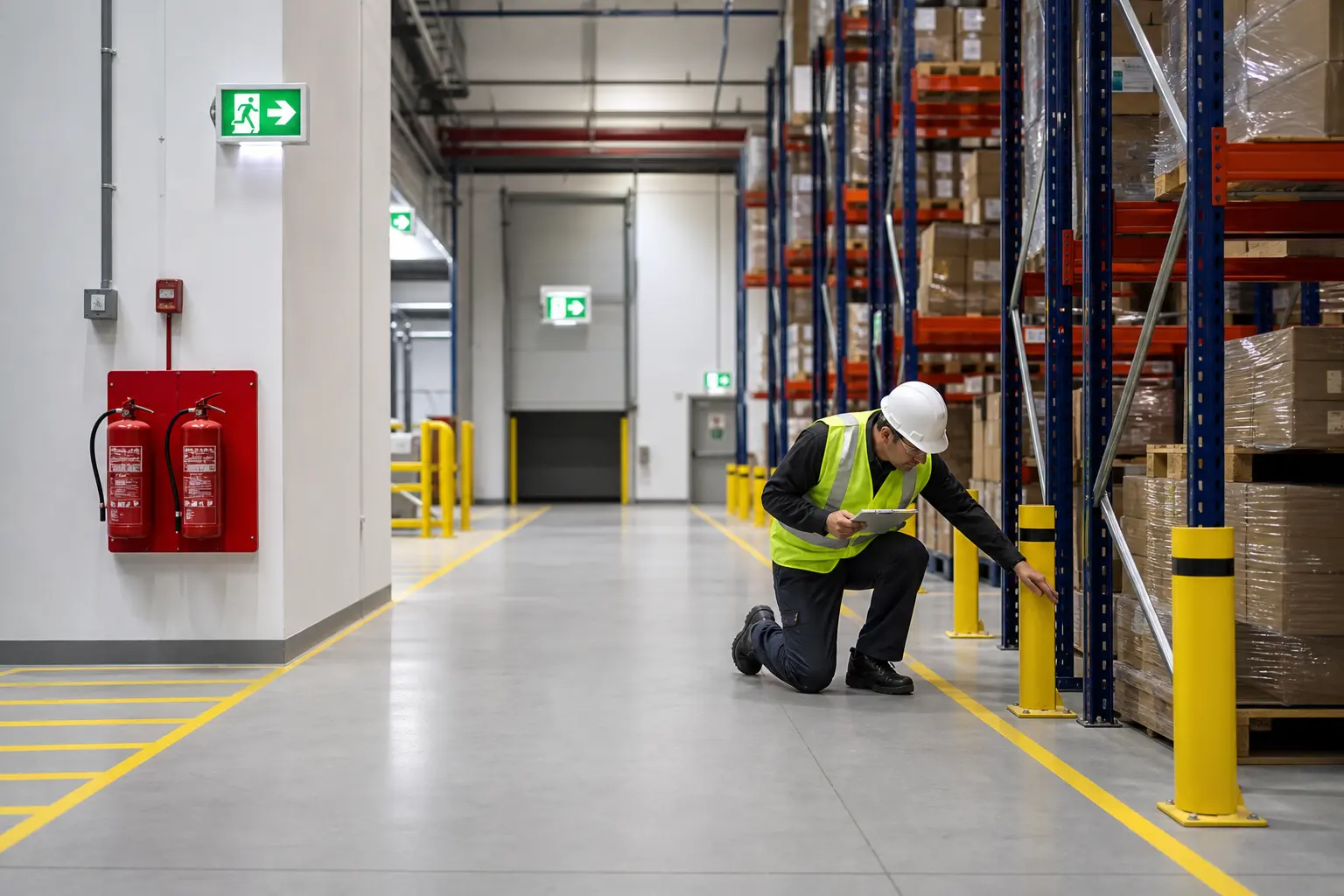

Step 5: Meet Safety Rules
Incorporate safety measures into your layout plan from Steps 2-3 to avoid disruptions and improve workplace safety. Done correctly, this can cut accident rates by up to 70% while keeping your layout efficient [1].
Set Up Safe Work Areas
Create work zones that follow these key guidelines:
| Aisle Type | Requirement | Additional Notes |
|---|---|---|
| Pedestrian | At least 4 feet wide | Clearly mark with 2-inch wide lines |
| Equipment | One-way traffic flow | Position to match workflow patterns |
| Workstations | 3 feet clearance | Include anti-fatigue mats |
| Lighting | Minimum 10 foot-candles | 20-50 foot-candles for detailed tasks |
Arrange workstations using your ABC zoning strategy from Step 1. Focus on ergonomics with adjustable surfaces and keep personal protective equipment easily accessible.
Add Emergency Routes
Plan emergency routes to align with the workflow zones established in Step 3:
- Exit Routes: Ensure at least two clear escape paths from every area. Use illuminated exit signs that are visible throughout the warehouse.
- Fire Safety: Place Class A fire extinguishers within 75 feet of all areas. Store flammable items away from main inventory zones.
- Emergency Access: Keep access to electrical panels and safety equipment unobstructed.
Regularly inspect emergency lighting, exit signs, and fire suppression systems to stay compliant and address risks before they become problems.
Step 6: Start and Improve Your Layout
Rolling out your layout in a structured way can help avoid mistakes and keep operations running smoothly. This phase is where you test and validate the layout you planned in Step 2 and the equipment choices from Step 4 in real-world conditions.
Test Your Layout First
Begin with a small pilot area to confirm your design choices. For example, Procter & Gamble used digital twin technology to test their warehouse layout virtually. This approach cut their planning time by 35% and boosted efficiency by 20% [4].
Here’s how to set up a test environment:
- Choose a pilot zone that covers key workflows, such as receiving, picking, and shipping.
- Install tracking systems to measure order accuracy, travel time, and space usage.
- Simulate peak demand and different order scenarios to stress-test your setup.
Data collection is key during this phase. Track these metrics to gauge performance:
| Metric | Target Range | Measurement Method |
|---|---|---|
| Order picking accuracy | 99.8%+ | Compare picked vs. ordered items |
| Travel time | 50% reduction from baseline | Time-motion studies |
| Space utilization | 85-90% | Square footage analysis |
Track Success Measures
Use data-driven tools to analyze and refine your layout. Research from McKinsey & Company shows that warehouses leveraging advanced analytics for layout adjustments saw up to 25% productivity gains and 30% cost savings [6].
Focus on tracking these key performance indicators (KPIs) to measure improvements:
| Category | Key Metrics | Frequency |
|---|---|---|
| Operations | Cycle time, accuracy | Daily |
| Capacity | Utilization, throughput | Weekly |
| Safety | Incidents, near-misses | Monthly |
| Financial | Cost per order | Quarterly |
Warehouse management software can help you monitor these KPIs in real time. For instance, IKEA’s Joliet distribution center reduced order fulfillment time by 28% after adopting a data-driven layout optimization system [7].
Keep refining your layout based on performance trends and feedback from workers. Revisit your ABC zoning strategy from Step 3 and consider quarterly reviews to ensure the layout stays aligned with changing business needs.
Conclusion: Main Points for Better Warehouse Layout
Creating an efficient warehouse layout starts with following a structured six-step process tailored to your specific operations. Once you’ve implemented and tested your layout (Step 6), keep things running smoothly by regularly evaluating and tweaking key elements.
Ensure safety measures from Step 5 remain active, and update automation systems from Step 4 as needed. Revisit the ABC analysis from Step 1 during future adjustments to maintain effective use of space and streamline workflows.
Here are some tips for ongoing improvements:
- Use data from Steps 3-6 to track and enhance performance.
- Balance workflow efficiency (Step 2) with safety priorities (Step 5) as your needs change.
- Plan for growth based on the expansion opportunities identified in your Step 1 audit.
- Keep storage and handling systems adaptable to new demands.
FAQs
How do you layout a warehouse efficiently?
Creating an efficient warehouse layout involves following a structured approach while focusing on three key areas:
-
Organizing Inventory Smartly
Use ABC analysis to prioritize storage locations based on product importance. Design floor plans that reflect movement patterns, and allocate space according to turnover rates and handling needs. -
Aligning Equipment with Layout
Choose equipment, like narrow-aisle machinery, that fits your layout. Ensure material handling systems support smooth traffic flow, and consider automated systems for high-density storage areas. -
Validating Performance
Use Warehouse Management Systems (WMS) to track metrics like space utilization and picking efficiency. Regularly review operational data to make layout adjustments as needed.
Stick to safety standards, such as maintaining 8-10′ aisles for reach trucks and ensuring proper lighting (20-50 foot-candles at workstations). Revisiting these elements periodically helps keep your warehouse running smoothly as your business grows.
