Pallet Rack Repair & Inspection Services
Damaged pallet rack is dangerous pallet rack. We inspect, assess, repair, and replace damaged components — restoring your racking system to full capacity and keeping your warehouse safe and code-compliant.
Talk with a pallet rack specialist. Call (800) 326-4403 or Email Sales@MH-USA.com
Why Rack Inspection Matters
Forklift impacts, overloading, and environmental factors damage rack components over time. A single damaged upright can reduce an entire bay’s capacity by 50% or more. Regular inspection identifies problems before they become catastrophic failures — protecting your people, your inventory, and your liability.
🔍 What We Inspect
- Upright columns — bends, dents, tears, and rust
- Beams — deflection, weld cracks, connector damage
- Base plates and anchor bolts — loose, missing, or corroded
- Frame bracing — horizontal and diagonal members
- Safety clips and beam locks — presence and engagement
- Load capacity labels — accuracy and visibility
- Plumb and level — frame alignment and lean
- Floor condition — cracks, settling, and drainage
📋 Inspection Results
- Detailed damage report with photos
- Risk classification (critical / repair / monitor)
- Component replacement recommendations
- Cost estimates for repairs
- Compliance documentation for OSHA records
- Priority ranking for repair scheduling
ANSI/RMI MH16.1 recommends annual rack inspections. OSHA requires employers to maintain safe working conditions — damaged rack that isn’t repaired or unloaded creates liability.
Common Rack Damage & Repairs

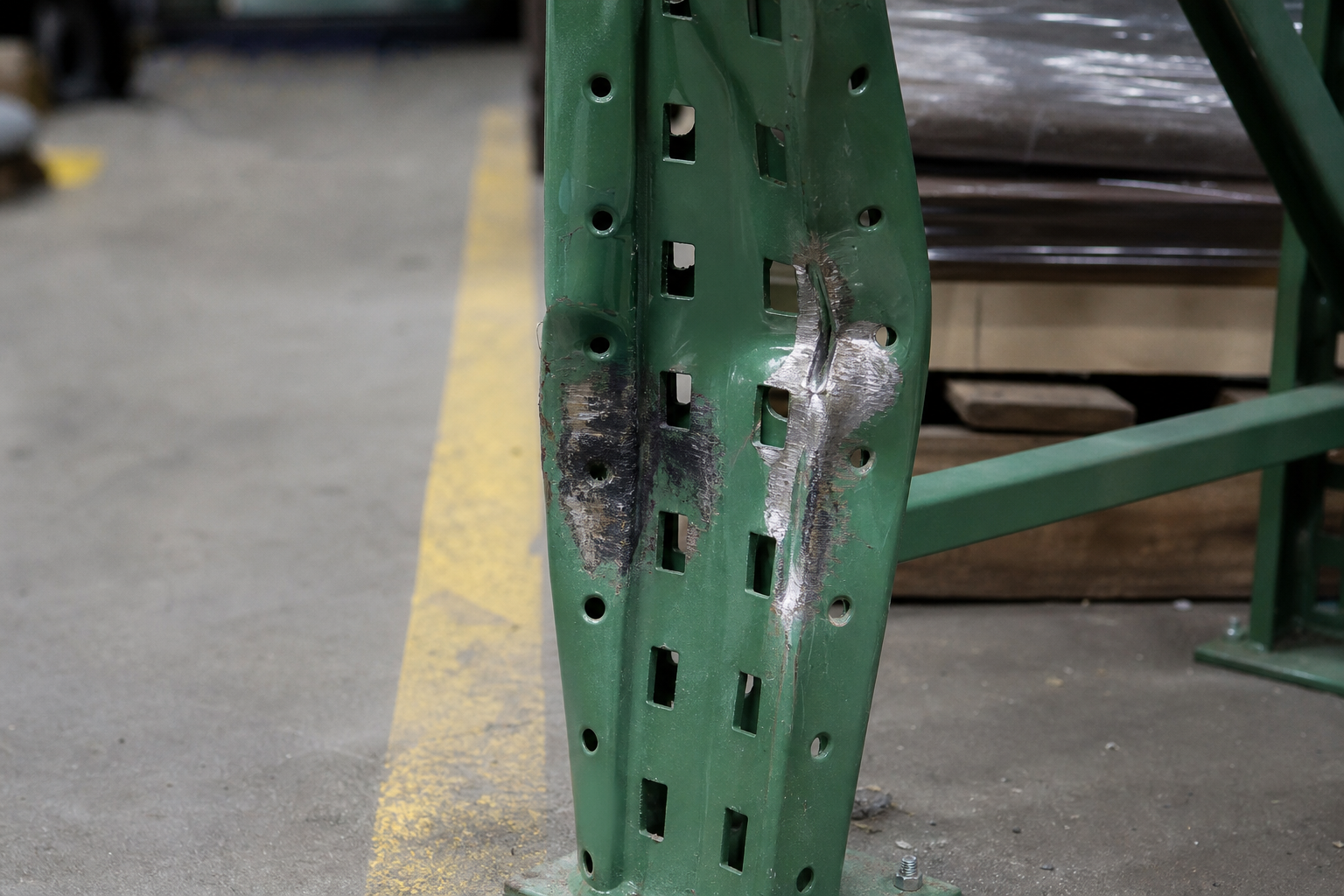

Column Damage
The most common type — forklift impacts bend, dent, or tear upright columns. Minor dents may be acceptable if they don’t exceed manufacturer tolerances. Severe bends or tears require immediate unloading and column replacement. We stock replacement columns and can swap them in hours.
Beam Deflection
Overloaded or impacted beams sag in the middle. Any visible deflection exceeding L/180 (beam length ÷ 180) indicates overloading or damage. Deflected beams must be replaced — they cannot be straightened and re-used safely.
Anchor Bolt Failure
Loose, missing, or sheared anchor bolts compromise the entire system’s seismic resistance. We re-anchor base plates with properly sized and spaced anchor bolts per the system’s engineered drawings.
Frame Lean
Frames that are out of plumb (leaning) have reduced load capacity. A frame leaning more than 1/240 of its height requires immediate attention. Causes include foundation settling, repeated impacts, and missing bracing. We re-plumb and reinforce affected frames.
Prevent Damage Before It Happens
The cheapest repair is the one you never need. These accessories dramatically reduce rack damage.
Column Protectors
Steel or polymer guards bolt around upright columns at forklift impact height. Absorbs hits that would otherwise damage the column. The single most effective damage prevention investment.
End-of-Aisle Guards
Heavy-duty steel guards at the end of every rack row. Protects the most vulnerable uprights from cross-traffic impacts. Required by many building codes.
Safety Netting
Prevents products from falling off the back of rack into pedestrian aisles or work areas. Required when rack is adjacent to walkways, offices, or shipping areas.
Rack Repair & Inspection FAQ
ANSI/RMI MH16.1 recommends annual professional inspections. High-traffic warehouses with frequent forklift activity should consider semi-annual inspections. Daily visual checks by warehouse staff should be part of routine operations — report any damage immediately.
It depends on the damage. Minor dents within manufacturer tolerances can be monitored. Bent columns, deflected beams, and torn steel must be replaced — they cannot be safely straightened or welded. We assess every damaged component and provide replacement recommendations.
Repair costs depend on the extent of damage. Individual column replacements are relatively inexpensive. Multiple damaged bays or structural failures cost more. In most cases, targeted repairs cost far less than the liability risk of operating damaged rack — and far less than a collapse.
OSHA can cite employers for failing to maintain safe working conditions. Fines for serious violations can reach $16,000+ per instance. If a collapse causes injury or death, the penalties — and liability — are severe. Regular inspection and prompt repair demonstrate due diligence.
Yes. Our inspection reports include detailed findings, photos, risk classifications, and repair recommendations. This documentation demonstrates your compliance with workplace safety requirements and provides a defensible record if questions arise.
