Pallet Rack Cost & Pricing Guide
What does pallet rack cost when freight, installation and engineering are included? Use this guide to compare the same components, usable positions and project scope—not just the lowest steel price.
Talk with a pallet rack specialist: call (800) 326-4403 or email Sales@MH-USA.com
Compare Complete Scope
Layout-Based Quoting
Itemized Project Quotes
Multiple Rack Types Compared
What Does Pallet Rack Cost?
Pallet rack cost depends on the storage system, component specifications, quantities and project services. A price per bay or pallet position only helps when the underlying configuration and inclusions match. Start with a defined parts list and layout, then compare materials, freight, installation and project-specific engineering or permit costs.
Two quotes that look close on the bottom line can represent very different scopes. One may cover materials only; the other may include freight, installation and a permit package. Before you weigh totals against each other, line up what each proposal actually includes so you are comparing the same project.
What Drives Pallet Rack Pricing?
Six factors shape your final cost. Understanding them helps you compare quotes on the same basis.

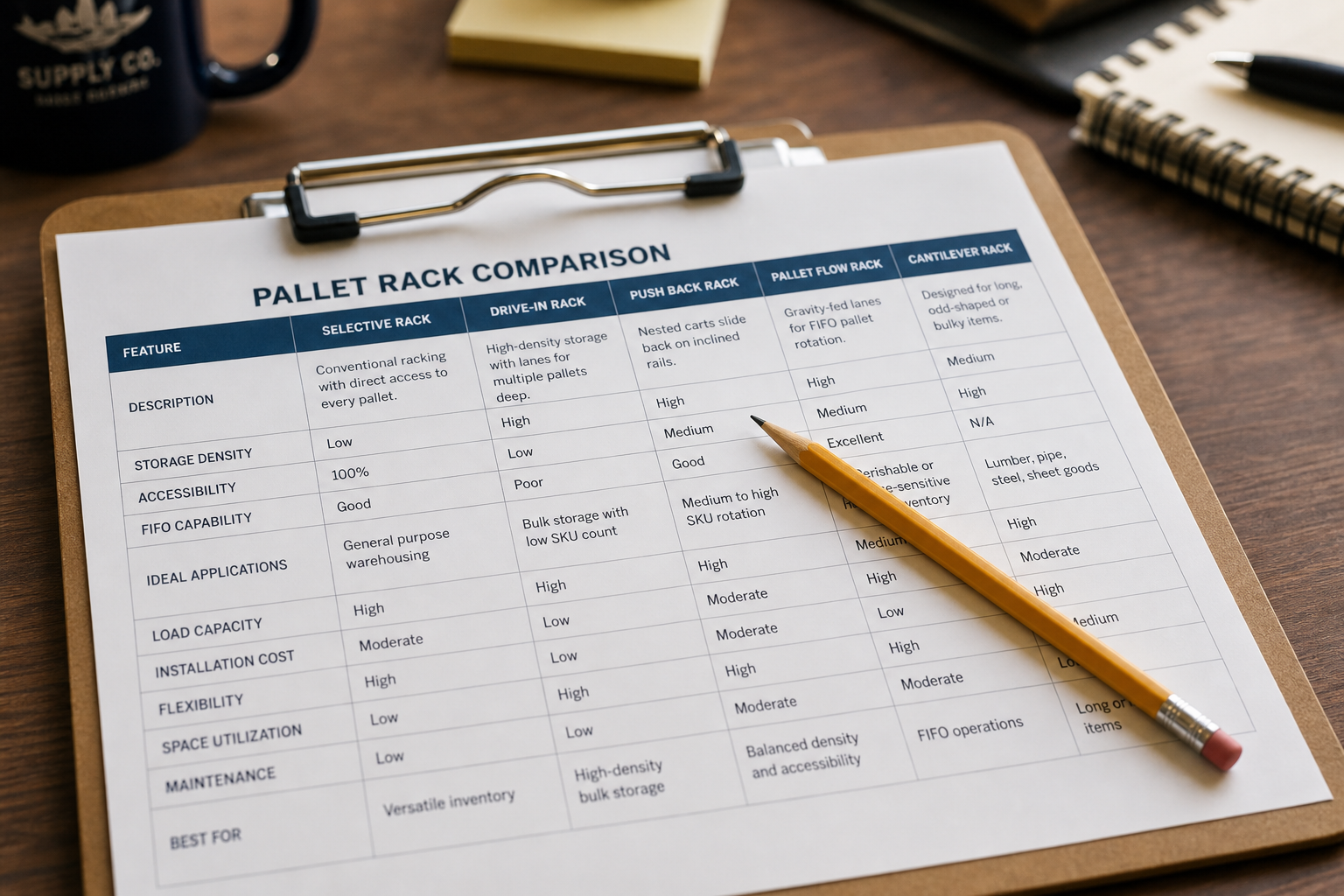

1. Rack TypeThe rack type is a major price driver. Selective rack and high-density systems such as push-back and pallet flow use different components and access arrangements. Compare the quoted cost per usable position alongside the footprint, pallet access and equipment requirements.

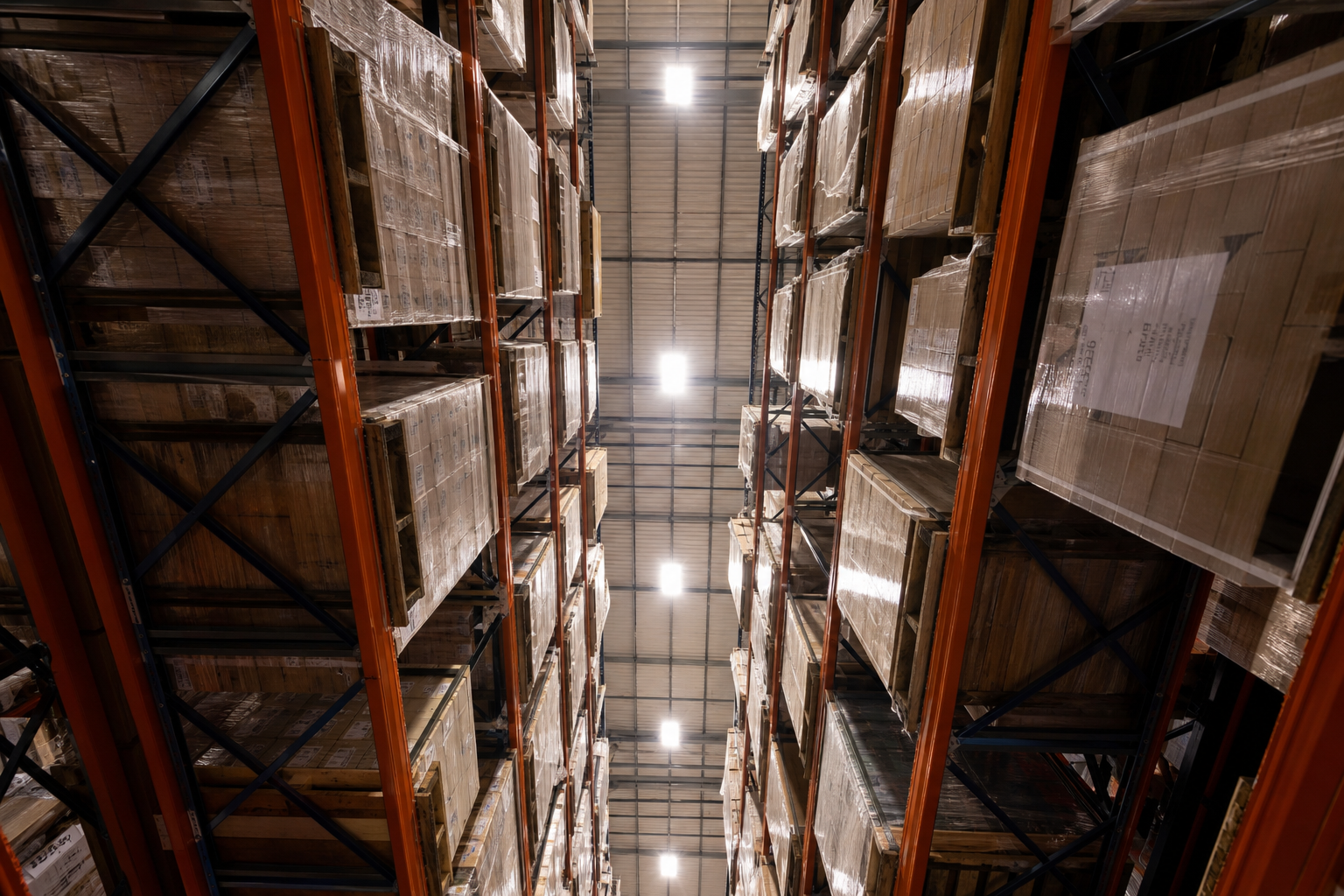

2. Height & CapacityHeight, beam length, level spacing and loads affect component selection and engineering. Price the configuration you can actually use: the tallest frame is not necessarily an extra usable storage level.

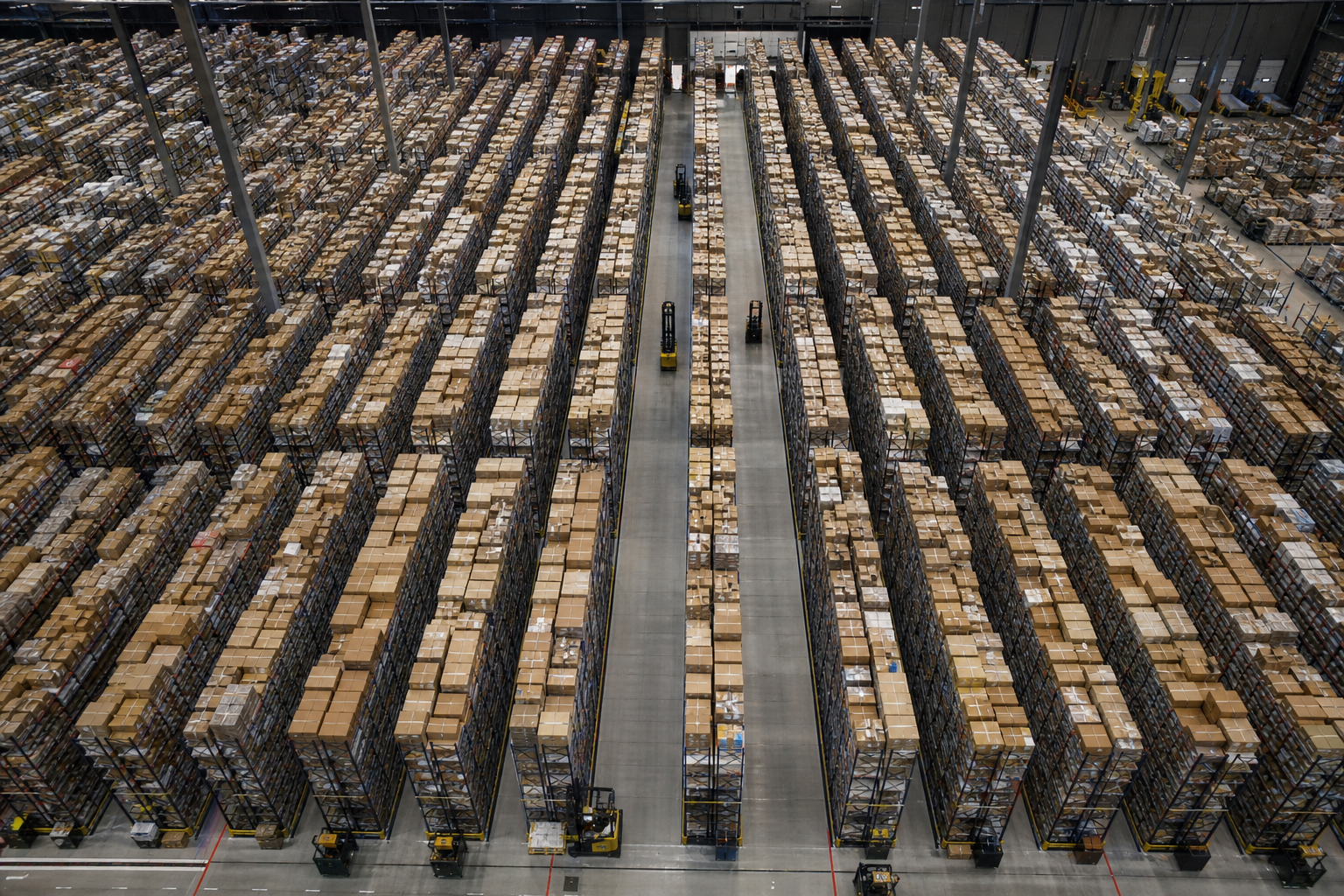

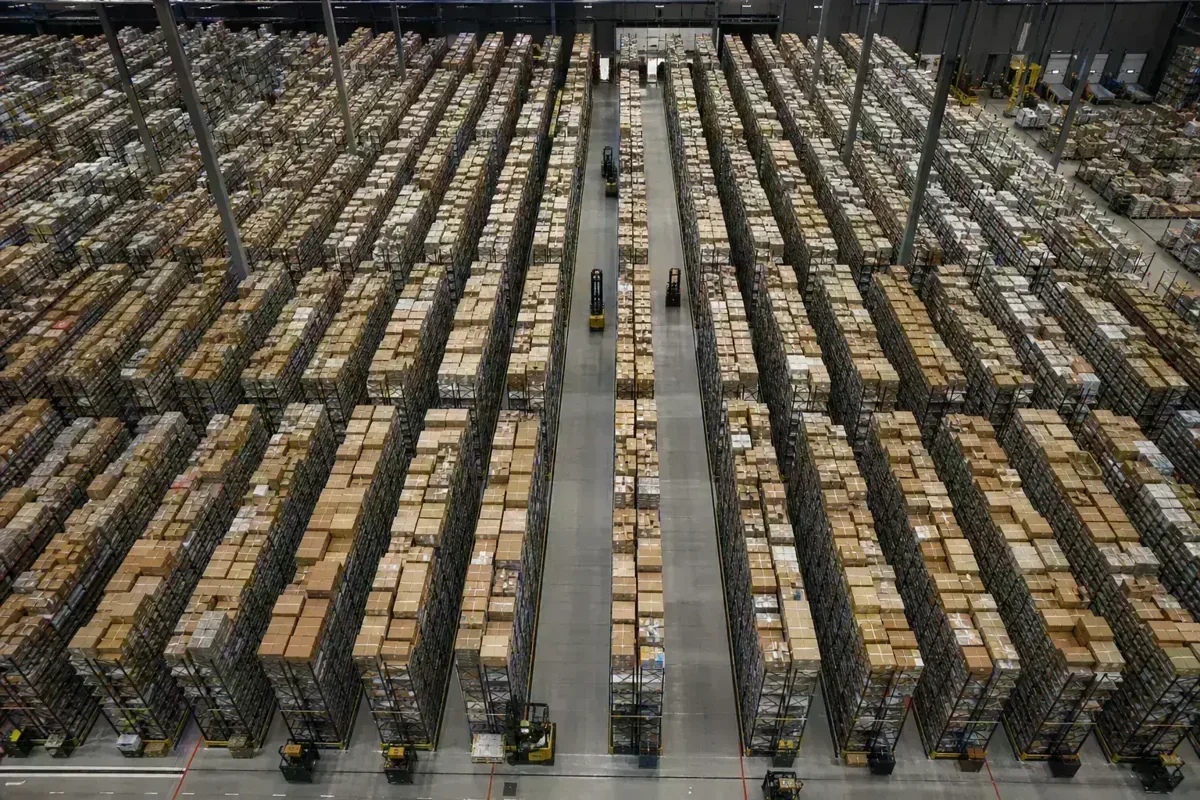

3. Quantity & ScaleQuantities, manufacturing runs and freight consolidation can affect pricing. Ask for the quantities you need and any planned phases to be priced explicitly. Buying more upfront is only useful if it fits the approved design, budget and operating plan.

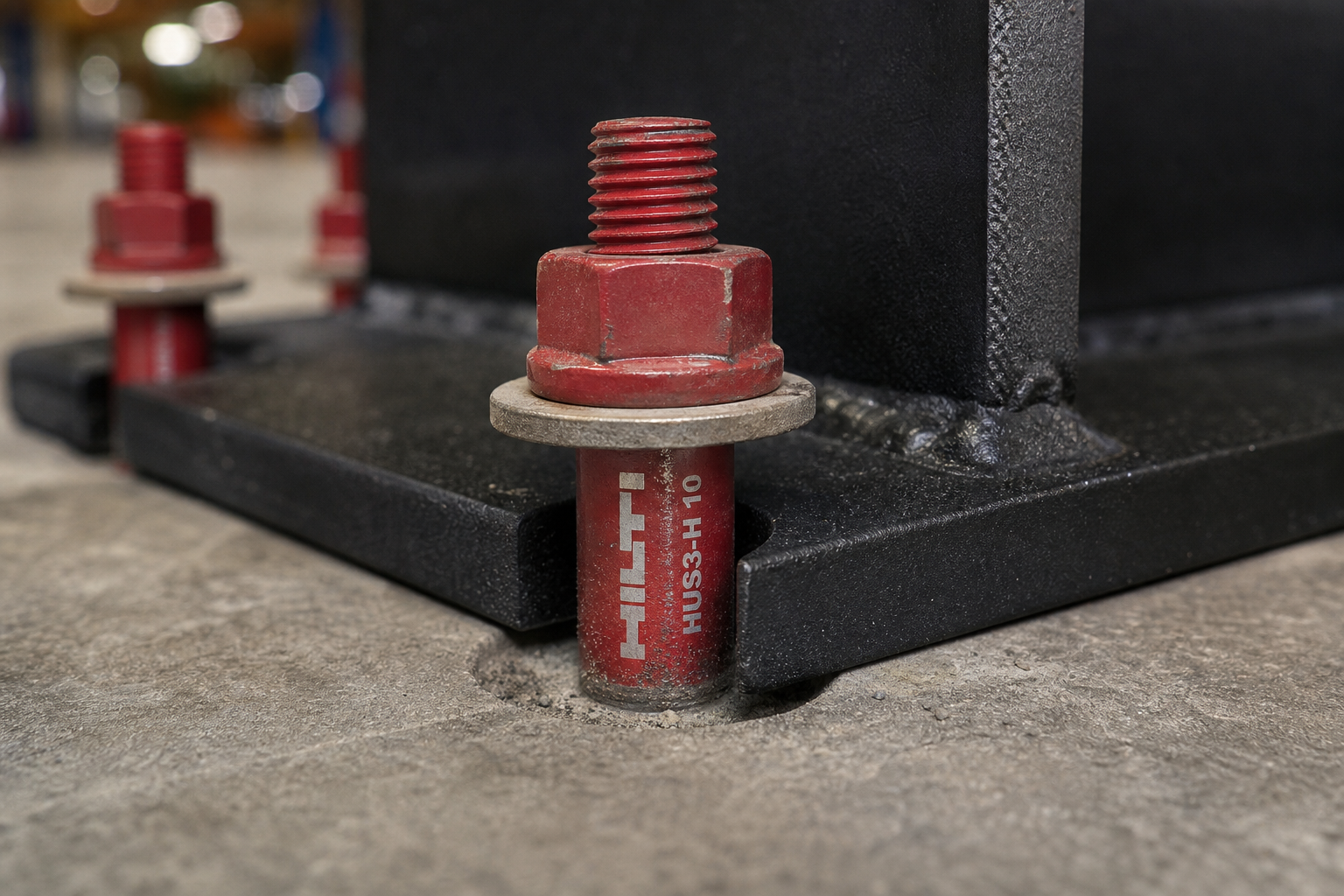

4. Seismic EngineeringEngineering requirements and costs depend on the location, rack configuration, loads and site conditions. Confirm the required package and its inclusions rather than applying a blanket state-level allowance.
5. Installation and Site WorkInstallation is a project-specific scope item, not a fixed percentage of the rack price. Confirm whether your quote includes assembly and anchoring, engineering, permit support, equipment rental, removal of existing rack and other site work. Materials-only and installed proposals are not directly comparable. Warranty conditions depend on the product and the applicable manufacturer terms.

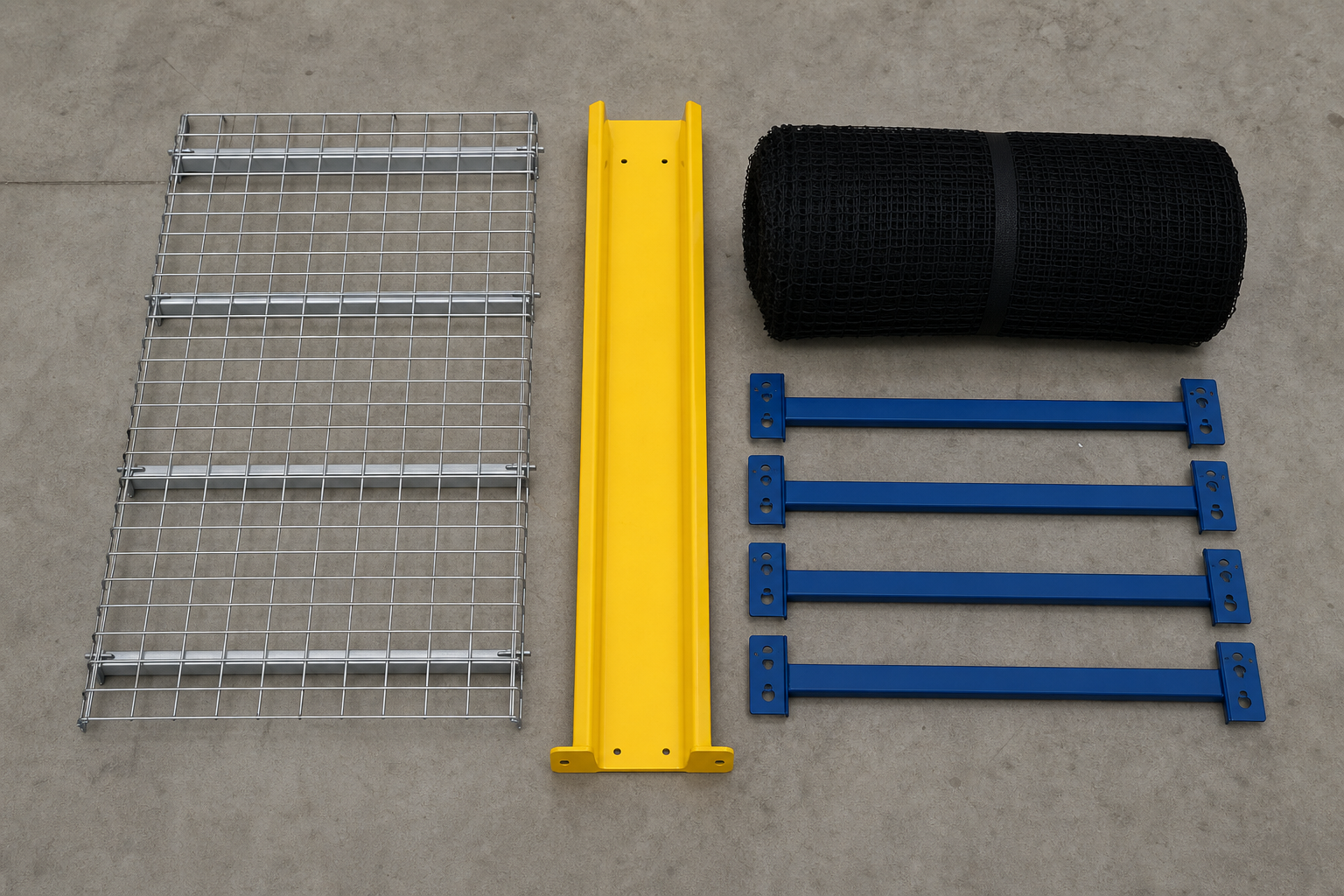

6. AccessoriesDecking, supports, rack protection and anchorage can change the total. Itemize the accessories appropriate to the approved design rather than treating a generic accessory list as proof of a safe installation.Compare Pallet Rack Quotes Line by Line
Before comparing totals, confirm that both proposals cover the same loads, usable pallet positions and delivery location.
| Compare | What to confirm |
|---|---|
| Rack materials | Manufacturer/system, condition, upright frames, individual beams or beam pairs, and identified configuration. |
| Decking and accessories | Deck type, supports, safety components and protection items appropriate to the design. |
| Freight and receiving | Ship-from and ship-to locations, shipment packaging, unloading, dock appointments and any delivery restrictions. |
| Installation | Assembly, anchoring, access conditions, working hours, equipment and the extent of cleanup. |
| Engineering and permits | Named deliverables, applications, fees, inspection requirements and responsible parties. |
| Removal or relocation | Teardown, packing, transport, component review, replacement parts and reinstallation. |
| By-others work | Customer-supplied lifts, floor repair, building/fire-system work and other exclusions. |
| Timing and terms | Quote revision, component availability, delivery assumptions, installation window and applicable warranty terms. |
Freight and Receiving Questions Before You Sign
- Is the quoted freight rate fixed or estimated, and through what date is it valid? Rates can change between quoting and shipment — confirm who approves a changed rate before the load ships.
- Are detention, failed-delivery/redelivery or storage charges possible for your delivery, and what triggers them? Terms vary by carrier and quote, so ask which apply and who is responsible rather than assuming a standard threshold.
Coordinate those freight terms with the site-readiness and receiving responsibilities on Installation Services before approving the order.
A lower total may represent a different scope rather than a lower price for the same project. Have omissions clarified in writing before placing the order.

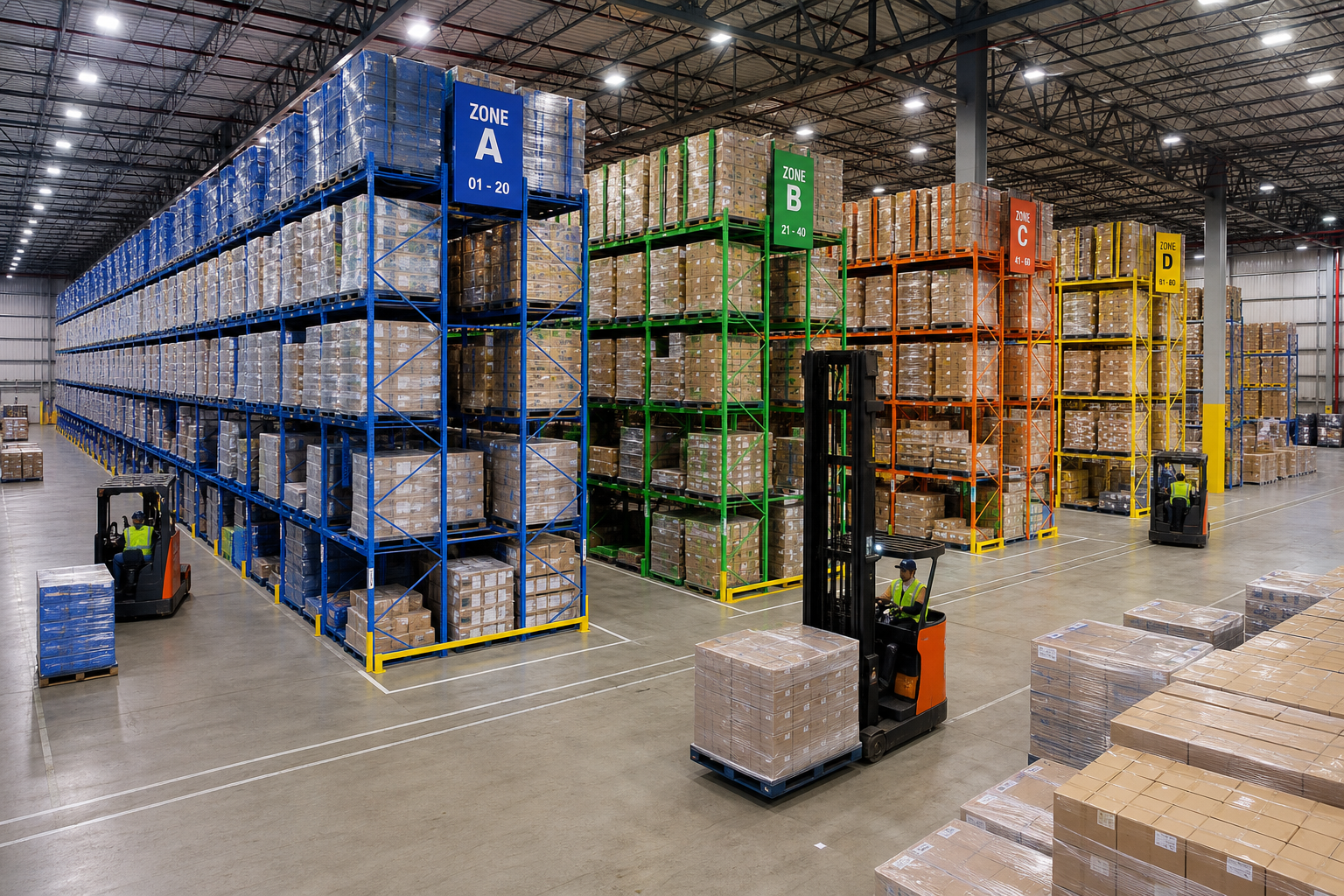

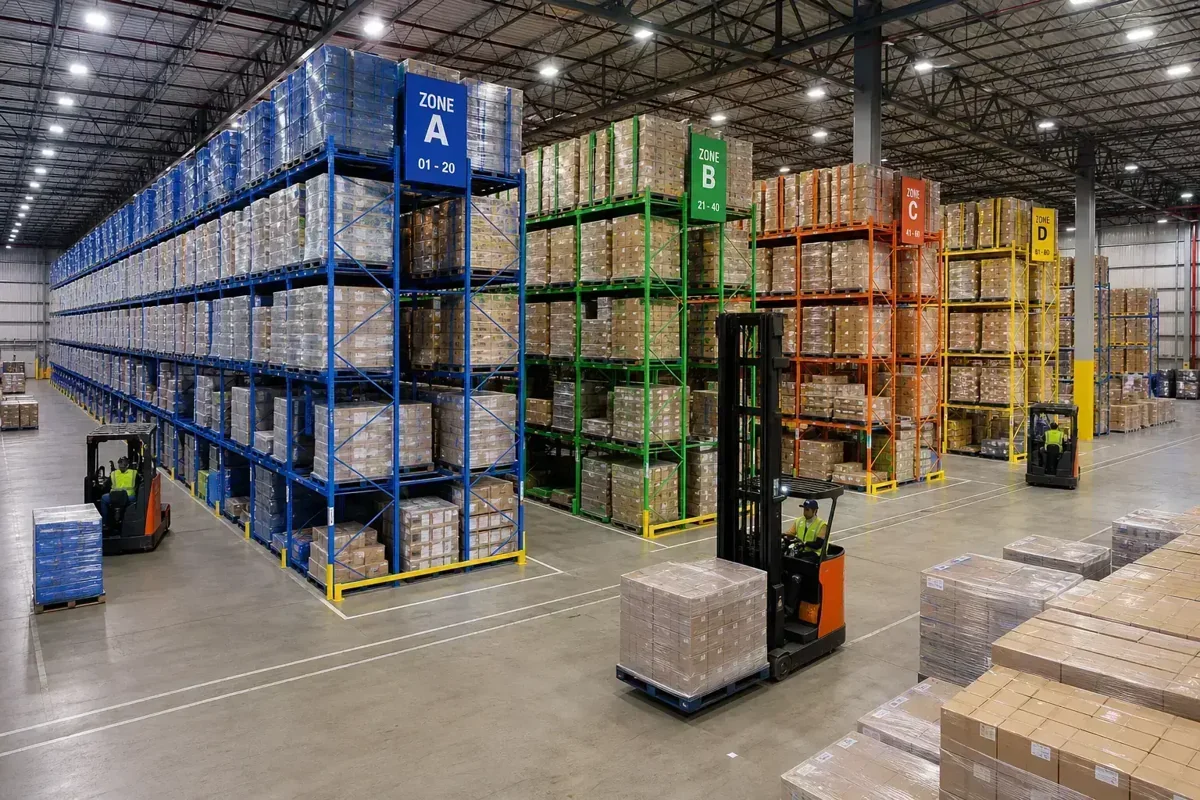

How to Get the Best Pallet Rack Value
Compare Alternatives Against the Same RequirementsNew, used, supplier-stocked and factory-configured options may differ in component documentation, condition, availability and modification requirements. Evaluate the complete scope before choosing on equipment price alone.Review design-specific accessory choices: wire decking, anchor bolts, rack guards and rack netting.
Compare Pallet Rack System Options
Rather than ranking systems from cheapest to most expensive, compare what each option actually requires for your operation.
| System option | Cost questions to compare |
|---|---|
| Selective | Components, loads, levels, aisle arrangement and required positions. |
| Double-deep / narrow-aisle | Rack configuration plus suitable handling equipment and access requirements. |
| Drive-in / push-back / pallet flow | Lane depth, rails/carts/rollers, pallet suitability and operating requirements. |
| Structural | Selected components, connections, load requirements and environment. |
| Mobile | Rack, bases, controls, site work and required access pattern. |
| Cantilever | Material dimensions, support requirements, arms, bases and handling access. |
Compare Pallet Rack Quotes With a Worksheet
Separate the quoted total from freight, installation, engineering and other costs outside it. The workbook compares three quotes and flags unresolved scope rather than treating missing costs as zero.
Free downloads; no email required. Three-page printable checklist and editable three-quote workbook. Planning aids—not an engineered design or approval. Request help with your quote.
Shop Pallet Rack Accessories Online
Compare selected accessories in our online catalog. Match the product and size to your rack design; the listed prices are for the selected accessory, not an installed rack system. Confirm options, freight and availability on the product page.
Pallet Rack Pricing FAQ
How much does pallet rack cost per pallet position?
Is it cheaper to buy used pallet rack?
Does installation cost extra?
How can I reduce my pallet rack costs?
Do you offer financing for pallet rack?
Whichever system you are pricing, the fastest way to a usable number is a short list: loaded pallet dimensions and weight, required positions, forklift type and the delivery location. That is enough for us to price a comparable layout and flag the services worth confirming before you commit.
