Pallet Flow Rack Systems
Gravity-fed, high-density pallet storage with guaranteed FIFO inventory rotation. Pallets load at the back, flow to the front on roller conveyors, and pick from a single aisle — no forklifts inside the rack.
What Is Pallet Flow Rack?
A gravity-driven, deep-lane storage system that automatically advances pallets from the loading aisle to the picking aisle — ensuring perfect first-in, first-out (FIFO) inventory rotation.
Pallet flow rack (also called gravity flow rack or dynamic flow storage) uses inclined roller conveyors mounted inside a structural rack frame. Pallets are loaded by forklift at the higher (back) end of the lane. Gravity pulls each pallet forward on the rollers toward the lower (front) pick face. When the front pallet is removed, the next pallet automatically rolls into position — no operator intervention required.
This system is the gold standard for operations that must maintain strict FIFO rotation — food and beverage distribution, pharmaceutical warehousing, cold storage, and any facility where product expiration dates, lot codes, or date-sensitive inventory drive the operation. Material Handling USA designs, supplies, and installs pallet flow rack systems across the United States.
How Pallet Flow Rack Works
Loading side (back): A forklift places pallets on the elevated end of the lane. Each lane is pitched at a slight decline — typically 3% to 5% grade — so gravity moves the pallet forward on the roller conveyor tracks.
Pick side (front): Pallets queue up at the front of the lane. The operator picks from the lowest pallet position. When that pallet is removed, the next one rolls forward into the pick position automatically.
Speed controllers and brakes: Built-in speed controllers (centrifugal brakes) regulate pallet speed as it travels down the lane, preventing damage and controlling flow. Pallet separators at the pick face hold the next pallet back until the front position is clear.
Pallet Flow Configurations
Pallet flow systems are engineered for specific pallet weights, lane depths, and throughput requirements.
Full-Width Roller Beds
Standard configuration with rollers spanning the full width of the lane. Best for consistent pallet sizes. Handles up to 2,500 lbs per pallet. Multiple rollers across the width ensure stable, even flow.
Best for: Standard 48″×40″ pallets, food/beverage distribution, pharmaceutical warehousing
Rail-Style (Wheel) Flow
Uses steel wheels mounted on rails instead of full-width rollers. Lower profile, lower cost per lane. Works well with lighter loads and uniform pallet quality. Common in carton-level or light-duty pallet applications.
Best for: Lighter pallets under 1,500 lbs, consistent pallet quality, temperature-controlled environments
Chain-Driven Flow
Uses non-continuous chain on inclined tracks for controlled pallet movement. The chain engages under gravity and provides smooth, controlled flow. Good for heavier loads where roller systems may allow too much speed.
Best for: Heavy pallets (2,000+ lbs), long lanes (15+ pallets deep), high-throughput operations
Technical Specifications
Engineering data for pallet flow rack system design.
System Parameters
| Parameter | Typical Range | Notes |
|---|---|---|
| Lane Depth | 2 to 20+ pallets | Most common: 5–10 deep |
| Pallet Weight Capacity | 1,500 – 3,000 lbs per pallet | Heavier loads available with engineered systems |
| Lane Width | 44″ to 54″ clear | Sized to pallet width + clearance |
| Grade / Pitch | 3% to 5% (3/8″ to 5/8″ per foot) | Steeper pitch for lighter loads |
| Speed Controllers | Every 8–12 feet of lane | Centrifugal brakes regulate pallet speed |
| Pallet Separators | At pick face | Hold next pallet until front is removed |
| Frame Heights | 12′ to 30’+ | Multi-level configurations common |
| Compliance | RMI / ANSI MH16.1 | Seismic engineering included |
Roller Conveyor Specifications
| Roller Type | Capacity (per lane) | Speed Control | Best Application |
|---|---|---|---|
| Full-Width Rollers | Up to 2,500 lbs/pallet | Centrifugal brakes | Standard pallets, high volume |
| Steel Wheel Rails | Up to 1,500 lbs/pallet | Drag brakes | Lighter loads, uniform pallets |
| Chain-Type Flow | Up to 3,000+ lbs/pallet | Chain resistance | Heavy loads, long lanes |
| Magnum Roller | Up to 4,000 lbs/pallet | Centrifugal + separator | Very heavy duty, freezer |
Key Components of a Pallet Flow System
Every pallet flow installation requires these precision-engineered components working together.
Roller Conveyor Tracks

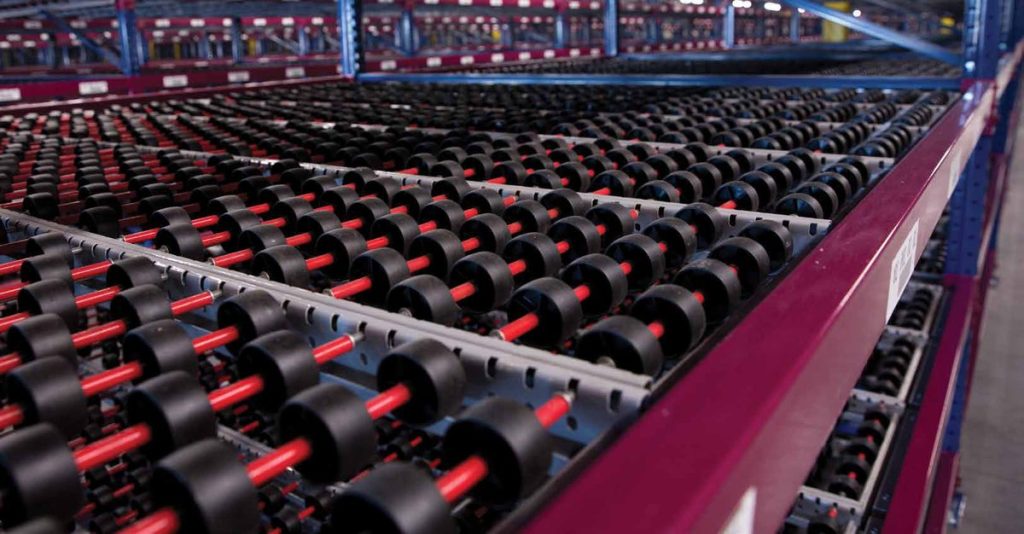

The heart of the system. Steel rollers mounted in formed-channel tracks at a controlled pitch. Full-width beds for heavy pallets, wheel-rail for lighter loads. Zinc-plated or galvanized for cold storage environments.
Speed Controllers
Centrifugal braking devices placed at intervals along the lane. They slow the pallet to a controlled 10–15 feet per minute as it descends. Essential for preventing damage to product and rack structure.
Pallet Separators
Mechanical devices at the pick face that hold the next pallet back while the front pallet is being picked. Prevents pallets from surging forward when the pick position opens. Spring-loaded or pneumatic designs available.

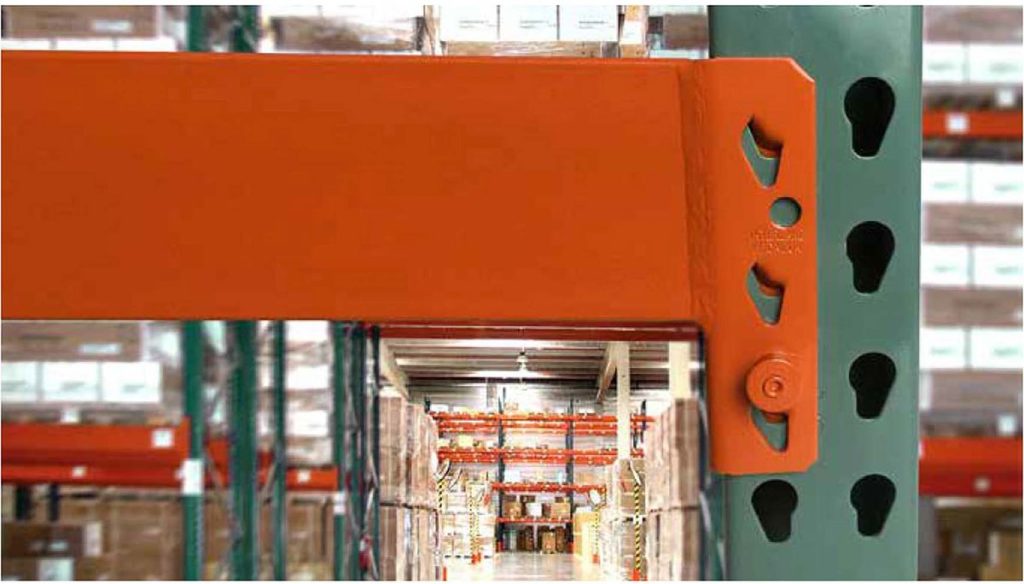

Structural Rack Frame
Heavy-duty structural steel uprights and beams support the roller conveyor system. Pallet flow requires structural (not roll-formed) rack due to the concentrated loads and dynamic forces from moving pallets.
Entry Guides
Funnel-shaped guides at the loading end that center the pallet onto the roller bed. Prevents misalignment that could cause jams. Critical for operations with varied pallet quality or automated loading.
Lane Indicators
Visual flags or sensors that show lane status — full, empty, or partially loaded. Helps forklift operators quickly identify which lanes need loading. Mechanical flag systems or electronic sensor options.
Applications & Industries
Pallet flow rack is the system of choice for high-throughput operations that require strict FIFO inventory rotation.
🍔 Food & Beverage Distribution
The #1 application for pallet flow. Dairy, meat, produce, frozen foods, and beverages all require strict date-code rotation. Pallet flow ensures the oldest product is always picked first — automatically. No reliance on operators to follow FIFO procedures.
💊 Pharmaceutical & Healthcare
FDA-regulated facilities require documented FIFO for lot-controlled inventory. Pallet flow provides automatic lot rotation without operator judgment. Ideal for temperature-controlled pharmaceutical distribution centers.
❄️ Cold Storage & Freezer
Maximize expensive cold storage space with deep-lane flow storage. Galvanized rollers and zinc-plated components withstand freezer environments. Reduces forklift time inside the freezer — load from one end, pick from the other.
📦 High-Volume Distribution
3PL warehouses and high-volume DCs handling fast-moving SKUs in large quantities. Separate loading and picking aisles improve traffic flow and reduce forklift congestion. One lane per SKU — automatic replenishment at the pick face.
🏭 Manufacturing Staging
Buffer storage between production lines. Raw materials flow to the production side automatically as they’re consumed. Finished goods queue in flow lanes for shipping. Reduces internal transport and staging labor.
🧪 Chemical & Hazmat Storage
FIFO rotation is critical for chemicals with shelf-life limitations. Pallet flow minimizes operator exposure time in hazmat storage areas. Separate loading and pick aisles keep traffic patterns clean and safe.
Advantages of Pallet Flow Rack
The premium FIFO storage solution for high-density, date-sensitive operations.
- Guaranteed FIFO — automatic first-in, first-out rotation with zero operator decision-making
- Maximum storage density — 60%+ more storage vs. selective in the same footprint
- Separate load/pick aisles — eliminates forklift congestion and improves safety
- Automatic replenishment — gravity advances the next pallet into pick position instantly
- Reduced labor — no travel into rack lanes, no manual pallet rotation
- Perfect for perishables — date-code rotation is built into the system design
- Cold storage optimized — galvanized components, less forklift time in freezer
- High throughput — fast pick rates from dedicated pick face
- Scalable lane depths — 2 deep to 20+ deep per lane based on SKU velocity
- Lower product damage — speed controllers prevent impact at pick face

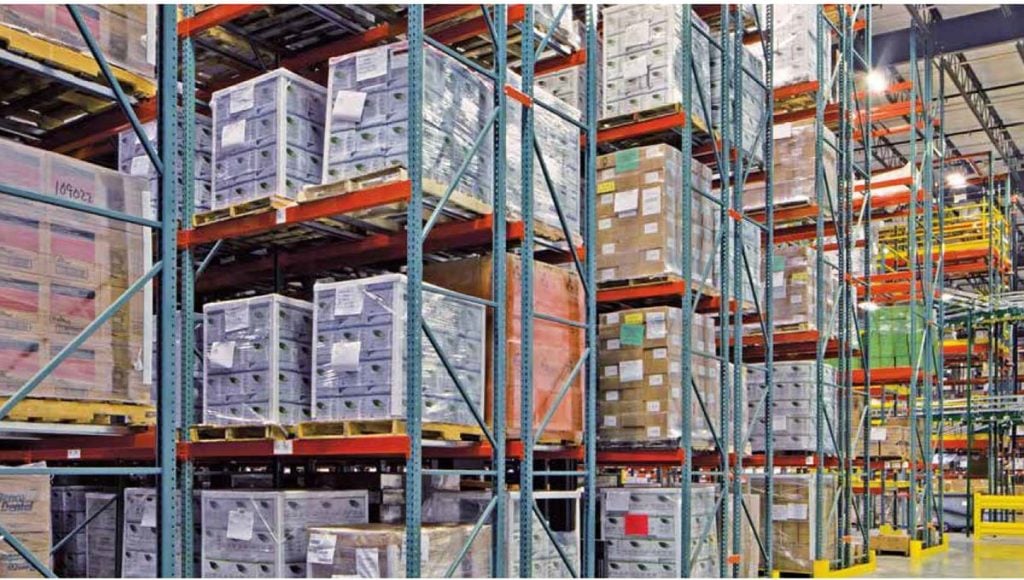

Material Handling USA designs and installs pallet flow systems for distribution centers, cold storage, and manufacturing facilities nationwide
Pallet Flow vs. Other Storage Systems
Pallet flow delivers the best combination of density and FIFO compliance — but it’s a premium investment.
| System | FIFO? | Density | Cost | Best For |
|---|---|---|---|---|
| Pallet Flow | ✅ Automatic | Very High | Higher | Date-sensitive, high-throughput, cold storage |
| Selective | ✅ Manual | Standard | Lowest | Many SKUs, fast picking, general warehousing |
| Drive-In | ❌ LIFO | Very High | Medium | Few SKUs, bulk storage, non-perishable |
| Push-Back | ❌ LIFO | High | Medium-High | Moderate SKUs, 2–6 deep, fast access |
| Cantilever | ✅ Manual | Low | Medium | Long/bulky items — lumber, pipe, furniture |
| Narrow Aisle | ✅ Manual | Higher | Higher | Selective + density (narrower aisles) |
Quick Decision Guide
Choose pallet flow if: You handle perishables or date-coded inventory, need guaranteed FIFO rotation, have fewer SKUs in high volume, operate a cold storage or freezer facility, or want to separate loading and picking operations for safety and efficiency.
Consider alternatives if: You have many SKUs with low volume each (selective rack is more flexible), FIFO is not required (drive-in or push-back are less expensive), or your budget is limited (pallet flow has higher per-position cost than other density systems).
Not sure? Request a free warehouse design consultation — we’ll analyze your inventory profile and recommend the right system.
Frequently Asked Questions
What is the difference between pallet flow rack and carton flow rack?
Pallet flow rack handles full pallets (1,000–3,000+ lbs) on heavy-duty roller conveyors inside structural rack frames. Carton flow rack handles individual cartons or cases (typically under 100 lbs each) on lightweight wheel tracks that fit inside standard selective rack beams. Both use gravity for FIFO rotation, but pallet flow is a heavy-duty structural system while carton flow is a picking accessory for selective rack.
How deep can pallet flow lanes be?
Standard pallet flow lanes range from 2 pallets deep to 20+ pallets deep. Most installations are 5–10 pallets deep. Deeper lanes require more speed controllers to manage pallet velocity. The maximum practical depth depends on pallet weight, roller type, and building height — Material Handling USA engineers each lane for your specific application.
Can pallet flow rack work in freezer and cold storage?
Yes. Pallet flow is one of the best systems for cold storage because it minimizes forklift time inside the freezer. Loading and picking happen from separate aisles — operators spend less time in the cold. Components are available in galvanized steel and zinc-plated finishes that resist corrosion in freezer environments down to -20°F.
What kind of pallets work with pallet flow?
Standard GMA pallets (48″×40″) work best. The pallets must be in good structural condition — broken or warped pallets can cause jams in the roller conveyor. Many facilities use slave pallets (captive plastic pallets) in flow lanes to ensure consistent quality. The pallet bottom boards must run in the direction of flow (lengthwise) for proper roller engagement.
How much does pallet flow rack cost?
Pallet flow rack is a premium system — typically 3×–5× the cost per pallet position compared to selective rack. The higher cost is justified by guaranteed FIFO, higher density, reduced labor, and lower product loss from expired inventory. A 5-deep pallet flow lane costs less per position than a 2-deep lane because the structural frame cost is spread across more positions. Contact Material Handling USA for a project-specific quote.
Does pallet flow rack need to be anchored to the floor?
Yes. Pallet flow systems use structural rack frames that must be anchored per ANSI/RMI MH16.1 standards. The dynamic loads from moving pallets create forces that must be transferred to the foundation. Seismic engineering is required in zones like Utah. Material Handling USA provides engineered anchor plans with every installation.
