Understanding Security Cage Specifications
Specifying the right security cage means matching the mesh gauge, panel height, door type, and locking mechanism to your specific security requirement. A cage protecting high-value inventory in a warehouse has different specifications than one enclosing IT equipment in a data center or securing evidence in a police department.
Material Handling USA supplies wire mesh security cages in standard and custom configurations. We help you select the right specifications for your application, provide layout drawings for your space, and handle professional installation.
Wire Mesh Panel Specifications
| Specification | Standard | Heavy Duty | Maximum Security |
|---|---|---|---|
| Wire Gauge | 10 gauge | 8 gauge | 6 gauge |
| Mesh Opening | 2″ x 2″ | 2″ x 1″ | 1″ x 1″ |
| Panel Heights | 8′, 10′ | 8′, 10′, 12′ | 8′, 10′, 12′, to ceiling |
| Panel Widths | 1′ to 5′ | 1′ to 5′ | 1′ to 5′ |
| Frame | 1.5″ angle | 2″ angle | 2″ angle or channel |
| Finish | Gray powder coat | Gray or black powder coat | Custom colors available |
All panels are woven wire mesh welded to steel angle frames. Panels bolt together and to floor-mounted posts for easy assembly and reconfiguration.
Door Specifications
Hinged Single Door
Standard 3′ wide hinged door with self-closing hinges and padlock hasp. Suitable for personnel access in most applications.
Hinged Double Door
5′ to 8′ wide double-leaf door for pallet jack and forklift access. Available with drop rods and flush bolts for securing the inactive leaf.

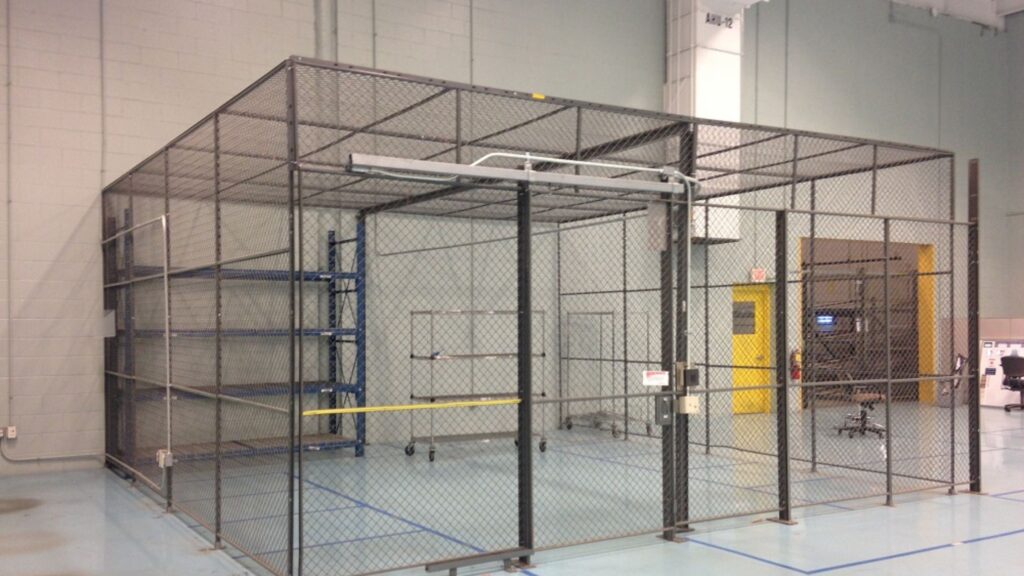

Sliding Door
4′ to 12′ wide sliding door on overhead t rack. Saves floor space by not swinging into aisles. Available with manual or motorized operation.
Service Window
Pass-through window with counter shelf for issuing items without full cage entry. Used intool cribs, parts rooms, and evidence storage.
Lock Options
Padlock Hasp
Standard welded hasp accepts any padlock. Simple, economical, and allows user-supplied locks.
Cylinder Lock
Built-in keyed cylinder lock. No external padlock needed. Available in keyed-alike sets for multi-cage facilities.
Electronic Access
Keypad, card reader, or biometric locks for audit-trail access control. Integrates with building security systems.
Combination Lock
Built-in combination dial. No keys to lose or duplicate. Code can be changed when personnel rotate.
Ceiling and Top Options
Security cages can be configured with open tops (for areas under sprinkler systems or where fire code requires it) or closed tops for maximum security. Ceiling panel options include:
- Wire mesh ceiling panels— same gauge as wall panels, prevents climbing over
- Solid metal ceiling— maximum containment for high-security applications
- Open top— no ceiling panels, required in some jurisdictions for fire sprinkler coverage
- Angled top extension— outward-angled panels that prevent climbing without fully enclosing the top
Frequently Asked Questions
What wire gauge should I specify?
10 gauge is suitable for most warehouse and storage applications. 8 gauge adds more rigidity and tamper resistance. 6 gauge is used for maximum security applications like evidence rooms, arm or ies, and high-value inventory.
Can security cages be relocated?
Yes. Wire mesh security cages are modular — panels bolt together and to floor-mounted posts. The entire cage can be disassembled and reconfigured in a new location. This is a major advantage over permanent construction.
Do security cages meet fire code requirements?
Wire mesh cages with open tops allow sprinkler coverage to reach the interior. Some jurisdictions require open tops for cages in sprinkled buildings. We can help you determine the requirements for your location.
How quickly can a security cage be installed?
Most security cages install in one to two days depending on size. Large multi-room configurations may take three to five days. No welding or special tools required — cages assemble withstand ard hardware.
Specify Your Security Cage
Custom configurations, professional installation, and free layout design. Tell us your dimensions and security level.
