Heavy Duty Shelving
Heavy duty shelving units for plants, warehouses, parts rooms and maintenance shops: rivet and boltless, steel and wire shelving rated up to 2,500 lb per level. We match the unit to your heaviest shelf, then design, quote with freight and install it.
800 lb
Wire shelf rating (Metro)
1,200 lb
Lyon heavy-duty rivet level
2,500 lb
Tennsco HD boltless, 48 in.
Nationwide
Design, freight, install
Shop Heavy Duty Shelving Units
Heavy duty shelving units from Lyon, Jaken and Metro you can order online. For other sizes, a full room, anchoring or installation, request a quote and we size the run to your heaviest shelf.
What Is Heavy Duty Shelving?
Heavy duty shelving is hand-loaded steel shelving built and rated to carry more weight per shelf than standard office, retail or light-duty units. In practice that means a published capacity of roughly 650 lb per level and up, heavier steel in the posts and beams or shelves, and a frame that stays square when every level is full.
It comes in three main constructions: heavy duty boltless or rivet shelving, heavy duty metal and steel shelving with clip-in or bolted shelves, and heavy duty wire shelving. All three are loaded by hand. Once a forklift places the load, you need pallet rack instead.
Photo: Lyon Workspace
What actually makes a shelving unit heavy duty
- A published per-shelf rating. Reputable manufacturers rate each shelf or level for an evenly distributed load and publish it by width and depth. No rating, no heavy duty claim.
- The beam or shelf profile. On rivet shelving the beam carries the load: double-rivet, channel and C-channel beams rate higher than single-rivet angle beams. On steel shelving it is the shelf gauge: 18 gauge is heavier than 20, and 20 heavier than 22.
- Post or upright capacity. The uprights set the total the unit can carry. Shelf rating times shelf count is often higher than the unit rating, and the lower number governs.
- Decks and supports. Deep or wide levels need center supports, and the deck has to suit the load.
- Bracing and anchoring. Sway braces, closed panels, tie plates and floor anchors keep a loaded run plumb and safe.
Heavy Duty Shelving Capacity by Type
These are published per-shelf or per-level ratings from manufacturers we quote, for evenly distributed loads. Ratings drop as shelves get wider or deeper, so we always confirm the figure for your exact size before you order.
| Shelving type | Example line | Published rating | Notes |
|---|---|---|---|
| Standard rivet shelving | Lyon rivet rack, 96 x 24 in. | 650 lb per level | Good for cartons and bins |
| Heavy duty boltless (Capstone) | Tennsco Capstone | Up to 650 lb per shelf | Snap-together, clean look |
| Double-rivet / channel beam | Penco Rivet-Rite channel beam, 30-48 in.; Hallowell Rivetwell heavy-duty beam, 48 in. with center support | 1,400 lb per level | Hallowell’s 96 in. level drops to 620 lb |

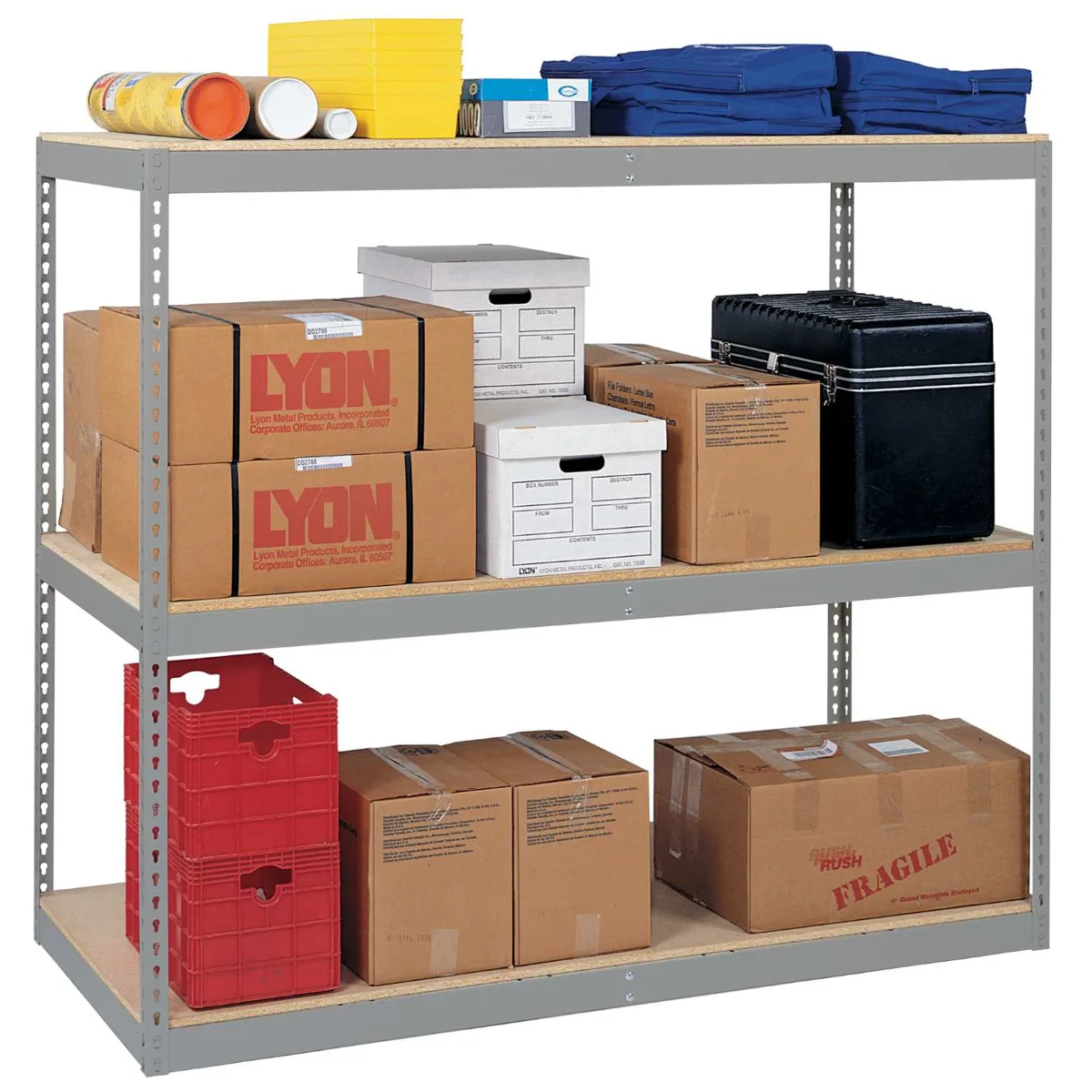

| Heavy duty rivet rack | Lyon heavy-duty rivet rack | 1,200 lb per level | 14 ga posts, C-channel beams |
| Heavy duty boltless rack | Tennsco Z-Line heavy duty | 2,500 lb at 48 in., 2,000 lb at 72 in., 1,600 lb at 96 in. | Up to 13,000 lb per unit with SUR posts |
| Steel clip shelving | Tennsco Z-Line steel shelves; Penco Clipper Hi-Performance | 450-750 lb (Tennsco); 500-850 lb (Penco) | Narrower, shallower shelves rate higher |
| Wire shelving | Metro Super Erecta | 800 lb per shelf to 48 in.; 600 lb at 54 in. and longer | 2,000 lb per stationary unit; mobile units 600-900 lb by casters |
| Welded garage rack | Edsal MuscleRack, 77 x 24 x 72 in. | 2,000 lb per shelf | Fixed sizes, few add-ons |
How to read a rating. "Evenly distributed" means the weight is spread across the whole shelf. If you set a 600 lb gearbox on the center of a long level, it loads that shelf much harder than 600 lb of cartons spread end to end, and shelving makers do not publish point-load ratings. For heavy single items, choose a shorter bay, add center supports or step up to a heavier beam.
Unit capacity governs. Five 1,200 lb levels do not make a 6,000 lb unit unless the posts are rated for it. Ask for both numbers on a quote. If the floor is a mezzanine deck or a thin slab, check that too.
Photo: Lyon Workspace
Heavy Duty Metal and Steel Shelving
Most searches for heavy duty metal shelving and heavy duty steel shelving end in one of two products: steel clip or bolted shelving with solid steel shelves, or steel rivet and boltless shelving with beams and decks. Both are metal and both can be heavy duty. The difference is what sits on the shelf.

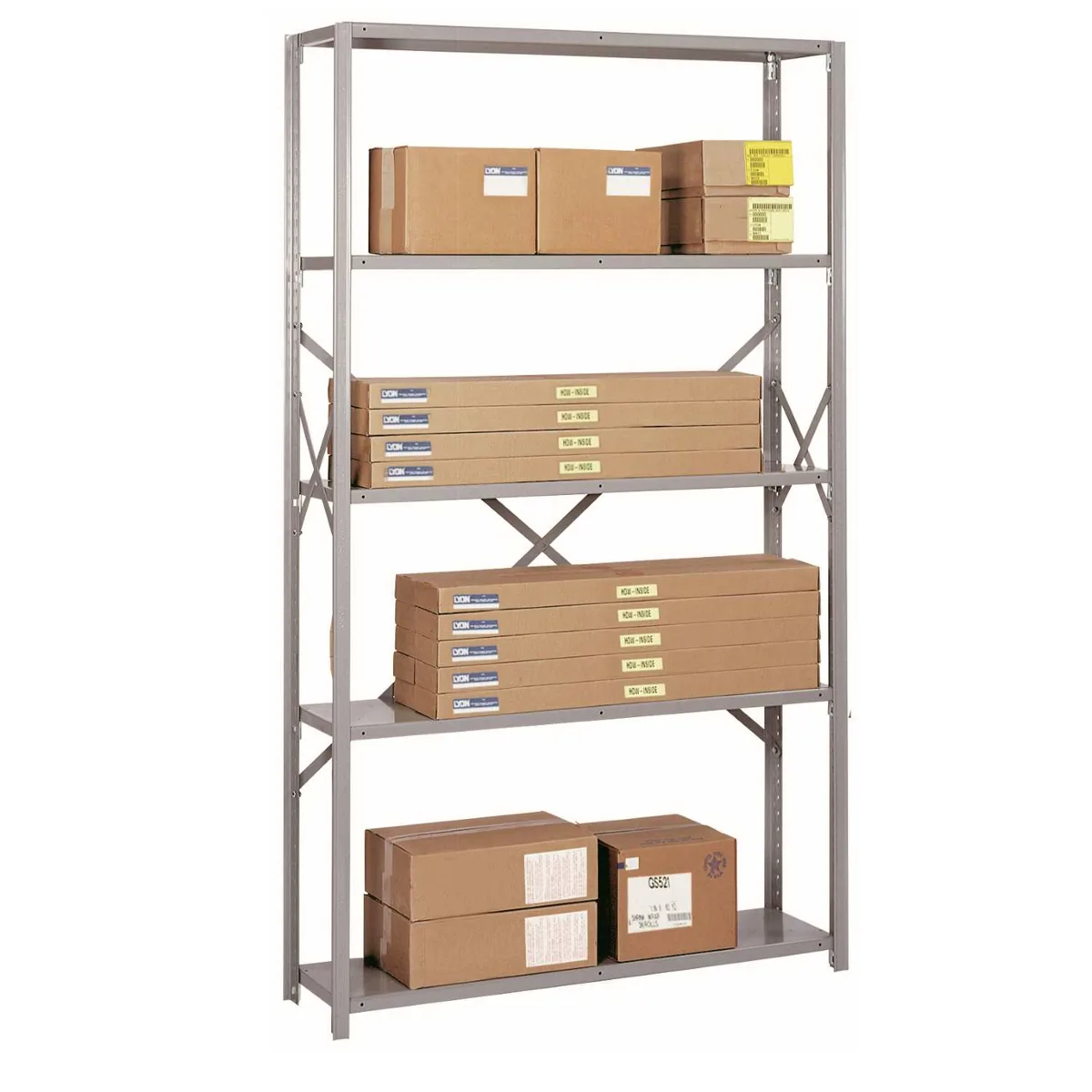

Solid steel shelves suit small, dense parts that must sit flat and stay inside the unit. Lyon’s 8000 Series, for example, uses T-post uprights and offers 20 gauge heavy-duty and 18 gauge extra heavy-duty shelves, with open units braced by sway braces and closed units stiffened by their back and side panels.
Photo: Lyon Workspace
Steel shelf gauge in one table
| Shelf gauge | Usually sold as | Best for |
|---|---|---|
| 22 gauge | Standard duty | Light parts, supplies, office stock |
| 20 gauge | Heavy duty | Hardware, boxed parts, dense small items |
| 18 gauge | Extra heavy duty | Heavy small parts, tooling, castings |
The lower the gauge number, the thicker the steel. Reinforcing channels under a wide shelf add capacity without changing gauge, and narrower or shallower shelves rate higher than wide, deep ones in the same gauge. Compare open and closed styles on our steel shelving page, or see every metal family on metal shelving.

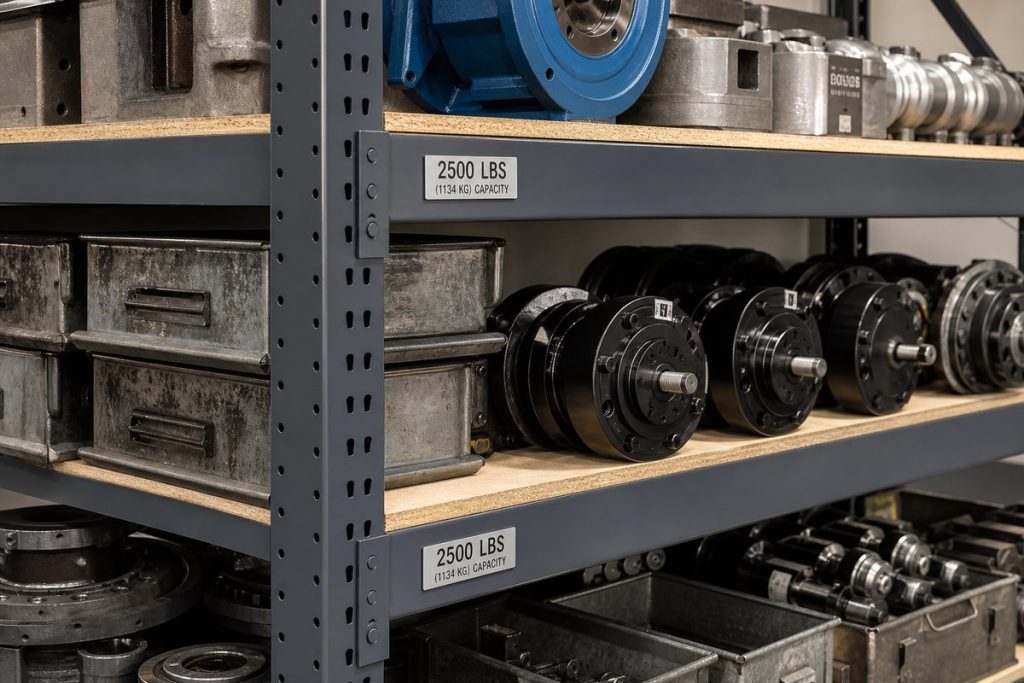

Heavy Duty Boltless and Rivet Shelving
Heavy duty boltless shelving uses the same tool-free assembly as standard boltless shelving: beams with rivets lock into keyhole slots in the posts and adjust on 1-1/2" centers. The heavy duty versions get their capacity from the beam, not the deck. Double-rivet beams have two rivets at each end, and channel or C-channel beams are taller and stiffer, which is how a level reaches 1,200 to 2,500 lb.
Because the beams carry the load, boltless shelving handles big, awkward items well: pails, cable reels, motors, cartons and tool cases on open levels up to 96" wide and 48" deep.

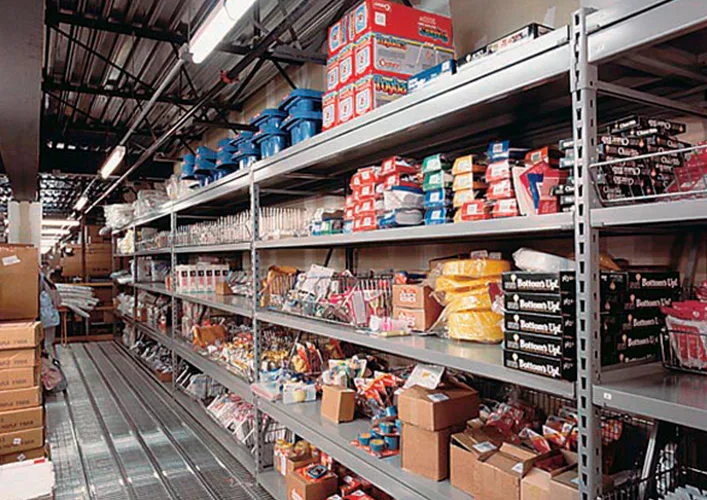

Photo: Penco Products
What we check on a heavy duty boltless quote:
- Beam type and length. Longer beams carry less. Hallowell’s heavy-duty beam is rated 1,400 lb at 48" with a center support but 620 lb at 96".
- Center supports on every level deeper than the deck can span on its own.
- Deck choice: particleboard for dry cartons, wire mesh where sprinklers or airflow matter, steel for loose or oily parts. See boltless shelving decking options.
- Post height and tie plates for tall or back-to-back runs.
Photo: Interlake Mecalux
Heavy loads need short spans. Motors, gearboxes and castings concentrate weight. Put them on the lowest level of a 48" or 60" bay with a channel beam and a steel or reinforced deck, and keep the 96" bays for bulky but lighter cartons. Need the rivet basics first? See rivet shelving. For heavier cartons loaded by hand truck, compare bulk storage rack and wide span shelving.

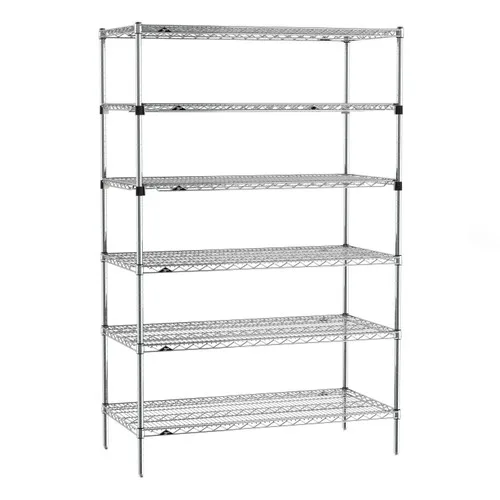

Heavy Duty Wire Shelving
Heavy duty wire shelving is the right call when air, light or water has to pass through the shelf: walk-in coolers and freezers, food storage, clinics, clean supply rooms and sprinklered stockrooms. It is not the highest-capacity shelving, but it is strong. Metro rates its Super Erecta shelves at up to 800 lb each for lengths up to 48", 600 lb for 54" and longer, and 2,000 lb per stationary unit.
Put the unit on casters and the casters set the limit: Metro’s mobile units run about 600 to 900 lb total. Finishes matter too. See wire shelving for chrome, epoxy and stainless, and Metro wire shelving for the full line.
Photo: Metro
- Chrome for dry rooms where looks matter.
- Epoxy-coated for coolers, damp rooms and wash areas.
- Stainless for washdown and corrosive areas. See stainless steel shelving.
- Shorter shelves for heavier loads: a 48" shelf is rated higher than a 60" or 72" one.
Heavy Duty Storage Shelves: Garage Units vs. Industrial Systems
Search for heavy duty storage shelves and most results are boxed garage units from home centers and warehouse clubs. Many are genuinely strong. Edsal’s MuscleRack welded racks, for example, are rated 2,000 lb per shelf on a 77 x 24 x 72 in. unit. For a home garage that can be the right buy. For a business, the questions change:
| Boxed garage unit | Industrial heavy duty shelving | |
|---|---|---|
| Sizes | A few fixed sizes | Widths to 96 in., depths to 48 in., posts to 12 ft and more |
| Adding on | Buy another complete unit | Add-on units share posts, so long runs cost less per bay |
| Accessories | Few or none | Dividers, bins, drawers, doors, back and side panels, decks |
| Replacement parts | Often not sold separately | Beams, decks, shelves and posts sold by the piece |
| Anchoring and ties | Wall strap at most | Foot plates, floor anchors, tie plates and row spacers |
| Documentation | Box label | Published ratings by size for your safety team |
| Layout and install | You | Room layout, freight and installation quoted together |
If you already own shelving that is close, our shelving replacement parts page covers matching beams, decks and shelves to it.
How to Choose Heavy Duty Shelving
Weigh the heaviest shelf
List your heaviest items and add up the worst full level, not the average.
Note the load shape
Spread cartons, single heavy items, small loose parts or wet goods.
Pick the construction
Rivet for big items, steel shelves for small parts, wire for airflow.
Size, then anchor
Shorter bays for heavy loads, top shelf within reach, sprinkler clearance, then anchors and ties.
A worked example: maintenance storeroom
| Item | Weight and size | What we would specify |
|---|---|---|
| Spare motors and gearboxes | 150-400 lb each, 18-24 in. | Heavy-duty rivet or Z-Line heavy duty, 48 in. bays, lowest two levels |
| Bearings, seals, fasteners | Small, dense, in bins | 18 or 20 gauge closed steel shelving with bins and dividers |
| Filters, belts, boxed spares | Light to medium cartons | Standard or double-rivet boltless, 72-96 in. bays |
| Lubricants and pails | 40-50 lb each, can drip | Rivet shelving with steel decks, low levels |
| Hoses and cable reels | Bulky, awkward | Deep rivet bays or bulk storage rack |
Choosing the deck
| Deck | Strengths | Watch out for |
|---|---|---|
| Particleboard | Low cost, flat surface for cartons | Swells if wet; avoid point loads |
| Wire mesh | Lets sprinkler water and light through | Small items need bins or trays |
| Steel | Takes loose, oily or heavy parts; wipes clean | Costs more; blocks sprinkler water |
| Solid steel shelf (clip shelving) | The shelf is the structure | Rating falls as width grows |
Anchoring, Load Ratings and Safety
A heavy duty run is only safe if it is anchored and loaded the way it was rated. OSHA’s general rule for stored material, 29 CFR 1910.176(b), says storage must not create a hazard and stacked items must be stable and secure against sliding or collapse. For industrial steel bin shelving, the design and testing standard is ANSI MH28.1, published by MHI’s Shelving Manufacturers Association.
Foot plates and floor anchors, top ties to a wall or to the next row, and row spacers on back-to-back runs keep tall, heavy shelving from tipping when someone pulls a load off a top level.
Photo: Lyon Workspace
- Heaviest loads low, lighter and slower stock up high.
- Post the rating per level on the run so everyone knows the limit.
- Keep sprinkler clearance. NFPA 13 keeps shelving and its storage directly under sprinklers at least 18 in. below the deflectors; your fire marshal has the final say.
- Seismic areas: your building official sets anchoring and permit rules. We include the hardware they expect in the quote.
- Re-check after changes. Moving beams changes level spacing and can change the unit rating.
- Ladders, not shelves: nobody climbs a shelving unit to reach the top level.
We can quote installation with receiving, assembly, anchoring and cleanup spelled out; see shelving installation for what that covers.
Heavy Duty Shelving Applications
Heavy duty shelving earns its keep anywhere single items are heavy or every level is full. These are the uses we plan most often.
Automotive parts roomsRotors, batteries, boxed parts and fluids on rivet and steel shelving.

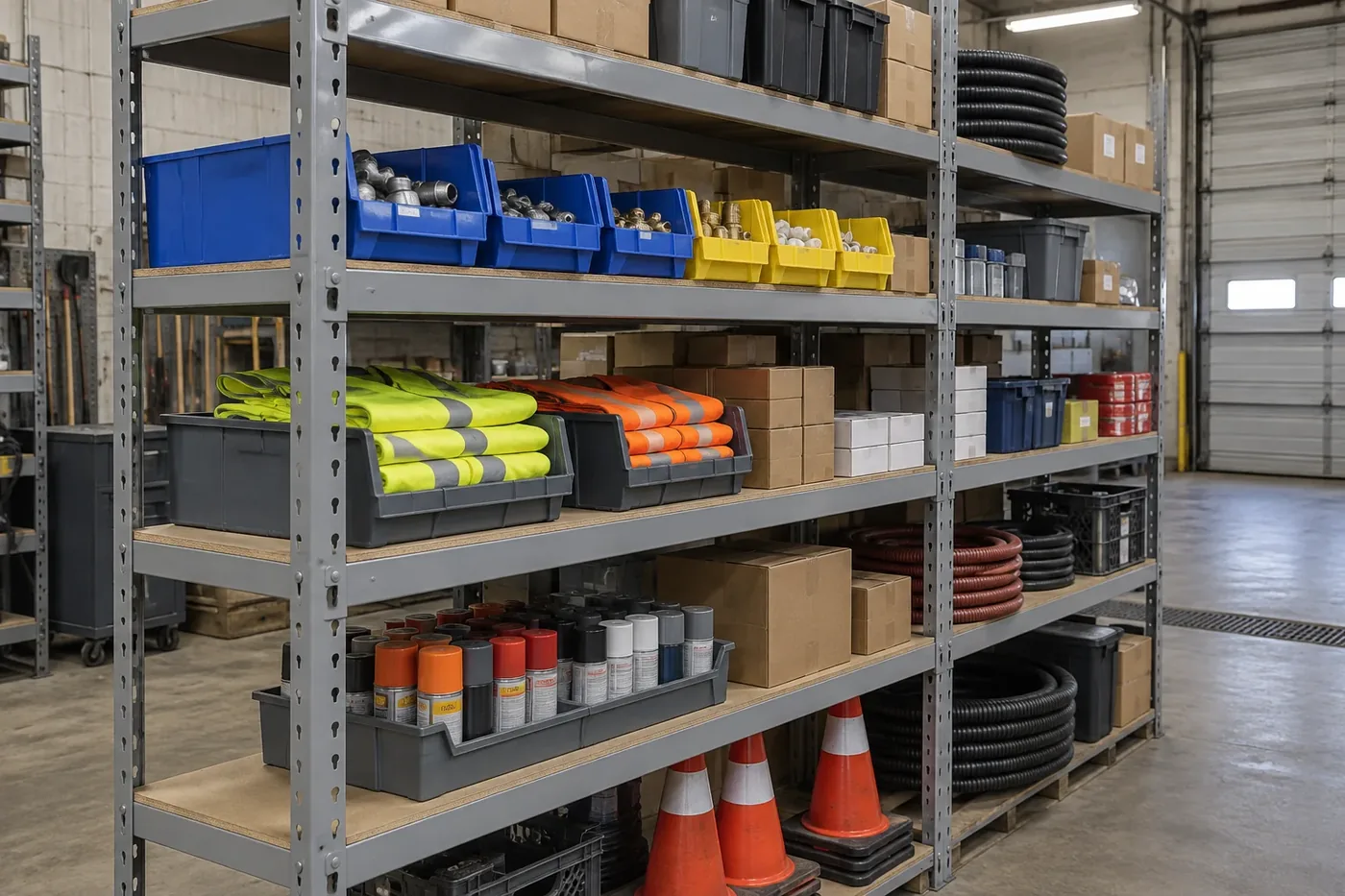

Fleet and public works shopsFilters, PPE, cones and shop supplies within reach of the bays.

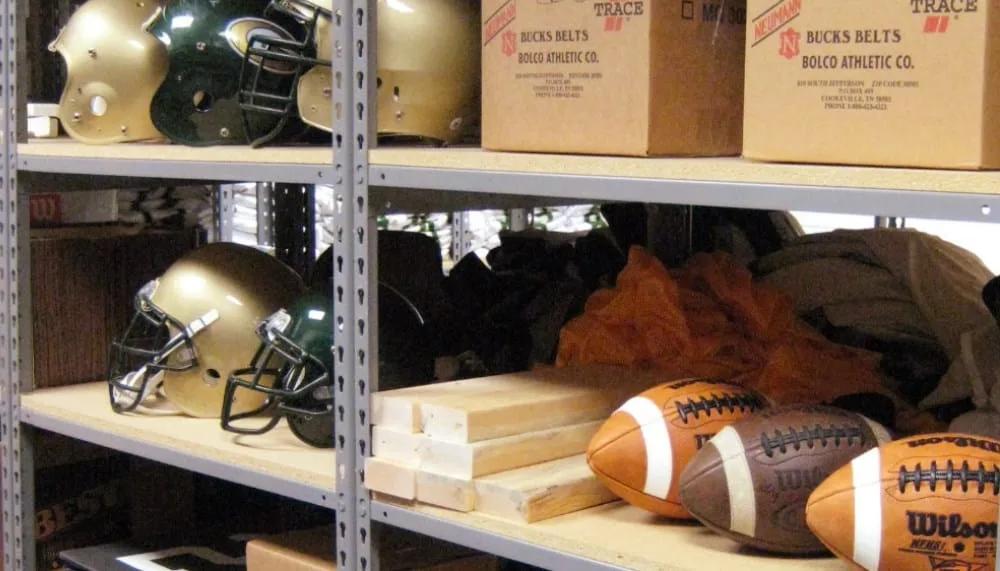

Schools and athleticsEquipment cartons, helmets and seasonal gear on wide rivet bays. Photo: Lyon Workspace.More places heavy duty shelving goes to work
- Manufacturing: fixtures, castings, kitted parts and WIP near the line. See manufacturing storage shelving.
- MRO and tool cribs: motors, bearings and tooling, often inside a wire partition. See tool cribs.
- Parts rooms: thousands of SKUs plus a few heavy exceptions. See parts shelving.
- Distribution centers: slow movers and each-picks beside the rack. See distribution center shelving.
- Government and military supply: accountable property in numbered aisles. See government storage shelving.
- Backrooms and stockrooms: cases and returns in long runs. See stockroom shelving.
Heavy Duty Shelving Brands We Supply
MH-USA quotes heavy duty shelving from the manufacturers below and is an authorized Interlake Mecalux distributor that designs, supplies and installs. Each link has series details.
When you need more than shelving
| If the load is… | Look at | Why |
|---|---|---|
| Many bulky SKUs picked by hand | Wide span shelving | Open 48-96 in. bays, mixed decks |
| Heavy cartons on a hand truck | Bulk storage rack | Heavier frames and step beams |
| On a pallet | Pallet rack | Forklift-loaded, rated per beam pair |
| Out of floor space | Mezzanines | A second level over the shelving |
Still deciding? Our boltless shelving vs. pallet racking guide compares the two, and industrial shelving covers layouts for plants and warehouses. For every family side by side, start at shelving solutions.
Heavy Duty Shelving Case Studies
Two real MH-USA projects where the shelving had to carry shop and plant loads.
School district carpenter shop, Salt Lake City, UTHeavy-duty Jaken boltless rivet shelving with double rivet beams, bought on a State of Utah contract.
Steel mill shelving, Plymouth, UTAngle and beaded post steel shelving with sway braces and foot plates for a working steel mill.Get a free quote
Tell us what you are storing, the room size and your timeline. A project specialist will follow up with layout options and pricing. Prefer to talk? Call (800) 326-4403.
Heavy Duty Shelving FAQs
What is considered heavy duty shelving?
How much weight can heavy duty shelving hold?
What is the strongest type of shelving?
Is heavy duty metal shelving the same as steel shelving?
Is wire shelving strong enough for heavy items?
Does heavy duty shelving need to be anchored?
What gauge steel is heavy duty shelving?
Can I use garage shelving in a warehouse?
Do you install heavy duty shelving?
Need Shelving That Handles Real Weight?
Send your heaviest items, room size and a few photos. We return a layout, published ratings and a freight-included quote.
