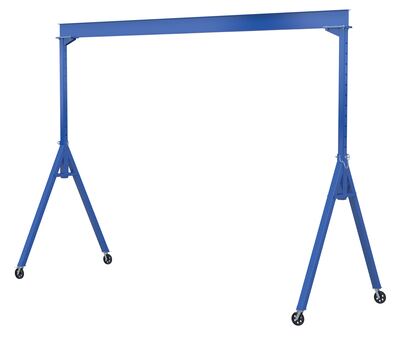

Vestil Steel Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue

Estimated lead time: 5 working days (per Vestil).

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner’s manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

Price Sale! -6%

Original price was: $3,191.42.Current price is: $2,991.96.

Add to Cart
Vestil Steel Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue
Vestil Steel Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue
$3,191.42 Original price was: $3,191.42.$2,991.96Current price is: $2,991.96.
Image showing different payment method logos under the text Guaranteed Safe Checkout. Logos include Affirm, Amazon Pay, Discover, American Express, Visa, Mastercard, Google Pay, Apple Pay, and Klarna.

Click here to apply for financing and get payment options

Vestil Steel Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue
Vestil Steel Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue
$3,191.42 Original price was: $3,191.42.$2,991.96Current price is: $2,991.96.
Simple Contact Form
Name

Estimated lead time: 5 working days (per Vestil).

Adjustable Height Steel Gantry Crane for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity with 10 ft. Wide, Blue Finish – Model AHS-4-10-12-VG

Key features

  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Specifications

  • Assembled Weight: 788 lbs
  • Assembled Size: 152″W x 120″L x 76.125″H
  • Total Ship Weight: 901 lbs
  • Package 1 Size: 77″W x 89″D x 19″H
  • Color / Finish: Blue
  • Freight Type: LTL Palletized
  • Uniform Capacity (lb.): 4,000
  • Adjustable Clearance Range (in.): 90 to 144
  • Beam Height (in.): 8-1/8
  • Overall Beam Length (in.): 120
  • Usable Beam Length (in.): 89-3/4
  • Flange Width (in.): 4
  • Increment Height Adjustment (in.): 6
  • Caster Qty/Diameter/Width (in.): (4) 8 x 3
  • Caster Material: Ductile Steel

Specifications and dimensions are approximate and may change. Confirm product suitability and freight details before ordering.

Additional information

Uniform Capacity (lb.)

4,000
Adjustable Clearance Range (in.)

90 to 144
Beam Height (in.)

8-1/8
Overall Beam Length (in.)

120
Usable Beam Length (in.)

89-3/4
Flange Width (in.)

4
Increment Height Adjustment (in.)

6
Caster Qty/Diameter/Width (in.)

(4) 8 x 3
Caster Material

Ductile Steel
Estimated lead time

5 working days
Cancelable

Yes
Returnable

Yes
Approval drawing required

No
SKU: VL-AHS-4-10-12-VG Categories: ,
