Counter Shutters and Roll-Up Counter Doors
Lock a service window, parts counter, pickup window or kiosk every night without giving up the opening during the day. Aluminum counter shutters with solid, perforated or clear curtains, manual or motorized.
What a counter shutter is
A counter shutter is a roll-up door sized for an opening above a counter, sill or ledge. The curtain is a run of interlocking aluminum or polycarbonate slats. It travels in two guide rails, one on each side of the opening, and coils around an axle inside a box housing at the top. When the shutter is down, the bottom bar sits on the countertop and locks. When it is up, the whole opening is clear and nothing swings into the customer side or the staff side.
One product, several names
Buyers search for counter shutters, roll-up counter doors, rolling counter doors and coiling counter doors. They are the same thing. The name usually follows the supplier, and “door” is more common for heavy steel units in large commercial openings. For the service windows, parts counters, pickup windows and kiosks we supply, a lightweight aluminum shutter is the usual fit: it is easy to lift by hand, quick to motorize and available in colors that match the counter.
Our partner Pentagon Shutters, a family-owned manufacturer in business since 1979, lists a dedicated counter-shutter curtain series alongside its storage and storefront lines.
Photo: Pentagon Shutters
A counter shutter secures an opening. If you need to secure a whole area, start with a wire mesh security cage or partition and add a counter shutter at the service window. For locking shelving and storage units rather than openings, see our main guide to roll-up security shutters, which covers storage, counter and storefront shutters side by side.
Where counter shutters fit
Most counter-shutter projects fall into a handful of opening types. The table shows what each one usually needs, so you can tell us early which group your opening belongs to.
| Opening | Typical setting | Curtain | Operation |
|---|---|---|---|
| Pass-through window | Tool cribs, cashier and ticket windows, offices | Solid | Manual, lock at bottom bar |
| Parts or service counter | Dealerships, equipment rental, will-call | Solid or perforated | Manual or motor + key switch |
| Pharmacy pickup counter | Retail and hospital pharmacies | Solid | Motor + key switch |
| Kiosk or concession stand | Malls, arenas, schools, parks | Solid or perforated | Manual or motor |
| Reception and back counter | Offices, clinics, front desks | Solid or clear | Manual or remote |
| Outdoor bar or service hatch | Patios, pool decks, food windows | Solid, insulated | Spring assist or motor |
Kiosks and concession stands

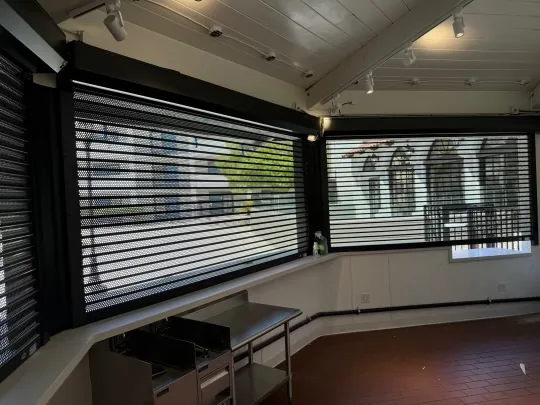

Concession stands and kiosks often have several long openings in a row, and they close every night. A row of counter shutters closes each window separately. Staff can open one window on a slow shift and every window for a game or an event. The housing sits above each opening, so the counter stays clear for menus, registers and pass-through trays.
Indoor kiosks in a mall or an airport concourse usually take a solid or perforated aluminum curtain in a color that matches the fit-out.
Photo: Pentagon Shutters
Front desks and back counters

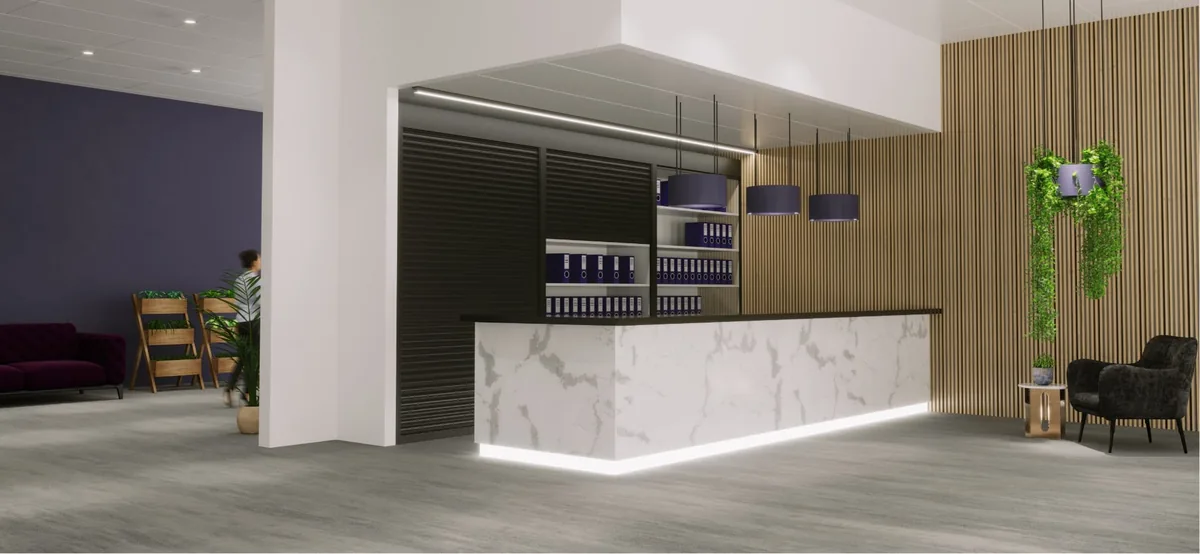

At a reception or service desk, the counter itself often stays open while a shutter closes the storage wall behind it. That keeps supplies, files or retail stock locked after hours without walling off the front of the room. Pentagon makes this style as part of its TambourGuard storage line, and the same curtain and operator choices apply.
Photo: Pentagon Shutters
Outdoor counters and food windows
An outdoor bar, pool-side snack window or food hatch is exposed to wind, rain and sun. For these, Pentagon’s DefendaGuard rolling security shutters use solid, insulated aluminum slats and offer spring-assisted manual or powered operation. Use a sill that sheds water away from the bottom bar, and plan the housing so it is not sitting in a gutter line.
Photo: Pentagon Shutters
Choosing the curtain: solid, perforated or clear
Solid and insulated slats
Solid aluminum slats give the most privacy and the most resistance to prying. Pentagon lists roll-formed aluminum slats with foam filling, like the cutaway shown, along with double-wall and single-wall extruded aluminum. Foam-filled slats also cut noise and drafts on exterior openings. For a pharmacy pickup counter, a cash window or a tool crib, solid is the default.
Photo: Pentagon Shutters
Perforated and clear curtains
When customers should still see the display after closing, a perforated curtain keeps it visible while the counter is locked. Pentagon lists single-wall extruded aluminum curtains with small or large perforations, and clear polycarbonate series with aluminum connectors. Perforated curtains also let air through, which helps at kiosks with refrigeration or warm equipment behind the counter.
The tradeoff is resistance: a perforated or clear curtain is easier to see through and to damage than solid slats.
Photo: Pentagon Shutters
Color: counter shutters are seen every day, so finish matters. Pentagon offers standard colors on each curtain series and says any series can be made in a custom color, so the shutter can match the counter laminate, the cage paint or the brand.
Guide rails, bottom bar and the sill
The bottom bar is where it locks

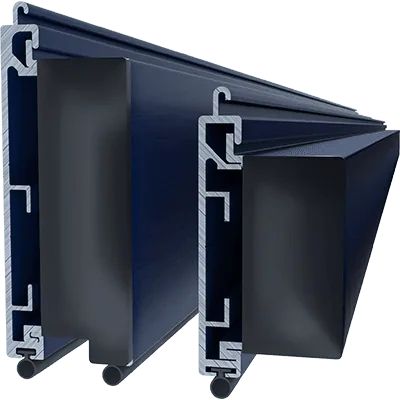

The bottom bar is the heavy extrusion at the foot of the curtain. It carries the lock, sets the seal against the countertop and takes most of the abuse. Pentagon offers several bottom bar sizes, with a low safety-edge rubber strip on its retail closures. On a counter shutter, the countertop or sill needs to be flat and level across the full width, or the bar will not seal or lock evenly.
Photo: Pentagon Shutters
Guide rails. The side rails hold the curtain edges and set how hard it is to force the shutter open. Pentagon’s AnchorLoc rails use end-retention anchors on both sides of the curtain, which Pentagon says make it near-impossible to pull the curtain out of the rail. Its build-out rail lets the shutter stand off the wall to clear an obstruction such as a door handle or a counter edge.
Mounting. Rails mount inside the opening (between the jambs) or on the face of the wall on each side. Inside mounting looks cleaner and needs square, solid jambs. Face mounting is the fix for out-of-square openings, drywall jambs and cage panels, where the rails fasten to the framing around the opening rather than to the mesh.
Housing
Holds the coiled curtain above the opening; size grows with opening height.
Curtain
Solid, insulated, perforated or clear slats in a stock or custom color.
Guide rails
Inside or face mount; end-retention rails resist pry-out.
Bottom bar and sill
Lock point and seal; needs a flat, level counter.
Manual or motorized, and how it locks
Manual counter shutters
Small counter shutters are usually manual. Pentagon lists spring-assist, tape and crank operation. Spring assist balances the curtain so staff can lift it with one hand. A crank suits wider or taller openings where the curtain is too heavy to lift. Manual shutters lock at the bottom bar, with a keyed lock or a padlock hasp.
Motorized counter shutters
When a shutter opens and closes several times a day, or several windows open on one schedule, a motor pays off. Pentagon lists motor operation from a paddle switch, key switch, handheld remote, app or Wi-Fi.
Photo: Pentagon Shutters
Control who can open it
A key switch limits who can raise a motorized shutter without handing out remotes. It is the common choice for pharmacy counters, cash windows and evidence windows. For a row of concession windows, a remote or app can open the whole row at once. On retail closures Pentagon also offers an emergency egress switch that opens the closure instantly from inside.
Photo: Pentagon Shutters
| Operation | Best for | Plan for |
|---|---|---|
| Spring assist | Small windows, a few cycles a day | Bottom-bar lock or padlock |
| Tape or crank | Wider or taller manual shutters | Crank or tape within reach |
| Motor + key switch | Pharmacy, cash and evidence windows | Power at the housing, keyed users |
| Motor + remote, app or Wi-Fi | Rows of windows, scheduled opening | Network access and user setup |
Security counter shutters vs fire-rated counter doors
Many buyers searching for counter shutters run into fire-rated counter doors first, because school cafeterias, kitchens and corridors often have serving openings in rated walls. The two products look alike but do different jobs.
| Security counter shutter | Fire-rated counter door | |
|---|---|---|
| Purpose | Lock an opening against theft and after-hours access | Close an opening in a fire-rated wall during a fire |
| Closing | Closed by staff, by hand or motor | Closes automatically, typically via fusible link or alarm release |
| Label | No fire label | Listed and labeled for a fire rating |
| Typical place | Tool cribs, parts counters, pharmacies, kiosks | Cafeteria and kitchen serving lines in rated walls |
| What we supply | Yes, as part of cage, shelving and counter projects | Flagged early so the right listed door is specified |
The shutters on this page are not fire-rated. If your opening is in a rated wall or corridor, tell us at the start. We will flag it before anything is quoted so the opening ends up with the right listed door, and we can still supply the cage, shelving and counter work around it.
Counter shutter vs other ways to close a counter
| Option | Opening when open | Security | Best when |
|---|---|---|---|
| Roll-up counter shutter | Full width | High (solid) to medium (perforated) | The counter closes daily and needs the full width open |
| Sliding transaction window | Half or less | Medium; glass stays in place | Staff serve through a small window all day |
| Hinged pass-through door | Full width, swings | High | Small openings with room for the swing |
| Rolling grille | Full width | Medium; open mesh | Air and visibility matter more than privacy |
| Cage service window with sliding door | Partial | Matches the cage | The window is part of a mesh cage or tool crib |
Combine them

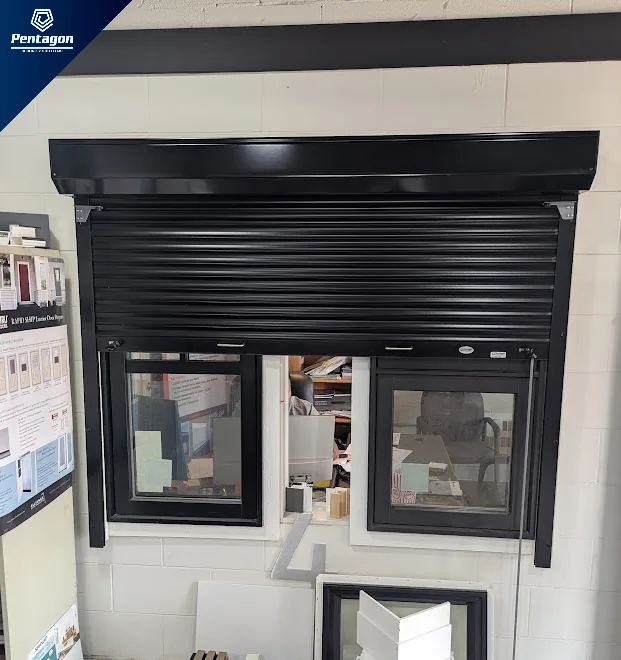

Many openings use two closures. A sliding transaction window handles daytime service, and a counter shutter above it closes the whole opening at night. The window in the photo at the top of this page is set up exactly that way: a sliding glass window in the frame and a roll-up shutter in a housing above it. On a tool crib, a mesh service window in the cage panel can take a counter shutter on the inside for after-hours lockup.
Photo: Pentagon Shutters
Applications
Counter shutters are usually one part of a larger project: a cage, a parts room, a pharmacy or a property room. These guides cover the projects where we plan them most often:
Not sure if a shutter, a cage door or a lockable cabinet is the right closure? Our roll-up security shutters guide compares storage, counter and storefront shutters, and our security cages hub covers the enclosure around them.
How to measure an opening for a counter shutter
Accurate sizes are the difference between a quick quote and a site visit. For each opening, send:
- Clear width between the jambs, measured at the top, middle and bottom
- Clear height from the countertop or sill to the underside of the head
- Headroom above the opening for the housing, and anything in the way: ceilings, ducts, lights, sprinkler heads
- Side room beside each jamb if the rails will be face-mounted
- Wall or frame: block, stud wall, steel frame, mesh cage panel or kiosk structure
- Countertop or sill: material and whether it is level across the width
- Operation and power: manual or motorized, and whether power is near the head
- Rated wall? Tell us if the wall or corridor is fire-rated
Send sizes and photos
One photo straight on, one showing the space above the opening.
We specify the shutter
Curtain, rails, housing, bottom bar and operator for each opening.
Quote with the project
Priced with any cage, shelving or counter work.
Install and hand over
Installed, tested and shown to your staff.
