Bin Storage Cabinets — All-Welded Steel Cabinets With Bins

Bin cabinets that arrive fully assembled with the bins already in them: 14 gauge all-welded steel, three-point locking handles, and 36" to 72" wide models carrying anywhere from 28 to 264 bins. Flush and deep door builds, wire mesh and clear-acrylic vision doors, drawer combinations, and sloped-shelf flow cabinets for high-density picking behind a locked door.

Get a Free Quote Call (800) 326-4403

Gray 72 inch all-welded steel bin cabinet with both doors open showing hundreds of blue bins

264

bins in the widest 72" cabinet build

14 gauge

all-welded steel construction

800 lb

per interior shelf on selected 36" models

36"–72"

cabinet widths, 36" to 84" tall

When open bin shelving should be a bin cabinet

A bin cabinet is bin shelving with a lockable steel skin around it, and the reason to buy one is almost never storage capacity. Open bin shelving is faster to pick from, cheaper per bin, and easier to reconfigure. It is the right answer most of the time. A cabinet earns its cost in exactly four situations, and it is worth being honest about which one you are in before you spend the money.

Parts walk away. Consumables, cutting tools, fittings and electrical components disappear from open shelving and nobody can say when. A three-point locking handle with two keys ends the argument.
Parts have to stay clean. Grinding dust, coolant mist, welding spatter and overspray settle into every open bin in the bay. A closed 14 gauge box keeps them out.
Someone can see the shelving. Service counters, dealership parts departments and office-adjacent stockrooms need one finished gray or beige box, not an exposed wall of mixed bins.
Density per square foot matters more than pick speed. Because bins hang on the door panels as well as the back wall, a single 36" cabinet can hold over a hundred bins in six square feet of floor.

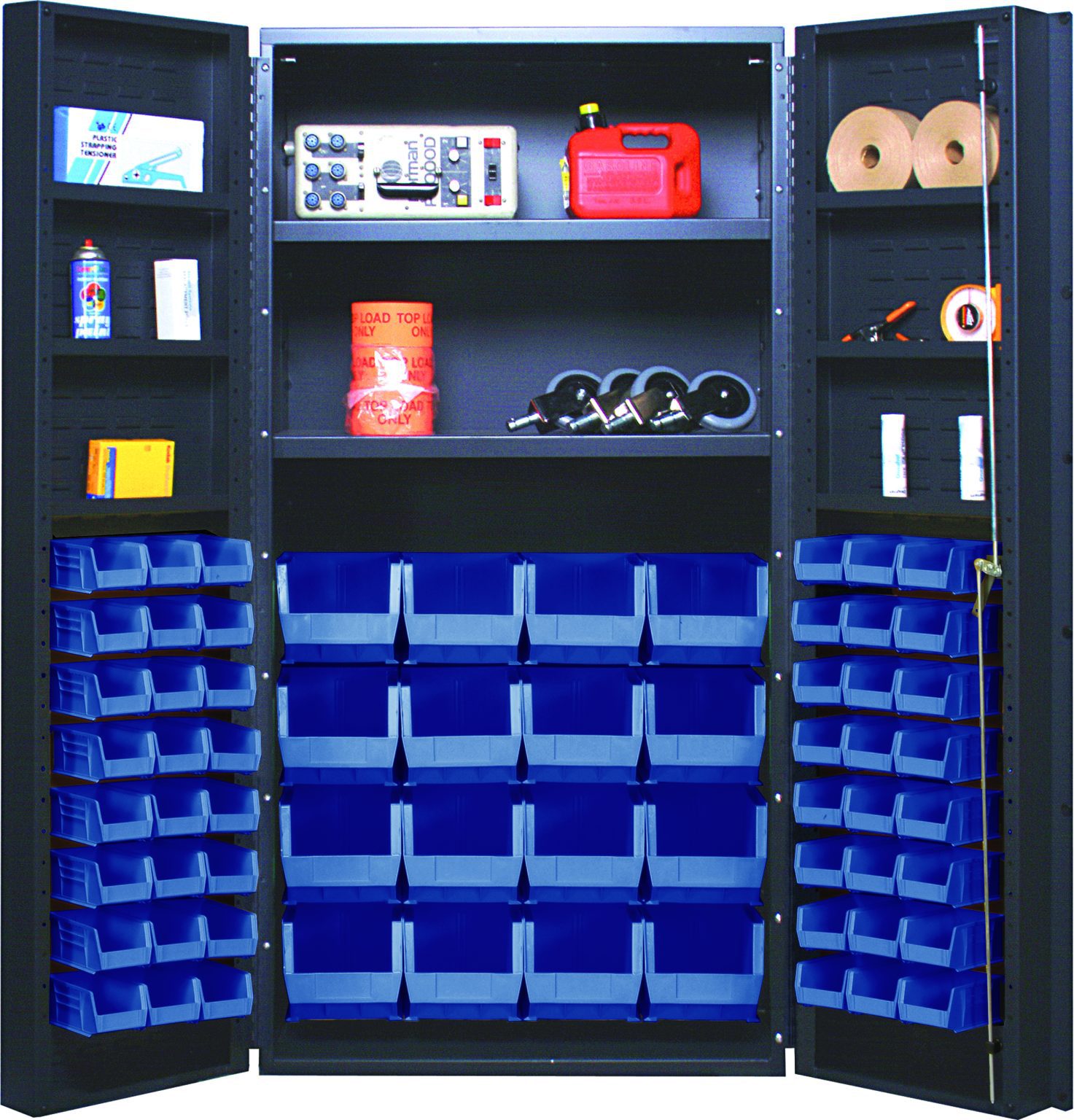

Gray bin cabinet with doors open showing sixty-four blue bins, two interior shelves and six door shelves — A 36"W x 24"D x 72"H deep-door cabinet: 64 bins, two adjustable interior shelves and six door shelves.

How these cabinets ship

Every cabinet in this range is 14 gauge all-welded construction and arrives completely assembled and ready to use — there is no frame to bolt together on the dock. Finish is a gray or beige powder coat, and the bins are included in the stated model and quantity, supplied one color per unit. If you want a beige cabinet instead of gray, that is a suffix on the model number, not a special order.

The bin cabinet range

Six build families cover the industrial requirement. Start from the door — solid, mesh, clear acrylic or sloped-shelf flow — because the door decides both the security level and how many bins the cabinet can carry.

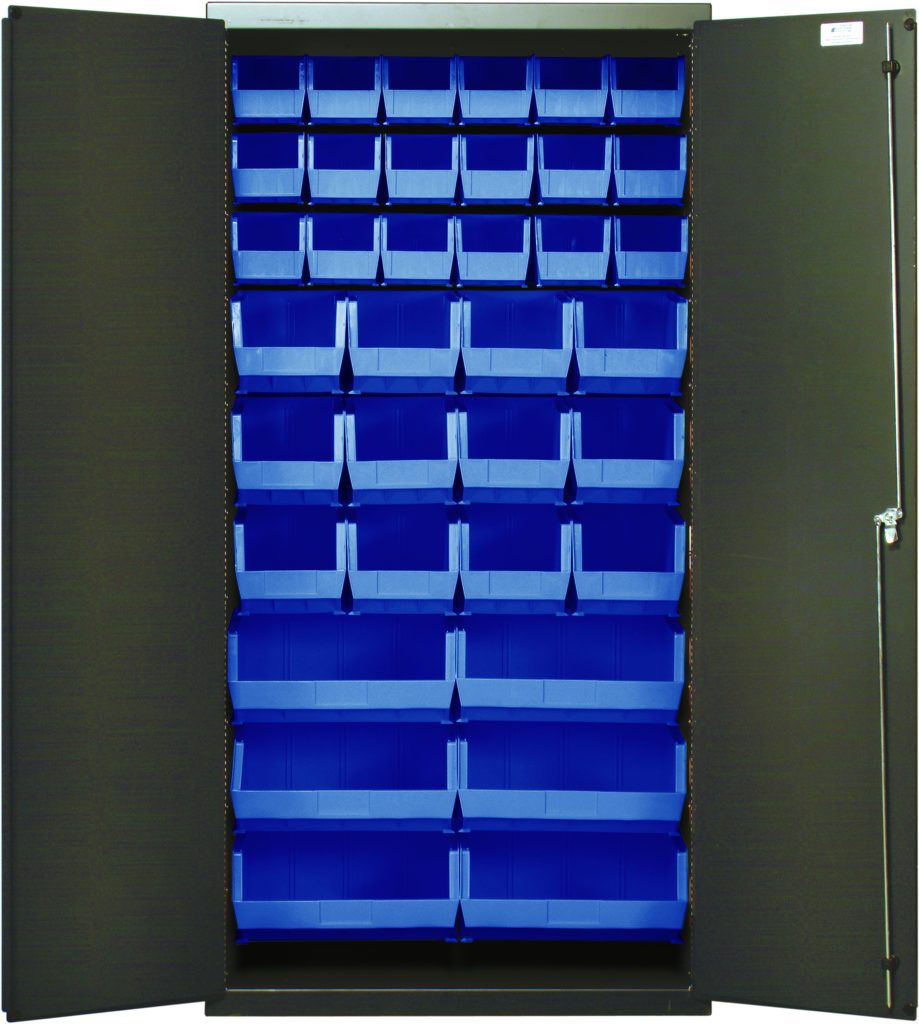

Gray 36 inch flush door bin cabinet with doors open showing rows of blue bins

36" Flush Door Cabinets36"W x 18"D x 72"H flush-door builds carrying 36 bins, for a shallow footprint against a wall or in a narrow service area.

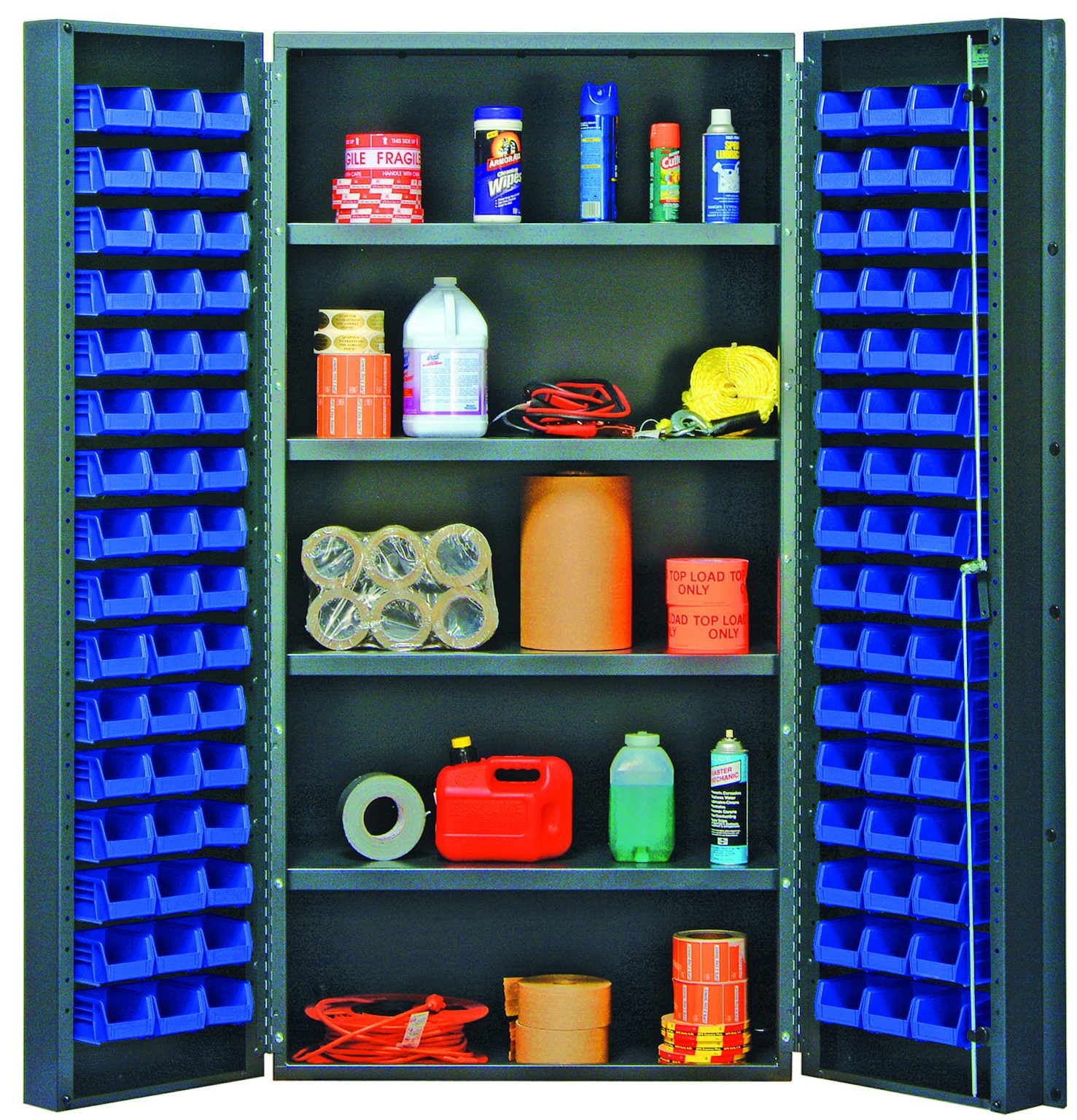

Gray 36 inch deep door bin cabinet with doors open showing ninety-six blue bins and four shelves

36" Deep Door Cabinets36"W x 24"D x 72"H deep-door builds from 64 to 102 bins, with adjustable interior shelves rated up to 800 lb each on selected models.

Gray bin cabinet with clear acrylic vision doors showing thirty-six blue bins inside

48" Wide Cabinets48"W x 24"D x 78"H builds with punched panels on the rear wall and doors, 64 bins and two adjustable shelves rated up to 400 lb each.

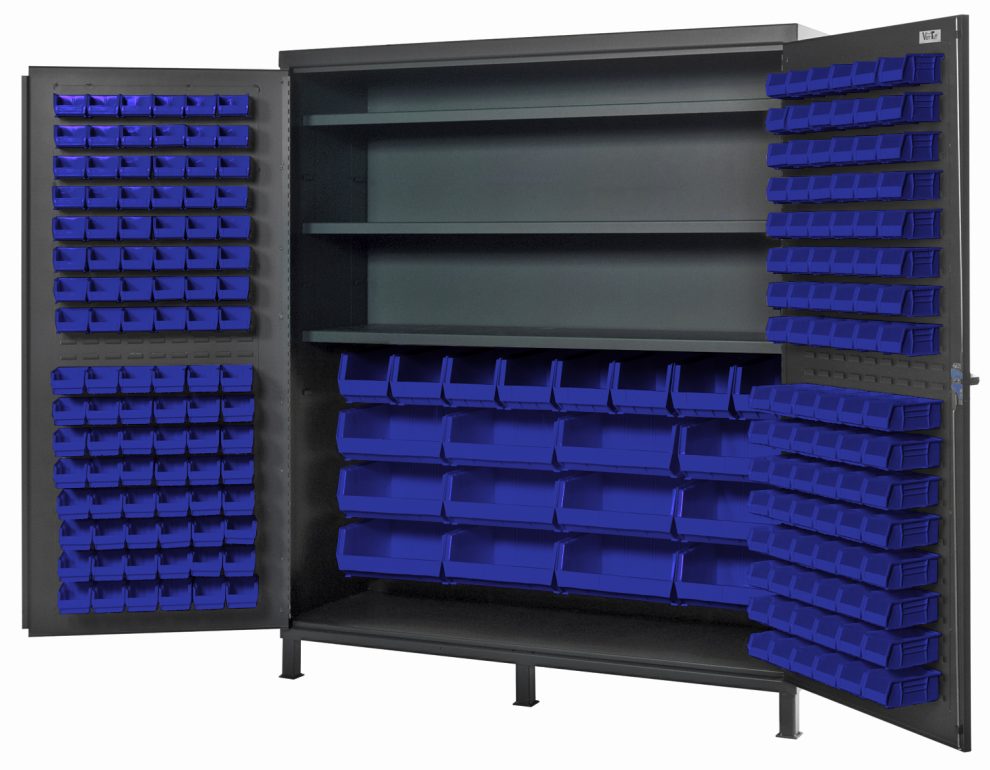

Gray 72 inch wide bin cabinet with doors open showing large blue bins and adjustable shelves

60" & 72" Colossal CabinetsSuper-wide 84"-tall cabinets carrying 185 to 264 bins, with 6" legs that make them fork-truck liftable and a padlock provision on the locking handle.

Gray wire mesh door bin cabinet with thirty-six blue bins visible through the mesh

Mesh & Clear-View SecurityWire mesh Safe-View and clear-acrylic security cabinets at 36"W x 18"D x 78"H — contents visible and countable, still locked.

Gray sloped shelf flow cabinet with doors open showing seventy-two blue open-front bins

Sloped Shelf Flow Cabinets36"W x 18"D x 78"H pick-rack flow cabinets with eight sloped shelves and one flat shelf, up to 72 bins, rated up to 400 lb per interior shelf.

36" all-welded bin cabinets: the standard workhorse

The 36" wide cabinet is where most industrial bin cabinet projects start, because it fits between a doorway and a wall corner and still swallows an entire small-parts inventory. Two door depths exist and the difference matters: a deep door model at 24" deep hangs bins on the door panels as well as the back wall and is the high-density option, while a flush door model at 18" deep gives up bin count for a shallower footprint in a tight aisle.

Stocked configurations span a wide range of priorities. A 36"W x 24"D x 72"H deep-door build carries 68 bins across five bin sizes. Another carries 102 bins plus three adjustable shelves, with the interior shelves rated up to 800 lb each. An all-small-bin build carries 96 bins plus four adjustable interior shelves. A shelf-heavy build swaps most of the bins for four adjustable interior shelves and twelve door shelves, with door shelves rated up to 60 lb each. And the flush-door 36"W x 18"D x 72"H model carries 36 larger bins for medium parts.

All of them ship completely assembled with a three-point locking handle and two keys, in 14 gauge all-welded steel with a gray or beige powder-coat finish. Bins come one color per unit — blue, yellow, red, green, ivory, black or clear — so a cabinet can be visually assigned to a department or a part class the day it lands. A counter-height 36"W x 24"D x 36"H version carrying 66 bins in five sizes fits under a bench or a service counter and turns its top into a work surface.

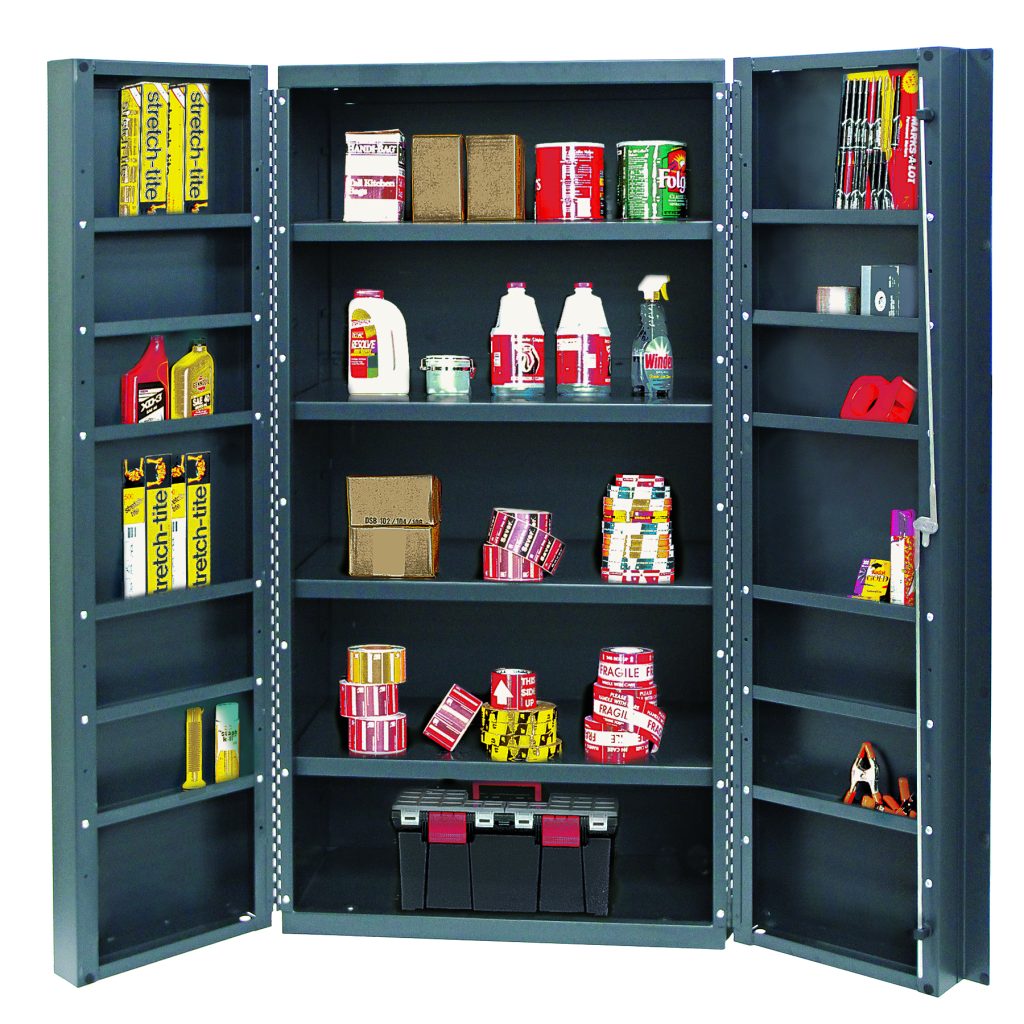

Gray bin cabinet with doors open showing four adjustable interior shelves and twelve door shelves — A shelf-heavy build: four adjustable interior shelves plus twelve door shelves, for cans and cartons rather than loose hardware.

36" cabinet build	Overall size	Door type	Bin / shelf content	Published shelf capacity
High-mix deep door	36"W x 24"D x 72"H	Deep door	68 bins across five bin sizes	Confirmed per model at quote
Maximum bin count	36"W x 24"D x 72"H	Deep door	102 bins + 3 adjustable shelves	Up to 800 lb per interior shelf
Small-parts build	36"W x 24"D x 72"H	Deep door	96 small bins + 4 adjustable shelves	Up to 800 lb per interior shelf
Bins + door shelves	36"W x 24"D x 72"H	Deep door	64 bins + 2 interior + 6 door shelves	800 lb interior / 60 lb door shelf
Shelf-heavy build	36"W x 24"D x 72"H	Deep door	4 adjustable interior + 12 door shelves	800 lb interior / 60 lb door shelf
Shallow flush door	36"W x 18"D x 72"H	Flush door	36 larger bins	Confirmed per model at quote
Counter-height	36"W x 24"D x 36"H	Flush door	66 bins across five sizes	Confirmed per model at quote

Gray bin cabinet with doors open showing four steel drawers, door shelves and blue bins

Drawer combination builds

A 36"W x 24"D x 72"H flush-door build with four 31"W x 16"D drawers — two 3" high, one 5", one 6" — plus 58 bins, twelve door shelves and one 18" deep adjustable shelf.

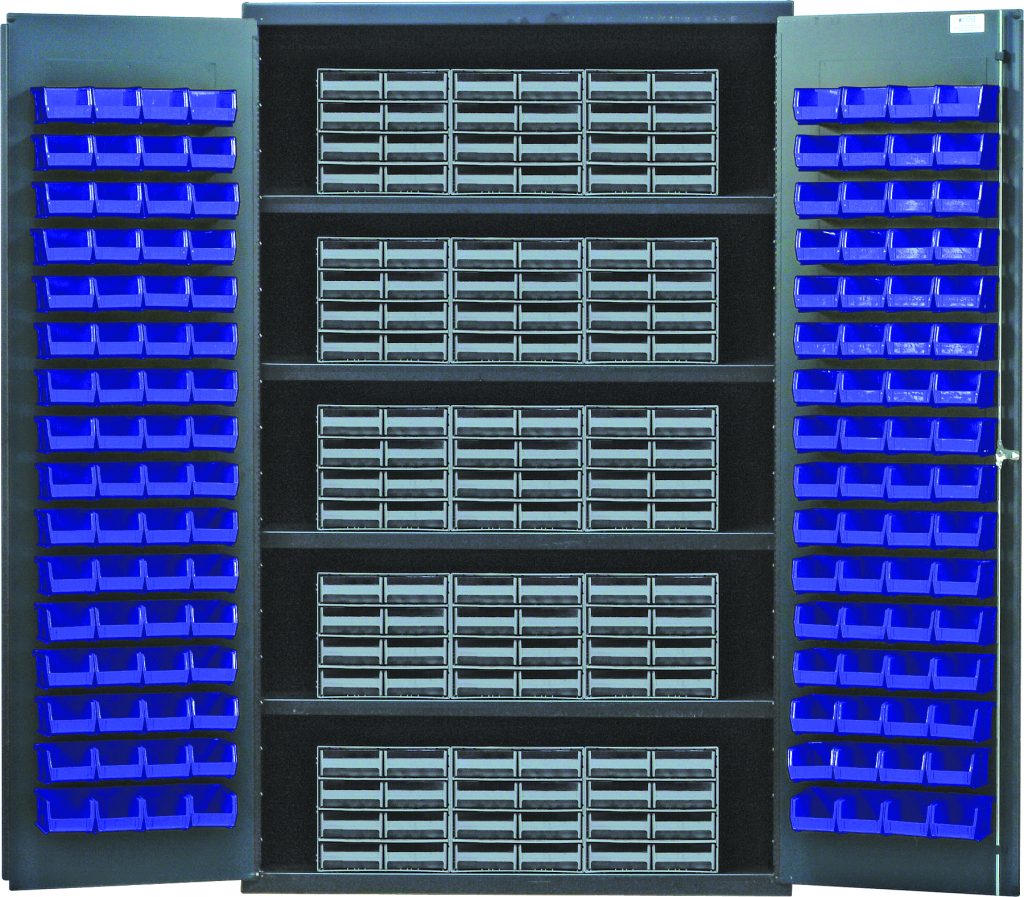

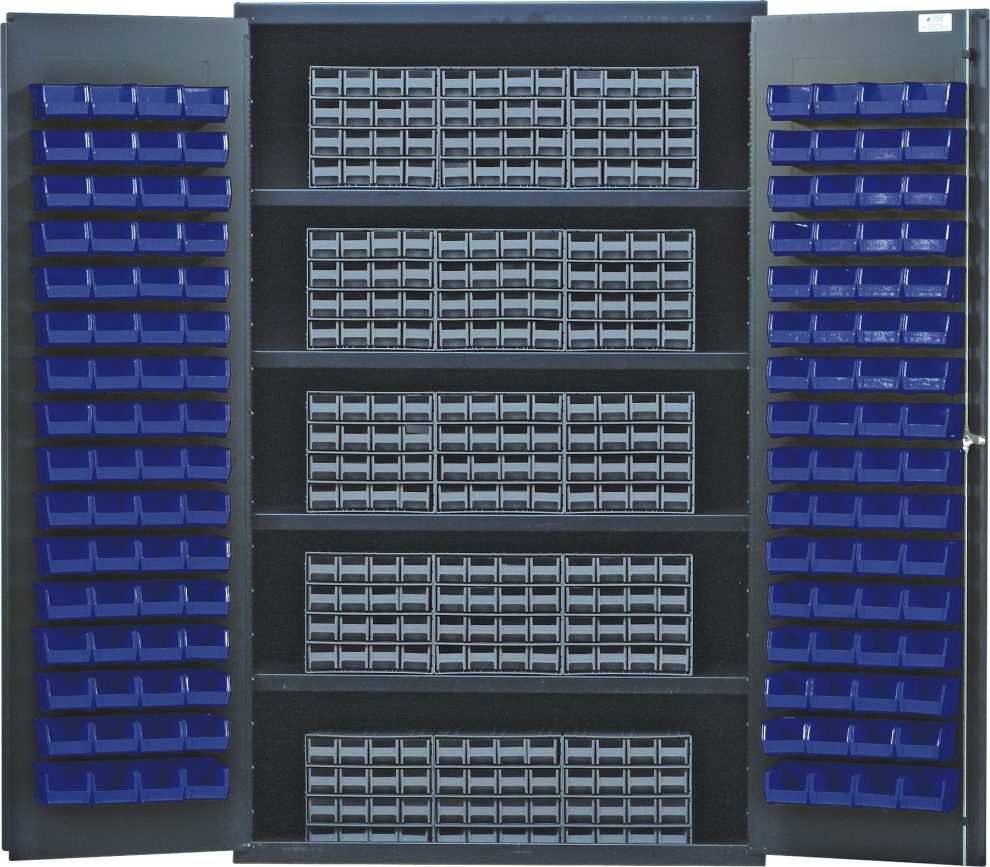

Gray bin cabinet with louvered door panels of blue bins and interlocking drawer cabinets on shelves

Bins plus drawer modules

Louvered doors carry hang-and-stack bins while the interior shelves carry interlocking polystyrene drawer cabinets — two storage densities in one box.

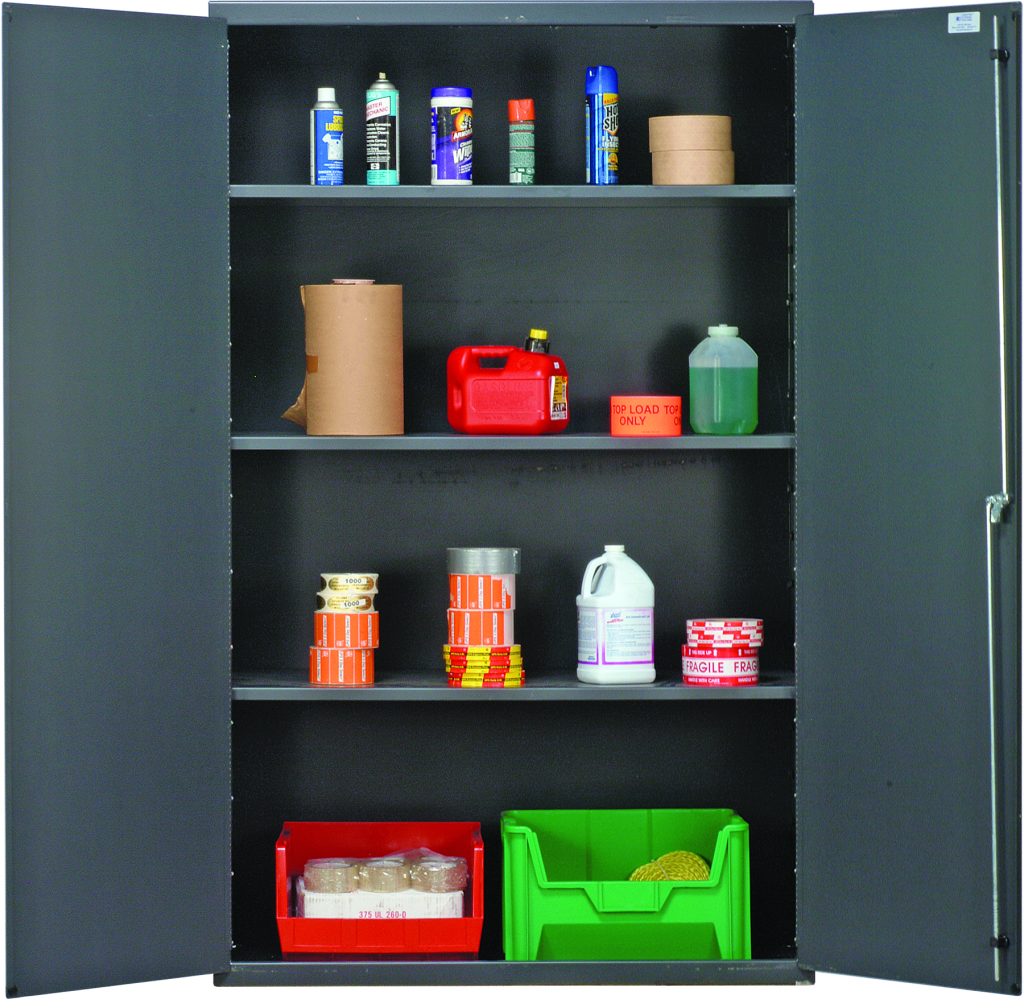

Gray 48 inch all-welded all-purpose steel cabinet with three adjustable shelves

When shelves beat bins

Every parts room has awkward items — aerosols, bottles, cartons, gauges. Adjustable-shelf builds exist in every width for exactly those, and most plants buy one alongside a bin cabinet.

48" wide cabinets and all-purpose builds

Gray 48 inch flush door bin cabinet with doors open showing sixty-four blue bins on punched panels — The 48" bin build: 64 bins on punched panels, plus two adjustable shelves rated up to 400 lb each.

The 48" format is the bridge between a bin cabinet and a general storage cabinet. At 48"W x 24"D x 78"H it takes a serious inventory without the fork-truck footprint of the colossal sizes, and two quite different builds exist.

The bin build is a flush-door cabinet with 64 bins, punched panels on the inside rear wall and on both doors, and two adjustable interior shelves rated up to 400 lb each. The punched panel is the useful detail: bins relocate anywhere on the panel rather than sitting on fixed rails, so the layout can be rebuilt as the part mix changes.

The all-purpose build drops the bins entirely for three adjustable shelves, also rated up to 400 lb each. In practice most plants buy one of each: bins for the fasteners and fittings, shelves for the cans, cartons and boxed spares that a bin cannot hold. Both are available in beige as well as gray. A 48" cabinet is also the format used for the combined bin-and-drawer build — a louvered door carrying 128 small bins with interior shelves holding 15 interlocking drawer units, rated up to 400 lb per interior shelf.

If the requirement is really a general storage cabinet rather than a bin cabinet, tell us — we supply industrial storage cabinets from several manufacturers and will point you at the right one rather than force a bin cabinet into the role. The stocked Quantum range is in the Quantum product category, with bin ranges under shelf bins — and if the bins themselves are the decision, see our guide to plastic shelf bins and all-purpose bins.

60" and 72" wide colossal bin cabinets

The super-wide cabinets exist for one job: replacing an entire run of open shelving with a single lockable unit. At 60"W x 24"D x 84"H and 72"W x 24"D x 84"H they carry bin counts no other format reaches — 227 bins in the 60" flush-door build, 264 bins in the 72", and shelf-mixed versions with 185 bins plus three adjustable shelves or 84 larger bins plus three adjustable shelves, the interior shelves rated up to 500 lb each.

Two practical details decide whether these fit your building. First, the doors are wide: a 60" cabinet measures 115" wide with the doors fully open and the 72" measures 139". That clearance has to exist in front of the cabinet or the far bins are unreachable. Second, they are heavy — ship weights run from roughly 860 lb to over 1,000 lb assembled — but 6" high legs make them fork-truck liftable, so relocating one during a plant reorganisation is a lift, not a disassembly.

The locking handle on these models is a three-point mechanism with a provision for a padlock, which is not supplied. If your site standard is a keyed-alike or combination system, tell us at quote time and we will specify to it rather than guess.

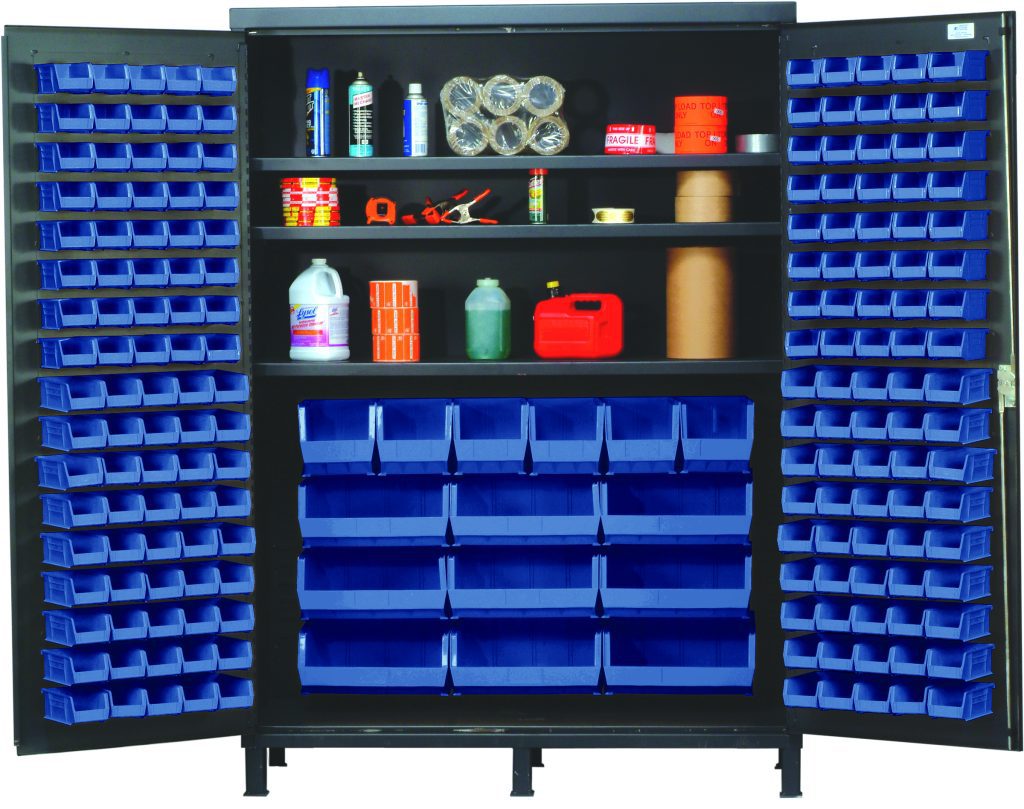

Gray 60 inch bin cabinet with doors open showing 185 blue bins and three adjustable shelves — A 60" shelf-mixed build: 185 bins plus three adjustable shelves rated up to 500 lb each.

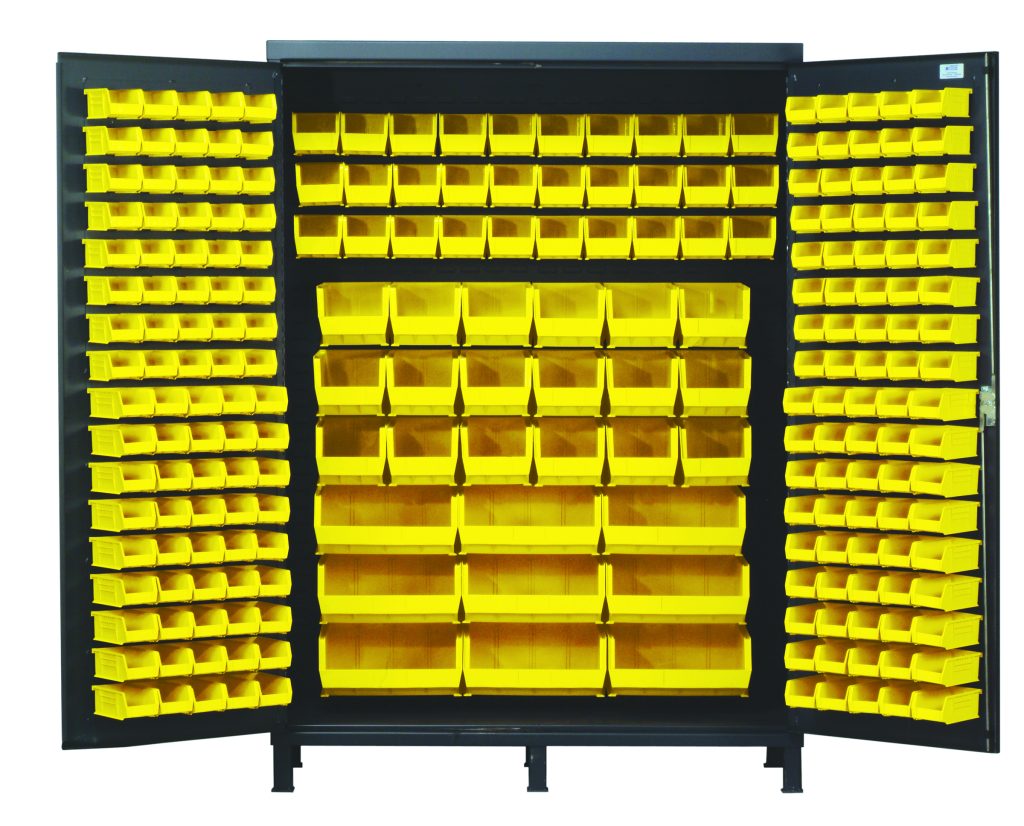

Gray 60 inch wide colossal bin cabinet with doors open showing more than two hundred yellow bins — The all-bin 60" build reaches 227 bins across five sizes — a whole department’s hardware inventory in one lockable box, ordered in one bin color.

Security and vision-door cabinets

A solid door secures the contents and hides them at the same time, and hiding them is a real cost: nobody cycle counts a cabinet they have to open, and a stores clerk cannot see from the aisle that a bin is empty. Two door types solve that without giving up the lock.

Gray wire mesh door bin cabinet with twenty-eight blue bins visible through the mesh doors — Wire mesh Safe-View doors: contents visible and ventilated, contents still locked.

Wire mesh Safe-View cabinets

A 36"W x 18"D x 78"H mesh-door cabinet with a louvered back wall that carries the bins. Stocked builds hold 36 medium bins, 18 larger bins, or a mixed 20-plus-8 combination. The mesh door also ventilates the cabinet, which matters where solvent-damp rags or freshly washed parts would otherwise sit in a sealed steel box.

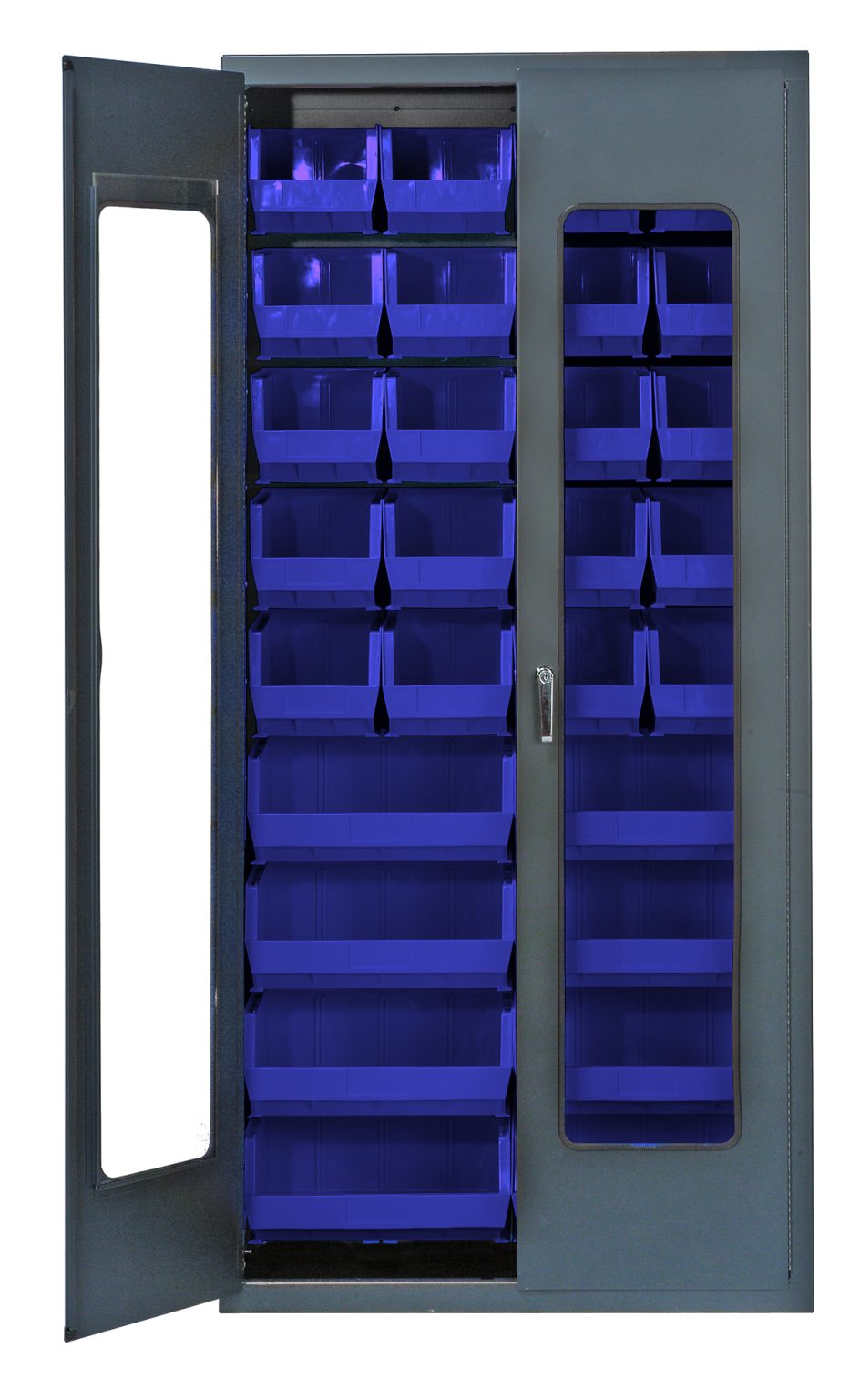

Gray bin cabinet with clear acrylic vision doors showing twenty-eight blue bins inside — Clear acrylic vision doors: a full visual count from the aisle without unlocking anything.

Clear-View security cabinets

The same 36"W x 18"D x 78"H footprint with clear acrylic doors and a louvered back wall. Stocked builds carry 28 bins (a mixed 20-plus-8 combination), 36 medium bins, or 18 larger bins. Where a supervisor should be able to see stock levels without a key, this is the build that pays for itself in avoided stock-outs.

Gray clear acrylic door bin cabinet with ivory bins visible inside

Color coding still applies

Vision doors and color coding work together — the bin color is readable from the aisle, so a wrong-cabinet trip ends before it starts.

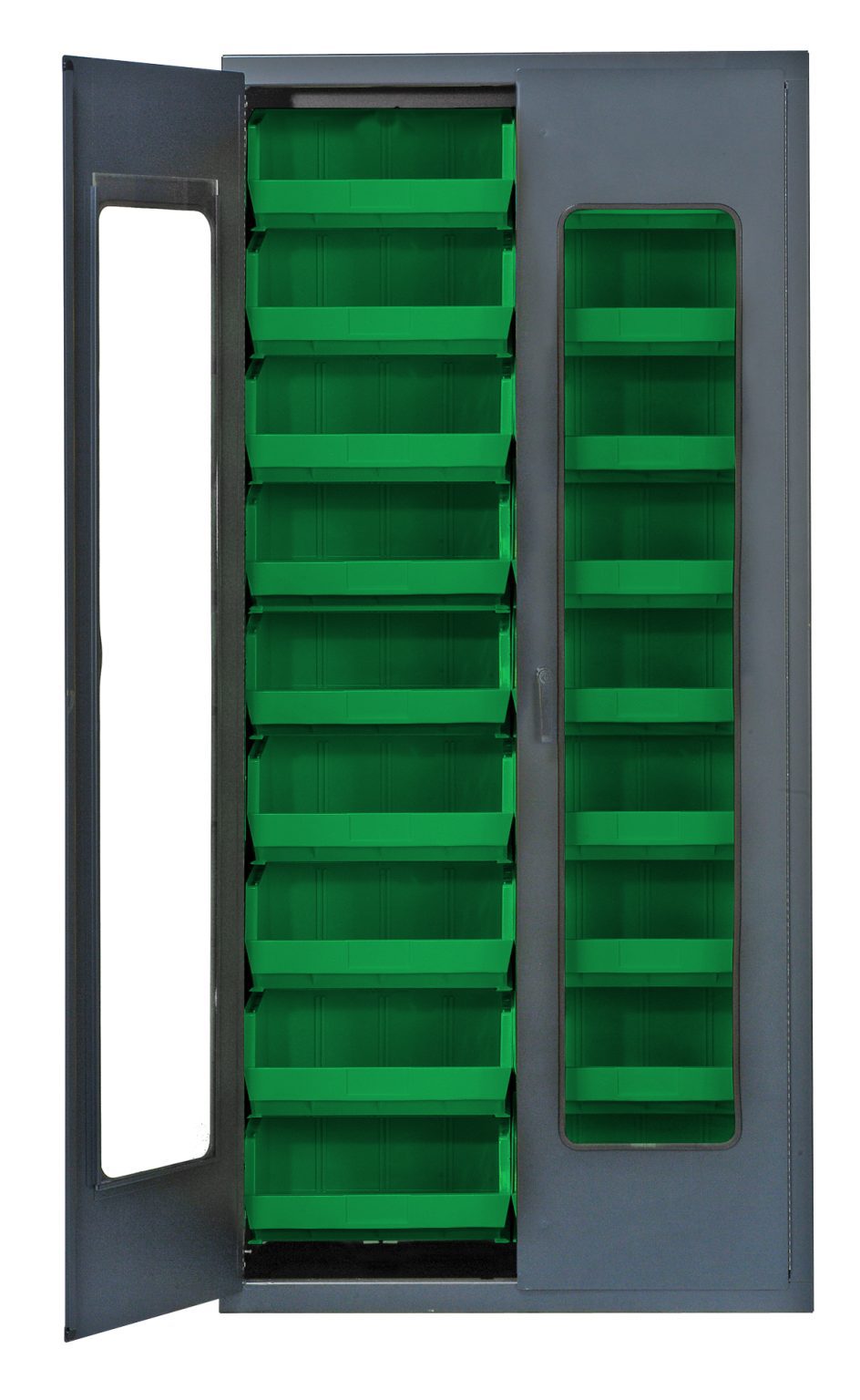

Gray clear door bin cabinet with green bins arranged in rows behind the acrylic panel

Larger-bin vision builds

The 18-bin build uses the larger bin throughout, for sub-assemblies and kits rather than loose hardware.

Beige wire mesh door bin cabinet with yellow bins visible through the mesh panels

Beige as well as gray

Both door types are available in beige. In a customer-facing or office-adjacent area that is often the deciding detail.

Tall gray clear tip-out bin cabinet with sixty-one clear tip-out compartments and a combination lock

Clear tip-out cabinets

A 26-1/4"W x 10"D x 79-1/2"H fully welded cabinet with 61 clear tip-out cups, epoxy powder coating, 180° metal hinges and a combination lock with master-key override.

Drawer, flow and modular cabinet builds

Sloped shelf pick rack flow cabinets

These are pick racks inside a locking cabinet. A 36"W x 18"D x 78"H flush-door build carries eight sloped shelves and one flat shelf and up to 72 open-front shelf bins, with interior shelves rated up to 400 lb each. Alternative configurations trade bin count for bin size: 45 medium bins, or 36 of the wider bins. The sloped shelves tilt every bin opening toward the picker, so this is the build to specify where high-value small parts need both fast picking and a lock — a tool crib window, a service department, a night-shift stores area.

Interlocking drawer cabinet systems

Interlocking storage cabinets are modular polystyrene drawer units, all measuring 11-3/8"D x 11-3/4"W x 11"H overall, that interlock horizontally and vertically so a wall of small-parts drawers can be grown one module at a time. Pre-drilled holes on the rear allow wall mounting. Drawers are removable, will not rust or corrode, have a recessed handle and a slotted label holder, and carry seven moulded divider slots so one drawer can be split into several compartments. A clear window in each drawer lets a picker identify contents without opening it. Nine pre-configured systems ship complete with drawers, clear windows and two dividers per drawer; cabinet exteriors are gray, with drawers in gray, blue, red or ivory.

Gray sloped shelf pick rack flow cabinet with doors open showing seventy-two blue open-front bins — Eight sloped shelves and one flat shelf behind a locking flush door — picking speed without losing the lock.

Gray interlocking storage cabinet module with sixteen blue removable drawers

Interlocking drawer modules

11-3/8"D x 11-3/4"W x 11"H modules that interlock horizontally and vertically, or wall mount through pre-drilled rear holes.

Blue removable polystyrene storage drawer with recessed handle and clear window

The drawers themselves

Removable, rust-proof, recessed handle, slotted label holder and seven moulded divider slots per drawer. Available in gray, blue, red and ivory.

Gray removable polystyrene storage drawer with divider slots and label holder

Divide it further

Each drawer ships with a clear window and two dividers; additional dividers are ordered separately when a part mix gets finer.

Small gray clear tip-out bin cabinet with thirty-five clear tip-out compartments

The short tip-out cabinet

A 26-1/4"W x 10"D x 36-1/2"H version with 35 clear cups at roughly 84 lb — bench height, combination locked, 10" deep footprint.

Shop Online at MaterialHandling-USA.com

Buying a single cabinet or a handful of bins and want it in a cart today? Our e-commerce store carries bins, totes and compartmented storage units for direct online ordering.

How to specify a bin cabinet

Five decisions, and the first two are the ones people skip.

Measure the door swing, not just the cabinet

A 60″ cabinet is 115″ wide with the doors fully open and a 72″ cabinet is 139″. If that clearance does not exist in front of the unit, the far bins are unreachable and the cabinet is the wrong size regardless of bin count.

Decide what the door is for

Solid for security and cleanliness, wire mesh for security plus visibility and ventilation, clear acrylic for a full visual count from the aisle, sloped-shelf flow for picking speed behind a lock.

Split the contents between bins, shelves and drawers

Bins for loose hardware and fittings, adjustable interior shelves (up to 800 lb on selected 36″ models) for cans and cartons, door shelves (up to 60 lb) for light items, steel drawers for tooling and gauges.

Fix the bin sizes and count

This is where a complete package earns its keep — the cabinet arrives with the stated bin model and quantity already fitted, one color per unit. Three or four bin sizes in one cabinet is normal and usually cheaper than one size everywhere.

Settle the lock, the finish and the labels

Three-point locking handle with two keys as standard; the colossal sizes add a padlock provision (padlock not supplied). Gray or beige powder coat. Then moulded label holders and printed inserts so the scheme survives staff turnover.

Mistakes we see most often

Buying the biggest cabinet available. A 72" colossal cabinet in a 6-foot aisle cannot open. Two 36" cabinets often store the same inventory in a usable way.

Choosing a solid door by default. If the reason for the cabinet is theft, a mesh or clear door secures the contents just as well and keeps them countable.

Putting everything in bins. Aerosols, cartons, bottles and gauges do not belong in open bins. Specify a build with interior and door shelves and the cabinet stays tidy.

Ignoring the floor. These cabinets arrive assembled and weigh 300–1,000 lb empty. Confirm the delivery route, the door widths on the way in and the floor at the destination before the truck arrives.

What we need to quote

The space. Wall length, ceiling height, and the clear floor in front of the cabinet for the door swing.
The part mix. Roughly how many part numbers, and how big the largest item is that has to go inside.
The reason. Theft, dust, presentation or density — it changes the door and often the size.
The route. Dock, doorway widths, lift access and whether a fork truck is available at the destination.
Your standards. Existing bin brand, color scheme, keying or padlock standard, gray or beige.

Bin cabinet builds compared

All figures are as published by the manufacturer for the current line. Where a range is shown it varies by model, and we confirm the exact rating for the model quoted rather than assume the top of the range.

Build	Overall size	Door	Bins	Shelves / drawers	Choose it when
36" deep door	36 x 24 x 72"	Solid deep door	64–102	Up to 4 interior (to 800 lb) + 12 door (to 60 lb)	One cabinet has to hold a whole small-parts inventory
36" flush door	36 x 18 x 72"	Solid flush door	36	By configuration	The aisle is tight and depth is the constraint
Counter-height	36 x 24 x 36"	Solid flush door	66	—	It has to fit under a bench or service counter
48" bin cabinet	48 x 24 x 78"	Solid flush door	64	2 adjustable (to 400 lb), punched panels	You want a relocatable panel layout, not fixed rails
48" all-purpose	48 x 24 x 78"	Solid flush door	—	3 adjustable (to 400 lb)	The contents are boxes and cans, not loose hardware
60" colossal	60 x 24 x 84"	Solid flush door	185–227	Up to 3 adjustable (to 500 lb)	A whole run of open shelving is being replaced
72" colossal	72 x 24 x 84"	Solid flush door	84–264	Up to 3 adjustable (to 500 lb)	Maximum bin count and a fork-truck-liftable base
Wire mesh Safe-View	36 x 18 x 78"	Wire mesh	18–36	Louvered back wall	Contents must be secure, visible and ventilated
Clear-View security	36 x 18 x 78"	Clear acrylic	18–36	Louvered back wall	Stock levels should be countable from the aisle
Sloped shelf flow cabinet	36 x 18 x 78"	Solid flush door	36–72	8 sloped + 1 flat (to 400 lb)	High-value small parts are picked all day and locked at night
Bin & drawer-module cabinet	48 x 24 x 78"	Louvered door	128	15 interlocking drawer units (to 400 lb)	Loose hardware and tiny components share one cabinet
Drawer combination	36 x 24 x 72"	Solid flush door	58	4 steel drawers + 12 door + 1 interior	Tooling and gauges share the cabinet with hardware
Clear tip-out cabinet	26-1/4 x 10 x 36-1/2" or 79-1/2"	Solid, combination lock	35 or 61 clear cups	—	Very small parts at a bench, behind a combination lock

Where bin cabinets get specified

Six environments account for most of the bin cabinets we quote. In each one the cabinet is solving a different problem, which is why the door and the build change.

🔐

Tool cribs & controlled stores

The problem: consumables and tooling leaving without a signature. Mesh-door cabinets keep the contents accountable and still let an attendant see what is running low from the aisle.

🔧

Maintenance shops & MRO

The problem: a shared parts wall that everyone raids and nobody replenishes. A locked 48" cabinet with a named keyholder restores a countable inventory without adding shelving.

🏭

Production & fabrication bays

The problem: grinding dust, coolant mist and overspray settling into open bins. A closed 14 gauge cabinet keeps small hardware clean, and a shelf build handles the aerosols and cartons.

🛠

Service & dealership parts counters

The problem: fast picking during the day, secure at night, and a finished gray or beige face on the customer side. Sloped-shelf flow cabinets deliver all three at 36" wide.

🚛

Distribution & fleet stores

The problem: hundreds of low-value part numbers and no floor left for another shelving run. One 60" or 72" colossal cabinet replaces the run and locks it, and a fork truck can move it later.

🔌

Electronics & bench assembly

The problem: very small, high-count components at a workstation. Clear tip-out cabinets keep them visible, sorted and behind a combination lock in a 10" deep footprint.

Clinical and patient-care storage is handled by our sister company — see Labs USA healthcare storage solutions for that side of the catalog. On the industrial side, if the parts should stay on open shelving inside a controlled area rather than inside a cabinet, that is often the cheaper answer — and we will say so.

How we quote a bin cabinet

We are a supplier and project partner for the Quantum Storage Systems line, not the manufacturer, and we do not restate certifications on their behalf. What we do add is the specification work.

Tell us the space and the reason

Wall length, ceiling height, clear floor for the door swing, and whether the driver is theft, dust, presentation or density. Call (800) 326-4403 or send a photo.

We size the cabinet and the contents

Width, depth, door type, bin sizes and counts, and the split between bins, shelves and drawers — plus whether two smaller cabinets beat one large one in your aisle.

You get a clear quote

One quote covering the cabinets, bin content, keying, finish, dividers and labels, with model numbers you can verify against the manufacturer.

Delivery planned around the weight

These cabinets ship assembled at 300–1,000 lb. We confirm the delivery route, access and whether a fork truck is needed before the truck is booked.

Straight answers on the things people ask us privately

We will tell you when open bin shelving inside a controlled area is the cheaper answer, when a mesh door beats a solid one, and when a cabinet you already own should be re-binned rather than replaced. If your plant is standardised on another bin brand we would rather match that standard — we also supply LEWISBins+ — than sell you a changeover you did not ask for.

Bin cabinet FAQs

What is a bin cabinet?

A bin cabinet is an all-welded steel storage cabinet fitted out with plastic parts bins, on the back wall and usually on the inside of the doors as well. The cabinets in this range are 14 gauge all-welded construction, arrive completely assembled and ready to use, and ship with a stated bin model and quantity already fitted. Functionally it is bin shelving with a lockable steel skin around it: the same picking, plus security, dust protection and a finished exterior.

How many bins fit in a bin cabinet?

It depends on the width and the bin sizes. A 36"W x 24"D x 72"H deep-door cabinet carries between 64 and 102 bins depending on the build, and a small-bin build reaches 96 bins plus four adjustable shelves. A 48"W x 24"D x 78"H cabinet carries 64 bins on punched panels, or 128 smaller bins in the louvered-door build. The super-wide 84"-tall cabinets go furthest: 227 bins in the 60" build and 264 in the 72". Shelf-mixed versions trade bin count for adjustable shelves.

How much weight can the shelves in a bin cabinet hold?

By model, and we only quote published figures. Selected 36" deep-door cabinets are rated up to 800 lb per adjustable interior shelf, with door shelves rated up to 60 lb each. The 48" wide cabinets and the sloped-shelf flow cabinets are rated up to 400 lb per interior shelf. The 60" and 72" colossal cabinets are rated up to 500 lb per interior shelf on the shelf-mixed builds. We confirm the rating for the specific model on the quote.

Do bin cabinets come assembled?

Yes. Every cabinet in this range ships completely assembled and ready to use, with the bins in it and a three-point locking handle supplied with two keys. That is a genuine advantage over a knock-down cabinet, but it also means the crate is heavy — ship weights run from roughly 84 lb for the small clear tip-out cabinet to over 1,000 lb for a 72" colossal build. Check your delivery route and door widths before the truck is booked.

How wide does the cabinet need to be when the doors are open?

Much wider than the cabinet. A 60" wide colossal cabinet measures 115" wide with the doors fully open, and a 72" cabinet measures 139". If that clearance does not exist in front of the unit, the bins on the far edge of the doors cannot be reached and the cabinet is effectively the wrong size. This is the single most common sizing mistake we correct at quote stage.

What is the difference between a mesh door and a clear-acrylic door?

Both give you visibility with the cabinet locked, and both are stocked at 36"W x 18"D x 78"H with a louvered back wall carrying 18 to 36 bins. A wire mesh Safe-View door also ventilates the cabinet, which matters where damp rags, solvent-touched parts or freshly washed items would otherwise sit in a sealed steel box. A clear acrylic door gives a cleaner visual count and keeps dust out. Choose mesh when airflow matters, acrylic when dust does.

Can I lock a bin cabinet with our own padlock?

On the 60" and 72" colossal cabinets, yes — the three-point locking handle on those models includes a provision for a padlock, which is not supplied. The 36" and 48" cabinets use a three-point locking handle supplied with two keys. If your site runs a keyed-alike or combination standard, tell us at quote time and we will specify to it rather than guess. The clear tip-out cabinets come with a combination lock plus a master key for override.

What are interlocking drawer cabinets, and where do they fit?

They are modular polystyrene drawer units, all 11-3/8"D x 11-3/4"W x 11"H overall, that interlock horizontally and vertically so a small-parts drawer wall can grow one module at a time; pre-drilled rear holes also allow wall mounting. Drawers are removable, will not rust or corrode, and each has a recessed handle, a slotted label holder, a clear window and seven moulded divider slots. Nine pre-configured systems ship complete with drawers, clear windows and two dividers per drawer. They also go inside a 48" steel cabinet alongside 128 door bins when both densities are needed in one box.

Can I get bin cabinets in a color other than gray?

Yes. Cabinets are available in a gray or beige powder-coat finish across the 36", 48", 60" and 72" ranges, and the mesh and clear-view security cabinets are available in beige as well. Ordering beige is a model-number suffix rather than a special order. The bins themselves ship one color per unit in blue, yellow, red, green, ivory, black or clear, and additional bin colors can be quoted subject to an upcharge and a minimum run quantity.

Should I buy a bin cabinet or open bin shelving?

Open bin shelving is faster to pick from, cheaper per bin and easier to reconfigure, so it wins unless one of four things is true: parts are walking away, the environment is dirty, the shelving is visible to customers, or floor space is so tight that door-mounted bins are the only way to reach the required density. See our bin shelving systems page for the open side of the comparison, and tell us the real driver — we will recommend the cheaper option when it is the right one.

Get the right bin cabinet, sized and filled

Send us your wall length, ceiling height, door-swing clearance and part mix. We will specify the cabinet, the door type, the bin sizes and counts, and quote it as a complete unit that arrives assembled.

Request a Quote Call (800) 326-4403
