Home › Eagle Group Cleanroom Products
Eagle Group Cleanroom Products & Furniture
Stainless steel cleanroom tables, work surface systems, gowning racks, garment storage, shelving and transport carts from Eagle Group and its Eagle MHC division — specified, quoted and delivered nationwide by MH-USA.
1947
Eagle Group founded
304/316
Stainless types stocked
40%+
Open area, perforated tops
1997
MH-USA serving the West
Why Specifiers Choose Eagle for Cleanroom Furniture
Cleanroom furniture has one job ordinary stainless furniture does not: it has to stop being part of the problem. Every horizontal surface is where particles land, every crevice is where residue survives a wipe-down, and every solid panel under a filter bank turns clean vertical airflow into eddies.
Eagle Group — founded in 1947 in Clayton, Delaware, with more than 17,000 standard models — builds its cleanroom range through the Eagle MHC division: stainless inset casework, gowning racks and benches, stationary and mobile workstations, cleanroom tables, countertops, transport and storage carts and shelving, and stainless lab sinks. Eagle describes the line as engineered to meet good-better-best class requirements in critical environments, with custom options on nearly every family.
MH-USA represents Eagle Group. We read your layout, pick the finish and perforation that match your cleaning protocol, catch dimensional conflicts before fabrication, and schedule the freight — from Salt Lake City since 1997, shipping nationwide.

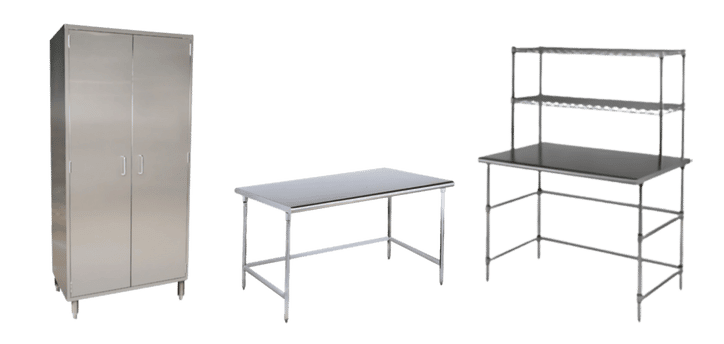

Eagle Cleanroom Tables and Work Surfaces
Eagle’s cleanroom tables are heavy-gauge type 304 stainless, with 14-gauge tops in electropolished or brushed finish reinforced underneath with hat channels so the top does not drum or flex. Tops carry a 1½-inch rolled-down edge front and rear, and ends turn down 90° so tables butt end to end or sit flush to a wall without a debris-collecting gap.
The base uses the patented uni-lok® stainless gusset system (patent #5,165,349), welded into the hat channel rather than bolted on, which cuts the lateral movement you feel in a bolted frame. Legs and crossbracing are 16-gauge, 1⁵/₈-inch diameter, welded front to back, with centre or rear knocked-down crossbracing for knee space. Tables ship on 1-inch adjustable bullet feet, and perforated models are alcohol-wiped and cleanroom bagged.
Perforated versus solid tops. Perforated tables use 3/4-inch perforations on 1-inch centres for a minimum 40% open area, so a laminar flow bank above the table keeps moving instead of stalling. That is the right choice under filters and in staging areas where airflow uniformity beats surface containment.
Solid tops win where the work is wet or where small components could drop through. Plenty of suites run both: perforated staging tables at the entry, solid work tables at the process step.
Wall-mounted tables solve the floor-cleaning problem outright: 14-gauge brackets with a pass-through hole for an electrical run, built for frequent washdown, 200 lb capacity, flat top or 1½-inch upturn or 5-inch backsplash. Nothing touches the floor, so a scrubber runs straight underneath and rolling cabinets push in and out below.
Eagle AdjusTable® Work Surface Systems and Countertops
Where a fixed table is not flexible enough, Eagle’s AdjusTable® Work Surface Systems turn the bench into a configurable post-and-shelf system. The surface is stainless, solid or perforated, brushed or electropolished, with a hat channel underneath. Two 33-inch front posts and two 63-inch rear posts are numbered in 1-inch increments so every shelf lands level and repeatably — useful when a validated bench is rebuilt after a shutdown. Working height is 34½ inches.
Two overshelf styles are offered. Wire overshelves are two 14-inch shelves on the rear posts and a pair of 29-inch front posts, keeping the airflow path over the bench open. Cantilevered overshelves are two 12-inch shelves on the rear posts only, leaving the bench front clear for an operator reaching under a hood. Bases come with or without a wire undershelf.
Stainless countertops and overlays handle the fixed-casework side of a suite: 16- or 14-gauge type 304 or 316, with other gauges available for specialised chemistry. Standard front edge is square or box marine; splashes are made to specification. Critically for cleanability, all working surfaces and fabricated sink bowls have coved sanitary corners horizontally and vertically — no square internal corner for residue to lodge in.
Joints are the detail nobody asks about until install day. Eagle offers a hairline seam or a field-welded joint. Maximum unseamed length is 144 inches with no end splash, reduced 5½ inches per end splash — the number that decides whether a 16-foot run is one top with a field weld or two with a visible seam.
Eagle Cleanroom Shelving: Solid, Perforated and Wire
Shelving is the largest surface area in a clean space, so the choice between solid and open wire affects your particle profile more than any other purchase. Eagle has manufactured wire shelving for over 35 years, in stationary and mobile models in wire, polymer and solid.
Open wire maximises airflow and minimises the surface particles can settle on. Eagle’s wire shelves use the patented QuadTruss® design (patent #5,390,803): 10-gauge mat wires welded to 6-gauge support wires and serpentine trusses, with four-wire front and rear truss assemblies — which is why a wire shelf carries a real load with no solid deck under it.
Solid shelving is specified where powders, small items or packaging would fall through wire, or where every surface must be wipeable. Eagle’s solid shelving is hemmed with a two-fold thickness of heavy-gauge steel and a marine edge on all four sides. Numerically calibrated grooved posts, split sleeves and aluminium corner castings give 1-inch adjustment across the full post length, with leveling feet for uneven floors.
Quik-Set® solid shelving is the heavy-duty option: 14- or 16-gauge stainless (or epoxy-coated galvanized), flat, embossed or louvered, 1,000 lb evenly distributed per shelf. In clean spaces specify stainless.
Wall shelves recover the space above a bench without adding legs to mop around. Eagle’s stainless lab wall shelves are 16-gauge with a reinforced centre hat channel and a 1.25-inch rear upturn, adjust in 1.5-inch increments, and take bookends or a front wire retaining ledge. The general wall-mounted shelves come in 16-gauge 430 or 16-/14-gauge 304 with stud-welded brackets.
Enclosed and lockable storage covers the rest. Eagle’s vertical storage cabinets are type 430 units, 24 inches deep in 36- and 48-inch lengths, with three shelves on 4-inch centres, an 18-gauge body, 20-gauge double-pan doors and keyed handles. Specify the slanted top under a filter bank — a flat cabinet top is a dust shelf at eye level.
Eagle Gowning Racks, Garment Racks and Cleanroom Lockers
The gowning room is where contamination control is won or lost, and the hardware is unglamorous: somewhere to hang a gown so it touches nothing else, somewhere to sit, and somewhere to keep clean garments clean. Eagle builds the whole set.
Freestanding gowning racks with hanger rail use a 1½-inch welded tube frame, shipped knocked down, in electropolished or brushed 300-series stainless. Hanger slots are standard on 3-inch centres (other spacing available) and an optional domed cap secures hangers so they cannot be removed. Nylon dissipative feet are standard; single, double and cantilevered models are offered. Hangers are not included — that surprises people on the first order.
Wire gowning racks are the lower-cost route: a full-length 1-inch grooved tube suspended under a QuadTruss® wire shelf on two 2-gauge hooks, in chrome or stainless. A hanger-slot version does the same job without the tube.
Wall-mount gowning racks free the floor entirely. The hanger-slot model is 24 inches wide in 48-inch (17 hangers), 60-inch (22) or 72-inch (27) lengths with an open wire top shelf for laminar flow. The hooks model is a compact 14-inch-wide design in 48-inch (30 hooks), 60-inch (38) or 72-inch (46) — the right answer in a narrow vestibule where a freestanding rack blocks the door swing. Both are offered electropolished or chrome.
Mobile garment racks move gowns between laundry, storage and the gowning room. Eagle’s units use QuadTruss® chrome-plated wire shelves and posts, 5-inch polyurethane casters with a rubber donut bumper, and a 1-inch chrome hanger bar that takes most standard hangers. Where the rack crosses a classified boundary, ask about all-stainless equivalents.
Garment and supply lockers are usually those vertical storage cabinets with slanted top and keyed locks. For an auditable gowning room, use the mix: wall-mount racks for gowns in use, a lockable cabinet for clean stock, a mobile garment rack for turnaround.
Gowning benches are a topic of their own. We cover Eagle’s benches on the Eagle cleanroom gowning bench page, the broader category on cleanroom gowning benches, and the full room checklist on gowning room essentials.
Eagle Cleanroom Carts, Pass-Through Transport and Mobile Workstations
Transport is the most under-specified part of most cleanroom packages. Our rule: a cart that crosses a classified boundary should be dedicated to one side of it, or built so it can be fully wiped down at the pass-through.
Open wire carts are the cleanroom default because there is almost nothing to collect dust. Eagle’s wire stem caster carts carry four shelves on four 63-inch posts in Eaglebrite® zinc or chrome, with 5-inch casters in poly or resilient tread. Wire basket utility carts suit light benchside work.
All-stainless carts are what you specify when the cart has to survive repeated sporicidal wipe-downs: three stainless shelves welded to angle legs on a galvanized caster frame, with a 1-inch upturn on ends and rear or on all sides — take the all-sides version wherever a spill must not run off. Four 4-inch swivel plate casters are standard.
Pass-through and exchange carts handle the airlock problem. The EC series carries five chrome wire shelves on 63-inch posts with 5-inch resilient stem casters (two braked); other configurations are available. The workflow matters more than the cart: handing a loaded cart across a pass-through to a mirror cart that never leaves the clean side beats pushing one cart through the facility.
Mobile workstations keep documentation off the work surface: open wire for laminar flow, a keyboard drawer, optional mouse shelf, chrome or stainless finish, 5-inch casters (two braked). Mobile dunnage racks handle the nothing-on-the-floor rule — open wire, 1-inch grooved posts, three-sided frame, 14-inch height, four 5-inch casters.
Eagle Finishes, Materials and Cleanability
Three decisions drive cleanability: the alloy, the finish, and how much of the assembly is something other than stainless. Get those right and the rest is dimensional.
Autoclavable and washdown requests
Autoclavability and full washdown are item-specific, not line-wide. All-stainless welded assemblies with no plated hardware are the candidates; chrome-plated wire, epoxy-coated shelving and units with plastic sleeves or non-stainless casters are not. Tell us the requirement up front and we will restrict the quote and confirm it with the factory in writing.
Eagle Cleanroom Product Families: Sizing and Options at a Glance
Use this as the checklist for a request for quote — the more options you can answer, the faster the quote comes back.
| Eagle family | Construction highlights | Key options to specify |
|---|---|---|
| Cleanroom tables — perforated | 14-gauge type 304 top, hat channel reinforced, 3/4″ perfs on 1″ centres (min. 40% open), uni-lok® gusset base, 16-gauge 1⁵/₈″ legs, 1″ bullet feet | Electropolished or brushed; centre or rear crossbracing; length and width; undershelf; cleanroom bagging |
| AdjusTable® work surface systems | Solid or perforated stainless surface, hat channel, 33″ front and 63″ rear posts numbered in 1″ increments, 34½″ working height | Wire (14″) or cantilevered (12″) overshelves; wire undershelf; H-frame or C-frame; chrome or stainless |
| Gowning racks — wall mount | Slot model 24″ wide with open wire top shelf: 48″/17, 60″/22, 72″/27 hangers. Hook model 14″ wide: 48″/30, 60″/38, 72″/46 hooks | Electropolished or chrome; length; hooks vs slots; wall blocking and mounting height |
| Carts — wire and stainless | Wire stem caster carts: 4 shelves, 63″ posts, 5″ casters. Stainless utility carts: 3 welded shelves, angle legs, 4″ swivel plate casters | Upturn on ends/rear or all sides; caster type and brakes; poly or resilient tread; knocked down or assembled |
Send us your cleanroom layout or model list
Email a room layout, an equipment schedule or even a hand sketch with field dimensions. We will return a line-by-line quote with Eagle model numbers, finish and perforation options, spec sheets, lead times and freight — and flag the conflicts we find while we are in the drawing. Call (800) 326-4403.
How to Specify and Order Eagle Cleanroom Products Through MH-USA
We represent Eagle Group, which means factory-correct model numbers and options rather than a best guess off a catalog page. Here is how a package moves through our office.
Documentation note: listings and certifications are model-specific rather than line-wide. Send exact models and we will confirm available documentation in writing before you order.
Shop Eagle Cleanroom Products Online
Buy select items directly from our online store, or request a quote for volume, custom sizes and freight-rated orders.
Eagle Cleanroom Products: Frequently Asked Questions
Does MH-USA sell Eagle Group cleanroom products?
What is the difference between electropolished and #4 brushed finish?
Why are Eagle cleanroom tables perforated?
What stainless type and gauge should I specify?
Can Eagle cleanroom equipment be autoclaved or fully washed down?
Do these products carry cleanroom certifications or ISO classifications?
Get Your Eagle Cleanroom Equipment Quote
Send the room layout, the equipment schedule or the model list. We will quote it, confirm the finish and options, and get it to your site. Call (800) 326-4403.
