What a Heated Holding Cabinet Solves
Kitchens buy heated holding cabinets for one reason: production and service do not happen at the same time. A school kitchen finishes 900 entrées before the first bell. A caterer cooks at 2 p.m. for a 6 p.m. dinner across town. A concession stand has eleven minutes between innings. The food is already cooked correctly — the problem is the gap between the oven and the guest.
A holding cabinet closes that gap by insulating the cavity, replacing lost heat with a thermostatically controlled element and, on humidity-controlled models, keeping moisture in the air so product does not crust. It is not an oven and it cannot bring food up through the temperature danger zone. Food goes in hot and stays hot.
Metro — the brand of InterMetro Industries, founded in 1929 in Wilkes-Barre, Pennsylvania — builds this equipment as the C5 series, plus HotBlox holding cabinets, MBQ banquet cabinets and Mightylite carriers. MH-USA represents Metro and specs cabinets around pan counts, hold windows and the electrical reality of the room.
Insulated vs Non-Insulated: The Decision That Matters Most
Before series, height or pan count, decide whether the cabinet needs real insulation. That one choice drives cost, wattage, weight, door-open recovery and whether it can leave the building.
| Non-insulated heated cabinet | Insulated heated cabinet | Insulated non-powered cabinet | |
|---|---|---|---|
| How it holds | Heated element only; heat leaves continuously | Insulated walls; the element only replaces small losses | Preheated cavity and insulation; no element |
| Best for | Short holds in a warm kitchen, always plugged in | Long holds, busy doors, transport, cold docks | Short off-site runs with no power at the destination |
| Door-open recovery | Slowest — the cavity dumps heat | Fastest, especially with a good gasket | Every opening spends hold time you cannot recover |
| Energy draw | Highest for the same result | Lower wattage for the same hold | None once loaded |
| Watch out for | Not suitable outside the kitchen | Confirm plug and circuit before delivery | Hold window is finite — validate it yourself |
Insulation is a food-safety tool, not a luxury
The longer the hold and the more often the door opens, the more insulation earns its price. Validate your own hold times with a probe thermometer and your own product — the cabinet keeps temperature, your process proves it.
Full Height, Three-Quarter, Half Height and Countertop
Height is a floor-space and workflow decision. Full height carries the most pans per square foot and is the default for banquet, school and hospital volume. 3/4 and 5/6 height suit kitchens where a full-height cabinet blocks a sightline, will not clear a low header, or is taller than staff can load. Half height slides under a counter, stacks or rides a cart. Countertop units hold a few pans where the guest is.
The measurement most often skipped is the narrowest opening the cabinet must pass, measured at the real doorway including handle, bumpers and door swing. A cabinet that fits the kitchen but not the corridor to the dock is expensive storage. Also confirm the door can open fully in the aisle where it will stand.
How the Metro C5 Series Family Is Organized
The C5 series numbers describe what the cabinet controls and where it goes, not a quality ladder. Heights, door styles and slides are chosen inside whichever series matches the job.
| Series | Role | Choose it when |
|---|---|---|
| C5 1 Series | Heated holding and proofing, in full, 3/4 and half height proofing cabinets | You proof dough or want a humidity-capable cabinet that doubles as moist holding |

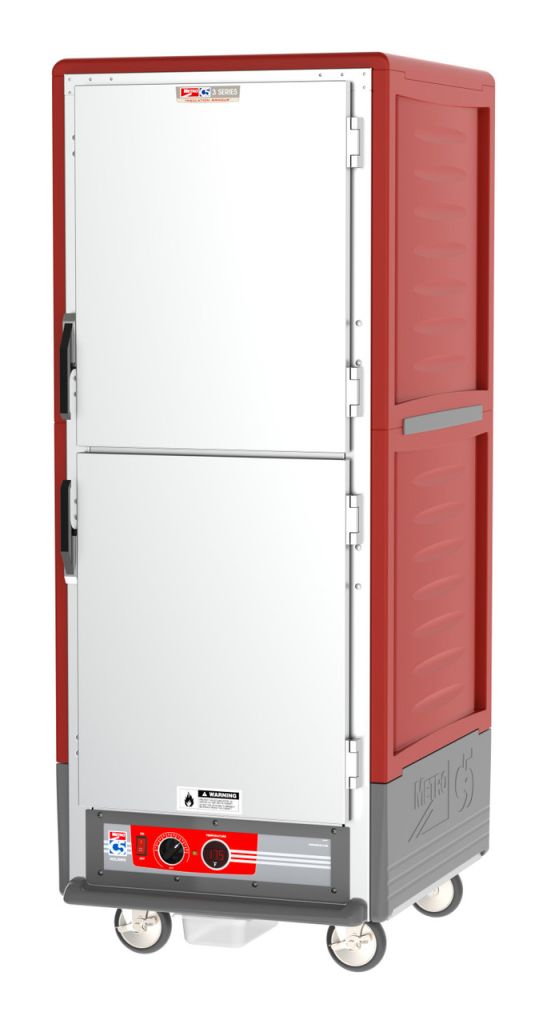

| C5 3 Series | Insulated heated holding, including full height Dutch-door cabinets | Long holds in one place, heavy door traffic, banquet and production work |

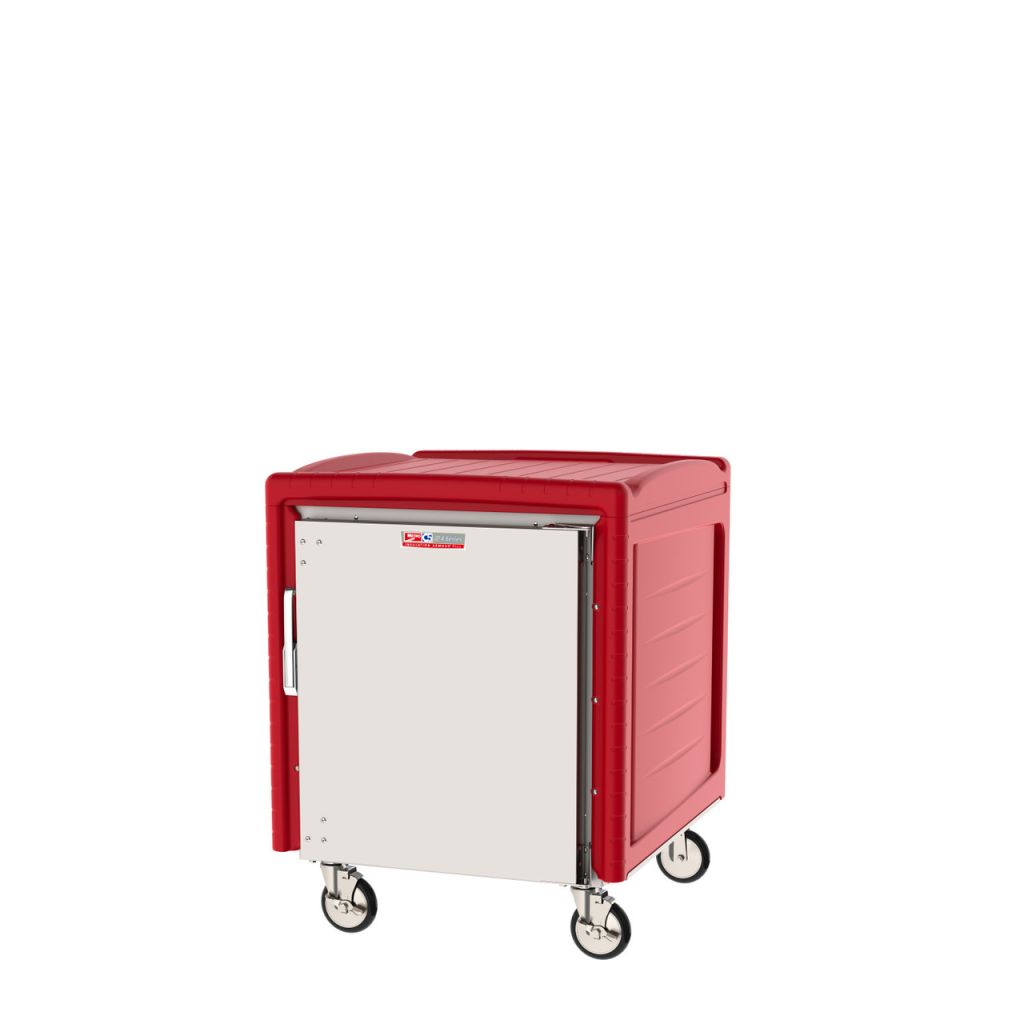

| C5 4 Series | Insulated holding and transport, including 4N non-powered transport cabinets | Food leaves the kitchen and there may be no power where it lands |
| C5 6 Series | Controlled-temperature holding duty | You need tighter cavity control than a basic heated enclosure gives |
| C5 8 Series | Controlled temperature and controlled humidity holding | Quality suffers when the cavity dries out — fried, roasted or plated items |
| C5 9 Series | Controlled temperature and humidity for demanding holding and retherm-adjacent duty | The longest, most quality-sensitive production holds |
| C5 E Series | Economy heated holding within the C5 family | Straightforward in-kitchen holding on a tighter budget |

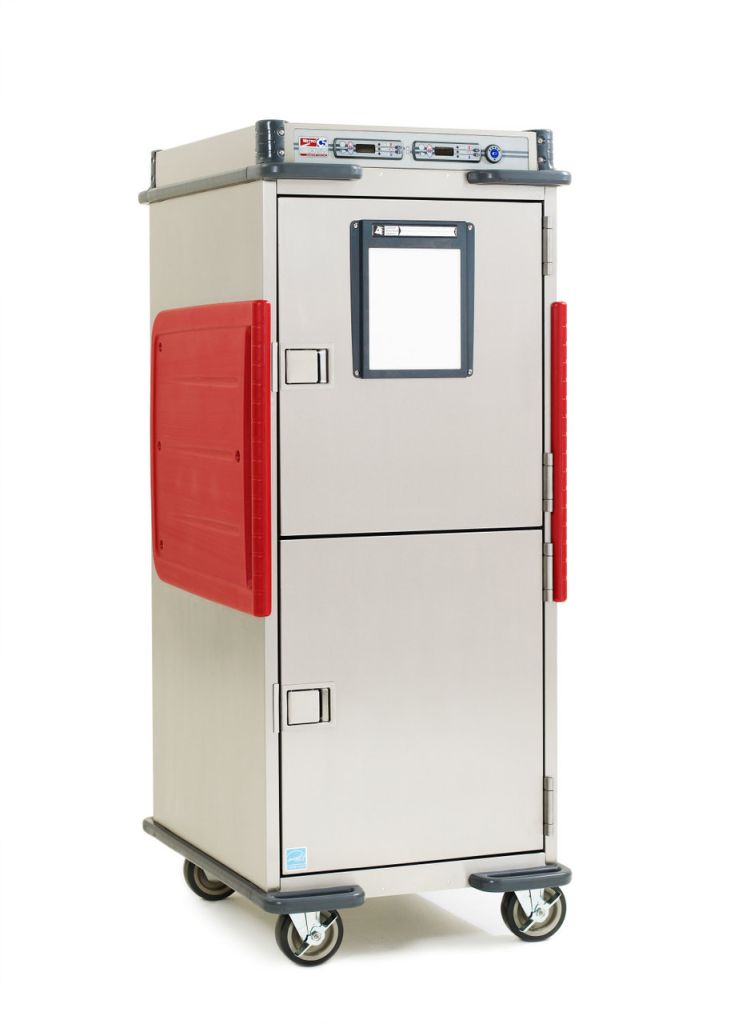

| C5 T-Series | Heated transport — full, 5/6, half height and full height dual cavity | Powered holding that rolls to a satellite site and keeps holding there |
| C5 R-Series | Refrigerated transport cabinet | Salads and desserts travel cold on the same route as your hot cabinets |

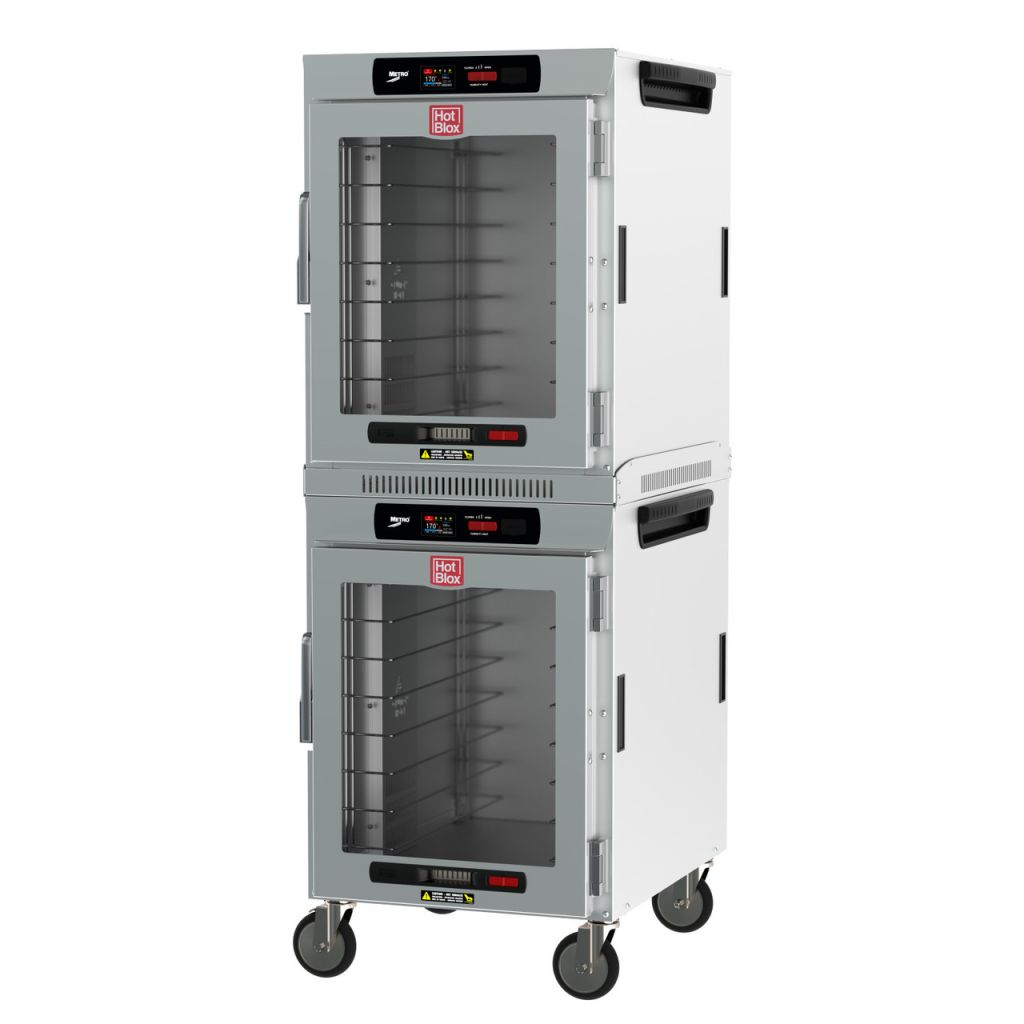

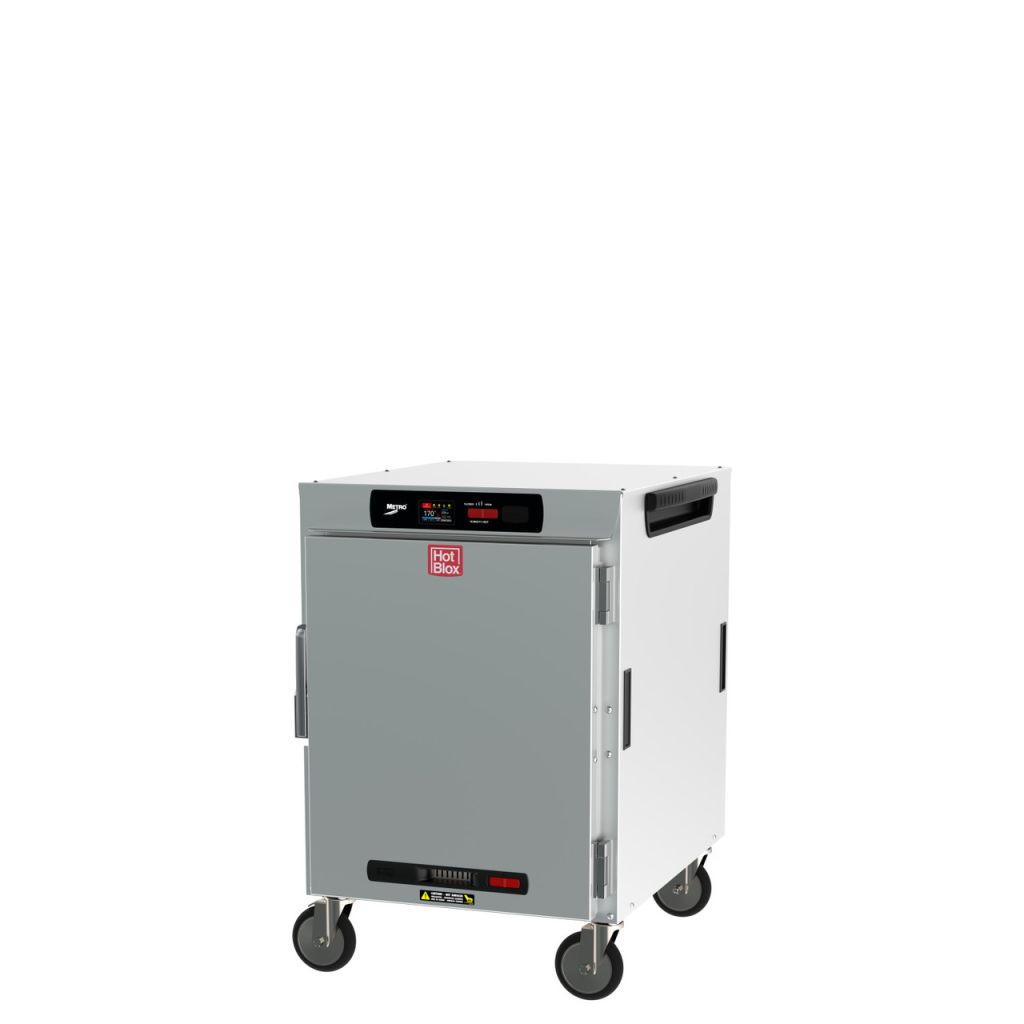

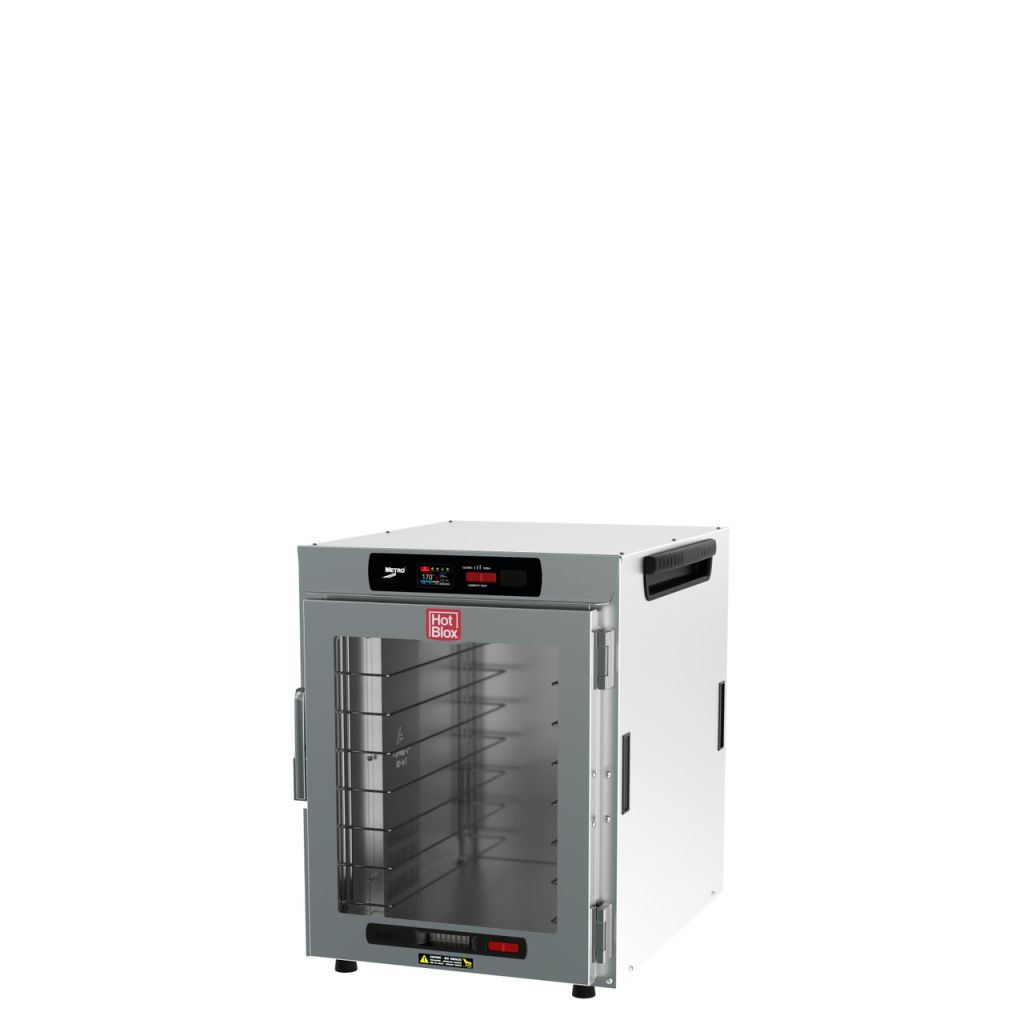

Alongside C5, two families solve narrower problems. HotBlox insulated holding cabinets come in narrow and wide bodies at 4-, 8- and 16-pan dual-cavity capacities, in mobile, undercounter and countertop/stacking versions with solid or clear doors — plus HotBlox Xpress Quick-Pick countertop cabinets in three sizes for curbside and delivery staging. MBQ banquet cabinets in one- and two-door versions serve plated banquet work, where covers per event drive the spec.
Dual-cavity models deserve attention: two independently controlled cavities in one footprint hold two menu items at two settings without storing two cabinets — often the highest-value line on a quote.
Proofing, Retherm and Humidity
Proofing is a different problem than holding. Dough needs warm, moist air so the surface stays extensible while the yeast works; dry heat gives a skin, poor oven spring and a tight crumb. Proofing cabinets add a water reservoir and humidity control, and the C5 1 Series in full, 3/4 and half heights is what we quote most for in-store bakeries, pizza shops and scratch-bake school programs.
Humidity matters on the holding side too — roasted proteins, fried product and rice suffer in a dry cavity, and the difference shows in the last twenty minutes of a two-hour hold. That is the job of the controlled-humidity C5 series.
Retherm is where operations get in trouble. Bringing chilled product back to serving temperature is a cooking step with a time-and-temperature requirement, and it needs equipment specified for that duty plus a documented process. If your workflow depends on reheating chilled trays, say so up front so we spec for it.

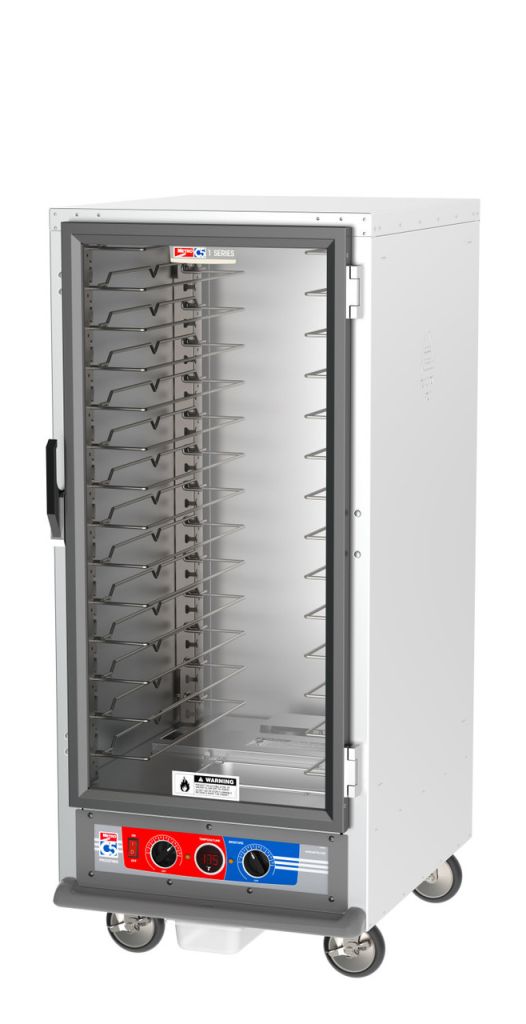

3/4 Height ProofingBakery capacity in a shorter body that clears low headers.

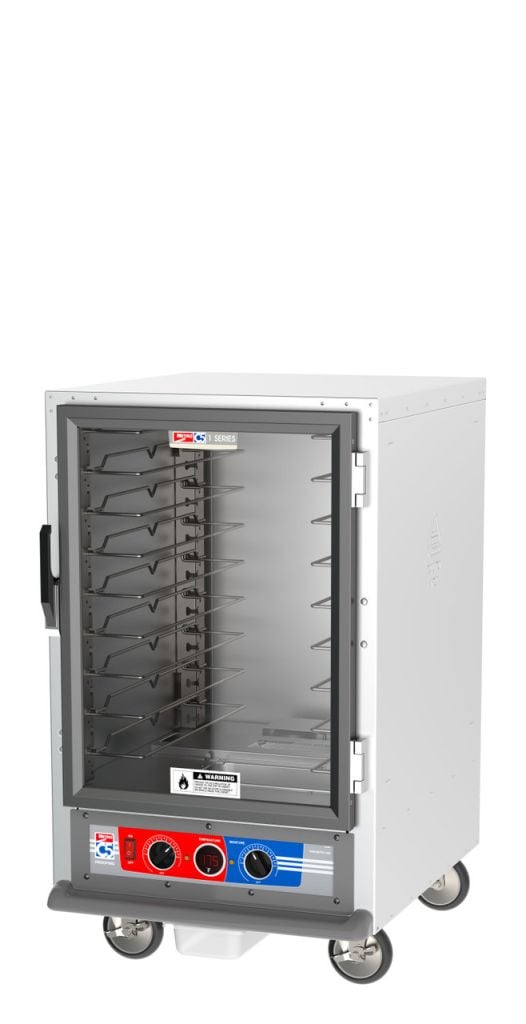

Half Height ProofingFits under a counter or stacks; suits pizza shops and cafés.

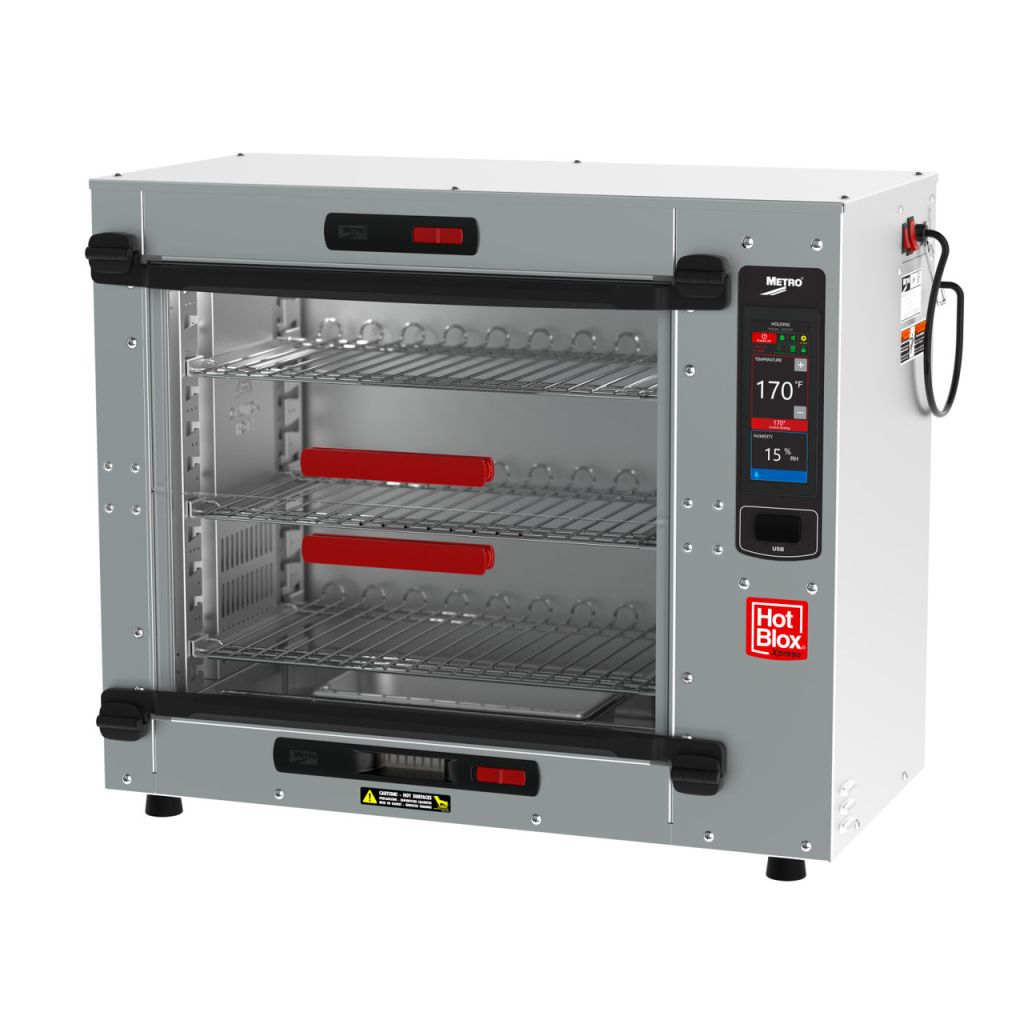

Countertop Order StagingHotBlox Xpress Quick-Pick cabinets hold pickup orders at the hand-off point.Pan Capacity, Slide Spacing, Doors and Electrical Questions
These details decide whether the cabinet you receive is the cabinet you needed.
Never take a spec from a web page — including this one
Voltages, amp draws, plug configurations, pan counts and dimensions vary by model. Nothing here is a guaranteed specification — send the models you are considering and we will return current spec sheets and confirm electrical requirements in writing.
Transport: Powered Cabinets vs Insulated Carriers
Once food leaves the kitchen, two families compete. Powered transport cabinets — the C5 T-Series in full, 5/6, half and full height dual cavity — roll onto a truck holding and plug in at the destination. Non-powered insulated cabinets like the C5 4N Series are preheated, loaded and closed, holding on stored heat with nothing to plug in and nothing to fail.
Below those sit Mightylite insulated carriers — lightweight polymer, not cabinets. ML300 and ML400 front-load carriers stack pans behind a door, ML180 and ML180XL top-load carriers handle soups and bulk product, and the ML800HC-CART system serves route meal delivery. Accessories change what they do: an MLD1 dolly, a plug-in heater, an MLP1 thermal partition to split hot from cold, plus wire caddy, serving ring and carrying strap.
Cold food travels too — the C5 R-Series refrigerated transport cabinet lets salads and desserts ride the same route as the hot cabinets.
The transport details that get skipped
- Casters — swivel/rigid combinations track straighter on long pushes; all-swivel turns better in tight kitchens, and small casters stop at every threshold.
- Bumpers — a cabinet that lives on a truck and in a service elevator gets hit; perimeter bumpers are cheaper than a replaced door.
- Ramps and thresholds — measure the dock lip, door threshold and ramp angle; for many caterers the ramp, not pan count, caps cabinet height.
- Latching in transit — the latch must hold through braking and ramps, not just look closed.
Where These Cabinets Earn Their Keep
Catering and banquets. The whole business is a hold problem: cook, load, roll to the ballroom, hold through the speeches, plate on cue. MBQ cabinets handle plated covers, T-Series and 4N cabinets handle pans. Spec for your largest event.
Schools and districts. Production kitchens feeding satellite sites live on transport cabinets, and a 40-minute lunch means everything is at temperature when the doors open. Non-powered cabinets often win because satellite sites rarely have a spare circuit.
Hospitals and senior living. Tray assembly is half the job; trays then travel corridors and elevators. Heated plus refrigerated transport keeps hot and cold components correct on one delivery, and corridor width, elevator size and quiet casters are real specifications.
Stadiums and concessions. Demand arrives in bursts. Countertop and undercounter cabinets stage product at the stand, mobile cabinets shuttle from the commissary, and clear doors show what is left without opening a door.
Curbside and delivery. Orders going cold on a pickup shelf are the biggest off-premise quality complaint; HotBlox Xpress Quick-Pick countertop cabinets hold finished orders at the hand-off point.
Send us your pan counts and hold times
Tell us the pan size, pans per service, hold time, whether it travels and the power available at both ends. We will come back with the right series and height, current spec sheets, confirmed electrical requirements and freight. Call (800) 326-4403.
Holding, Proofing or Transport: How to Choose
Work through these in order and the model list gets short fast.
1. Where does it stand during service? A cabinet that never leaves a warm kitchen can be simpler; anything crossing a dock needs insulation and better casters.
2. How long is the hold? Short holds tolerate a basic heated cabinet; long holds justify controlled temperature, and quality-sensitive ones controlled humidity.
3. Does the product need moisture? Dough always does. Roasts, fried items and plated entrées usually benefit. Packaged product usually does not.
4. Is there power at the destination? Yes puts powered transport on the table; no or unknown moves non-powered cabinets and Mightylite carriers to the top.
5. What is the narrowest opening and the steepest ramp? These two numbers cap cabinet height more often than pan count does.
6. Who cleans it? Removable slides, a smooth interior and an accessible gasket decide whether the cabinet is still sanitary in year three.

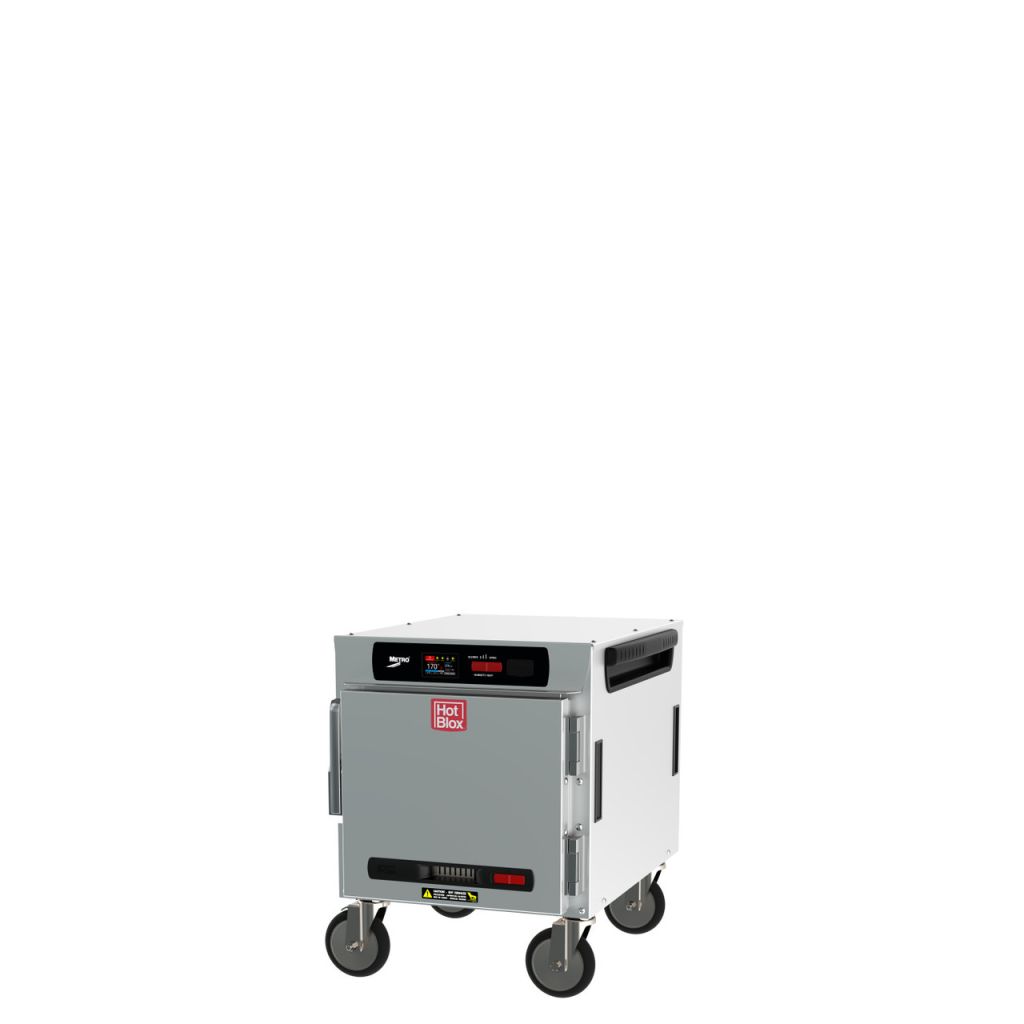

Undercounter HoldingNarrow 4-pan undercounter cabinets recover working space in kitchens that have none left.
Top-Load CarriersML180 and ML180XL carriers handle soups, sauces and bulk product that never sees a sheet pan.

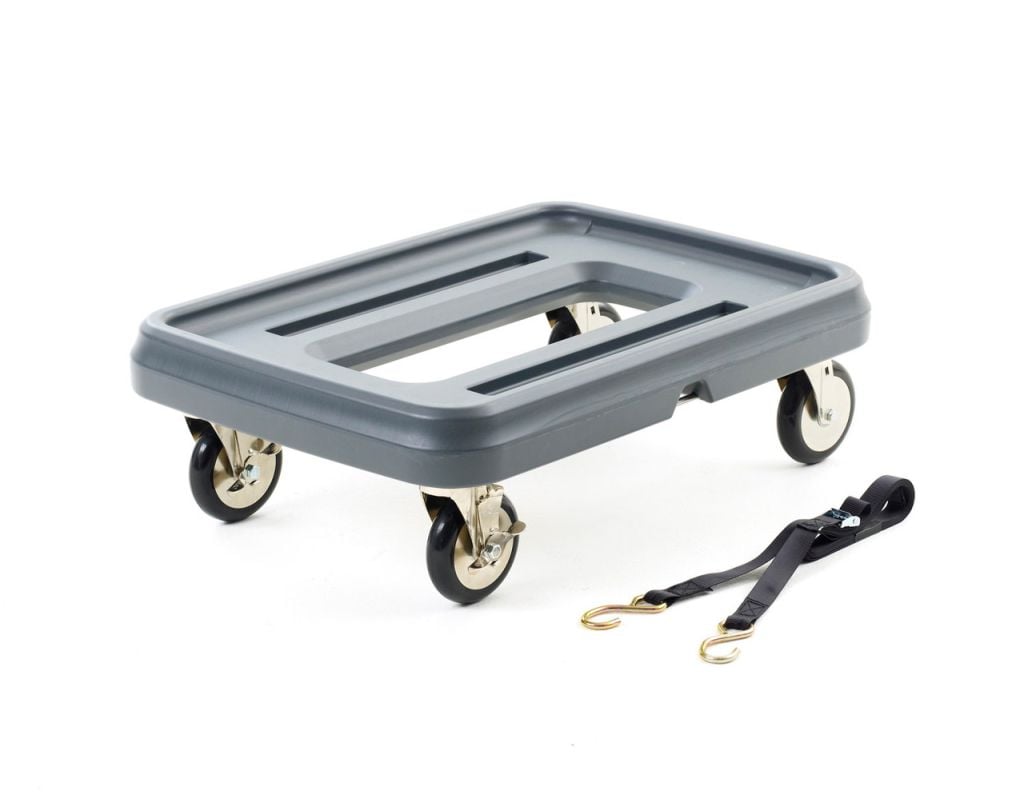

Carrier AccessoriesDollies, heaters, thermal partitions, caddies, serving rings and straps change what a carrier can do.

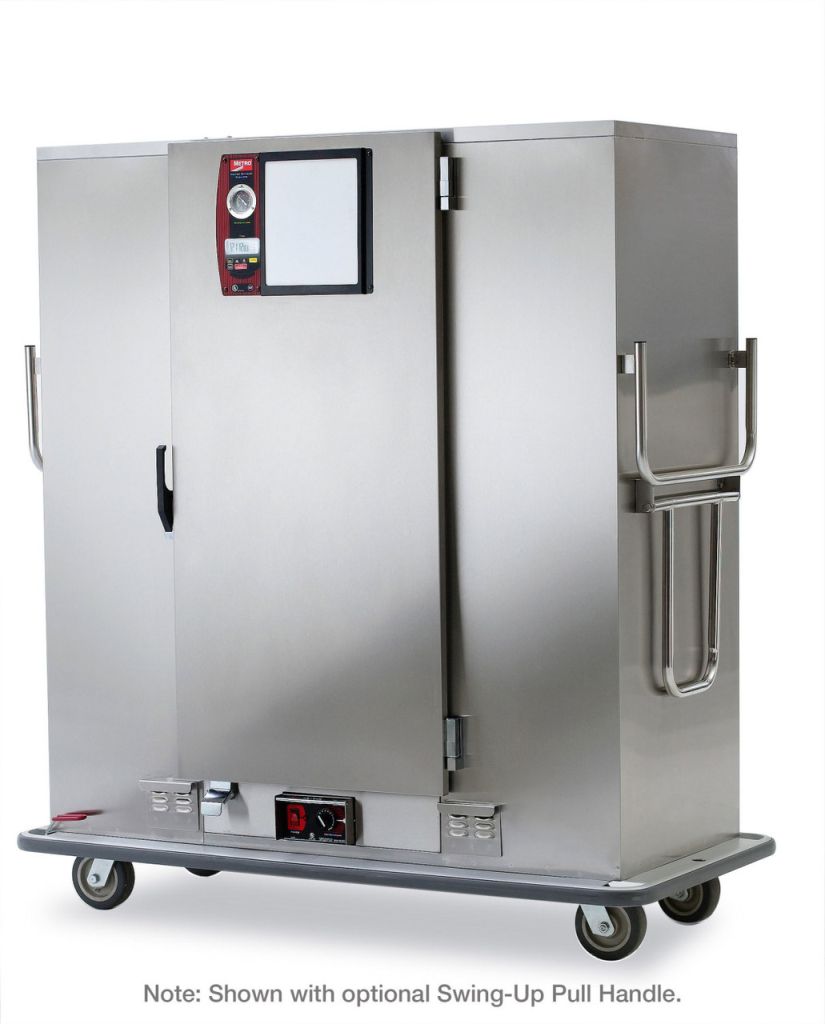

Single-Door BanquetA one-door MBQ cabinet suits smaller event rooms and hotels with limited back-of-house space.Shop Metro Holding & Transport Cabinets Online
Buy select items directly from our online store, or request a quote for volume, custom sizes and freight-rated orders.
Frequently Asked Questions
What does a heated holding cabinet actually do?
What is the difference between insulated and non-insulated holding cabinets?
How many pans will a Metro C5 cabinet hold?
What electrical information do you need before quoting a heated cabinet?
Can a heated cabinet be used as a proofing cabinet?
Are these cabinets certified for foodservice use?
