Cantilever Racking for Metal and Steel Storage: Bar Stock, Sheet Metal & Structural Steel

Bar stock, structural shapes, extrusions and sheet metal are dense, heavy and long. Heavy-duty cantilever arms carry the load and keep material organized by size for fast picking.

Get a Free Quote Call Now: (800) 326-4403

Metal and steel storage via cantilever pallet racking

Heavy-duty arms

Rated for the density of steel, not just lumber-scale loads

Sort by size/grade

Dedicate levels or bays for fast, accurate picking

Open face

Crane or forklift loads full-length material from the side

Indoor/outdoor

Galvanized finish for exposed steel yards

Shop Cantilever Rack for Bar Stock and Steel

Bar stock, tube and structural shapes need heavy-duty or structural parts, and lipped arms help keep round stock in place. Each card opens a shop category. Prices are current online prices; freight is quoted by destination and some common sizes in stock at select manufacturers, subject to confirmation. For a full layout, longer arms or freight-rated orders, request a free quote or plan it in the Cantilever Rack Configurator.

Blue Vestil structural single-sided cantilever upright with base

Cantilever UprightsSingle- and double-sided, 6 to 14 ftFrom $368.13Includes Vestil structural single- and double-sided uprights, 8 to 12 ft
Pictured: Vestil Single-Sided Racking 13.3K 144 X 20 ($894.21)Shop Cantilever UprightsUpright sizes and ratings →

Blue Vestil structural cantilever arm with end lip and clamp bracket

Cantilever ArmsStraight, incline and lipped, 12 to 48 inFrom $36.88Lipped structural arms keep round stock from rolling off
Pictured: Vestil Cantilever Straight Arm W/Lip 36 In ($106.70)Shop Cantilever ArmsArm capacity by length →

Blue Vestil heavy-duty cantilever X-brace set

Cantilever Brace SetsOne set ties each bay togetherFrom $98.95Heavy-duty and structural sets for 8 to 14 ft uprights
Pictured: Vestil Heavy Duty Cantilever Brace Set 144 X 48 ($227.83)Shop Cantilever Brace SetsHow brace sets work →

Galvanized Vestil heavy-duty double-sided cantilever rack section

Cantilever Rack KitsUprights, arms and bracing in one orderFrom $894.86Heavy-duty galvanized and standard sets, plus Little Giant welded racks
Pictured: Vestil Galv Cantilever 8’Hd Dbl Side 24″Set ($3,036.43)Shop Cantilever Rack KitsStarter kit vs add-on parts →

Why steel service centers and metal warehouses use cantilever racking

Bar stock, structural angle, tube, channel and extrusions are long and dense, which makes them heavy for their footprint compared to bulkier, lighter materials like lumber. Cantilever racking is built for exactly that combination: heavy-duty arms that carry concentrated weight, and an open face that lets a crane or forklift load full-length material from the side without threading between front columns.

Rated for density. Heavy-duty arms and columns carry steel’s higher weight-per-foot compared to lumber or plastic stock.
Open loading face. Cranes and forklifts load long bar stock and structural shapes from the side with no columns in the way.
Size and grade separation. Dedicate arm levels or bays to a diameter, gauge or alloy so material doesn’t need re-sorting to pick.
Indoor or outdoor. Galvanized finish options support open steel yards as well as covered warehouses.

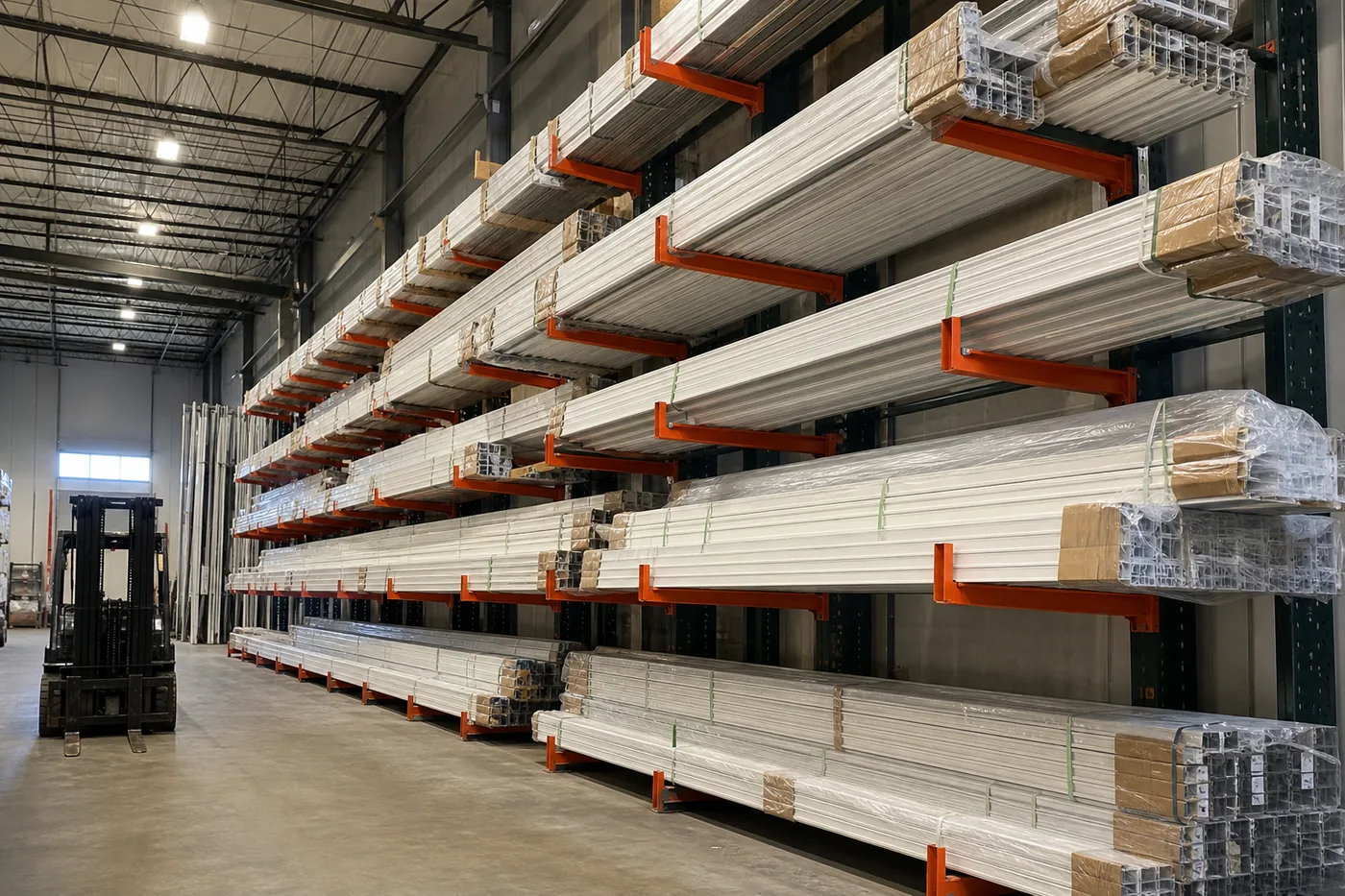

Bundles of long aluminum extrusions stored on orange cantilever rack arms in a warehouse

Rating arms for steel’s weight, not just its length

Steel is the densest material most cantilever systems are asked to hold, so the same arm length that comfortably carries lumber can be well under-rated for bar stock or structural shapes. Confirm the manufacturer’s stamped capacity for your exact arm length, gauge and column height before loading — and if a bay mixes steel with lighter material, rate every level to the heaviest item that could realistically go on it, not an average load.

Bar stock, extrusions and sheet metal

Different steel and metal products fit cantilever racking differently:

Material	How it’s typically stored	Notes
Bar stock, tube, angle, channel	Nested directly on heavy-duty arms	The classic cantilever application — support along the length
Structural steel shapes (I-beam, HSS)	Lower, heavier-duty levels	Longest, heaviest material goes lowest for stability and crane reach
Aluminum extrusions	Bundled and banded on arms	Lighter than steel, but still benefits from length-wise support
Sheet metal (flat stock)	Lower arm levels with flat support, or dedicated vertical sheet rack	Needs closer support spacing than bar stock to avoid bowing

If flat sheet is a big share of your inventory, compare vertical, horizontal and roll-out sheet racks in our guide to sheet metal storage racks.

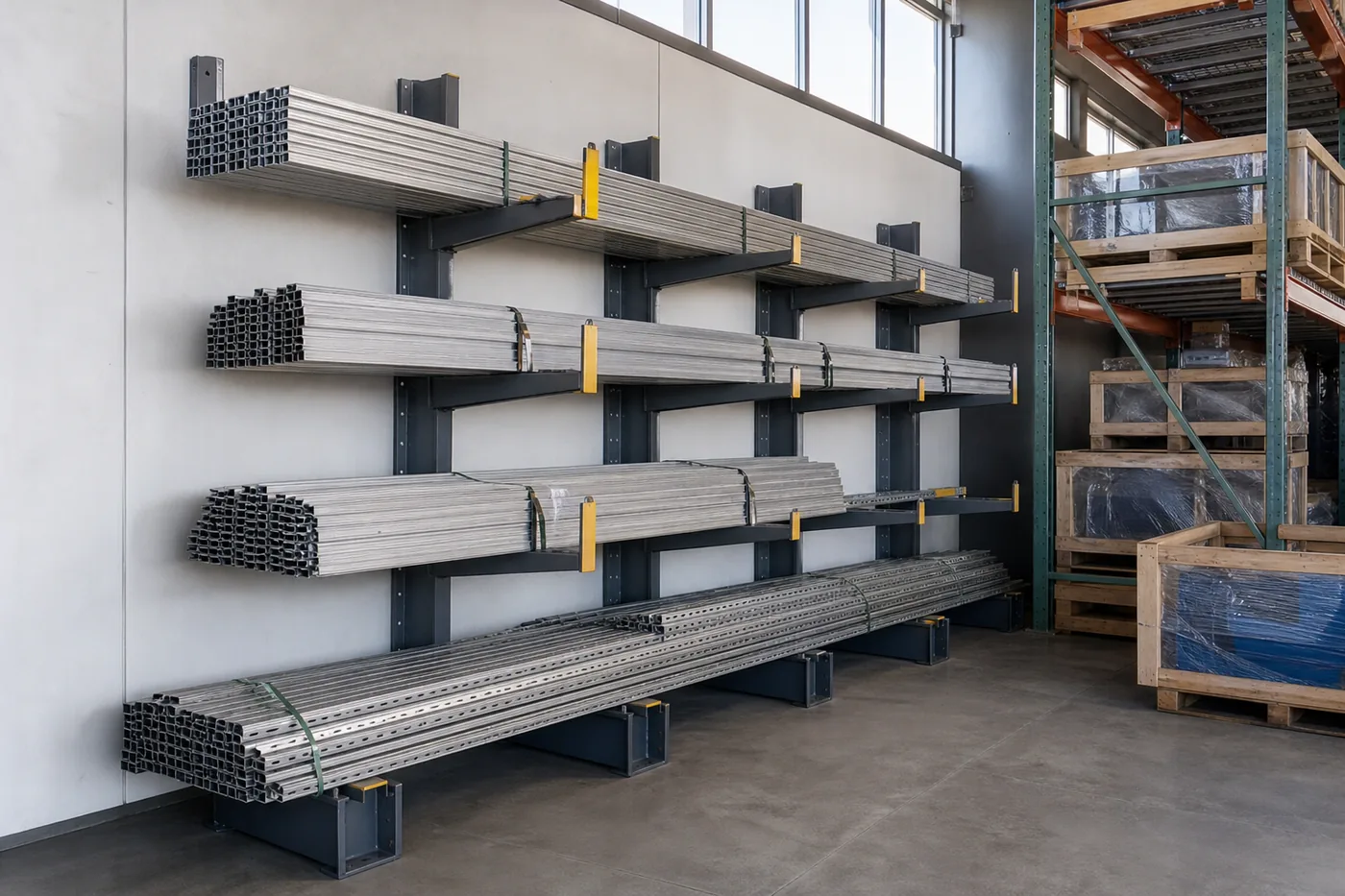

Bundled aluminum mounting rails stored on heavy-duty cantilever rack arms along a warehouse wall

Organizing a steel cantilever system for fast picking

The layout principle is the same one that makes pipe yards efficient: dedicate levels or bay sections to a size, gauge or grade so staff can pull the right material without digging through a mixed pile. See how a metal storage bay fits into a broader plan on the cantilever pallet racking hub, or browse all pallet racking options if steel shares a warehouse with palletized inventory. Structural uprights, lipped arms and brace sets are listed in our cantilever rack shop category.

Who uses cantilever racking for metal and steel storage

Steel service centers, metal distributors, structural fabricators, machine shops and manufacturers with significant raw-material inventory all rely on cantilever racking for bar stock, structural shapes and extrusions. It’s also common at contractor and construction-supply yards that stock steel alongside lumber and pipe on the same row of bays.

Smaller shops weigh a different choice first: a cubby-style bar rack or a short cantilever row. A Salt Lake City diamond tool manufacturer compared both and chose an 8-ft structural row with pipe stops; see how Terra Diamond decided between bar rack and cantilever rack.

Cut lengths are a different job. Once bar stock comes off the saw it rarely goes back on the storage row, so many fabricators stage the day’s cuts or kit material for a weld cell on portable cantilever carts, small cantilever racks on casters, and keep the fixed row for full-length lifts.

Because steel inventory can represent a large amount of tied-up capital sitting on the rack at any given time, accurate size and grade organization isn’t just a convenience — it directly affects how fast a counter or warehouse crew can fill an order and how much of the floor gets used for material that’s actually easy to find.

Get a free quote

Tell us what you are storing, the room size and your timeline. A project specialist will follow up with layout options and pricing. Prefer to talk? Call (800) 326-4403.

FAQs About Cantilever Racking for Metal and Steel Storage

Why is cantilever racking common in steel service centers?

Bar stock, tube, angle and structural shapes are long, dense and heavy for their footprint — exactly what cantilever arms are built for. The open face lets an overhead crane or forklift load full-length material from the side, and arm levels can be dedicated to a size or grade so material is easy to pull without re-sorting a pile.

What arm capacity do I need for steel bar stock?

Steel is dense, so bar stock and structural shapes typically need heavier-duty arms than lumber or furniture at the same length — ratings commonly run into the several-thousand-pound-per-arm range on heavy-duty columns. Always size to the manufacturer’s stamped capacity for your exact arm length and column, since steel loads are usually the heaviest material stored on a cantilever system.

Can cantilever racking store sheet metal as well as bar stock?

Yes, but sheet metal typically stores better flat, either on the lower arm levels with flat decking or supports across the arms, or in a dedicated vertical sheet rack rather than laid loose across widely spaced arms where it can bow. Bar stock, tube and structural shapes are the classic cantilever application; flat sheet is a secondary use that needs closer support spacing.

How should steel be organized on cantilever racking?

By size, grade or diameter, on dedicated levels or bay sections — the same principle as pipe storage. Heavier, longer structural shapes go on lower, heavier-duty levels; lighter bar stock and small-diameter material can go higher. Consistent organization is what makes a steel cantilever system faster than floor-stacking, not just the racking itself.

Is cantilever racking rated for outdoor steel yards?

Yes, with a galvanized or rust-resistant coating on columns and arms, the same as outdoor pipe and lumber racking. Outdoor steel storage should also be engineered for local wind and seismic loading, since exposed yard columns carry different structural demands than an indoor warehouse bay.
