Pick the cart around the trip, not around the shelf count

A utility cart is bought on wheels and shelves, but it is kept or scrapped on one question: does the load stay on it between the two ends of the trip? An open three-shelf cart is perfect for a 60-foot move across a clean assembly floor and completely wrong for a 400-foot push over expansion joints and a dock plate, where the same cartons walk off the top shelf. That is the reason Quantum builds the cart line as families rather than as a single product: the shelf platform stays the same, and what changes is the perimeter, the handle, the caster and the base.

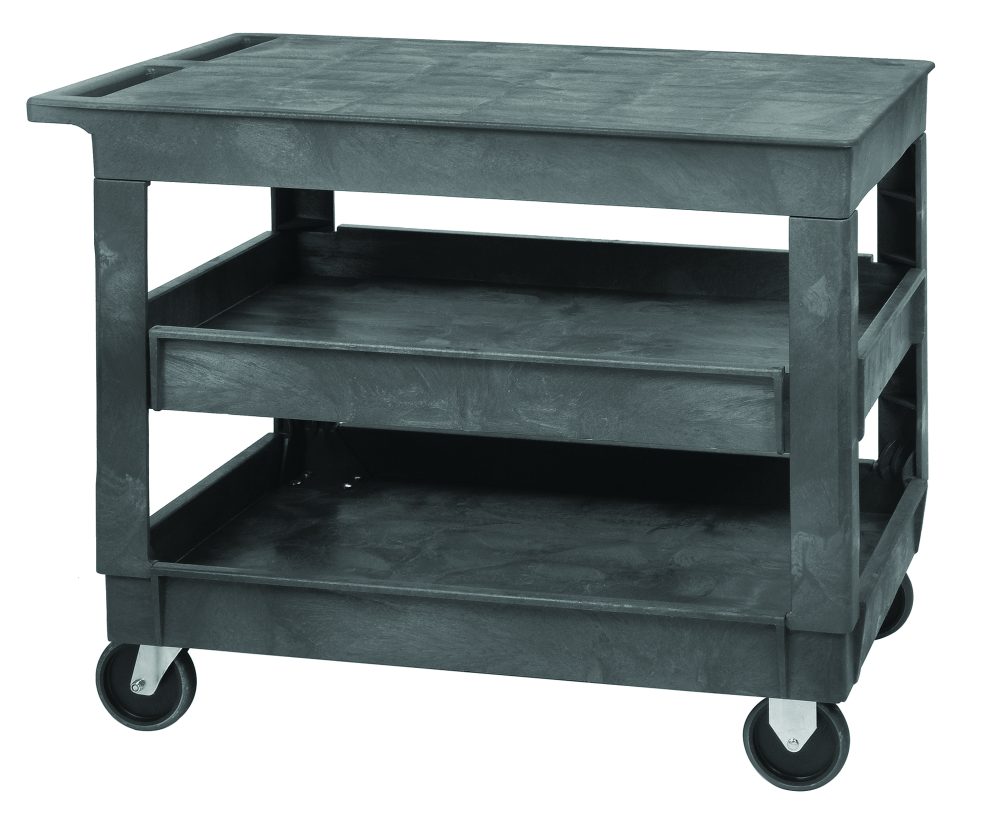

Material Handling USA supplies the cart range from the full Quantum Storage Systems line as a supplier and project partner — open wire utility carts, push-handle carts, stem-caster transport carts, three-sided enclosure carts with rods and tabs or welded wire panels, dolly-base carts, bin carts, slanted-shelf work-in-process carts, polymer service carts, bin transport trucks, removable tray trucks and dollies. We quote the cart with the bins, shelves, covers, label holders and accessories in the same package, so a cart arrives ready to be loaded rather than as a chassis waiting on a second purchase order.

What decides the family

• Does the load need retaining? Open shelves for stable cartons and totes; rods and tabs or enclosure panels the moment product can shift, roll or be walked off.
• How far, and over what floor? Five-inch casters and donut bumpers handle mixed plant floors; a dolly base spreads heavier loads over four plate casters for long hauls.
• One hand or two? U-handle carts steer from either end at 29-1/2″ handle height; push-handle carts add a single 40″-high handle for one-direction runs.

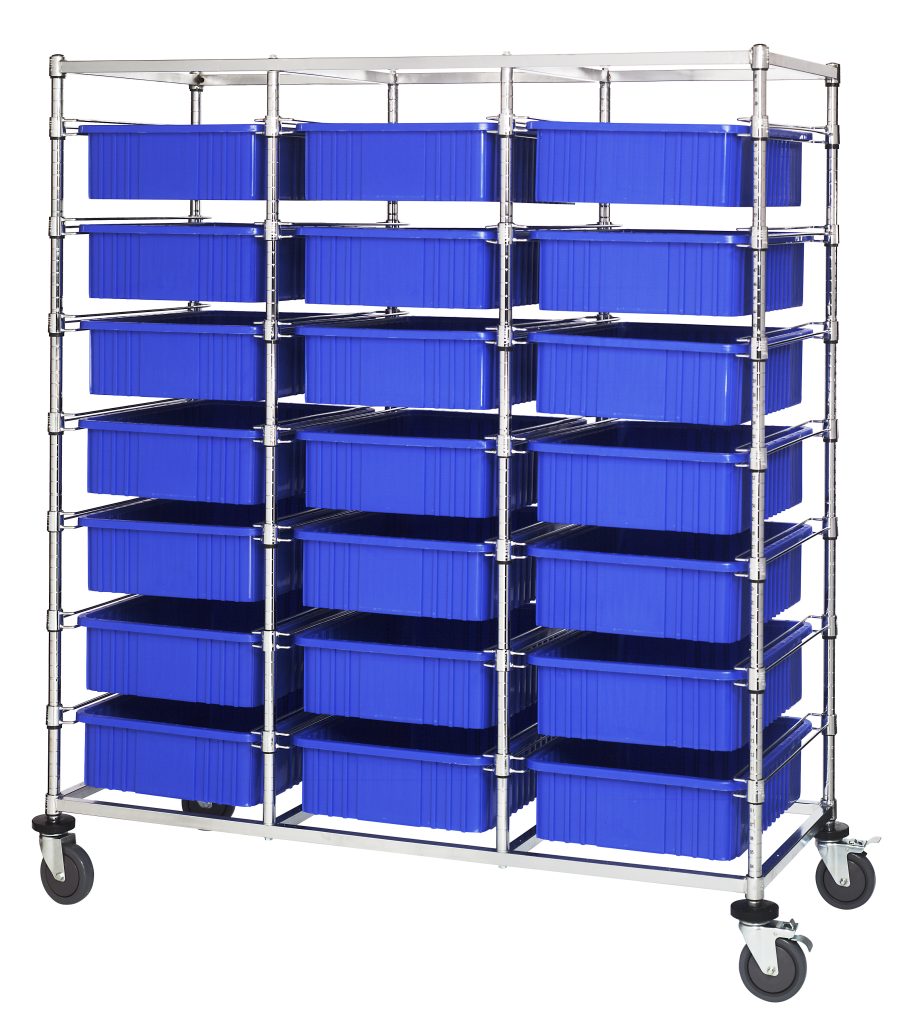

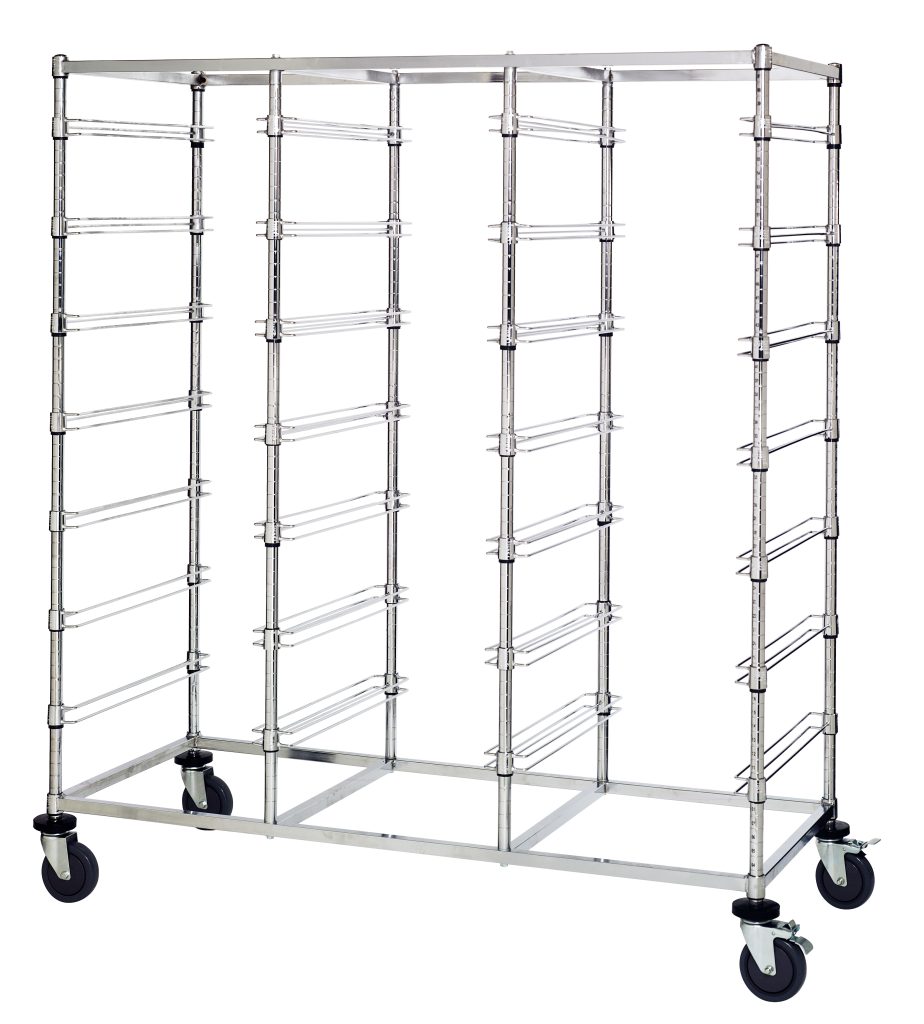

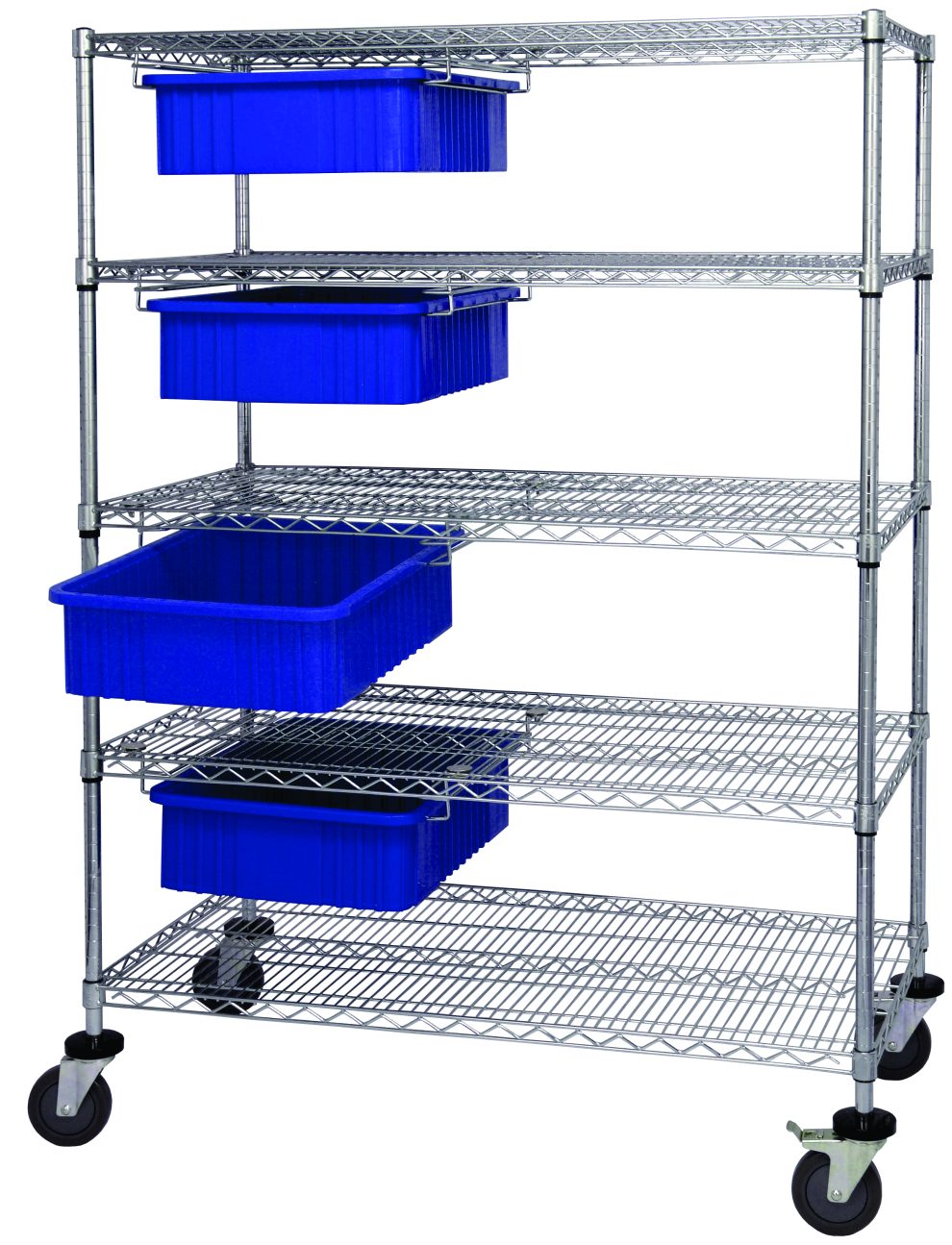

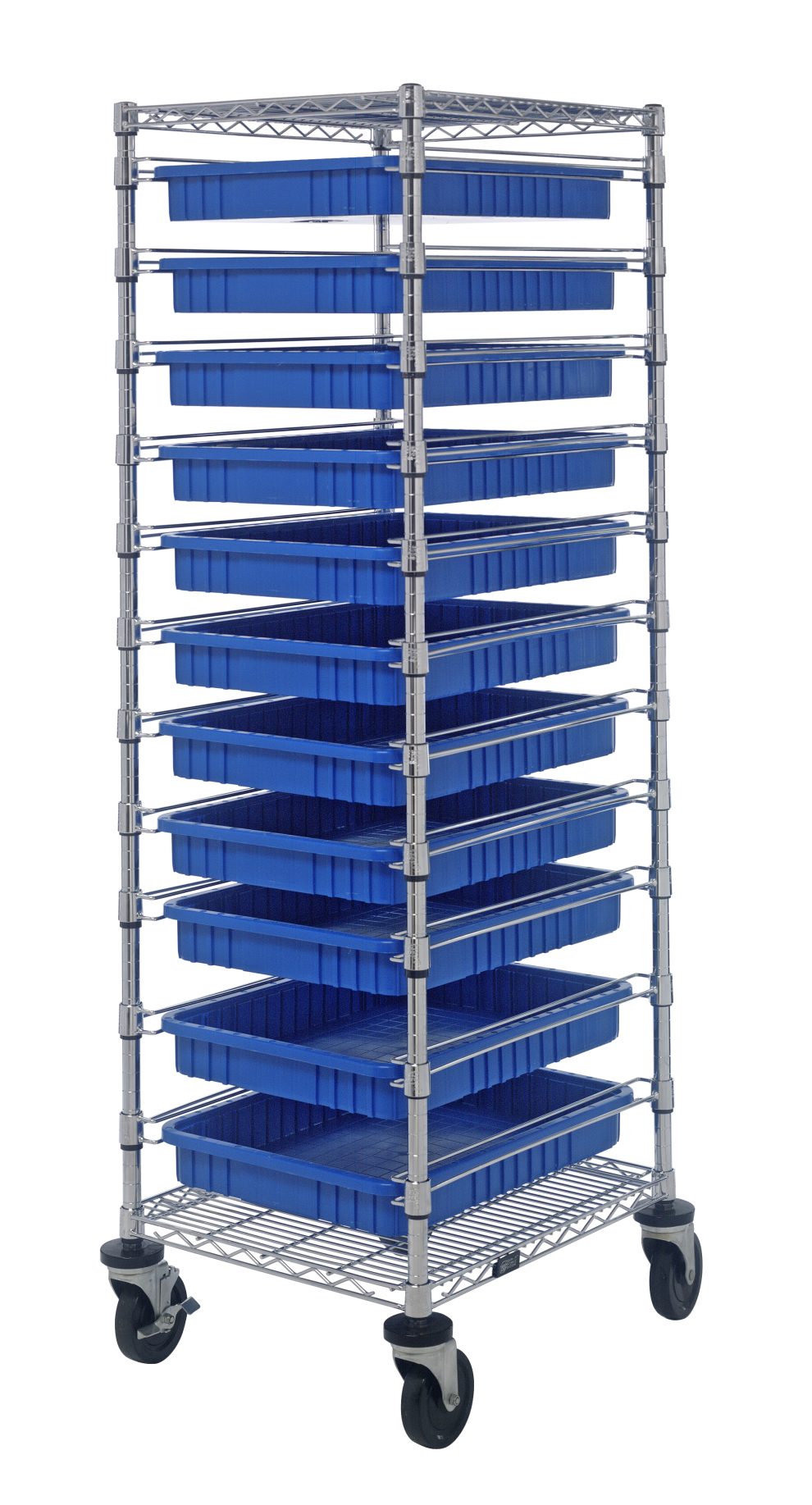

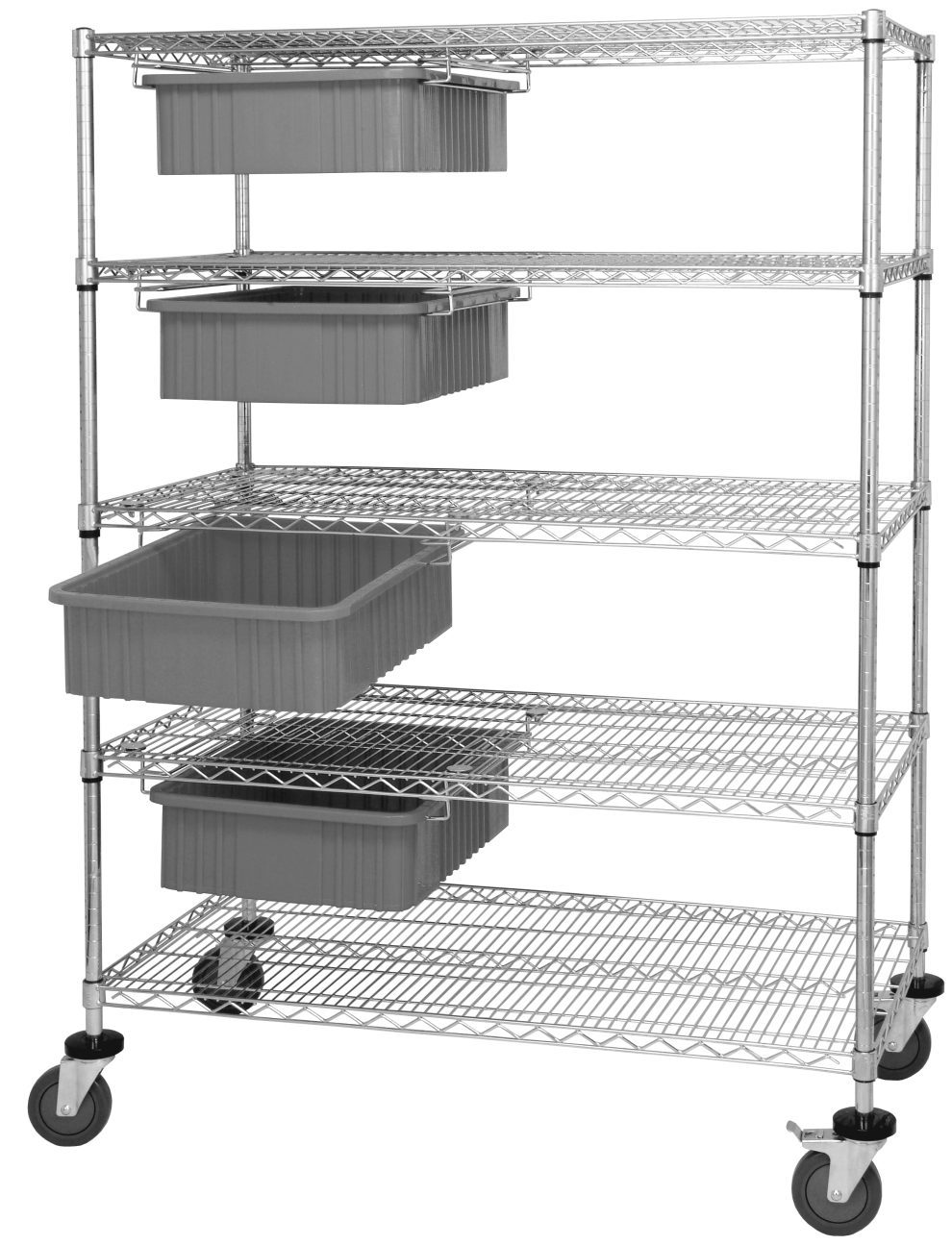

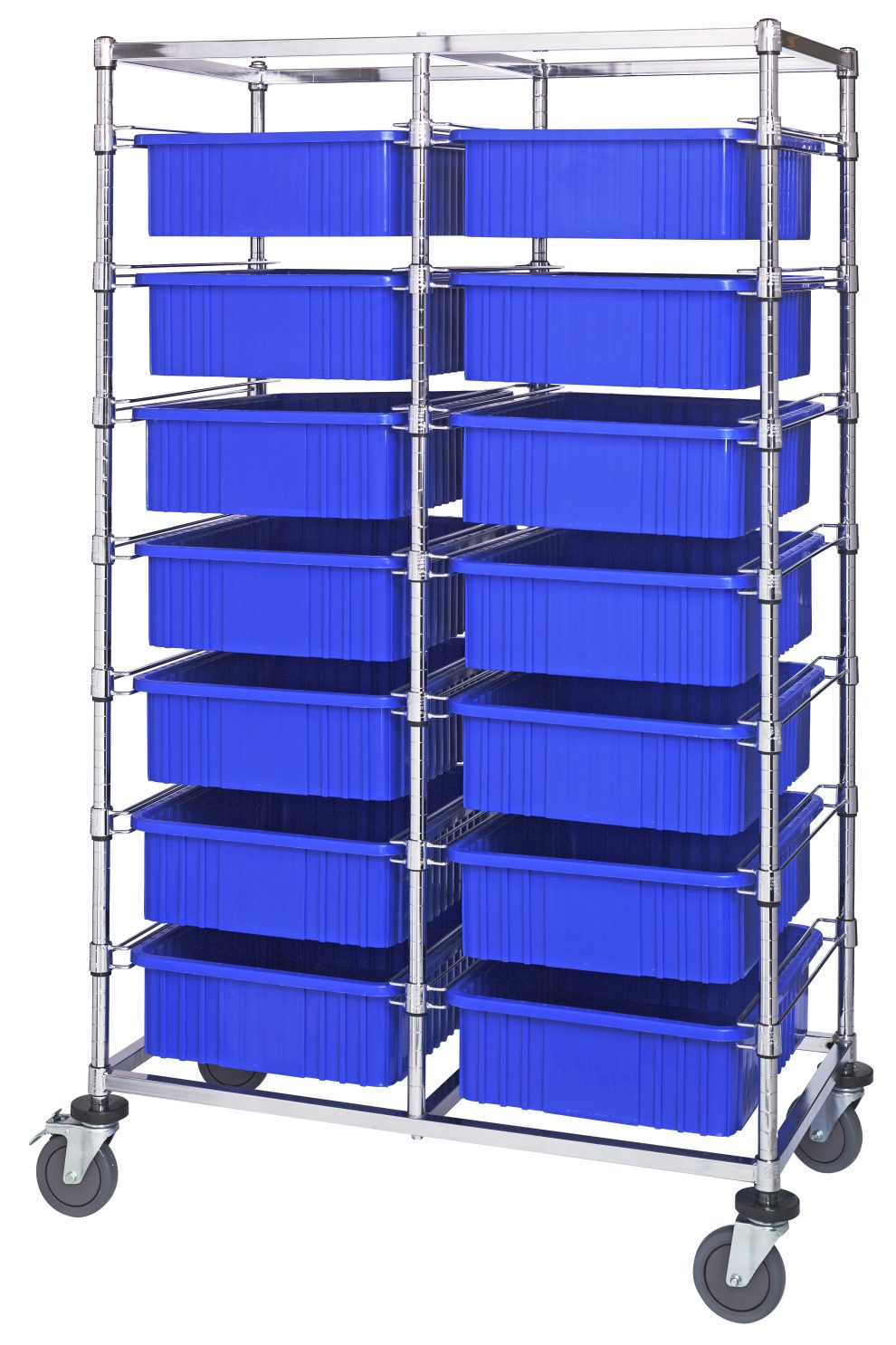

• Loose parts or packaged goods? Bin carts and slanted-shelf carts present parts in dividable grids or shelf bins; flat shelves suit cartons, kits and fixtures.

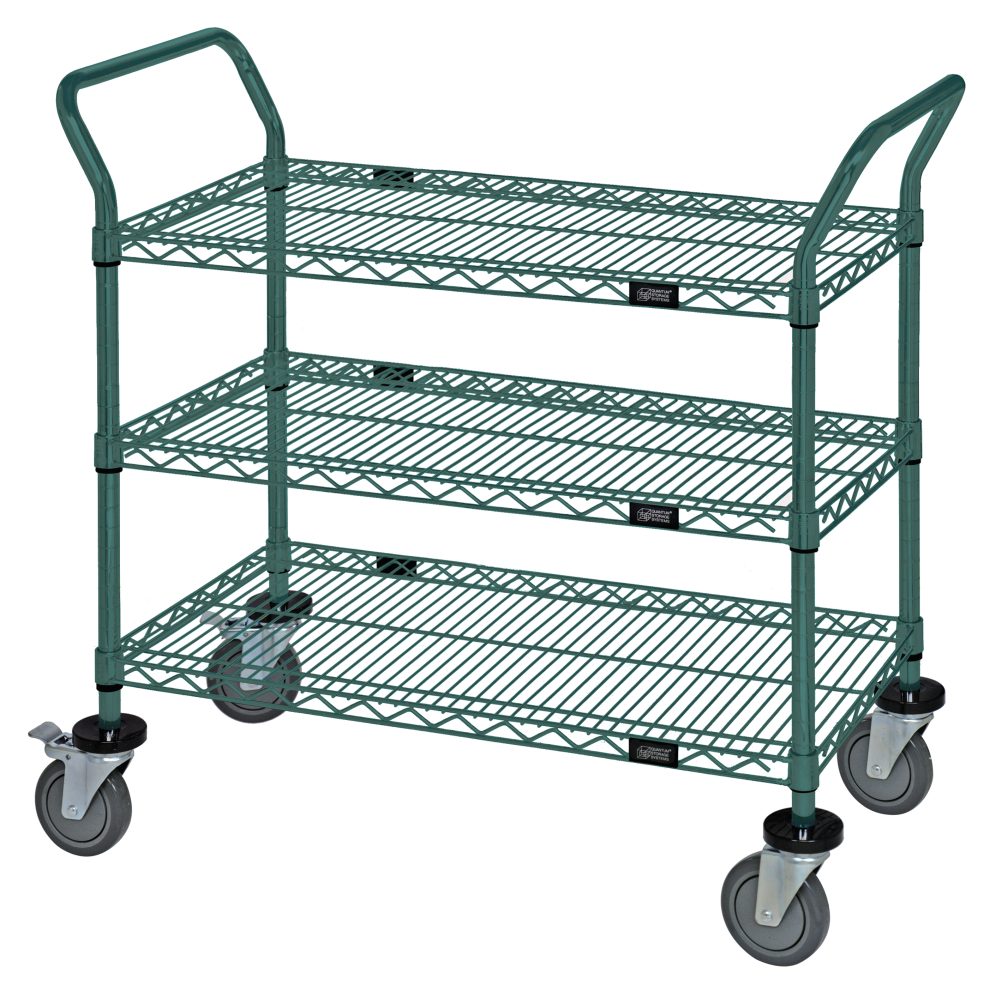

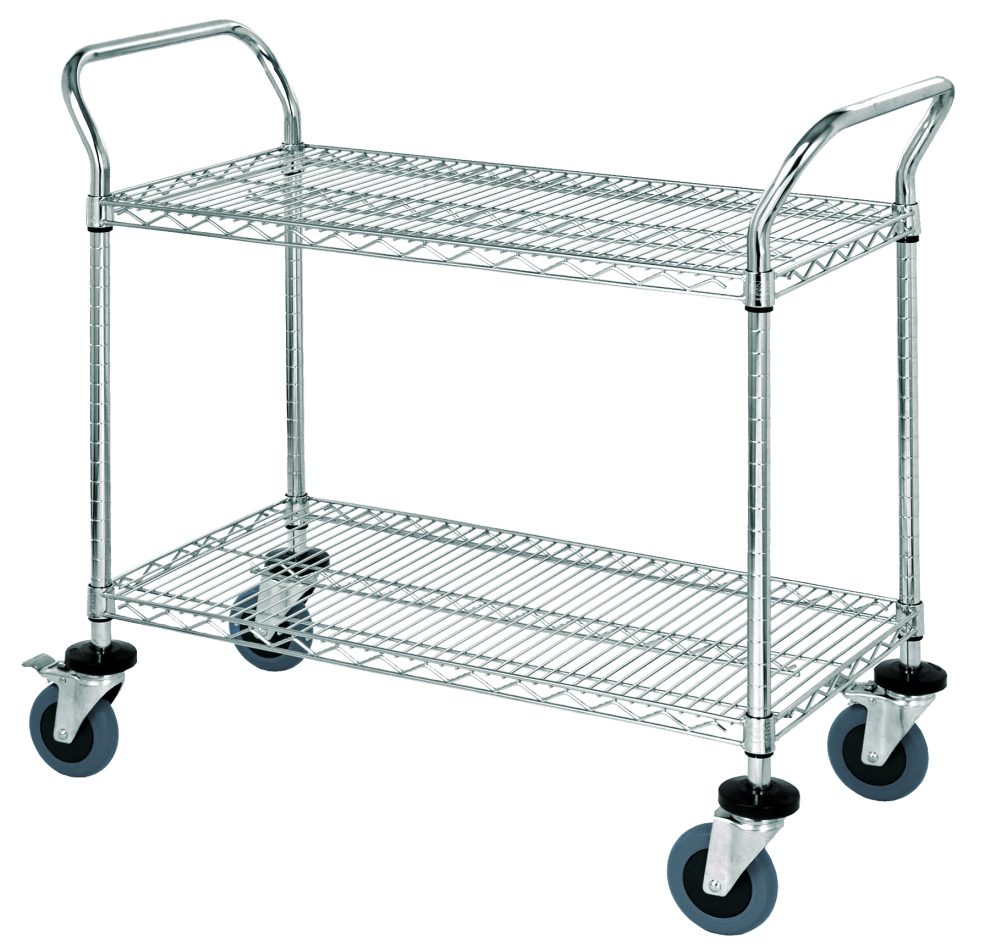

• Wash-down, ESD, cold or corrosive? Finish choice — chrome, Proform green, gray or black epoxy, galvanized, 304 stainless, or a conductive package — is what carries the environment, not the frame.

Enclosure and transport carts: the load stays where you put it

An enclosure cart is a stem-caster cart with a perimeter. Quantum builds that perimeter three ways, and the choice is about how enclosed the load has to be rather than how heavy it is — all three ride on the same platform, rated up to 1,200 lb mobile load capacity.

Rods and tabs

Three rods drop into front/back and side tabs to fence three sides of the cart. Kits come in 52″, 61″, 72″ and 84″ rod lengths, each with three rods, nine front/back tabs and nine side tabs, and they are adaptable to any shelf position — so the fence moves when the shelf layout changes. It is the economical enclosure and it is also the retrofit answer for stem-caster carts and stationary units you already own.

Complete carts are stocked in four- and five-shelf builds on 63″ and 74″ posts, 18″–24″ deep by 36″–60″ long, all with four 5″ swivel thermoplastic resin casters (two braked) and four donut bumpers.

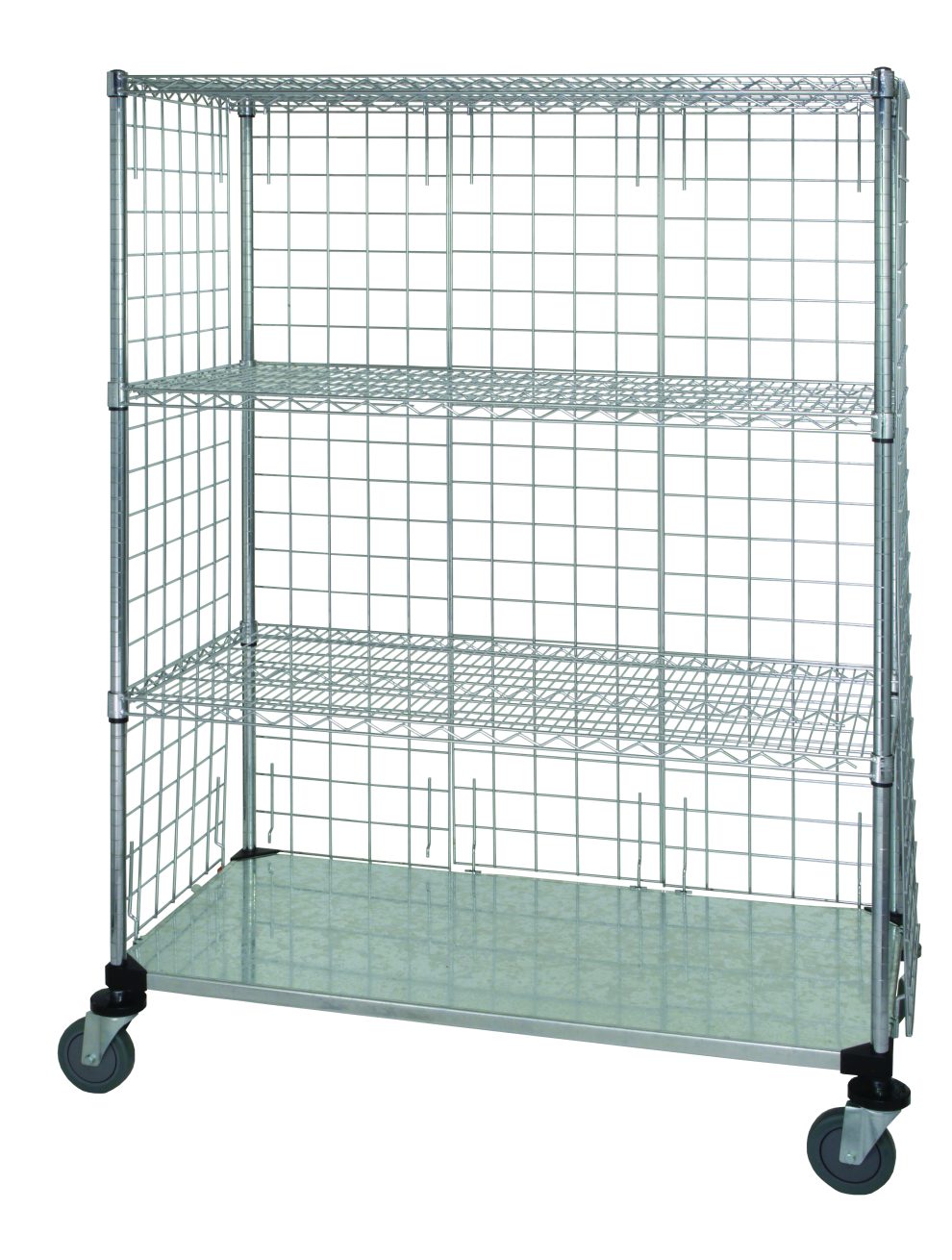

Welded wire enclosure panels

Where rods leave gaps, modular enclosure panels close the cart in. Panels are fabricated from six-gauge wire on 3″ x 3″ squares and are available for four shelf depths — 14″, 18″, 21″ and 24″ — in 63″, 74″ and 86″ heights. One panel closes each side and two or three panels close the back. The EP-CLIP hardware package fastens panels tight to the shelves so they do not rattle in transit; order one package per panel.

Dolly base or stem casters?

A stem-caster cart carries its casters in the posts; a dolly-base cart sits on a welded base with four plate casters — two rigid and two swivel with brake. The plate-caster base tracks straighter over long distances and handles heavier, less balanced loads; the trade-off is roughly an inch of extra overall height and a slightly larger footprint. Both are offered with the same shelf and enclosure options, so the decision is purely about the trip.

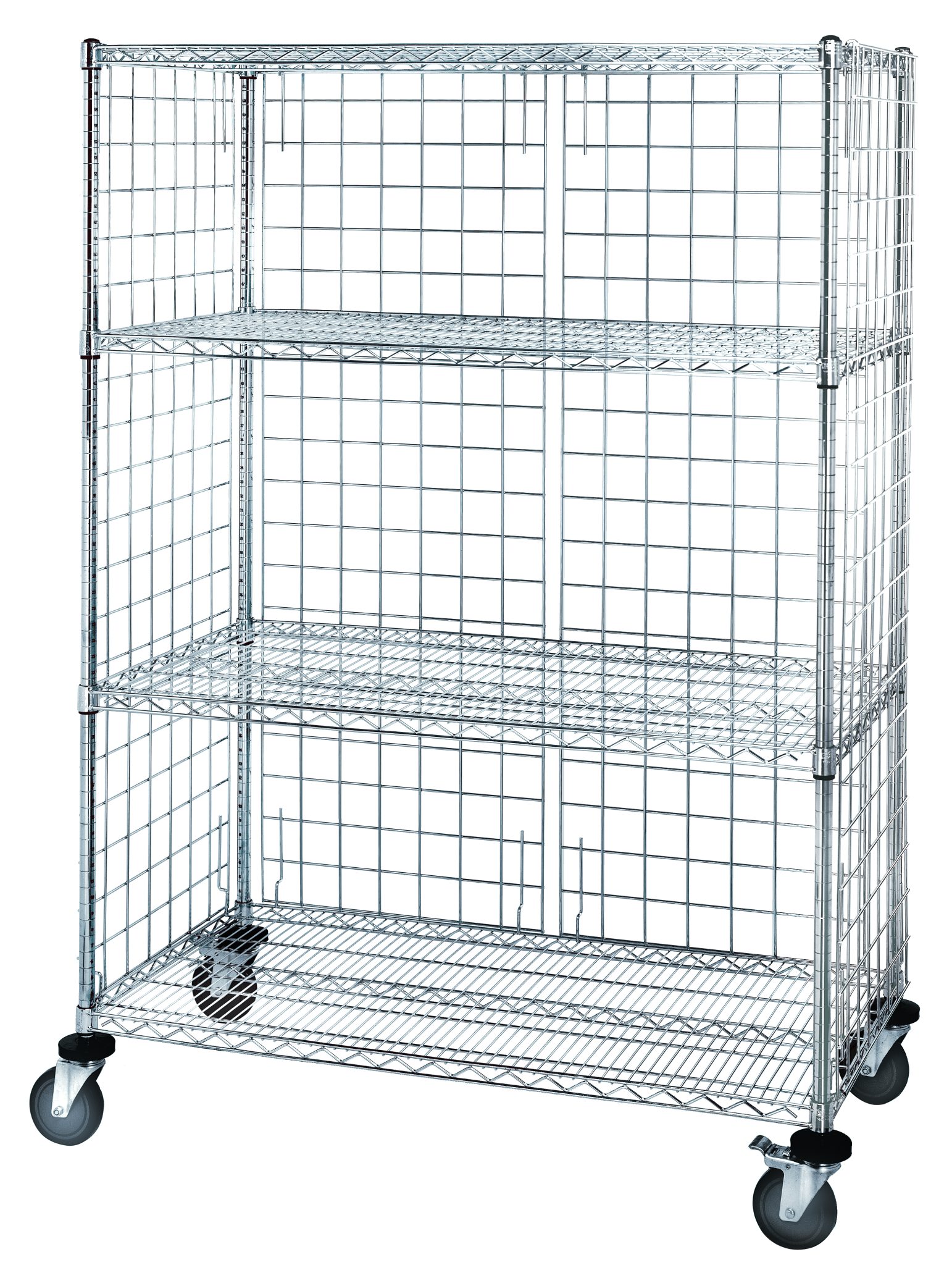

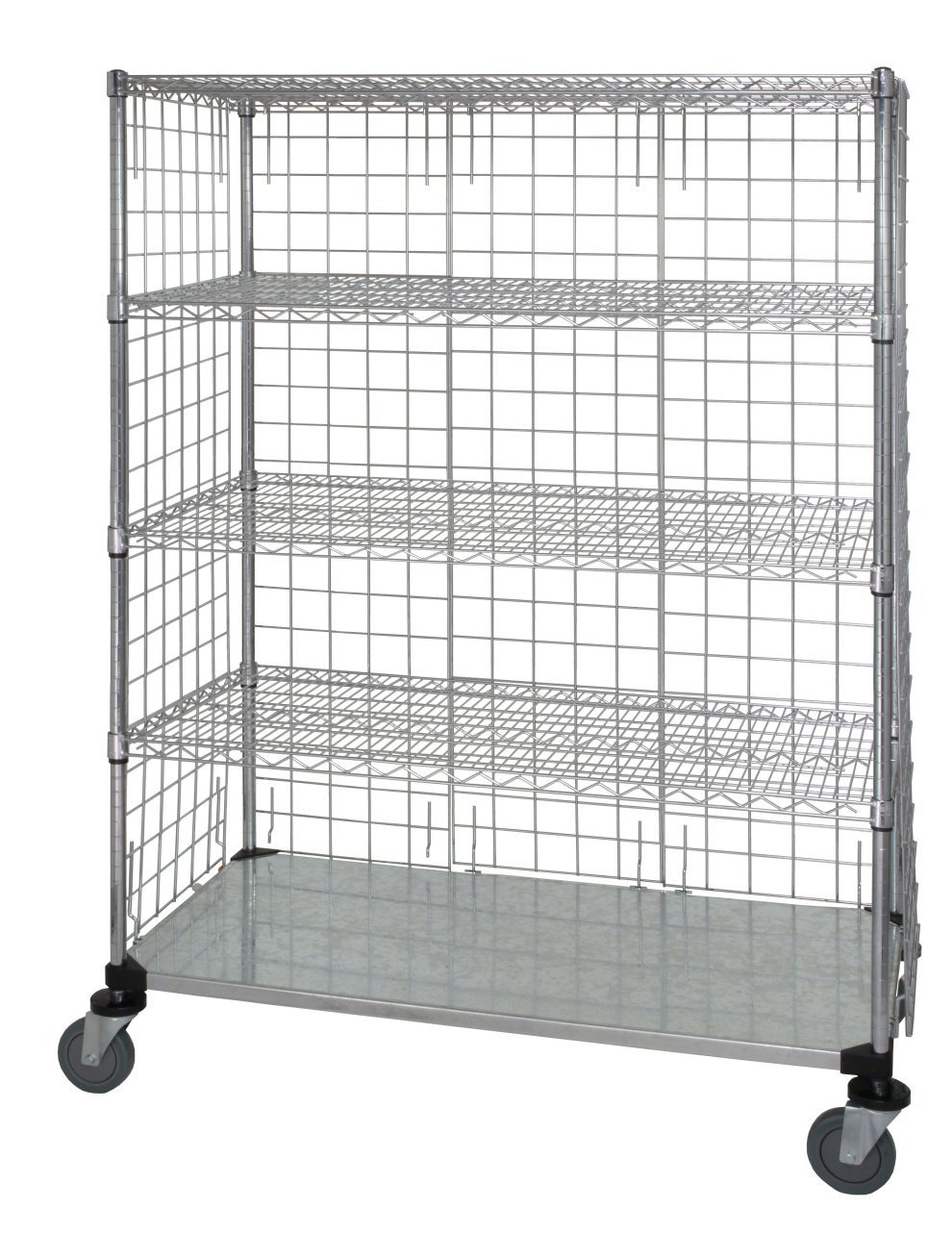

Stem-caster enclosure cartFive shelves, panels on three sides, solid bottom shelf to contain spillage and stop dust rising into the load.

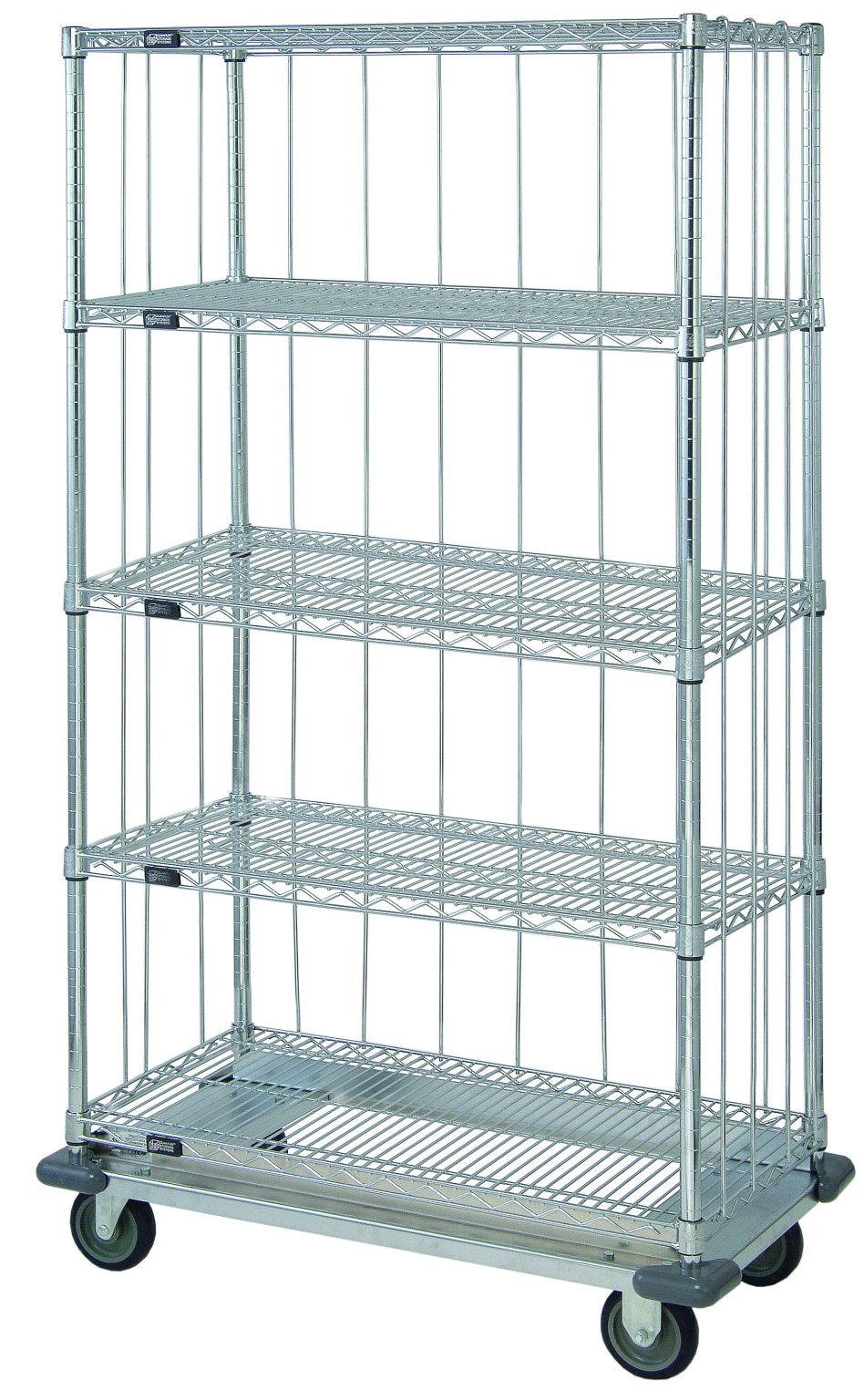

Dolly-base enclosure cartSame enclosure on a welded dolly base with two rigid and two braked swivel plate casters for long, heavy pushes.

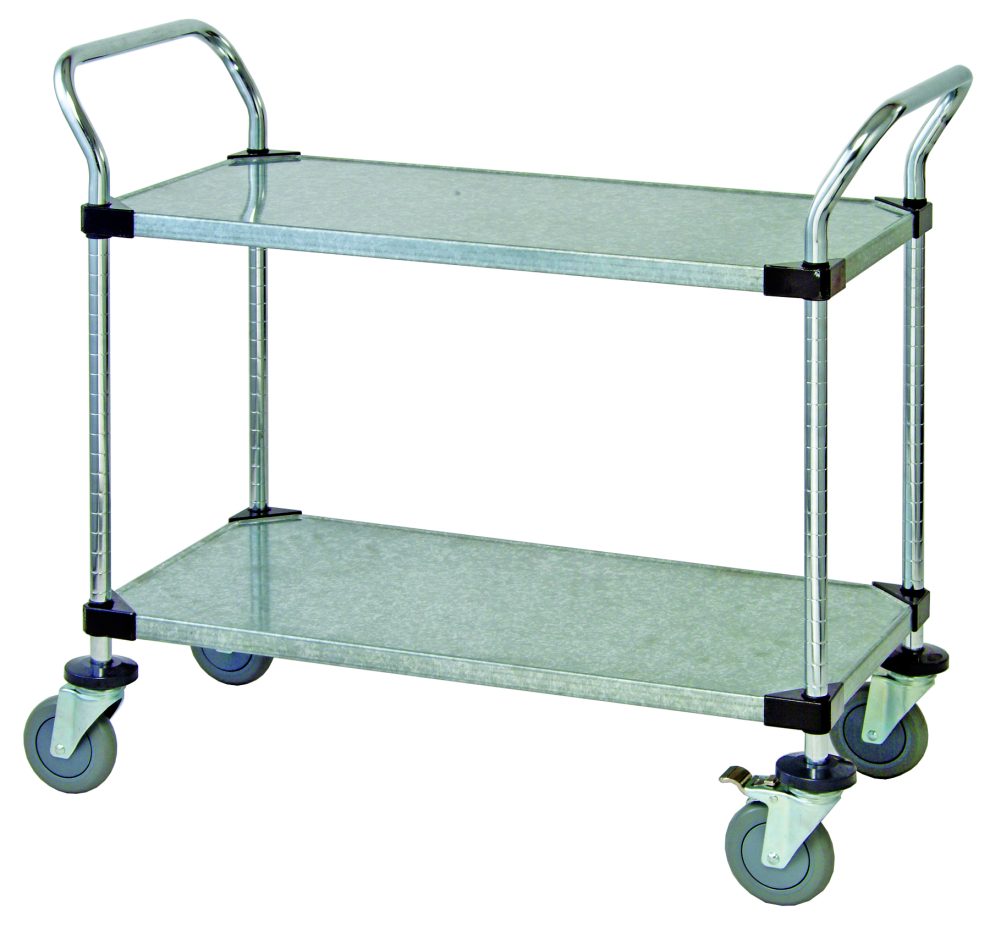

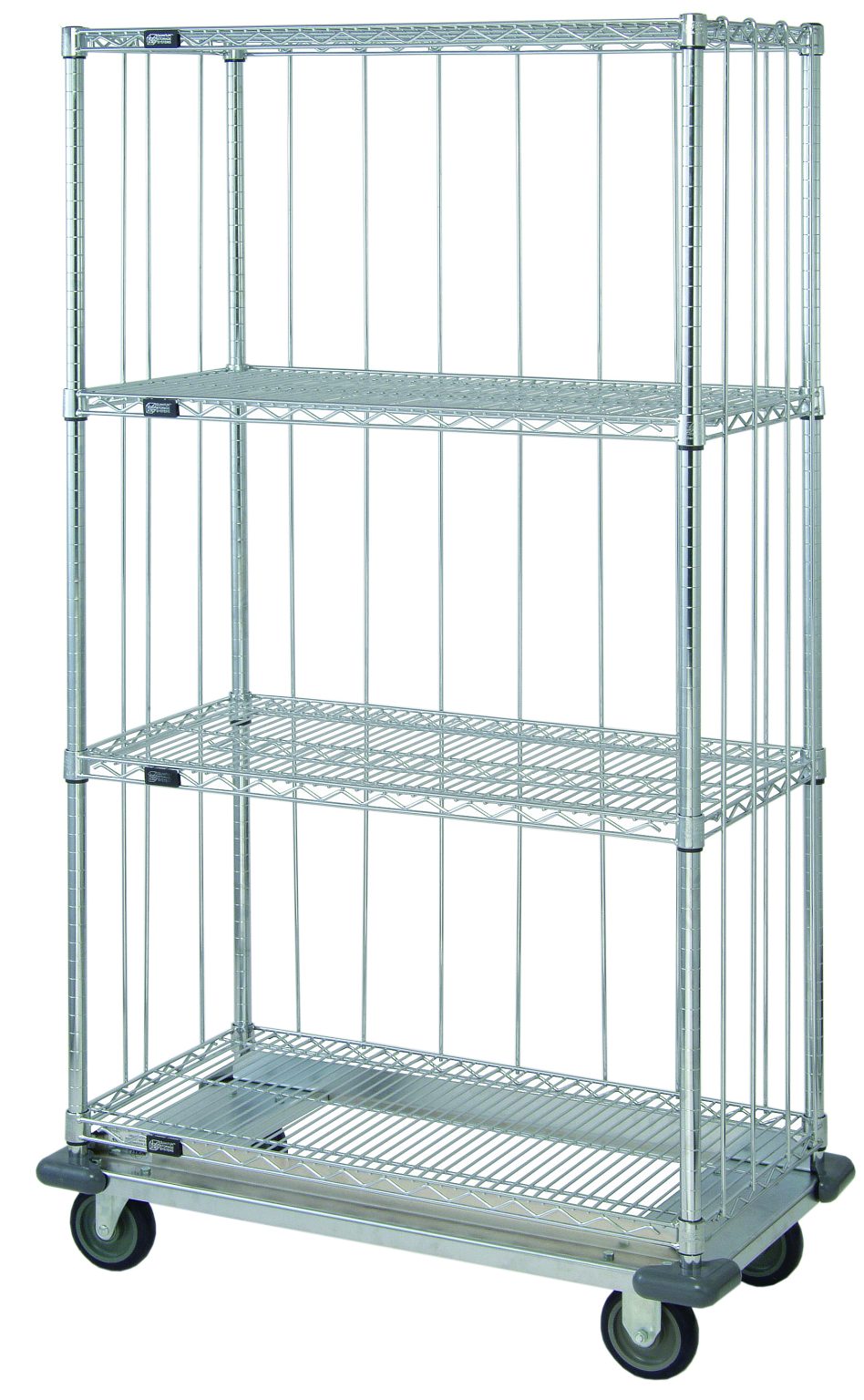

Rods, tabs and a solid bottomWire shelves for airflow and visibility, one solid galvanized shelf at the bottom to contain leaks and fines.

Five-shelf rod enclosureFive levels on 63″ or 74″ posts — the highest bin or carton count per square foot of floor in the family.

Enclosure and transport carts are the part of this line that already earns organic traffic for us, and they are the family we quote most often. Browse the stocked builds in the enclosure cart category, or see the whole cart range in our cart category and the full Quantum catalog.

Stem-caster carts: shelving that moves

Where a utility cart is a two- or three-shelf platform, a stem-caster cart is a full shelving unit on wheels — four posts, four or five shelves, donut bumpers and four 5″ thermoplastic resin casters with two brakes, rated up to 1,200 lb mobile load capacity. On 63″ posts the cart stands 69″ overall; on 74″ posts, 80″. That vertical space is why these carts dominate supply and distribution, stock rotation, laundry and staging work: a five-shelf 24″ x 60″ cart moves the contents of a whole shelving bay in one trip.

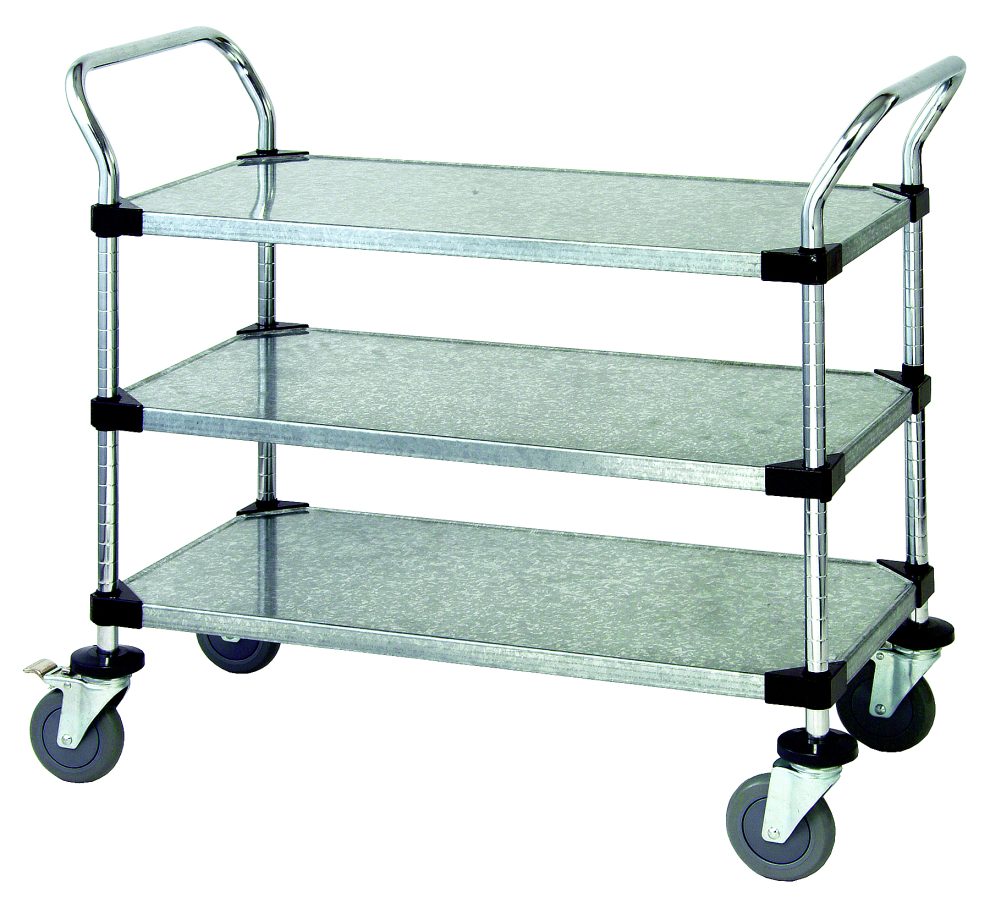

Footprints run 18″ and 24″ deep by 36″, 48″ and 60″ long in both post heights, and the finish is changed by swapping the letter in the model number rather than by ordering a different product — P for Proform green, GY for gray epoxy, BK for black epoxy, SS for stainless. Mixing a solid shelf into the bottom position is the single most useful option in the family: it stops dust and dirt rising into the load and contains spillage while the upper wire shelves keep air moving and contents visible.

If the unit will spend most of its life stationary and only occasionally move, price a stationary unit with a mobile kit against a stem-caster cart — both routes are covered on our wire shelving hub, which also carries the shelf, post and mobile-kit specifications these carts are built from. Add-on bays cannot be made mobile, so a cart is the answer whenever a run has to break apart and travel.

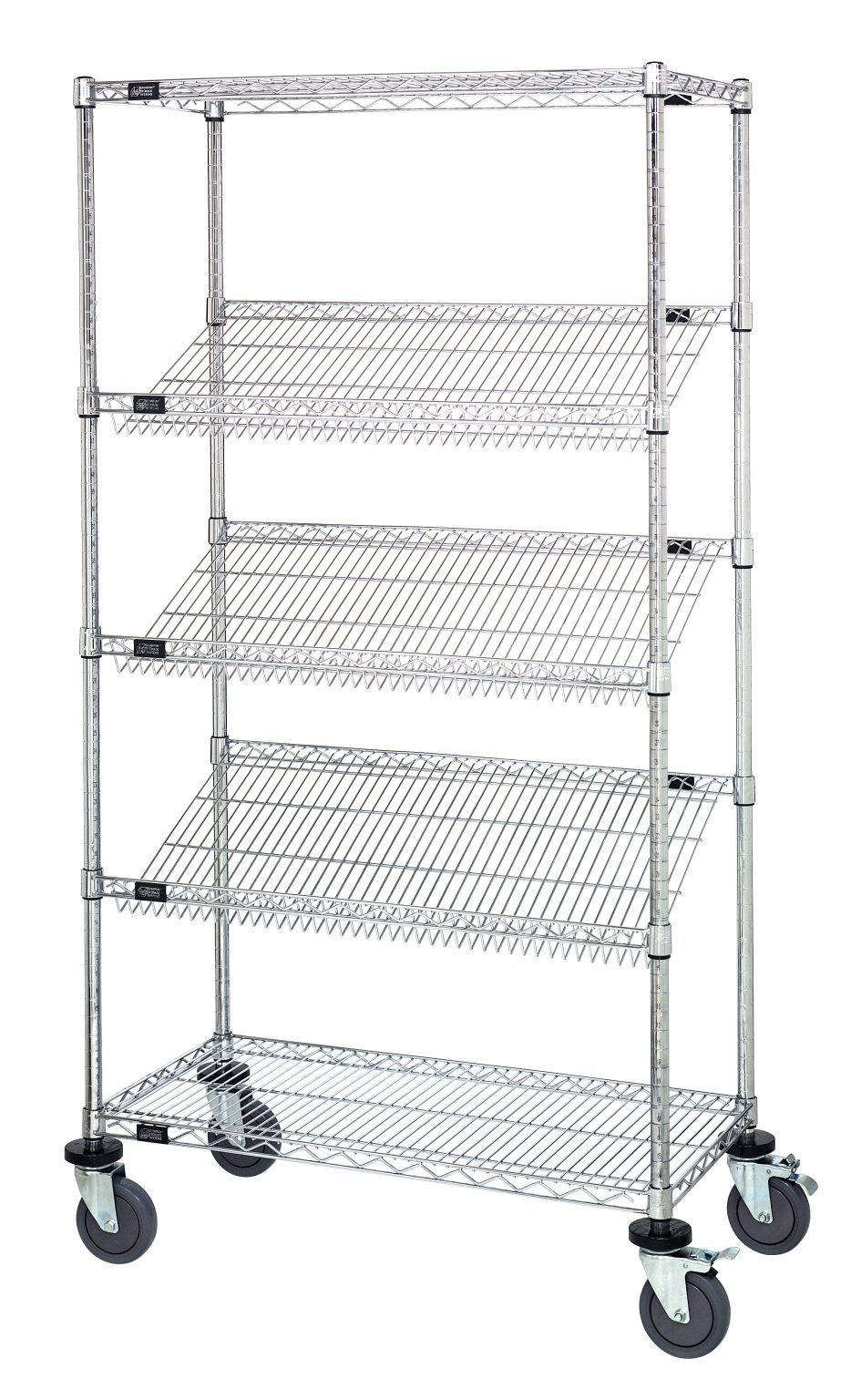

Slanted-shelf and work-in-process carts

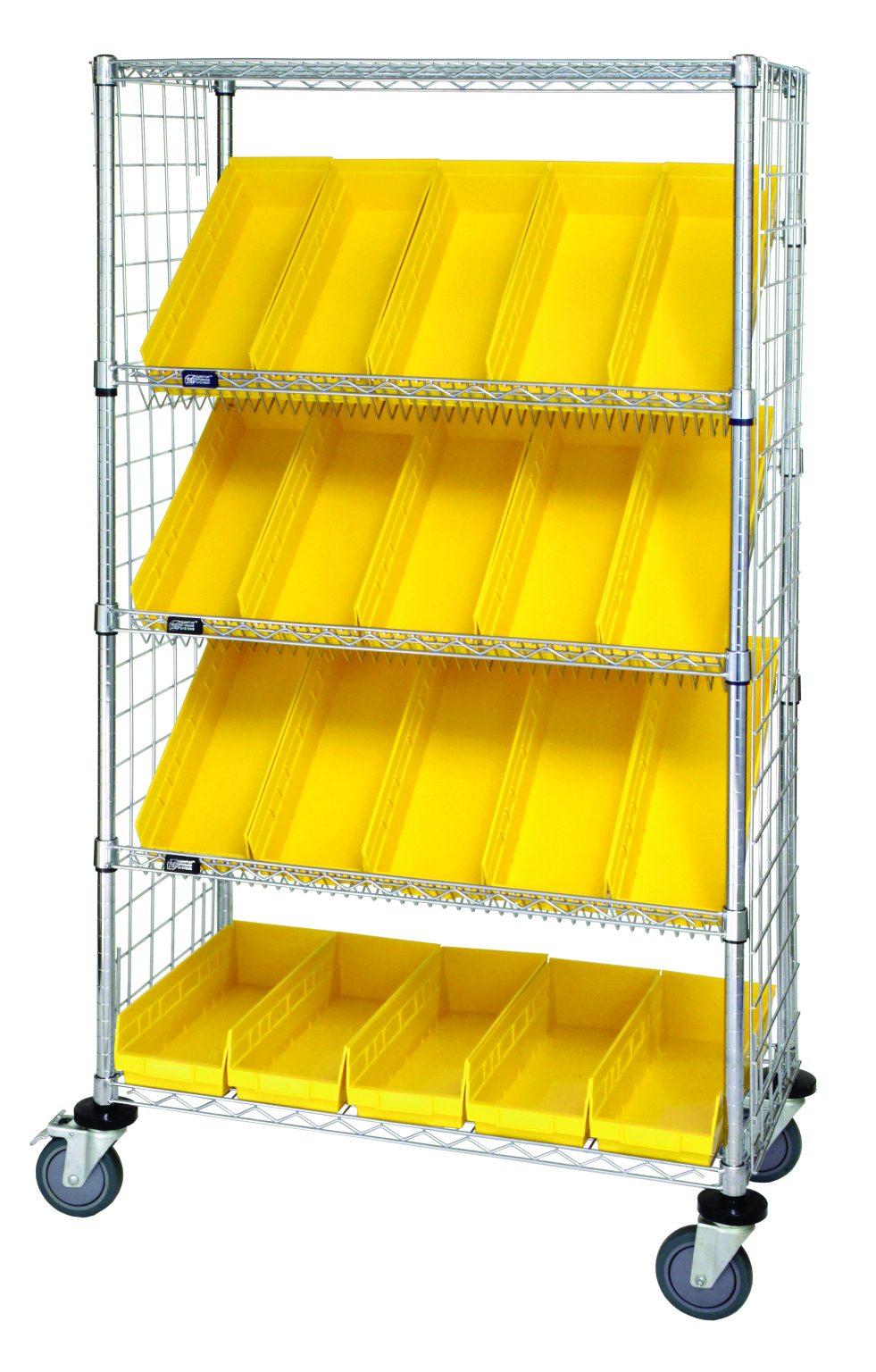

Sloped shelves do three things at once: they present the front of every bin to the operator, they gravity-feed stock forward as it is picked, and they make a wrong-part pick obvious from six feet away. Quantum builds them as work-station carts, as full five- and seven-level mobile units, and as complete packages with the bins already specified.

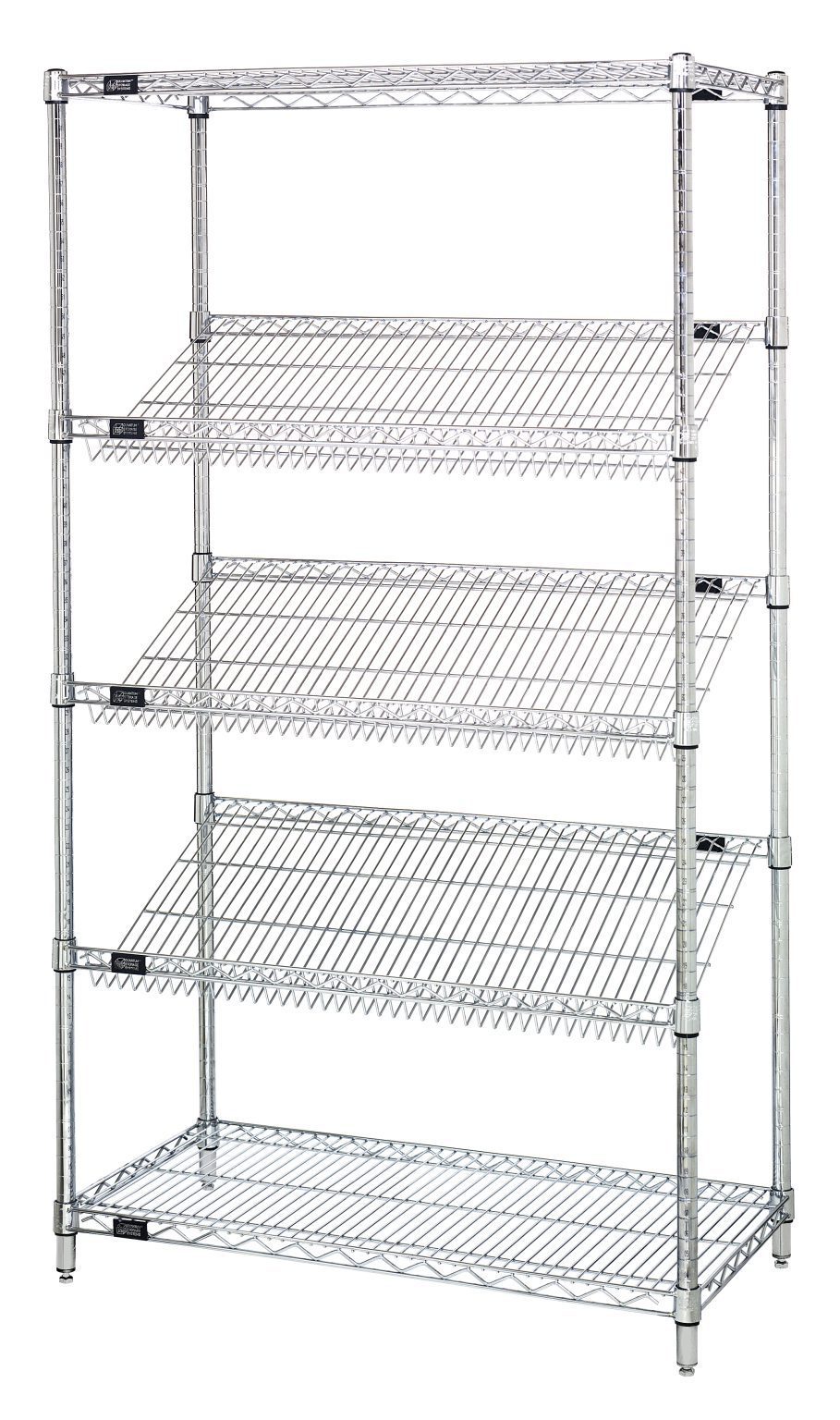

Stationary slanted unitThe same five-level build without casters, for a fixed pick face at the end of a line.

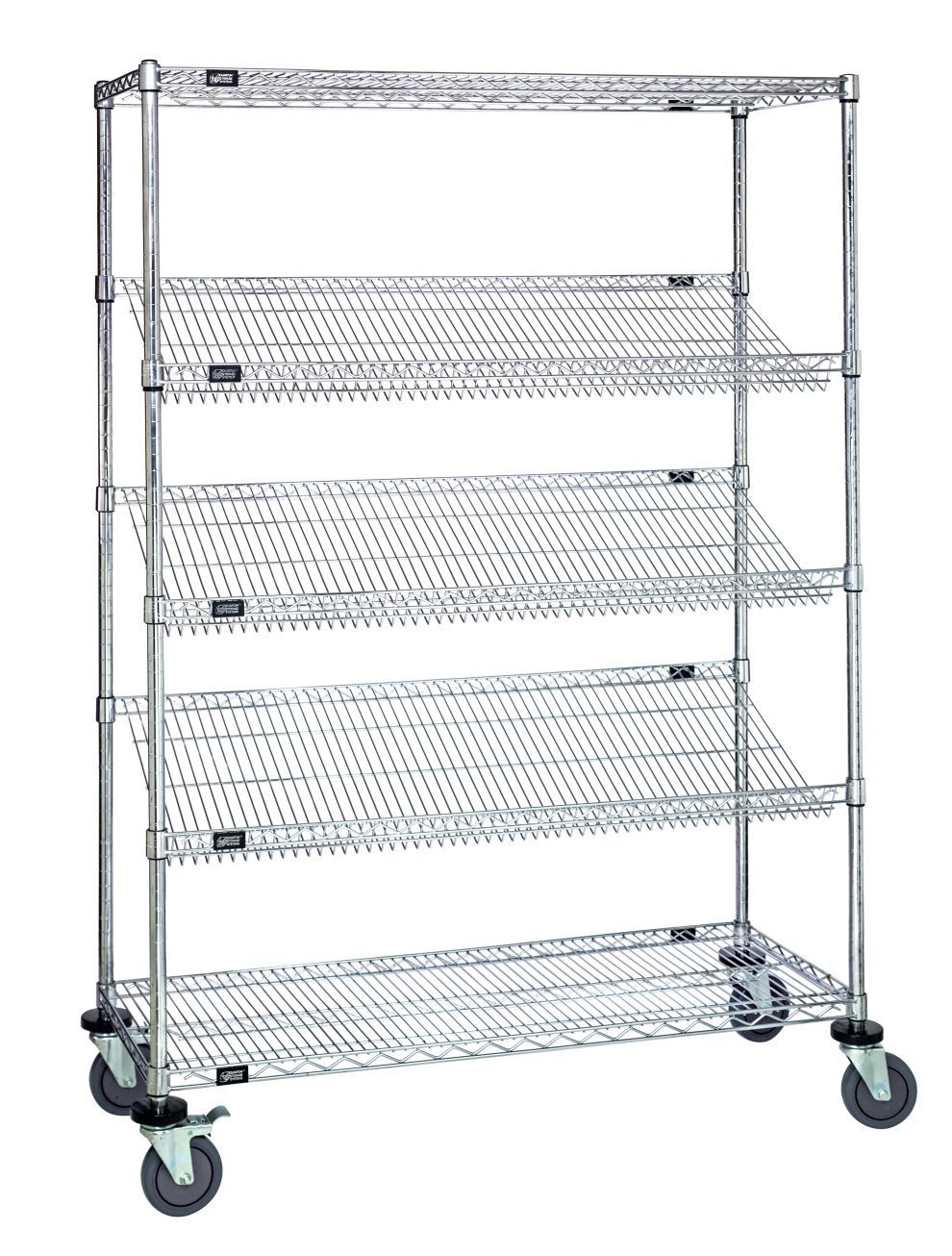

48″ mobile slanted cartLonger pick face for cells that consume more part numbers per operation.

Bin-holder combo cartHanging bins, slanted bins and a flat surface in one unit — the customised exchange cart.

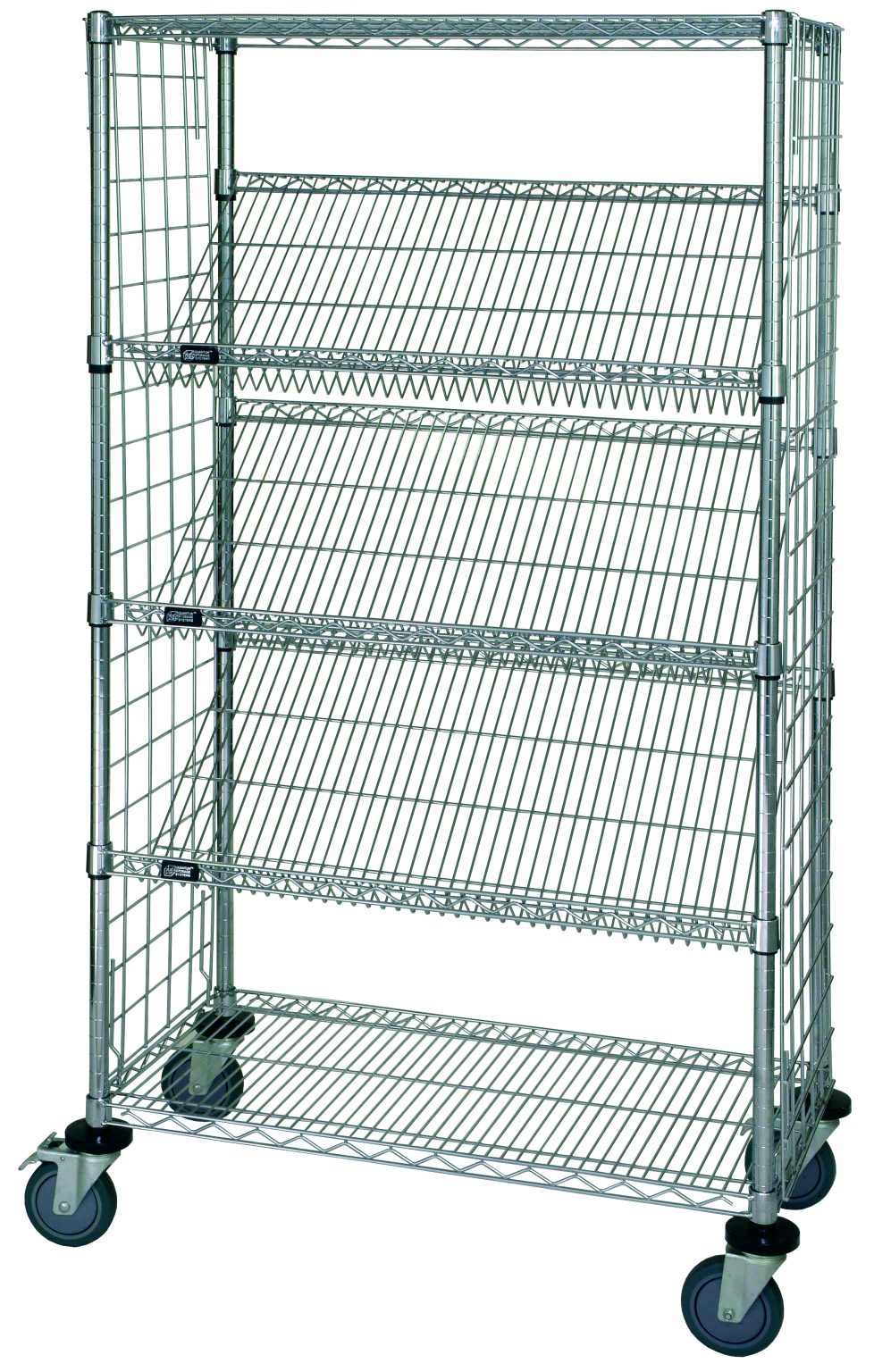

Enclosed combo cartThe same combo with side enclosures, for pre-packed items that must not shift in transit.

Color-coded pick faceOne bin color per unit keeps line-side kits visually separated across several carts.

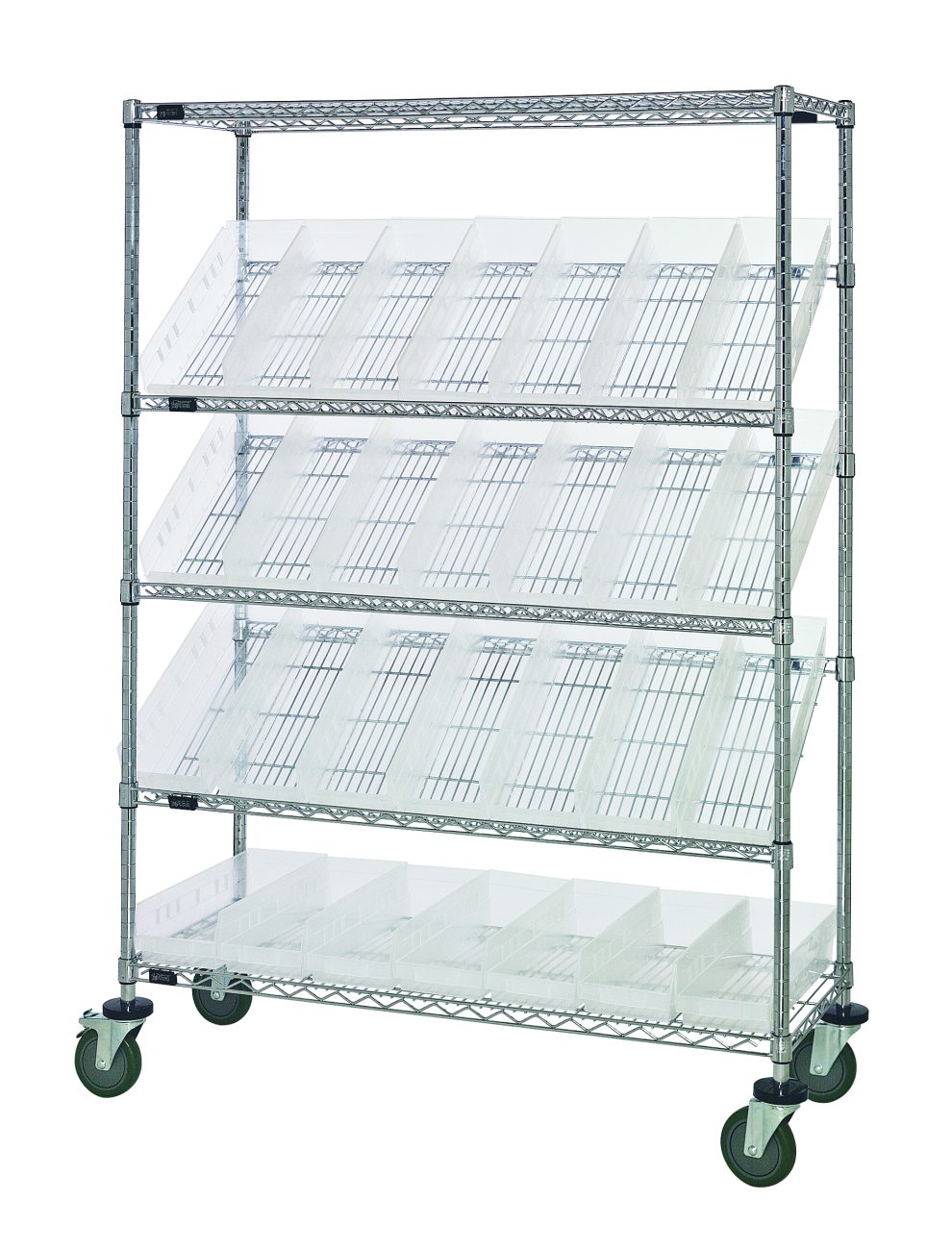

Clear-bin buildClear bins where the part, not the label, is the fastest identifier.

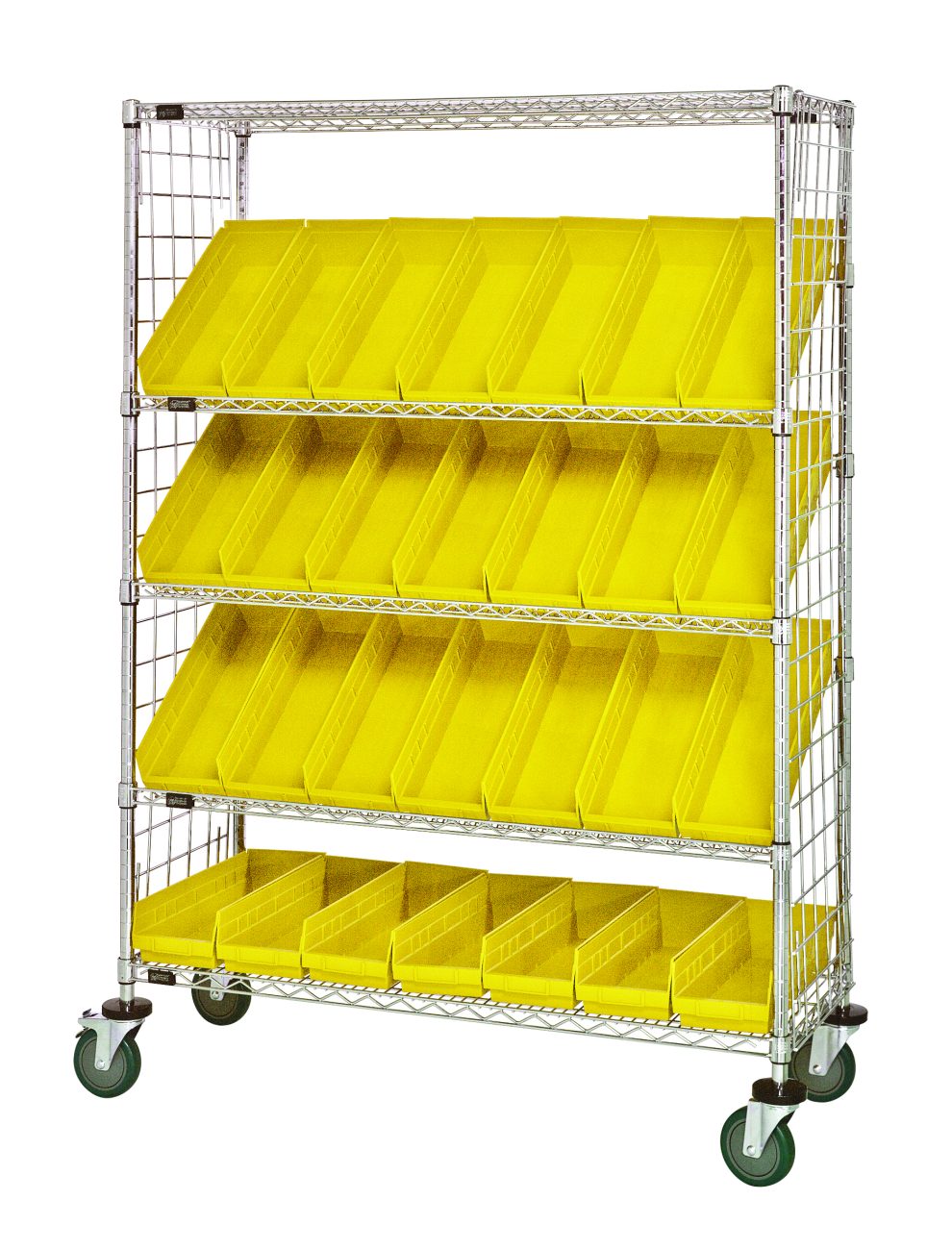

Large-bin slanted packageSixteen 18″ x 11″ x 10″ Ultra bins on four sloped levels for bulkier components.

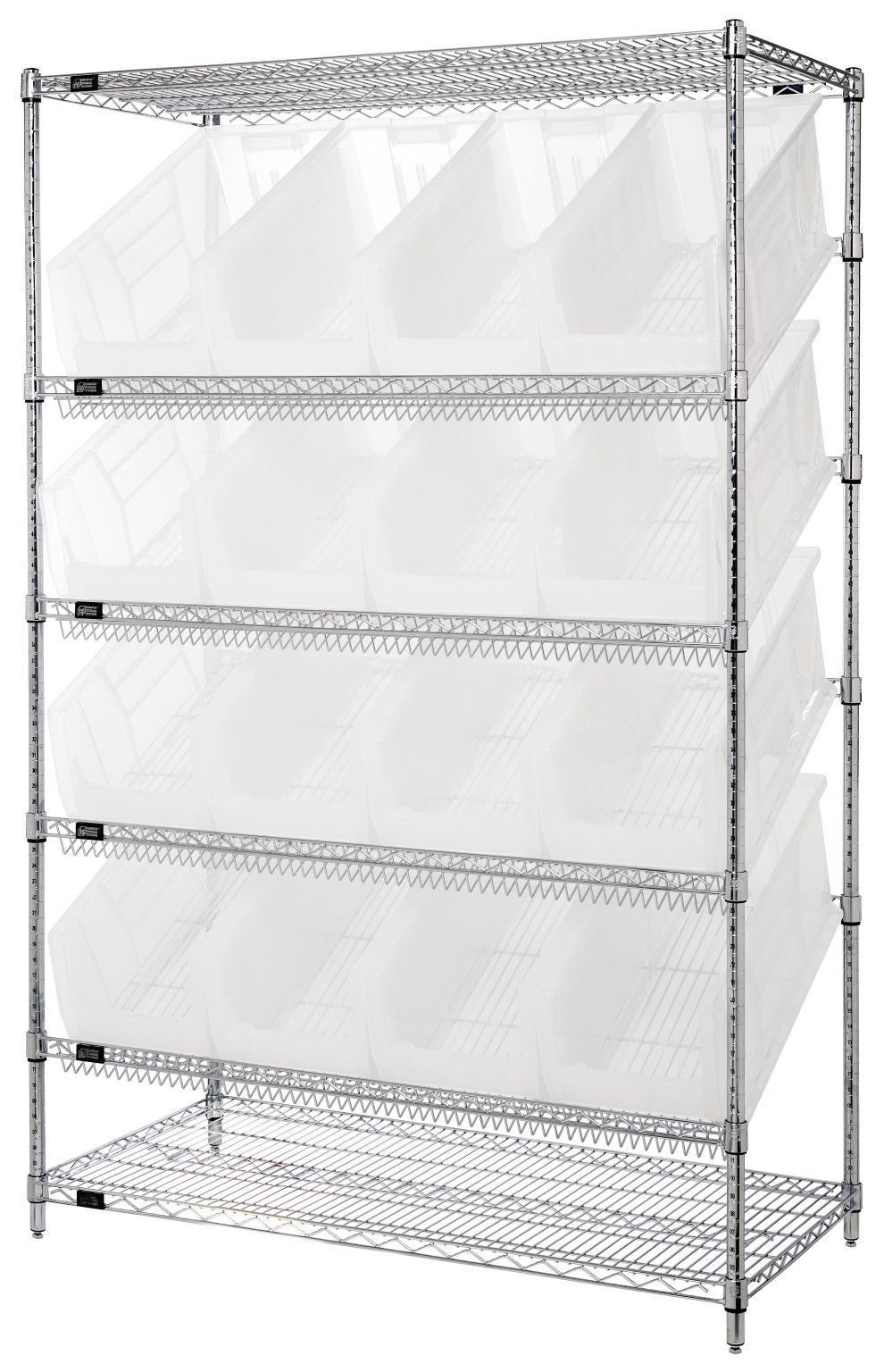

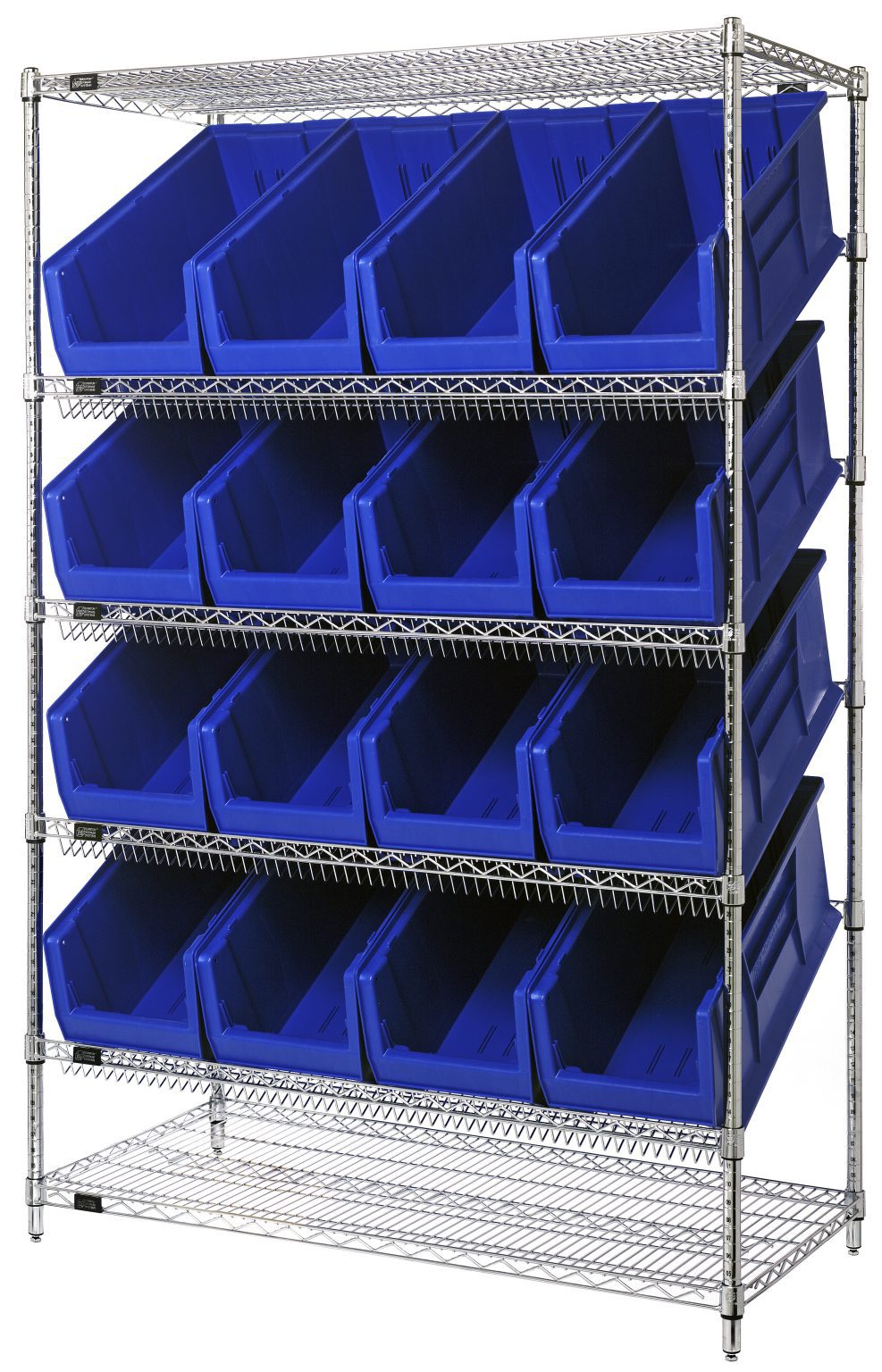

24″ heavy-duty packageSixteen 23-7/8″ x 11″ x 10″ containers where the part is long or heavy.

Double-sided pick carts

Where two operators work the same cart, a double-sided QuickPick build lets both pick at once. The heavy-duty wire systems these bins sit on offer up to 800 lb capacity per shelf, measure 18″W x 36″L x 74″H and can be ordered with or without a mobile kit. The bins carry a moulded label holder on both the front and the back and take optional dividers front-to-back, side-to-side, or both at once for up to four compartments. The matching mobile cart is a two- or three-shelf 18″W x 36″L x 37-1/2″H build with four swivel casters, two braked.

One color per cart is the rule in this family, which sounds like a limitation and is actually the point — color becomes the routing signal on the floor.

Bin transport trucks and tray trucks

When the load stops being “a few bins” and becomes a shift’s worth of them, the cart line steps up to all-welded steel. These are not shelf carts with heavier wheels — the frames, handles and caster mounts are different, and so is the capacity.

Trays, not shelves

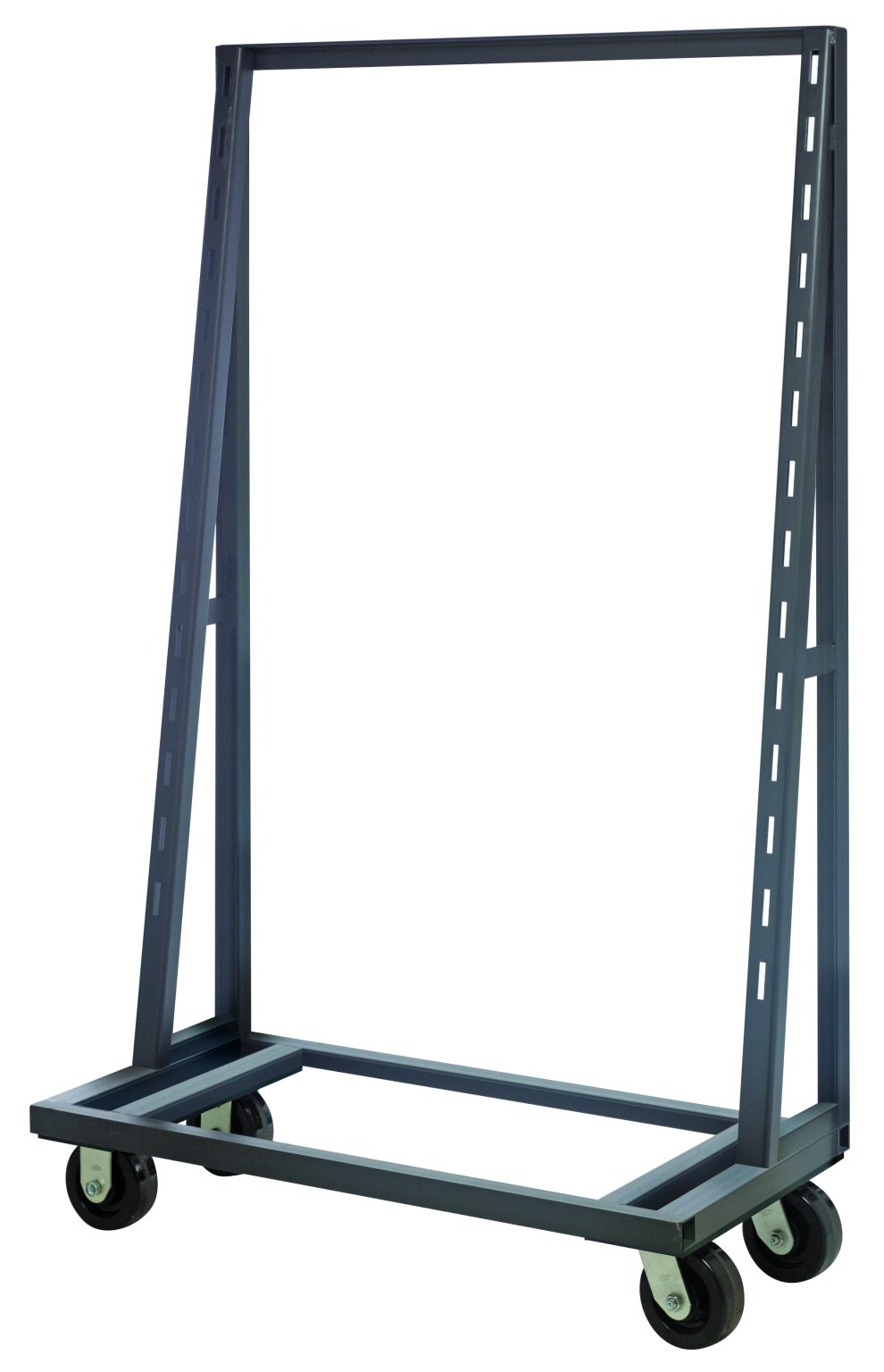

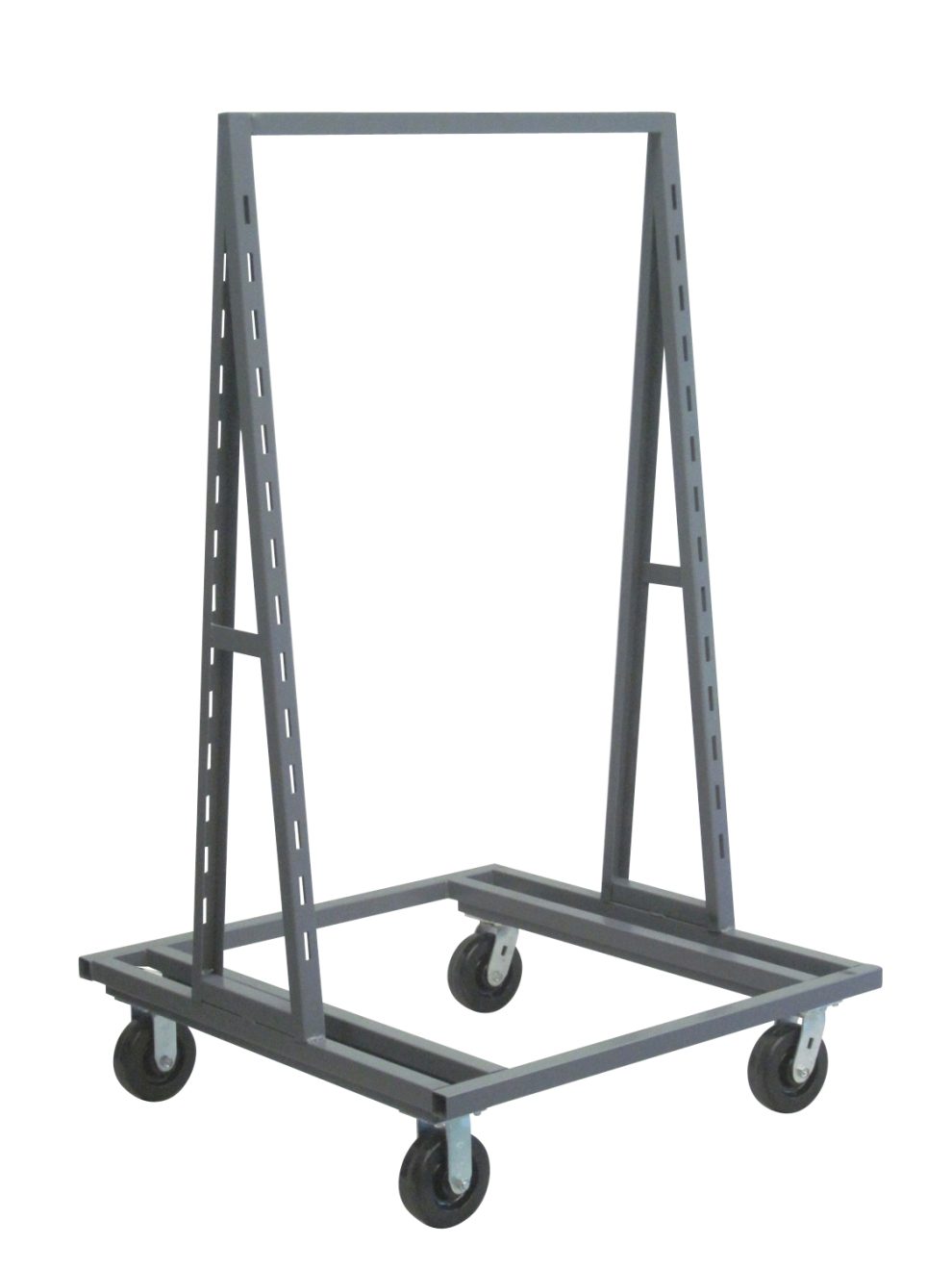

Tray trucks carry removable trays rather than fixed shelves, so a tray of parts leaves the truck and goes to the bench. Open-front and closed-front trays are stocked at 9″ x 36″ x 3″ and 15″ x 36″ x 6″, with matching tray dividers, and a single-sided frame takes 14 of the shallow trays while a double-sided TTD-40 takes 28. Pre-configured units are also stocked — TTD-OT15-240, for example, is a double-sided TTD-40 frame with ten open trays and 40 stackable bins.

The rail cart is the odd one out and the one to remember for bin-heavy stockrooms: it accepts Ultra bins directly on rails, up to 64 of them, and its flat top with raised edges doubles as a work surface. It pairs naturally with the cabinets and bin systems covered on our bin shelving and bin cabinet pages.

Pre-configured tray truckA double-sided frame arriving with ten open trays and 40 bins — one part number instead of three.

Browse stocked builds in the tray truck category and mobile wire carts, or see the bins these trucks are built around on our shelf bins and totes and containers pages.

Accessories that decide whether a cart gets used

Almost every cart complaint we hear traces back to a missing accessory rather than the wrong cart. Specify these on the original order.

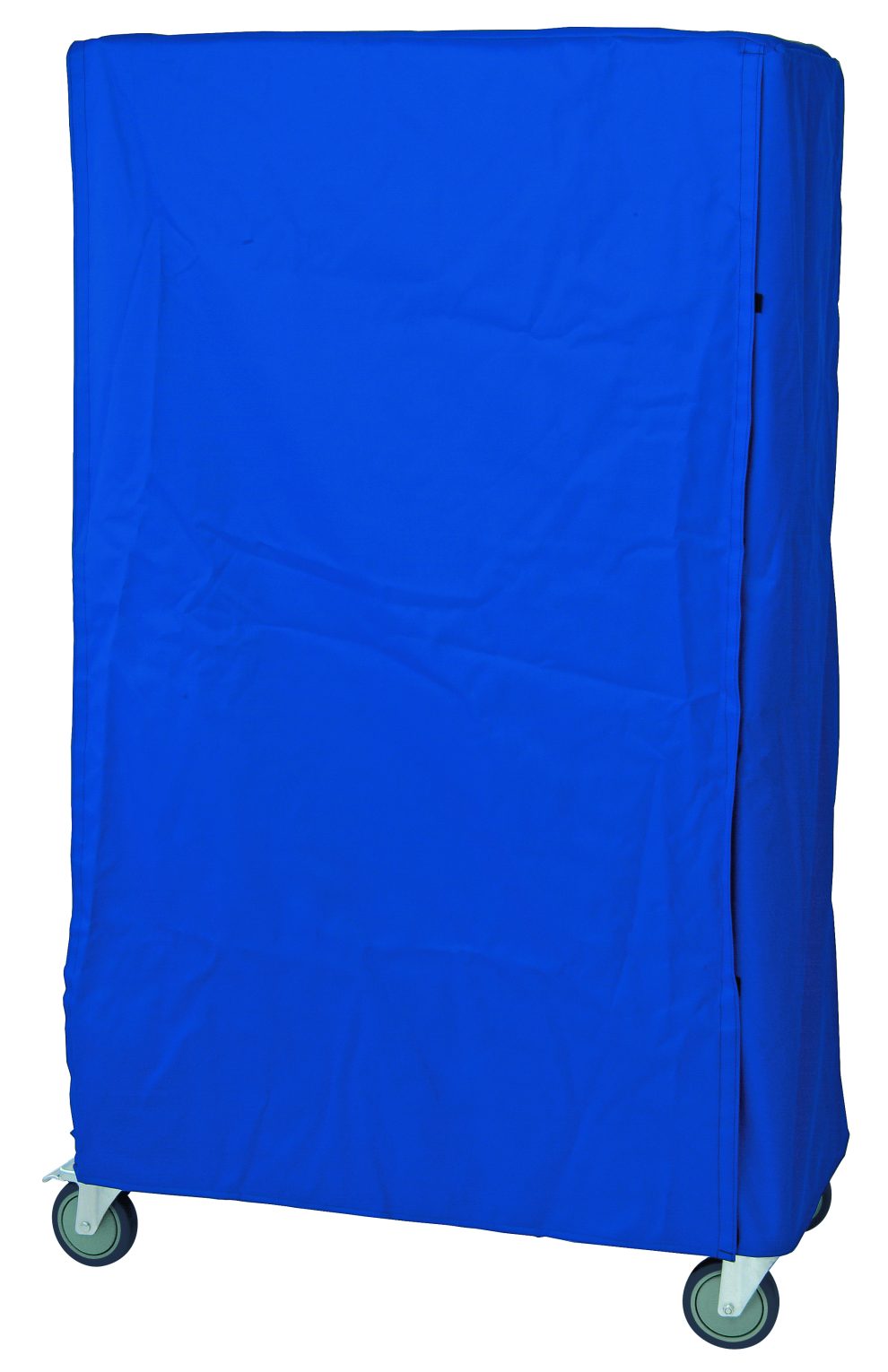

Nylon cart covers400-denier blue or white nylon with a zipper or Velcro flap, in 63″ and 74″ heights — the hard-wearing enclosure.

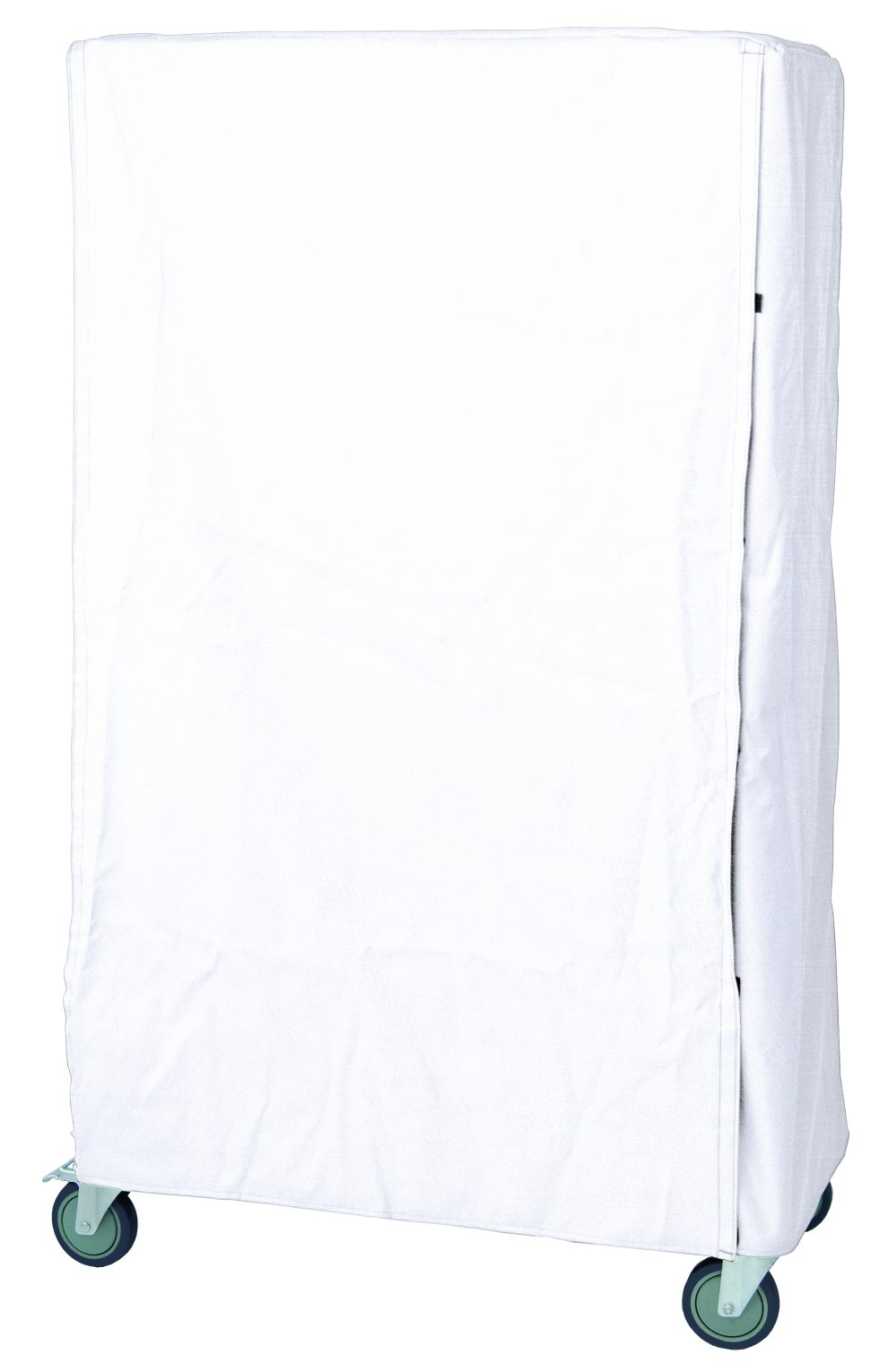

White nylon coversSame construction in white where carts are used in packaging and finished-goods areas.
