Visiontron Classic Post & Rope Stanchions
Decorative post and rope crowd control from Visiontron — HD Classic and PRIME Classic posts, premium ropes and chains, wall plates, breakaways and storage carts, specified, quoted and delivered by Material Handling USA.
3
Post top styles: urn, ball, flat
200+
Post and snap-end finishes
8
Rope and chain materials
5 yr
Warranty on HD Classic posts
Classic Post and Rope Crowd Control, Specified Properly
A post and rope line does two jobs at once. It has to hold a queue or a stand-off distance, and it has to look like part of the room. That is why hotels, casinos, theaters, museums, banks and event venues still choose classic post and rope over a retractable belt in guest-facing spaces — a velour rope between two brass posts reads as hospitality, not security.
Material Handling USA supplies the full Visiontron classic line: premium HD Classic posts, economical PRIME Classic posts, safety-yellow Utility Classic posts, stainless loop posts for chain, and the ropes, chains, wall plates, breakaways, sign frames and storage carts that turn loose parts into a working queue. Visiontron has manufactured people-guidance products in Holtsville, New York for more than 50 years, and every specification on this page comes from their current product documentation.
Where most post and rope orders go wrong
Buying posts first and ropes second. Rope length is set by the opening you need plus about 3″ of sag, and Visiontron caps the recommended post-to-post run at 6′ — so the post count comes out of the rope layout, not the other way around. Send us the footprint and we will size both together.
Choose Your Classic Post System
Four systems cover almost every classic post application. The decision comes down to traffic, environment and how long the line has to last.
HD Classic Posts (Premium)The heavy duty line, built for guest-facing traffic. Heavy gauge steel or stainless construction, a nearly indestructible cast iron base and Visiontron’s EVERstraight® large-diameter threaded base connection so the post does not lean over time. Heavy rounded cast ring accepts 1.5″ ropes or chains with hook or snap ends. Four stock finishes plus 200+ RAL powder-coat colors, and a 5 year warranty. Models CPHD40S (urn), CPHD50S (ball) and CPHD60S (flat).

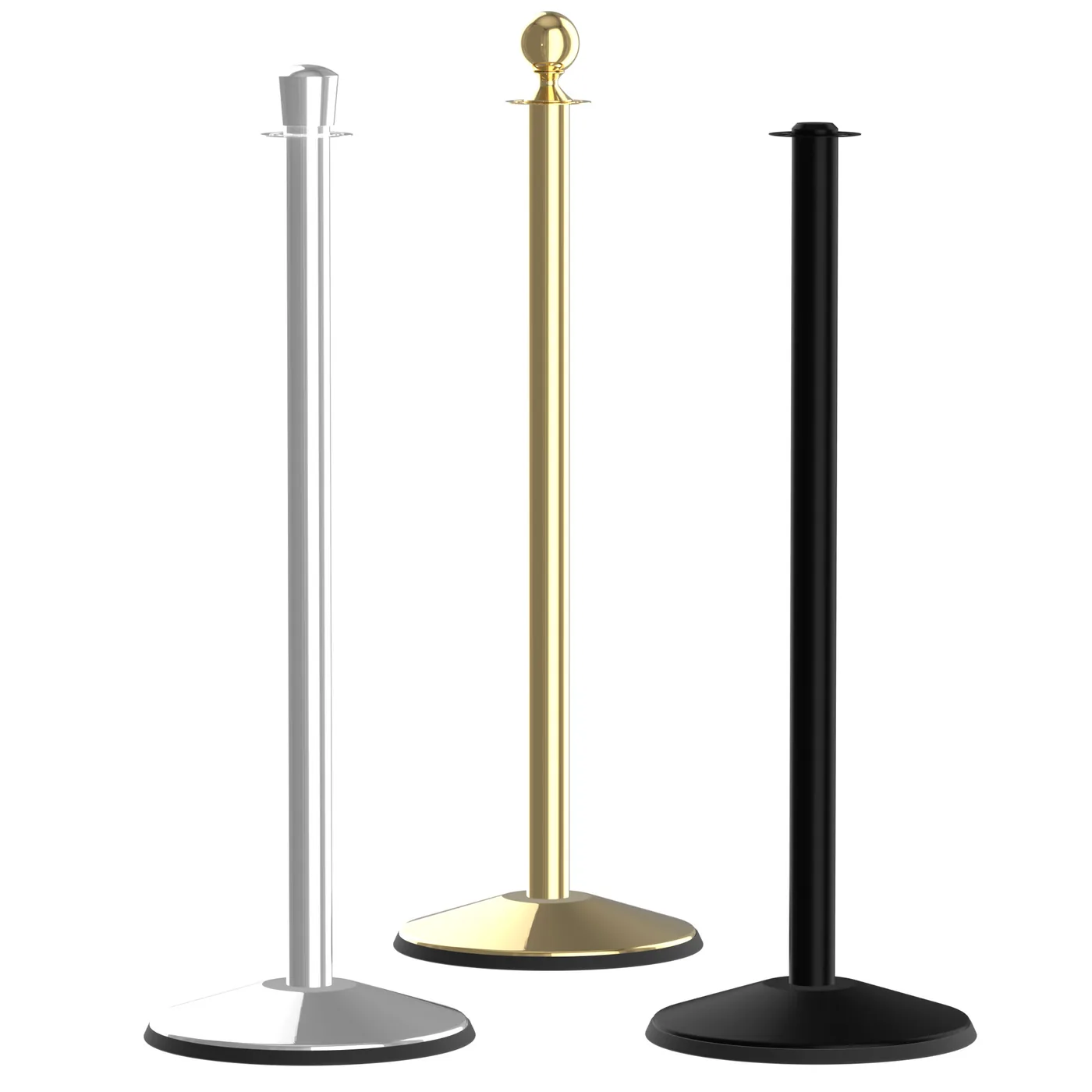

PRIME Classic Posts (Best Value)The economical classic post for lobbies, banks, retail and event use. Cement-filled sloped base with the wedge-action EVERstraight® PRIME connection, a smooth-edged solid metal ring that accepts up to four ropes, built-in rubber floor protectors, knocked-down shipping and tool-free assembly. Three combinations: CP40S-PS1 polished stainless urn, CP50S-PB1 polished brass effect ball and CP61S-SB smooth black flat. Three year warranty.
Utility Classic PostA safety-yellow aluminum post for industrial and outdoor duty. Full-length tie-rod construction keeps the cap and base in tension so they cannot work loose, the flat top takes the same sign frames, and the 18 lb cast baseweight ships with a molded rubberized floor protector and a scuff-proof black ABS cover. Add Weather-Protect or ULTRA Weather-Protect base coating for coastal or wet sites. Ten year warranty.
Loop Post + Chain Stanchions304 stainless steel posts for outdoor queues, parks and walkways where a chain barrier makes more sense than a decorative rope. Two or four loops, single or dual line — the dual-line option discourages line-ducking and protects small children — and five base styles: portable sloped cast iron, MINI-SOCKET®, REMOVABLE standard or SLIM-SOCKET, MAGNETIC and FIXED. Models ST620, ST620D, ST640 and ST640D.Not sure which line fits your traffic?
Tell us how many people move through the line on a normal day and whether the posts get moved or stay put. We will tell you honestly whether HD Classic is worth the difference over PRIME for your space.

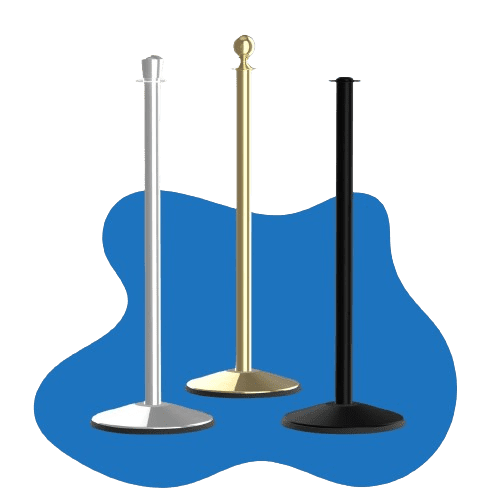

Post Top Styles and Specifications
All three tops fit the same 2″ diameter post and the same 14″ base footprint, so the choice is aesthetic — with one practical exception noted below.
Urn TopThe traditional hospitality profile and the most requested top style. On the HD line this is model CPHD40S at 39.125″ tall; on the PRIME line it is CP40S-PS1 in polished stainless. The classic choice for hotel lobbies, ballrooms and red-carpet entries.

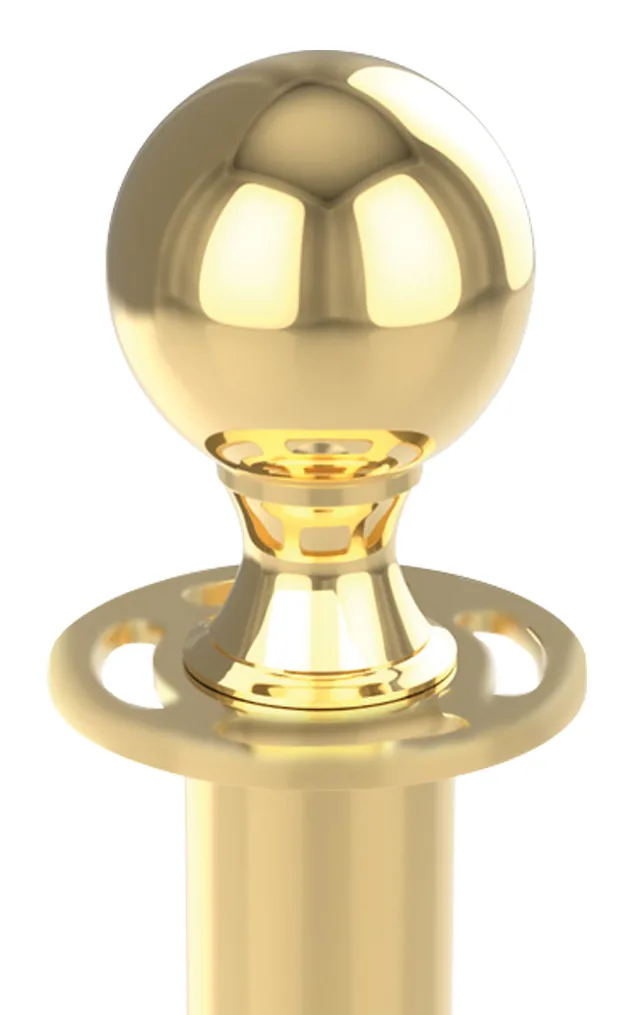

Ball TopThe dressiest of the three and the tallest post: CPHD50S stands 40.875″. Polished brass or polished brass effect reads as formal at a distance, which is why it is the default in casinos, theaters and fine-dining entrances.
Flat TopThe functional top. CPHD60S is 37.375″ tall, and because HD Classic post tops twist off by hand, a flat top is the easiest place to add a post-top sign frame later. The usual pick for banks, government counters and anywhere the queue also has to communicate.
What makes an HD Classic post different
Three details matter in service. The heavy cast ring is thick, rounded for safety and accepts 1.5″ ropes or chains with hook or snap ends — low-cost stanchions often use a stamped ring with a sharp edge that can cut a hand. The EVERstraight® base connection is a large-diameter threaded steel fitting rather than a through-bolt and welded cup, which is the usual reason competing posts start to lean. And the tops twist off by hand, so a sign frame can be added years later without buying a new post.
Cast iron base weights come with integrated rubber floor protectors and either a matching metal or a scuff-proof black ABS base cover. Smooth black posts use the CPHD41S, CPHD51S and CPHD61S model numbers with the black ABS cover; every other finish uses CPHD40S, CPHD50S and CPHD60S with a matching metal cover.
| Model | Line | Top | Height | Base diameter | Weight | Construction |
|---|---|---|---|---|---|---|
| CPHD40S | HD Classic (premium) | Urn | 39.125″ | 14″ | 21 lbs | Heavy gauge steel or stainless, cast iron sloped base |
| CPHD50S | HD Classic (premium) | Ball | 40.875″ | 14″ | 21 lbs | Heavy gauge steel or stainless, cast iron sloped base |
| CPHD60S | HD Classic (premium) | Flat | 37.375″ | 14″ | 20 lbs | Heavy gauge steel or stainless, cast iron sloped base |
| CP40S-PS1 | PRIME Classic (value) | Urn | 37.675″–41.25″ by top style | 14″ | 20 lbs | 201 stainless steel, cement-filled sloped base |
| CP50S-PB1 | PRIME Classic (value) | Ball | 37.675″–41.25″ by top style | 14″ | 20 lbs | Polished brass effect over 201 stainless, cement-filled base |
| CP61S-SB | PRIME Classic (value) | Flat | 37.675″–41.25″ by top style | 14″ | 20 lbs | Smooth black over steel, cement-filled sloped base |
Ordering shorthand
HD Classic posts are ordered as model, base specification and finish — for example CPHD40 S PS1 is an urn top on a sloped (portable) base in polished stainless steel. Use S for a sloped base and R for a removable socket mount.
Bases and Mounting Options
The base decides whether a queue is portable, semi-permanent or fixed — and it is the single biggest factor in how long a post stays straight.
| Mount | Available on | Use it when | Notes |
|---|---|---|---|
| Portable sloped — cast iron | HD Classic, Utility, Loop Posts | Portable post you can move and store | EVERstraight® threaded connection, integrated rubber floor protectors, matching metal or black ABS cover, ships knocked down |
| Portable sloped — cement filled | PRIME Classic | Lower-traffic lobbies and banks on a budget | Wedge-action EVERstraight® PRIME fitting, built-in floor protectors, tool-free assembly |
| REMOVABLE (permanent socket) | HD Classic, Loop Posts | Fixed queue positions that still have to clear the floor | Post lifts out of a flush socket; plug included so the open socket is not a trip hazard |
| MINI-SOCKET® | Loop Posts | Maximum floor space — posts look almost baseless | Smallest footprint of any mount |
| MAGNETIC | Loop Posts | Semi-permanent queue with no drilling | Adheres to most finished surfaces with VHB tape |
| FIXED | Loop Posts | Permanently established queue lines | The most economical permanent mount |
Cast iron versus cement filled
Both look similar under a base cover, and they do not age the same way. Visiontron rates cast iron bases at 10–20+ years in heavy-traffic environments such as airports, casinos and arenas, and cement-filled bases at 3–5 years in lower-traffic areas like bank lines and hotel lobbies, where the cement can crack. Cast iron also cleans up with a damp cloth and never needs a tool to re-tighten, because the connection is threaded rather than bolted.
If posts are moved and re-set every day — ballrooms, event spaces, stadium concourses — the cast iron base is the cheaper purchase over the life of the queue. If the line is set once and rarely touched, cement filled is a reasonable saving.
| Base material | Life expectancy | Typical applications | Pros | Cons |
|---|---|---|---|---|
| Cast iron | 10–20+ years | Airports, casinos, arenas, hotels — heavy traffic | Highly durable and stable, very heavy, no tools required, upgrades available | Higher initial cost than cement filled |
| Cement filled | 3–5 years | Banks, hotel lobbies and other lower-traffic areas | Lower purchase price | Cement can crack over time |
Removable socket mounts
Where a queue always forms in the same place but the floor has to clear — a lobby that converts to an event space, a security checkpoint that opens up after peak — a REMOVABLE base mount is the right answer. A permanent socket is set into the floor, the post drops in and lifts out without tools, and a plug fills the socket so it is not a trip hazard or a dirt trap. Loop posts add MINI-SOCKET®, MAGNETIC and FIXED mounts for the same reasons at a smaller footprint.
Post and Hardware Finishes
Finish is where a classic queue either matches the building or fights it. Four stock finishes cover most projects and ship fastest:
- Polished stainless steel (PS1) — the default in modern lobbies and the brightest of the stock finishes (Grade 201; not for extended outdoor use)
- Satin stainless steel (SS) — Grade 304, the choice where fingerprints and outdoor exposure are a concern
- Polished brass plated (PB2) — traditional hospitality, theaters and formal entries
- Smooth black over steel (SB) — disappears in exhibit and retail design, and pairs with the black ABS base cover
Beyond stock, Visiontron offers over 200 RAL powder-coat colors at no additional cost plus plated and clear-coated specialty finishes — satin chrome, satin brass, statuary bronze and solid brass among them. Specialty finishes are made to order: Class 1 finishes require a minimum of five pieces and a 2–3 week lead time, while Class 2 and Class 3 finishes require fifteen pieces and 5–7 weeks. Rope snap ends, wall plates and breakaways can be finished to match the post, which is the detail that makes a queue look specified rather than assembled.
Matching a finish schedule?
Send us the RAL number or a sample and we will confirm what is stock, what is a specialty finish, and what the minimum quantity and lead time will be before you commit.
Ropes and Chains
Premium classic ropes are handcrafted per order over a 1.5″ tightly woven cotton core — the part you cannot see and the reason a good rope hangs in an even swag instead of a limp curve. Each rope ships with solid metal ends in your choice of finish.
| Material | Core | Character | Environment | Colors |
|---|---|---|---|---|
| Velour (841) | 1.5″ woven cotton core | Plush and durable — the red-carpet standard for decades | Indoor | 11 colors incl. black, red (PMS 7427), blue (PMS 282), maroon, beige, antique gold |
| Naugahyde (842) | 1.5″ woven cotton core | Leather-like, wipes clean | Indoor and mild outdoor | Black and light beige, plus special order |
| Microfiber (845) | 1.5″ woven cotton core | Soft, strong and easy to clean | Indoor | Five colors |
| Dye-sub microfiber (845-DS) | 1.5″ woven cotton core | Printed to your artwork, pattern or logo | Indoor | Hundreds of colors and custom prints |
| Velvet (847) | Foam or cotton core | Plush feel at a lower price point | Indoor | Black, red (PMS 206), blue (PMS 2145) |
| Vinyl (848) | Cotton core | Naugahyde look for less | Indoor | Black |
| Braided polypropylene (843) | 1.5″ diameter, no cotton core | Weatherproof utility rope | Outdoor | Black, yellow, coral red, natural hemp |
| Stainless chain | 3/16″ welded stainless links | Cut to your specified length (±1″ depending on links) | Outdoor rated | Bright polished stainless |
Premium Classic RopesVelour, naugahyde and microfiber over a 1.5″ cotton core in 25 colors, with four stock snap-end finishes and 200+ specialty finishes. Dye-sub microfiber prints your artwork, pattern or logo along the whole rope. Made to order and non-returnable, so lengths get confirmed before release.
PRIME Classic Velvet RopesThe value rope: plush velvet over a 1″ foam core in black or red at 6′ long, with polished chrome or polished brass effect snap ends. A 1.5″ heavy cotton-core version is offered in blue with chrome ends and red with brass-effect ends in 6′ and 8′ lengths while supplies last.
Snap Ends and Hook EndsSolid metal snap ends in polished chrome, polished brass, satin chrome or smooth black, or upgrade to heavy duty solid brass. Hook ends (SUB-HK) have no closing mechanism, which is what you want when staff open and close the line dozens of times a shift.
Velour Rope in ServiceVelour 841 has been the industry standard for decades for a reason: it holds its nap, it photographs well and it is available in eleven colors including red PMS 7427 and blue PMS 282. Specify it for indoor, guest-facing lines.Rope length rule of thumb
Overall rope length = opening distance + about 3″ for sag. Standard lengths run 2′ to 10′; the maximum recommended run is 6′ (72″) between posts and 10′ (120″) from a wall plate. Longer ropes are available on a custom quote.
Hardware, Accessories and Storage
These are the parts that decide whether a queue is easy to run day to day — and they are the parts most often left off a first quote.

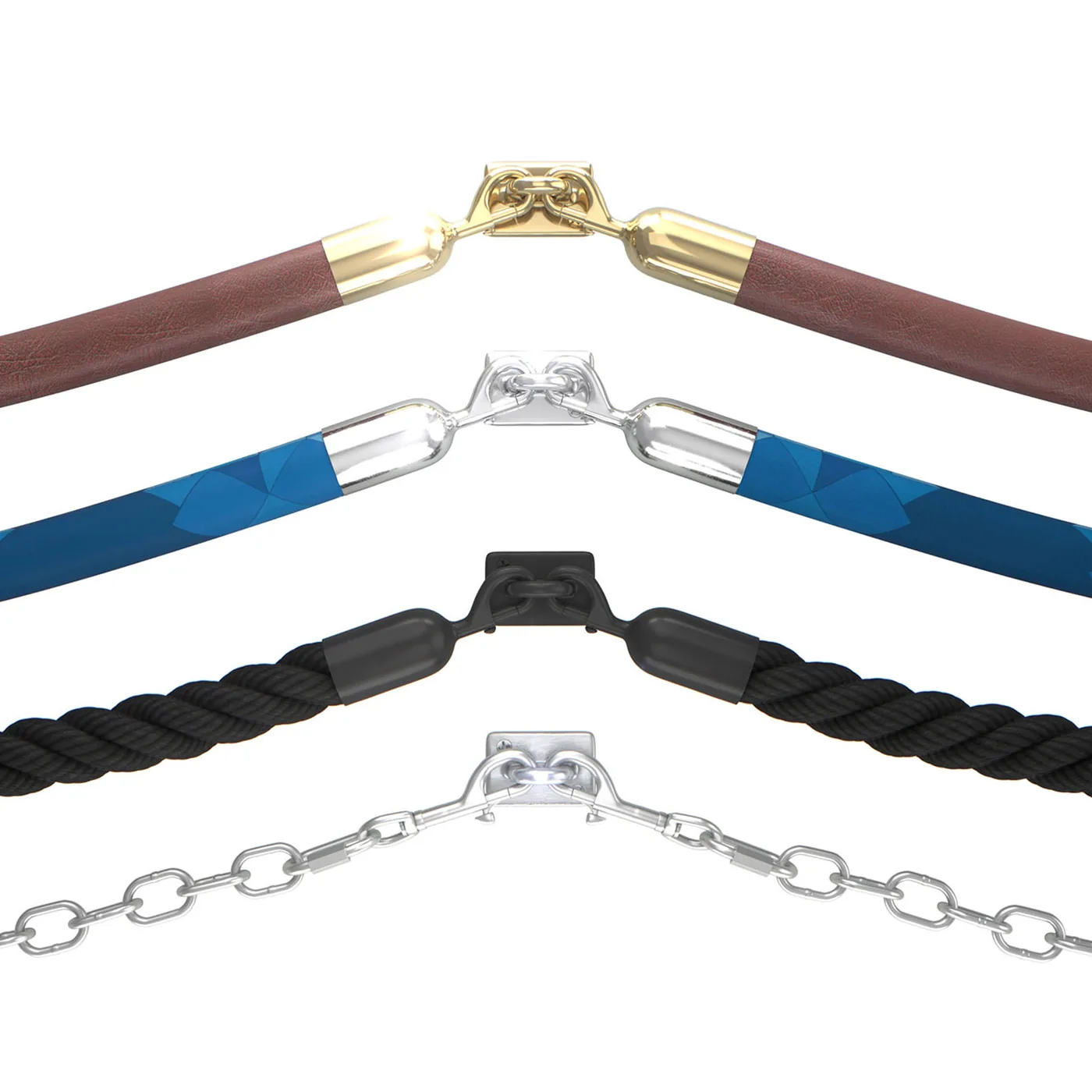

Classic Rope Wall PlatesModel WP in solid brass, under 1 lb, and each plate accepts two ropes — including ropes from other manufacturers. Terminating a run into a wall instead of another post is the cheapest way to buy back floor space in a tight lobby. Polished chrome, satin chrome and smooth black are outdoor ready; polished brass needs a protective coating outdoors. 200+ RAL colors available.

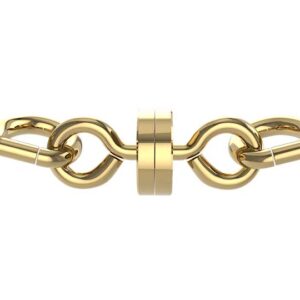

Magnetic BreakawaysModel SUB-MBR joins two ropes at the center and releases under force so a rope line cannot trap people during an evacuation — the reason many fire officials ask for them on assembly-space queues. Under 1 lb, polished chrome or polished brass to match your snap ends, and it retrofits onto ropes from any manufacturer. Confirm requirements with your local authority having jurisdiction.
Chain Snap Ends with Quick LinksStainless steel snap ends with a spring-loaded trigger, so a chain barrier can be opened and closed in a second without unbolting anything. The right choice on service gates and delivery openings that change through the day.
Stainless Steel Quick Links304 stainless screw-lock links that connect factory-cut chain to a post or wall plate. More secure and more permanent than a snap end, and the standard way to close out a chain run on a loop post.
Classic Post Storage CartsVertical model VPSC-18 holds 18 posts, needs only a 17″ lift to load, ships assembled at 150 lbs and has a removable top tray so it doubles as a flat cargo cart. Horizontal HPSC-12 and HPSC-24 store 12 or 24 posts — the 24-post cart holds them in a 45″ × 34.5″ space instead of the 54″ × 84″ the same posts take on the floor. Fits classic posts up to 2.75″ diameter from any manufacturer.
HD Classic Post Sign FramesBecause HD Classic post tops twist off by hand, a sign frame is a field upgrade rather than a new post. Model FR811HD takes an 8.5″ × 11″ insert (7.75″ × 9.25″ viewable, two acrylic inserts included); model FR2228HD takes 22″ × 28″ (20.25″ × 26.25″ viewable, inserts sold separately). Polished stainless, satin stainless, polished brass plated and smooth black.Quote the whole system, not just the posts
Wall plates, breakaways, spare ropes, sign frames and a storage cart usually cost less than replacing posts that were stacked on a back-of-house floor for a year. We will price the complete queue.
Laying Out a Classic Post and Rope Queue
Good rope layouts are mostly arithmetic. Work from the opening you need, not from the number of posts you happen to have.
- Measure each opening, then add about 3″ to the rope length for sag
- Keep post-to-post runs at 6′ (72″) or less; use a wall plate for runs up to 10′
- Every rope needs a termination at both ends — five segments in a straight run means six posts or wall plates
- Add a post at every corner of a switchback, and expect roughly one 6′ rope per 6′ of queue
- Terminate into walls or columns with wall plates wherever you can; each plate accepts two ropes and saves a post plus its footprint
- Leave the required egress width clear and specify magnetic breakaways where a line crosses an exit path
- Keep an ADA-accessible route to the service point — see our guide to ADA-compliant queues
- Order 5–10% spare ropes and snap ends up front; ropes are made to order and matching a finish later takes weeks
Storage is part of the layout
Posts that get stacked in a corner between events are the posts that come back scratched, bent or leaning. A horizontal cart stores 24 posts in a 45″ × 34.5″ footprint compared with the 54″ × 84″ those posts occupy lying on the floor, and a vertical cart needs only a 17″ lift to load, which matters when the same crew sets and strikes a line every day.
If your queue changes shape between a normal day and an event day, plan two layouts and buy the rope lengths for both. It is far cheaper than improvising with the wrong lengths and leaving 18″ of rope on the floor.
Send us the space
A floor plan, a photo or even rough dimensions of the opening or queue. Tell us the traffic, whether the line moves indoors or outdoors, and how it should look.
We lay out posts and rope lengths
We work back from the opening distance plus 3″ of sag to a rope length, then set post spacing, corner posts and wall-plate terminations so you buy the right count instead of guessing.
Confirm finishes and hardware
Post finish, top style, rope material and color, snap or hook ends, breakaways, sign frames and storage carts — quoted as one system with real lead times.
Delivery and rollout
Posts ship knocked down to keep freight down and assemble by hand with no tools. We can stage a phased rollout so a lobby is never without a queue.
Where Classic Post and Rope Stanchions Are Used
The same post and rope system solves different problems in different buildings. These are the applications we quote most often.

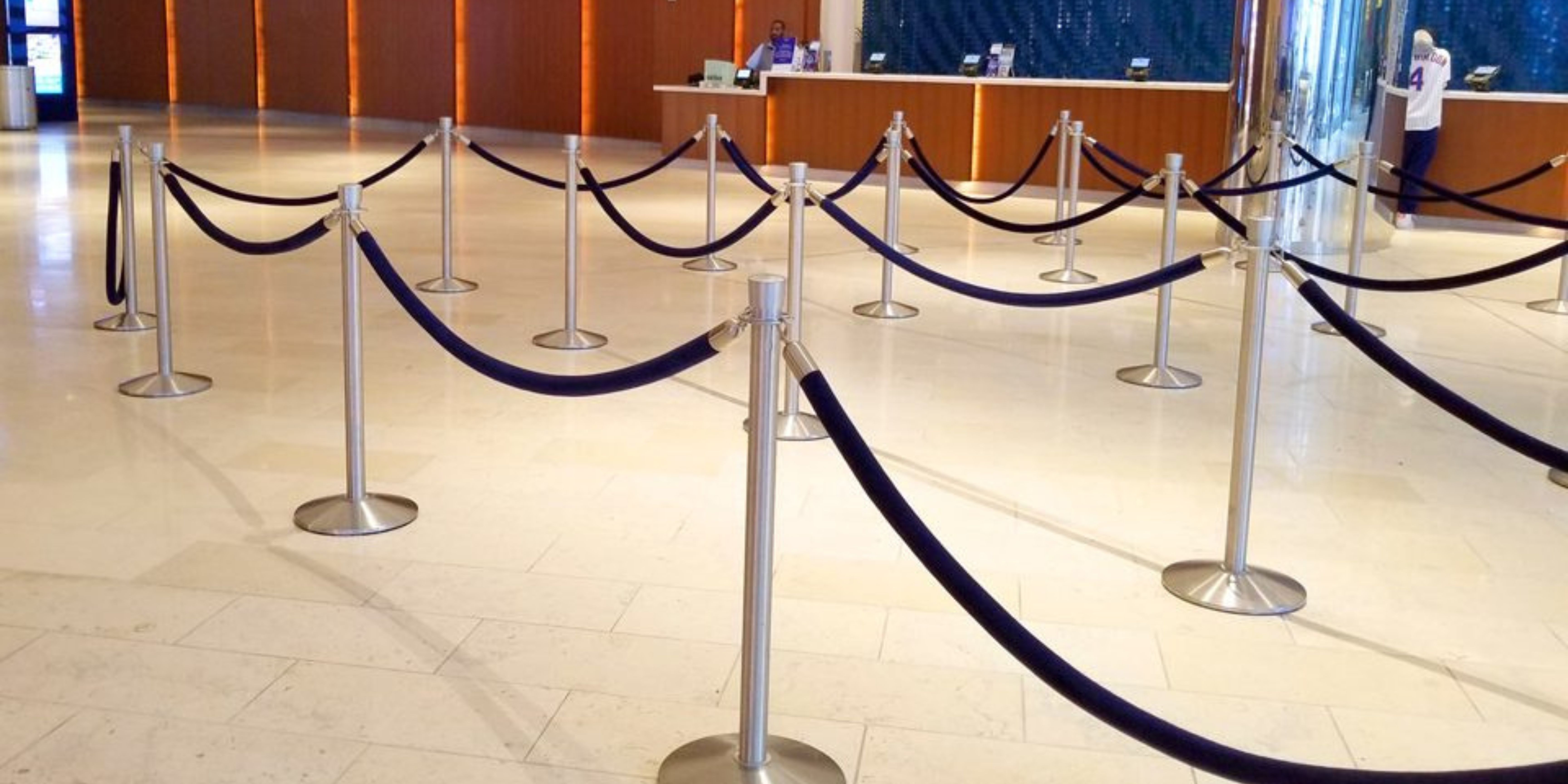

Hotels, Resorts & BallroomsFront-desk switchbacks, ballroom entries and event registration. Stainless or brass posts with velour ropes read as hospitality rather than security, and posts break down into storage carts between functions.
Casinos & GamingCage lines, high-limit rooms and player-club counters run all day, every day — the case for HD Classic posts on cast iron bases and a 5 year warranty rather than an economy stanchion that starts leaning in month three.

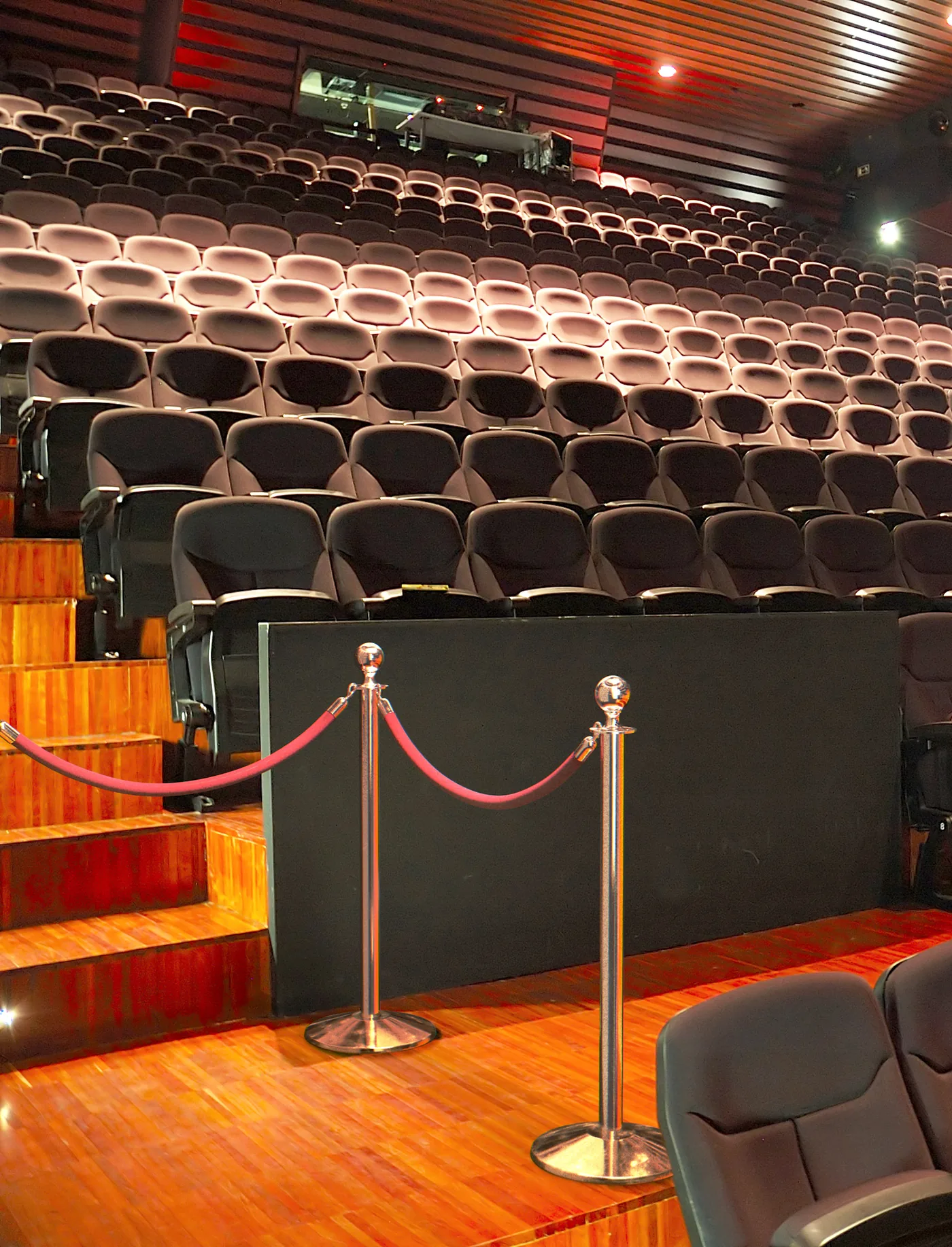

Theaters & Performing ArtsStage protection, will-call lines and lobby bars. A rope line keeps patrons off the apron without blocking sightlines, and magnetic breakaways keep the egress path clear.
Museums & GalleriesSmooth black posts with black ropes disappear against most exhibit design while still holding a stand-off distance. Add an angled sign bracket when a label has to be read from above.
VIP, Red Carpet & Special EventsBrass posts with red velour ropes are the shorthand for a VIP entrance. Custom dye-sub microfiber ropes let a sponsor or brand color run the length of the line.

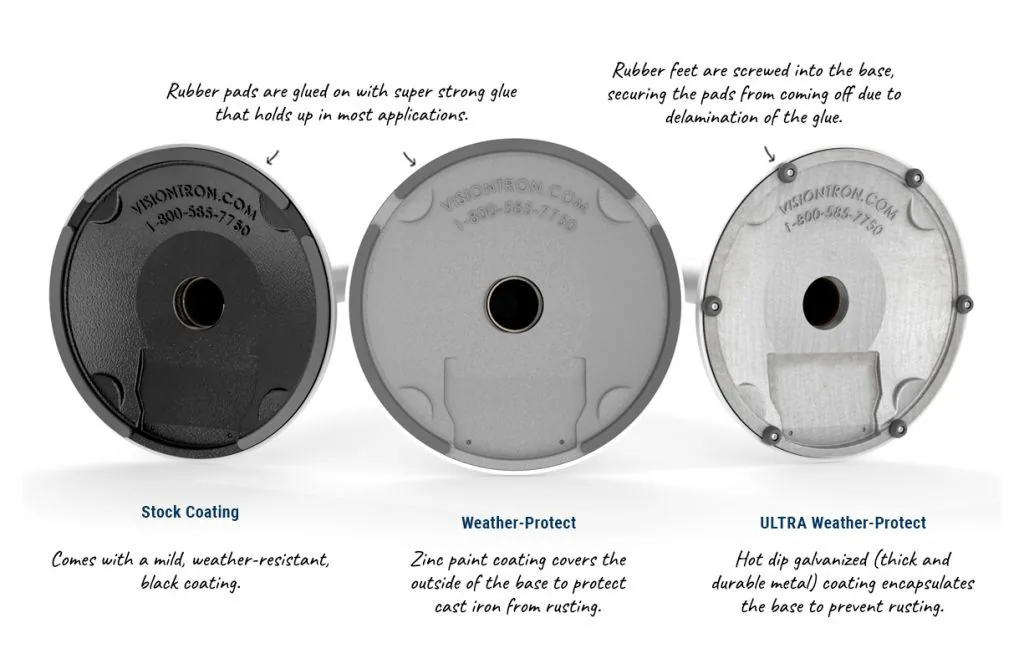

Outdoor Queues, Parks & Industrial SitesOutdoors the base coating decides service life. Stock bases carry a mild weather-resistant black coating; Weather-Protect adds a zinc paint coating over the cast iron; ULTRA Weather-Protect hot dip galvanizes the base for coastal and wet sites. Pair that with loop posts and stainless chain or braided polypropylene rope, or the safety-yellow Utility Classic post on industrial ground.Compare the Classic Lines
Side by side, the four systems separate cleanly by environment and expected service life.
| System | Base options | Post construction | Rope or chain | Warranty | Best for |
|---|---|---|---|---|---|
| HD Classic (CPHD40/50/60) | Cast iron sloped or removable socket | Heavy gauge steel or stainless | 1.5″ premium ropes or chain, hook or snap ends | 5 years | High-traffic, guest-facing, long-term installations |
| PRIME Classic (CP40/50/61) | Cement-filled sloped | Steel or 201 stainless | 1″ foam-core or 1.5″ cotton-core PRIME velvet ropes | 3 years | Banks, retail, lobbies and events on a budget |
| Utility Classic | Cast 18 lb baseweight, Weather-Protect optional | Safety yellow aluminum, tie-rod | 1.5″ cotton-core rope, braided polypropylene or chain | 10 years | Industrial, outdoor and abuse-prone locations |
| Loop Post (ST620/ST640) | Sloped, MINI-SOCKET, REMOVABLE, MAGNETIC or FIXED | 304 stainless steel | Chain, braided polypropylene or cotton-core rope | Contact us | Outdoor queues, parks, walkways, utility barriers |
Classic post and rope or retractable belt?
Post and rope wins where the line is short, the look matters and staff adjust it by hand — hotel front desks, VIP entries, theater lobbies, gallery stand-offs. A retractable belt wins where the queue is long, reconfigured constantly, or has to carry printed messaging on the belt itself, which is the norm in airports, arenas and big-box retail. Many facilities run both: rope in the public-facing lobby, belt in the operational queue behind it. See our Visiontron retractable belt stanchions page for that side of the line, and 6 steps to a great queue experience for the design principles behind both.
Classic Post and Rope Stanchion FAQs
What rope lengths are available for classic post and rope stanchions?
How many posts and ropes do I need?
What is the difference between HD Classic and PRIME Classic posts?
Cast iron or cement-filled base — which should I buy?
Can classic post and rope stanchions be used outdoors?
Do rope lines have to break away for fire egress?
Can we add signage to posts we already own?
How are ropes ordered and can they be returned?
What are the lead times?
Can posts and ropes be branded?
Related Products & Resources
Visiontron Retractable Belt StanchionsPremium and PRIME retractable belt posts, wall mounts and belt options for high-volume queues.
Visiontron Signage & Branding SolutionsPost-top sign frames, brackets, engraved signs, sign stands, towers and custom printed graphics.

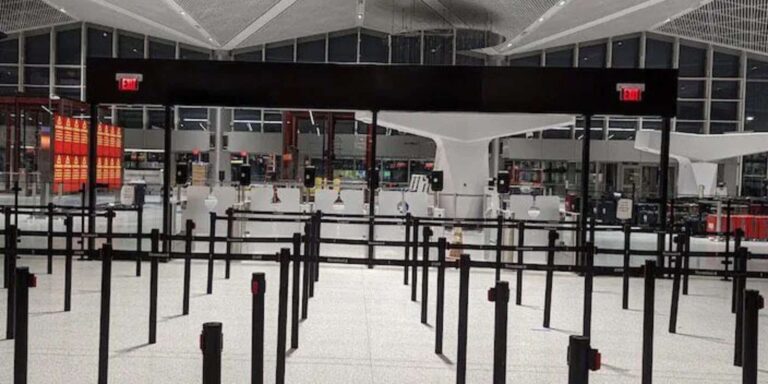

6 Steps to a Great Queue ExperienceHow Visiontron designs a queue that feels shorter, moves faster and communicates as it goes.
