Wire Spool Carousel for Utah Electrical Distributors and Contractors

Wire is the awkward inventory in an electrical branch. It is heavy, it comes on spools and reels of every diameter, it is sold by the foot as often as by the spool, and the fastest-moving sizes need to sit next to the counter. Along the Wasatch Front, where branch buildings are being squeezed by growth and the cost of square footage, the conventional answer of reel racks and floor stacks eats space that could hold conduit, fittings, lighting or a bigger will-call area.

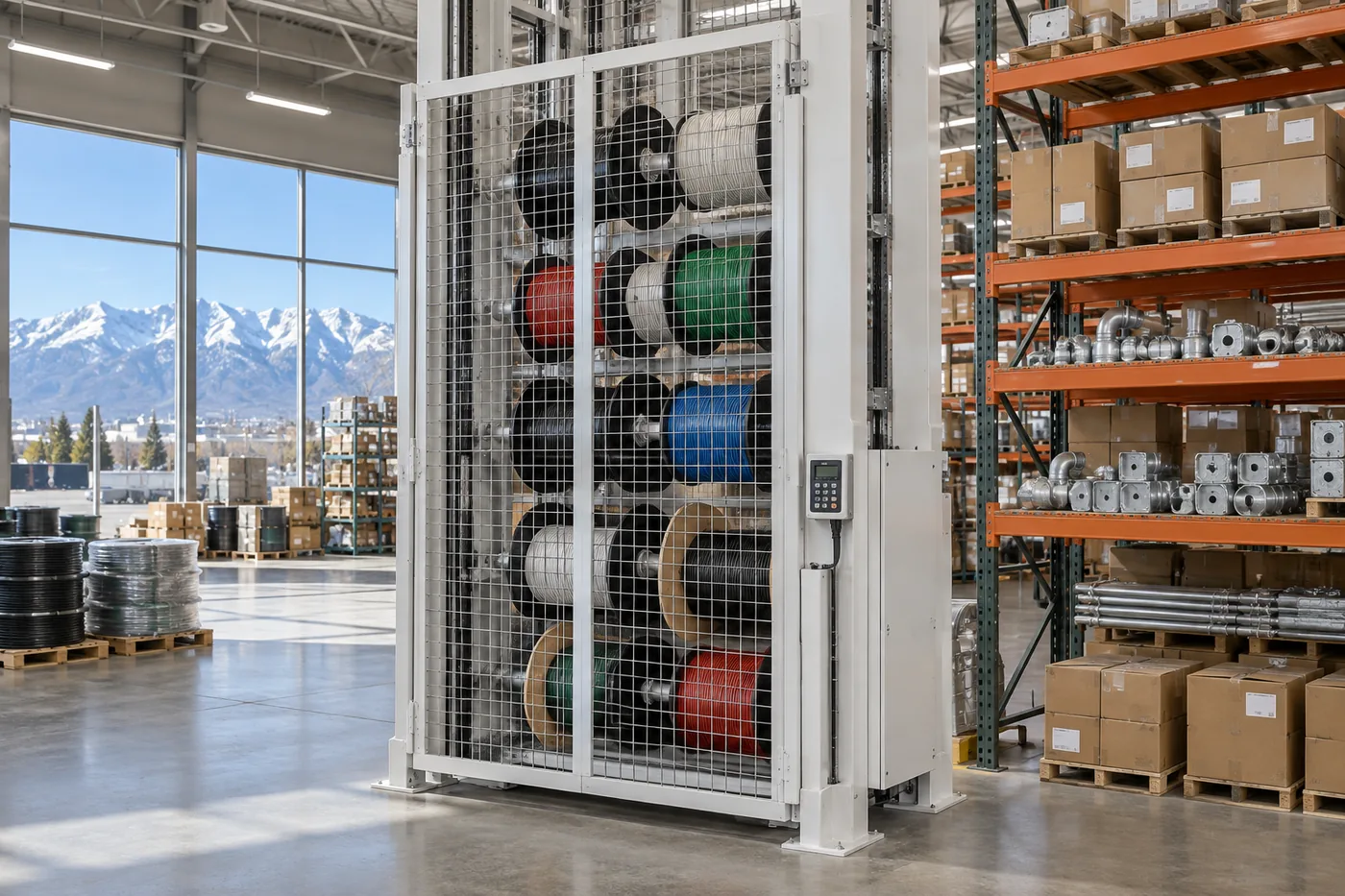

The Vidir Wire Carousel is the vertical alternative Material Handling USA supplies from our Salt Lake City headquarters. It is a semi-automated machine: spools sit on rods inside carriers, the carriers rotate up and down inside a guarded frame, and the operator calls the spool they need to a pick opening at working height. This page is written for the Utah buyers we talk to most often:

• Electrical supply branches in Salt Lake City, West Valley, Ogden, Orem, Lehi and St. George that sell cut wire across the counter.
• Electrical contractors running a central warehouse that kits wire for jobsites.
• Utilities and municipal shops holding cable reels for line and meter crews.
• Panel builders, OEMs and aerospace suppliers along the I-15 corridor that stock many gauges of hook-up wire and cable.

Inside the frame is a series of carriers driven by chains on two towers. Each standard wire carrier holds three compartments Vidir calls wire bays, and each bay has seven interchangeable rod positions, so one carrier offers 21 places to hang a rod. Spools slide onto a rod, and a spring-loaded lock on the bay holds the rod in place until an operator releases it to load or remove a spool.

Because the rods move, one carrier can hold a few large spools or many small ones. For very small spools, Vidir’s Spinner Spool option is a rotating insert that fits within a single bay and provides up to 24 locations for spools up to 10 inches in diameter. That is how a branch stocks dozens of colors of THHN in a small footprint without wasting a full bay on each.

The operator selects a carrier at the keypad or controller, the carousel rotates by the shortest path, and the carrier stops at the opening. Vidir publishes a retrieval speed of 21 feet per minute and rates a standard carousel at 1,000 pounds per carrier and 13,000 pounds per unit, with two-inch mesh guarding front and back.

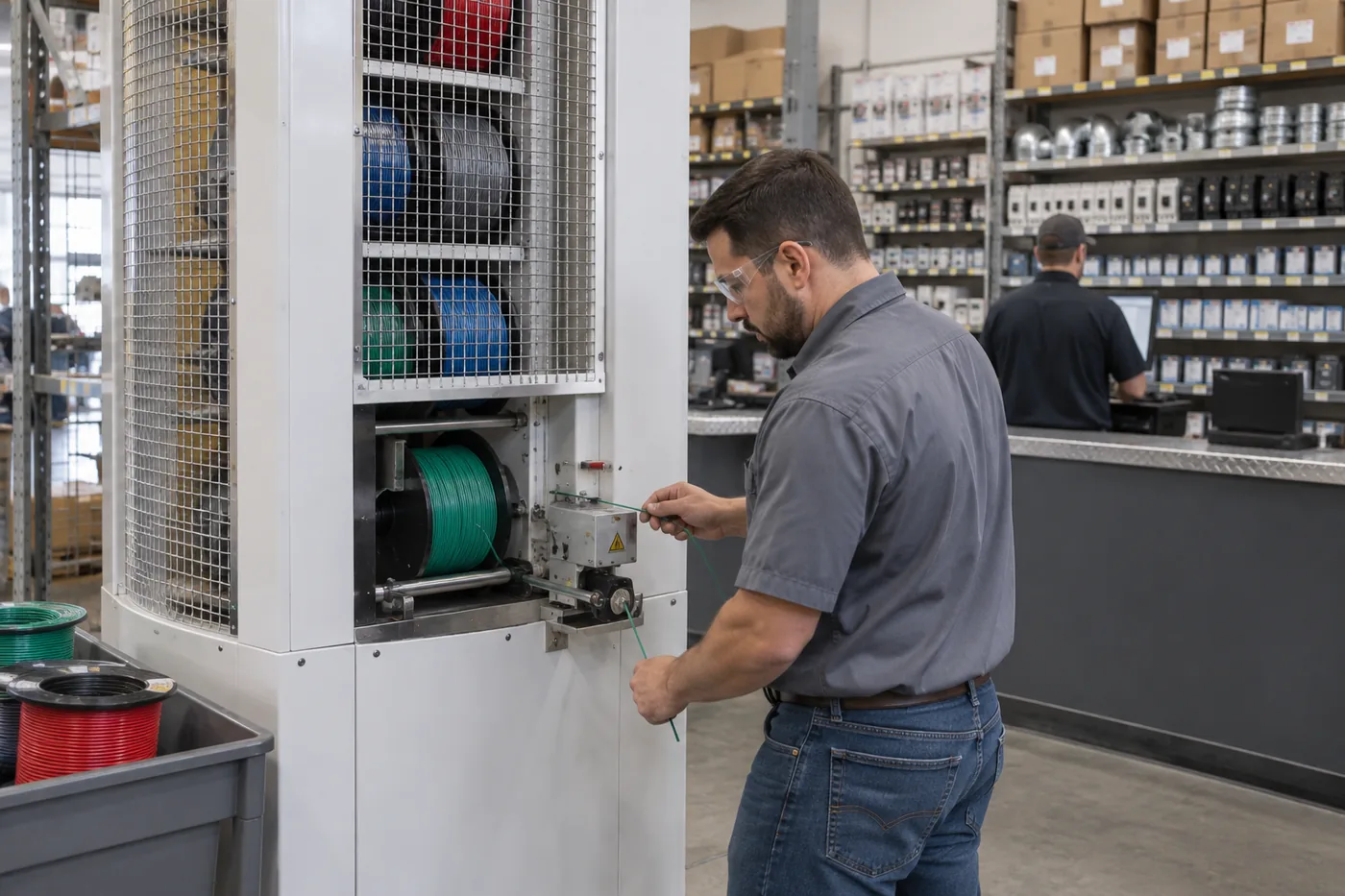

Storing wire vertically only pays off if the cut order gets faster too. Vidir builds several dispensing accessories around the carousel so the carrier that arrives at the opening can be paid out, measured and cut without moving the spool:

• Hanger Meter Slider: a cut, measure and re-roll unit mounted to the carousel on a slider, so it can dispense from any of the three bays of the home carrier. Vidir rates it for flexible materials from 1/64 to 7/8 inch and stiff material to 1/2 inch, with a counter, cutter and re-roller.
• 1400 Wire Reel Cart: the same cut, measure and re-roll function on an independent cart that rolls into position when needed.
• 1700 Wire Reel Cart: a measure and re-roll cart for larger product from 1/2 to 2 inches.
• Adjustable Wire Loading Dolly: moves spools up to 24 inches and 250 pounds to and from the carousel so nobody carries a full spool.

For the reels that are too big for any carousel, Vidir’s HD Wire Reel Dispenser is a floor platform with a built-in roller brake for reels from 16 to 48 inches in diameter and up to 2,000 pounds. A common Utah branch layout pairs one carousel for spooled product with a dispenser or two for the big feeder reels beside it, and the Cart Wire Merchandizer, a caster dolly rated for spools to 500 pounds, moves product between them.

Placing the carousel is a workflow decision. Branches that sell most of their wire across the counter put the pick opening within a few steps of will-call. Contractor warehouses that kit wire for jobs usually place it near the staging area, so cut lengths go straight onto the job cart. Either way, plan the cut station, a scrap bin and a place for partial spools as part of the footprint.

A standard carousel is called by carrier number from a keypad, which is enough for a branch where the counter staff know the layout. Vidir’s automation package replaces the push buttons with a smart controller that offers password protection, carrier selection, a manual jog and a help function.

Distributors that want footage tracking have two published routes. Vidir’s Small Business Solution adds a touchscreen controller, barcode scanning and a pick-to-zone system with inventory software running on the controller itself. The standalone Vidir Inventory Software (VIS) runs on a Windows terminal on the same local network and supports order picking, transaction history, bin management, real-time counts and multiple carousels. For branches already on an enterprise system, Vidir publishes an API so the carousel can take commands from your own software.

Whichever level you choose, the practical advice is the same: decide before the layout is fixed, because a barcode workflow changes how bays are assigned. Ongoing support for controls and wear parts is covered on our Vidir parts and service support page.
