Utah Pallet Rack: Sales, Design & Installation Statewide
Material Handling USA is Utah’s full-service pallet rack supplier — design, permitting, delivery, and professional installation from our Salt Lake City warehouse. Selective, drive-in, push-back, pallet flow, cantilever, and Interlake teardrop systems for warehouses, distribution centers, and cold storage across the state.
25+
Years Serving Utah (Since 1997)
10+
Pallet Rack Types in Stock
500+
Utah Projects Completed
Free
On-Site Consultation & CAD Design
Why Utah Businesses Buy Pallet Rack From Material Handling USA
Choosing pallet rack in Utah is not the same as choosing it anywhere else. The Wasatch Front sits on an active seismic zone, most Utah municipalities require building permits for racking over roughly 5’9” tall, and lead times matter when your operation cannot pause. Our Salt Lake City headquarters and warehouse mean shorter lead times, local installation crews, and pallet rack specialists who understand Utah’s permitting and seismic requirements from the first drawing to the final inspection.
Pallet Rack Types We Supply in Utah
From standard selective racking to high-density mobile systems, we stock and install every major pallet rack configuration used in Utah warehouses. Not sure which is right for your operation? Our guide to selecting pallet rack walks through the trade-offs, or try our free Pallet Rack Designer to lay out a system in 3D.
| Rack Type | Best For | Space Utilization | Access Method |
|---|---|---|---|
| Selective Rack | General warehousing, mixed SKUs | Standard (40–50%) | 100% — every pallet accessible |
| Drive-In / Drive-Through | High-volume, low-SKU storage | High (60–75%) | LIFO / FIFO lane access |
| Push-Back Rack | Moderate SKUs, high density | High (60–70%) | LIFO — 2 to 6 pallets deep |
| Pallet Flow Rack | FIFO rotation, food & beverage | High (60–75%) | FIFO — gravity-fed lanes |
| Cantilever Rack | Long/bulky items, lumber, pipe | Varies | Direct — no front column |
| Double Deep Rack | Increased density, moderate SKUs | Medium-High (50–60%) | Requires reach truck |
| Narrow Aisle / VNA | Maximizing aisle space | Very High (60–70%) | Turret truck or wire-guided |
| Structural Rack | Heavy loads, cold storage, abuse | Standard | Same as selective |
| Mobile Pallet Rack | Maximum density, limited space | Very High (80–90%) | Motorized carriage system |
| Carton Flow Rack | Order picking, case-level FIFO | High | FIFO — gravity roller lanes |

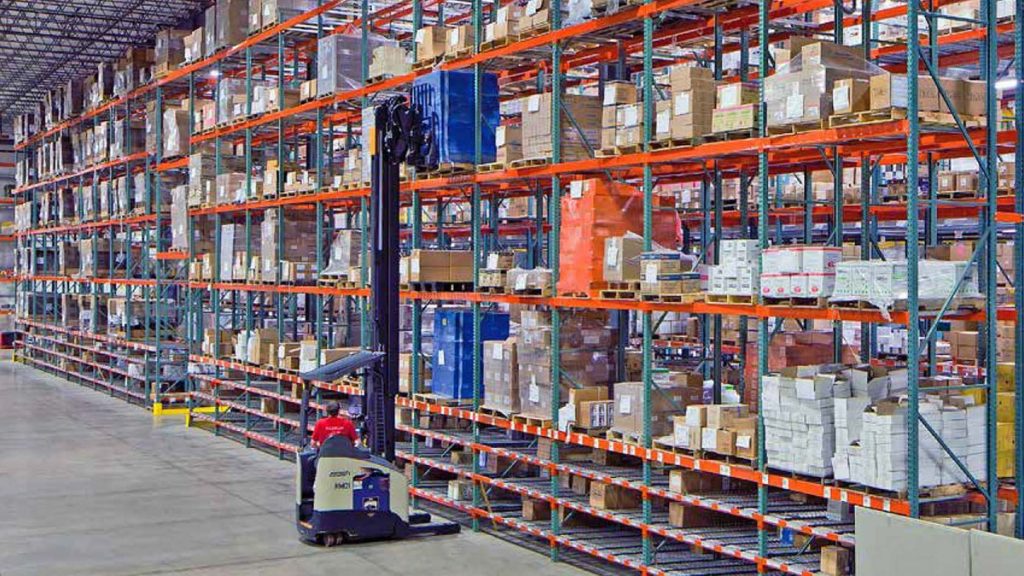

Selective Pallet RackThe workhorse of Utah warehousing. Direct access to every pallet, adjustable beams on 2-inch centers, and full compatibility with teardrop components. Ideal for mixed-SKU operations, 3PLs, and retail distribution.
Drive-In & Drive-Through RackForklifts drive directly into the rack lanes to store pallets several positions deep. The highest-density static option for large quantities of the same SKU — common in Utah food processing and cold storage.

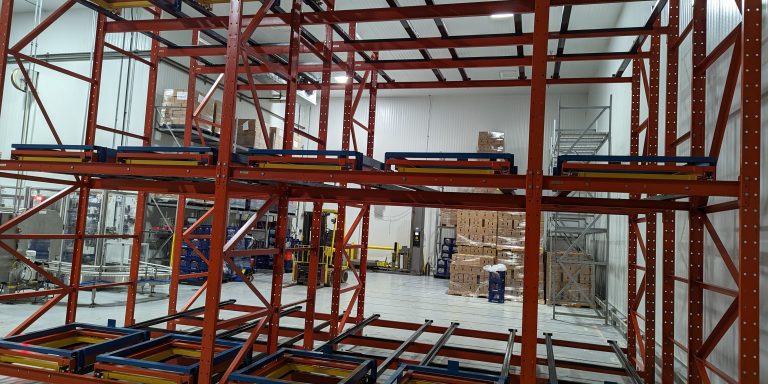

Push-Back RackPallets ride nested carts on inclined rails, storing 2–6 deep per lane while keeping every lane accessible from the aisle. Doubles or triples density compared to selective rack without changing forklifts.

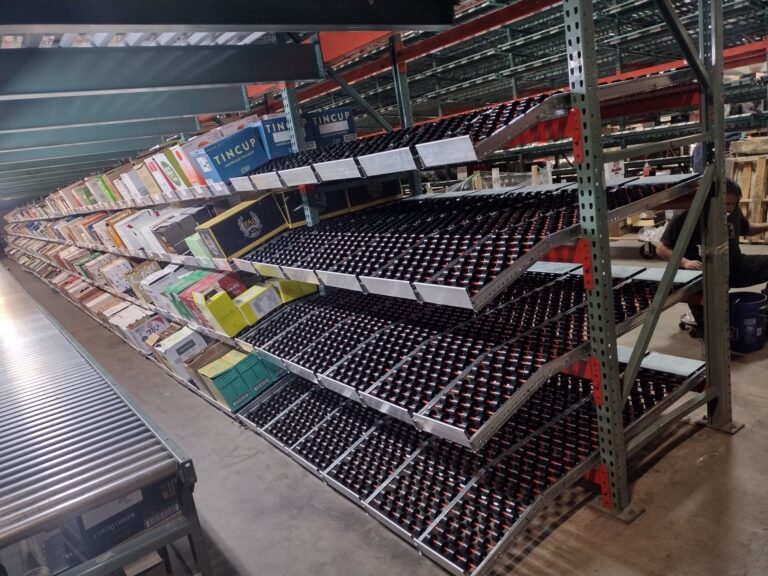

Pallet Flow & Carton Flow RackGravity-fed roller lanes rotate inventory first-in, first-out — the standard for food, beverage, and date-coded products. Carton flow versions create high-velocity case-pick faces for order fulfillment.
Cantilever RackOpen-front arms with no vertical obstruction — the right answer for lumber, pipe, conduit, furniture, and any long or irregular load. Covered in detail below.
Mobile Pallet RackRack rows ride motorized carriages on floor rails, eliminating fixed aisles for up to 80–90% space utilization. Popular for freezer storage, where every square foot costs energy.Interlake Pallet Rack in Utah
For businesses across Utah — from Salt Lake City’s distribution hubs to manufacturing plants in Ogden — Interlake Mecalux is one of the most recognized and trusted names in pallet racking. As a leading Interlake supplier in Utah, we provide access to the full Interlake product range, backed by local design and installation expertise.

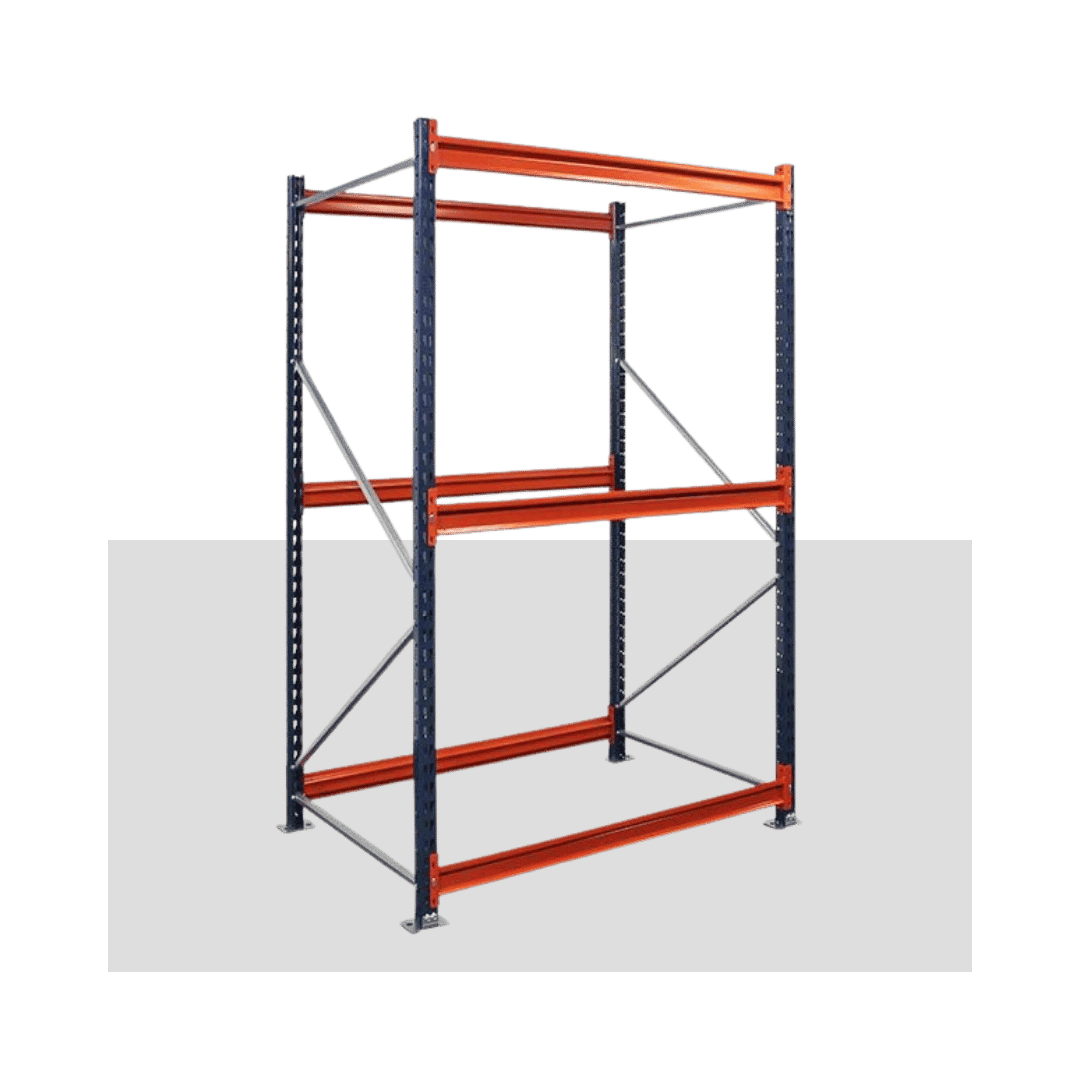

The Interlake Teardrop Design
Interlake’s original teardrop connection became the industry standard for good reason. Upright frames feature teardrop-shaped punching, and beam connectors lock securely into place without bolts:
- Ease of assembly — boltless connections mean quick installation, lower labor costs, and less downtime.
- Adjustability — beams move up or down in 2-inch increments as your inventory profile changes.
- Compatibility — the teardrop pattern is non-proprietary, so Interlake rack integrates with components from other teardrop manufacturers for repairs and expansion.
- Durability — high-strength steel with a powder-coat finish that resists scratches, impacts, and corrosion.
Interlake’s Utah-popular configurations include selective rack for mixed-SKU distribution, push-back systems storing pallets 2–5 deep for high-density LIFO storage, pallet flow rack for FIFO products like food and pharmaceuticals, and cantilever rack for the lumber yards, pipe suppliers, and furniture warehouses common across the state.
Need guidance on the best rack brand or configuration?
Our team will assess your loads, SKUs, and building and recommend the right system — Interlake or otherwise. Free consultations for all Utah businesses.
Request a Quote Launch the Pallet Rack Designer Call (800) 326-4403
Utah Case Study: One Stop Heating & Air Conditioning, Salt Lake City
The challenge: this Salt Lake City HVAC contractor needed organized storage for heavy, bulky HVAC units, furnaces, and coils alongside thousands of small parts. Their existing storage made it slow for technicians to find what they needed.
The solution: we designed and installed a custom Interlake selective pallet rack system — heavy-duty beams for palletized HVAC units on the lower levels, and lighter beams with wire decking above for boxed parts. The teardrop design allows shelf heights to be re-adjusted as equipment sizes change.
The result: dramatically better organization and workflow. Technicians locate parts faster, total storage capacity increased within the same footprint, and the warehouse is safer.

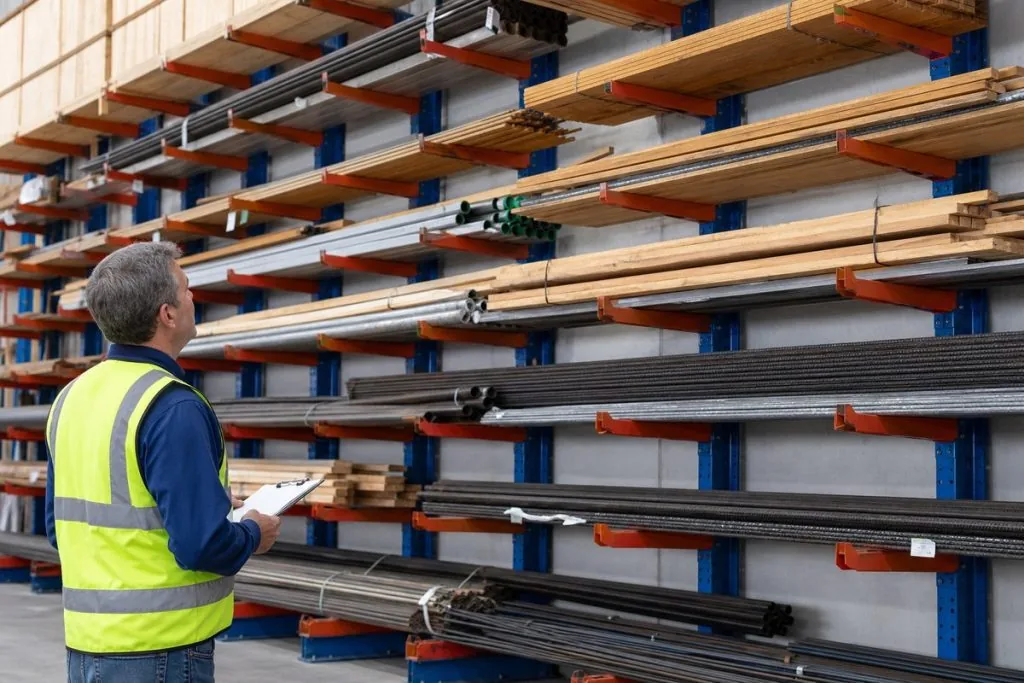

Cantilever Pallet Rack in Utah
Cantilever rack stores what pallet rack can’t: long, bulky, and irregular loads supported on open arms with no front column in the way. Material Handling USA has supplied cantilever rack to Utah companies since 1997, and systems can be re-arm’d, matched, and relocated as your business grows or your storage needs change.
Utah businesses that benefit most from cantilever racking:
- Lumber yards & building supply — dimensional lumber, PVC pipe, metal rod, and sheet goods.
- Warehousing & distribution — metal beams, rods, carpet rolls, and other long items.
- Home improvement & hardware — molding, pipe, gutters, and trim stock.
- Furniture manufacturers & stores — couches, bed frames, and table tops.
- Sporting goods & outdoor recreation — skis, snowboards, kayaks, canoes, and paddleboards.
- Automotive & agricultural suppliers — exhaust pipe, fence posts, and irrigation PVC.
- Manufacturing, mining & energy — long raw materials, extrusions, and drill stock for Utah’s mining-rich economy.
Cantilever arms, columns, and bases are sized by load weight, load length, and deflection — and in Utah, cantilever systems are engineered to the ANSI MH16.3 cantilever standard with the same seismic scrutiny as pallet rack. Design your own configuration with our free Cantilever Rack Designer, or send us your load list and we’ll size the system for you.
Utah Pallet Rack Permitting & Seismic Compliance
Installing or reconfiguring pallet rack in a Utah warehouse is a regulated construction project, not just shelving assembly. Utah requires a building permit for racks exceeding roughly 5’9” in height (thresholds vary by municipality — Salt Lake City, West Valley City, Provo, and Ogden all enforce permitting), and special inspections apply to racks 8 feet or taller in certain seismic zones. We handle the entire compliance process for our Utah customers.
Why permits are required
Structural safety: plan review verifies the rack’s components, anchoring, and design are appropriate for the loads being stored — preventing catastrophic collapse.
Seismic code: the Wasatch Front is classified Seismic Design Category D under the International Building Code. Engineered plans must prove the system withstands seismic forces — base shear calculations, oversized footplates, and robust anchoring into the concrete slab, per IBC and the RMI/ANSI MH16.1 rack design standard.
Fire code: the local Fire Marshal reviews rack layouts for high-piled combustible storage — verifying flue spaces between pallets for heat and smoke ventilation and confirming the racking doesn’t obstruct the sprinkler system.
Liability, insurance & OSHA: an unpermitted system can mean denied insurance claims and OSHA penalties after an accident. A permitted, inspected installation demonstrates due diligence.
The Utah pallet rack permitting process — 5 steps
Consultation & Design
We assess your storage needs, measure the facility, and design a rack layout that meets code requirements from the outset.
Permit Application Package
Site plans, P.E.-stamped engineered drawings, Utah-specific seismic calculations, and concrete slab specifications (thickness and PSI).
Submission & Review
The package goes to your city or county building department, then routes to building, fire, and zoning officials for review.
Install & Final Inspection
After permit issuance we install to the approved plans, then coordinate the final inspection — anchors, components, and load placards verified — to close out the permit.
Approvals required before a permit is issued
Building Code AuthoritiesReview the structural drawings and seismic calculations for compliance with the International Building Code (IBC) and the RMI/ANSI MH16.1 rack design standard.
Fire Department / Fire MarshalReviews the layout for high-piled storage: flue spaces, sprinkler clearance, aisle widths, and life-safety egress around the rack system.
Zoning AuthoritiesConfirm the racking plan aligns with the permitted use of the property before the building permit is issued.What we prepare for every permitted Utah installation
Permit application preparation and submission • engineered rack layout drawings stamped by a Utah-licensed P.E. • seismic load calculations • load capacity placards for each configuration • post-installation inspection coordination. If a department requires changes, we revise and resubmit until approval.
Rack safety after installation
Compliance doesn’t end at the final inspection. Forklift impacts, overloading, and unapproved reconfiguration are the leading causes of rack failure. We recommend annual rack safety inspections for Utah warehouses, plus column protectors and guards in high-traffic aisles. Damaged uprights and beams — like the impact damage shown here — should be unloaded and replaced, never straightened. Our bolt-together upright designs let you replace a damaged column section without scrapping the whole frame. Have questions? Start with our Top 10 Questions About Pallet Rack.
Teardrop Pallet Rack Specifications
Material Handling USA supplies high-quality teardrop pallet rack compatible with major manufacturers including Interlake, Steel King, USP, Lodi Metal-Tech, and Husky. Typical specifications:
| Component | Specification |
|---|---|
| Uprights — regular duty | 16-gauge steel, 16,100 lb capacity per upright |
| Uprights — heavy duty | 14-gauge steel, 23,300 lb capacity per upright |
| Column / base | 3” x 3” column with 5” x 8” seismic base plates |
| Beams | Adjustable on 2” centers; 3.5”–5” beams use 3-pin connectors, 6” beams use 4-pin; improved safety clips |
| Decking | Wire mesh decking (better light and sprinkler penetration) or steel safety supports for hand-stack applications |
| Accessories | Bay dividers, frame guards, column protectors, safety netting, label holders |
| Shipping | Available assembled or knocked-down (K.D.) |
Bolt-together upright design allows easy replacement of damaged components, and systems are engineered for forklift access or heavy-duty hand stacking.
Utah Industries We Serve
Our pallet rack solutions serve every major Utah industry — from e-commerce fulfillment along the I-15 corridor to cold storage in the food processing sector.
Pallet Rack Delivery & Installation Across Utah
Based in Salt Lake City, we deliver and install pallet rack systems throughout the Wasatch Front, Utah County, Davis County, and statewide.
Wasatch Front (same-day available)
- Salt Lake City — headquarters & warehouse
- West Valley City — industrial district
- Sandy / Draper — south valley tech corridor
- Murray / Midvale — central Salt Lake County
- Ogden / Clearfield — Weber & Davis County
- Layton / Bountiful — Davis County corridor
Statewide coverage
- Provo / Orem — Utah County
- Lehi / American Fork — Silicon Slopes
- Tooele — industrial zone & military
- Logan / Cache Valley — northern Utah
- St. George — southern Utah
- Park City / Heber — Summit & Wasatch County
How It Works — From Quote to Installed Rack
A successful installation starts with a good plan. We assess your load weights, pallet sizes, SKU counts, forklift types, and building constraints, then recommend the right rack type and produce a CAD layout — free for every Utah customer. Prefer to experiment first? Lay out bays, beam levels, and accessories yourself in our 3D Pallet Rack Designer, then send the design straight to our team for pricing.
Safety accessories are planned in from the start — column protectors where forklifts turn, wire decking for hand-stack levels, and load placards on every bay.
Consultation
We assess your warehouse space, inventory, and workflow. Free on-site visits available throughout Utah.
Design & Quote
Receive a custom CAD layout and a detailed quote, with the best rack type recommended for your application.
Delivery
We ship from our Salt Lake City warehouse — most Utah orders arrive within 2–5 business days.
Installation
Our crews install, anchor, and inspect. We handle permits and seismic compliance end to end.
Ready to plan your Utah warehouse?
Send us a floor plan for a free CAD layout and quote — or talk through your project with a Utah pallet rack specialist today.
Utah Pallet Rack FAQ
Do I need a permit for pallet rack in Utah?
What seismic requirements apply to pallet rack in Utah?
How long does it take to get a pallet rack permit in Utah?
What happens if my installation fails the final inspection?
How fast can you deliver pallet rack in Utah?
Is Interlake pallet rack compatible with my existing teardrop rack?
What type of pallet rack is best for Utah cold storage?
Can cantilever rack be reconfigured or relocated later?
Do you offer free design services for Utah warehouses?
Related Products & Resources
Pallet Rack Systems HubExplore every rack type we supply nationwide — selective, drive-in, push-back, flow, and more.
Storeganizer High-Density PickingConvert pallet rack bays into hundreds of high-density pick locations with textile pocket columns.
Warehouse MezzaninesAdd a second level above your racking or floor space — engineered, permitted, and installed.
Security CagesWire-mesh enclosures for secure storage inside your warehouse — DEA, evidence, and tool cribs.

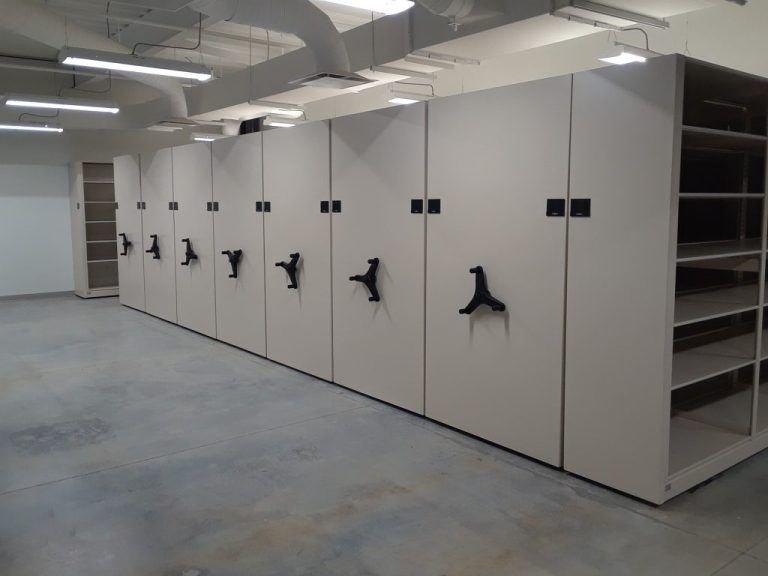

Mobile Shelving in UtahHigh-density mobile shelving systems for Utah offices, evidence rooms, and archives.
