Boltless Workbenches: Sizes, Tops and Shelf Options for Utah Shops and Warehouses
Workbenches built from the same posts and rivet beams as boltless shelving: four configurations, sixteen sizes, a 36 inch worksurface, and parts that match the shelving already in your Salt Lake City shop or warehouse.
4 configurations
Top shelf, bottom shelf, both or none
48 to 96 in. wide
24 to 48 in. deep
36 in.
Standard worksurface height
No bolts
Assembles with a rubber mallet
What a Boltless Workbench Is

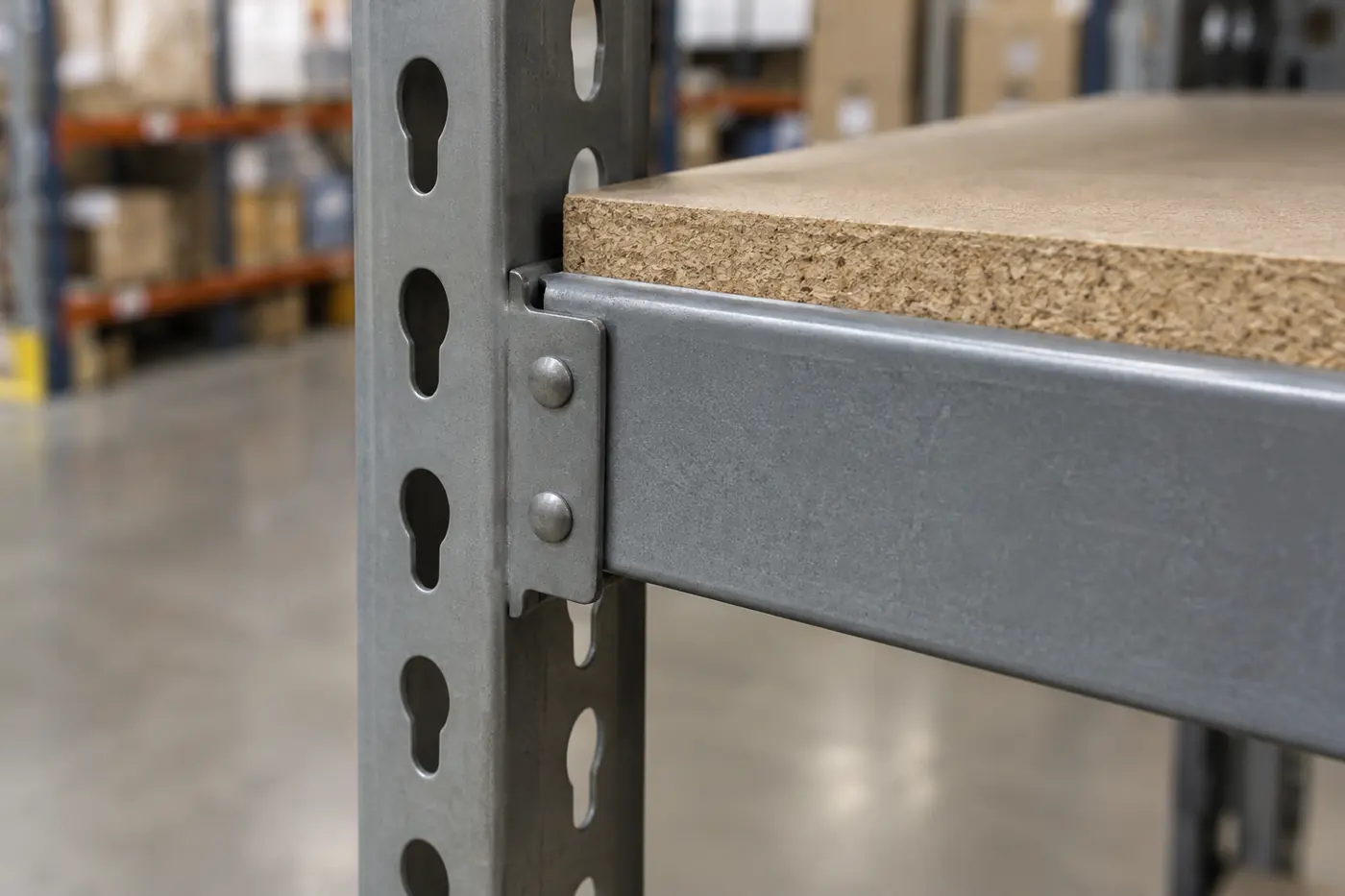

A boltless workbench is a work table built from boltless shelving components. Four slotted steel angle posts form the legs, riveted steel beams lock into the keyhole slots to frame the worksurface, and a board deck drops into the beam frame to make the top. There are no nuts, bolts or shelf clips at the connections. You tap each beam down into its slots with a rubber mallet and the rivets wedge tight.
That construction gives a boltless bench three practical advantages over a typical welded or bolted bench. It ships flat and assembles quickly with one tool. Its lower shelf and riser shelf sit on the same post slots, so you can move them in small increments later. And every part, from the posts to the decks, is the same family of parts used in boltless shelving, so a bench can sit at the end of a shelving run and match it exactly.
The line we quote most often is Jaken’s Series 200B workbench and packing table, which uses the Series 200B double rivet design. Jaken builds its Series 200 posts from 14 gauge steel with slots that let levels adjust every 1-1/2 inches, and finishes the steel in gray powder coat.
This guide is part of our boltless shelving in Salt Lake City resources for Utah buyers. If you are still choosing the shelving itself, start with the main boltless shelving guide, which sits within our wider shelving solutions range. For welded, drawer-base and specialty benches, see industrial workbenches.
The Four Boltless Workbench Configurations
Jaken offers each bench size in four configurations. They differ only in which shelves are added around the worksurface, and that choice decides how the bench works day to day.
| Configuration | What you get | Best for |
|---|---|---|
| Worksurface only | Posts, beams and the 36 in. high top. Open underneath. | Seated work, rolling a stool or cart under the top, sorting and inspection tables. |
| Plus bottom shelf | A second deck near the floor. | Packing stations, receiving benches, any bench that needs flat boxes, bins or cases stored below. |

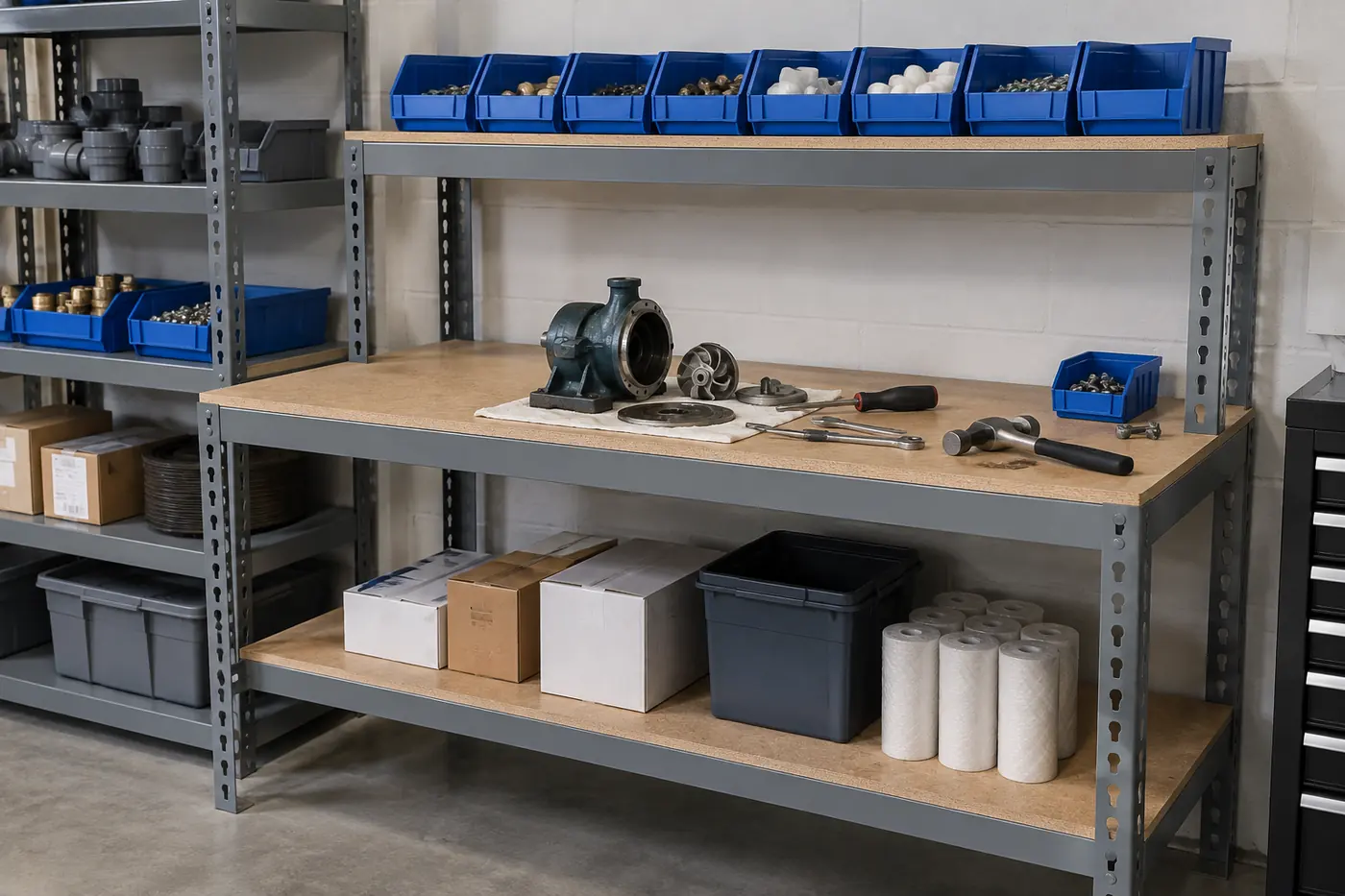

| Plus top shelf | Taller posts carry a riser shelf above the work. | Assembly and repair benches where small bins, a label printer or manuals should sit at eye level. |

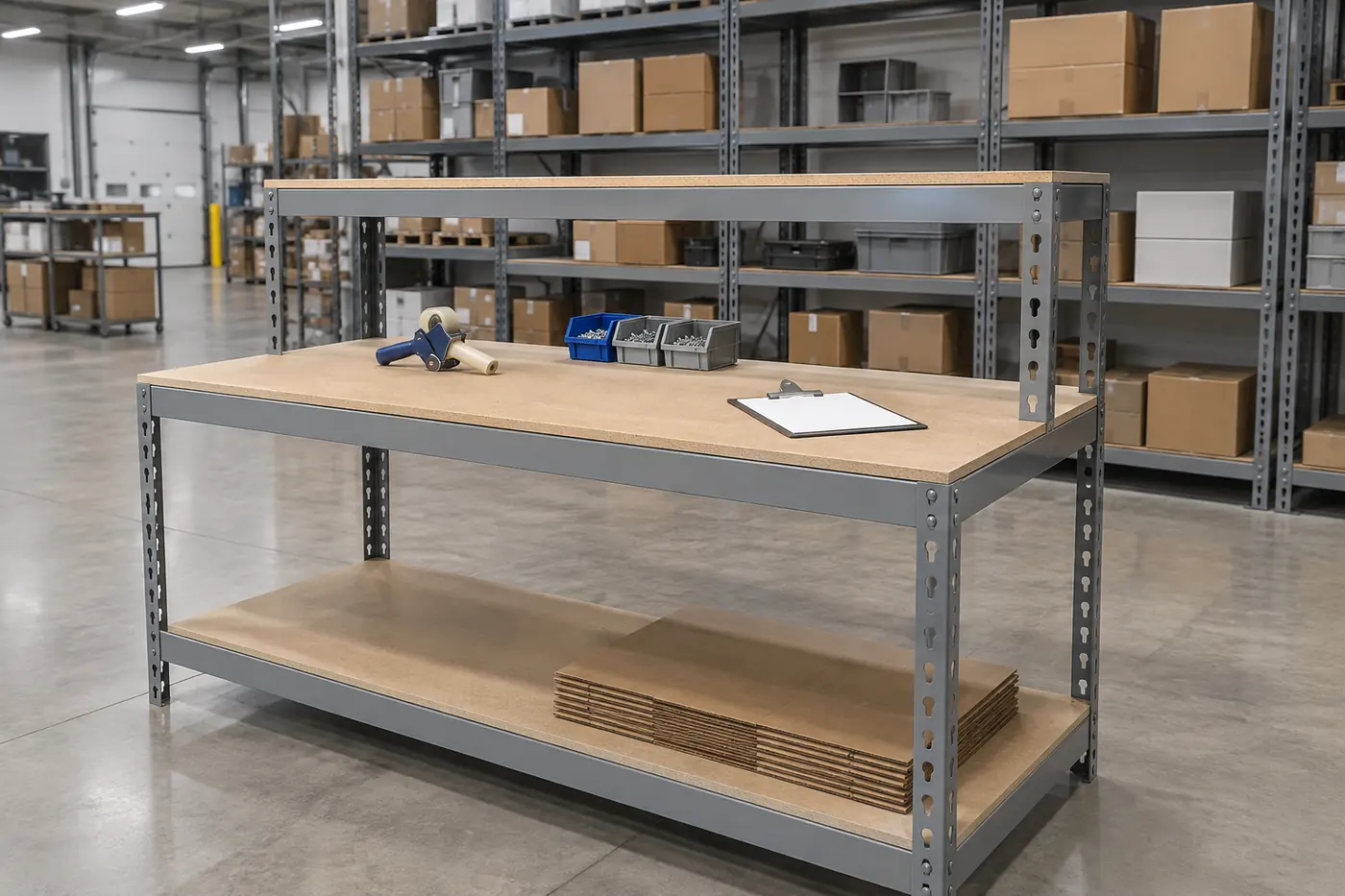

| Plus top and bottom shelf | Worksurface, riser shelf and lower shelf. | Full workstations: supplies overhead, the job on the top, reserve stock underneath. |
Jaken’s published geometry is the same for every size: the worksurface is 36 inches high, and the elevated shelf sits 24 inches above the worksurface and is 12 inches deep. Twenty-four inches of clearance is enough for a monitor, a label printer or a partly assembled unit, and a 12 inch deep riser holds a row of small parts bins without crowding the work area.
The bottom shelf is the configuration most buyers underestimate. On a packing bench it keeps flat cartons, void fill and tape stock within one step of the packer. On a repair bench it holds the next job’s parts kit. If you are unsure, order the bottom shelf; a bench with an empty lower deck costs little more than an open bench, while adding a level later means a second order.
Sizes: Choosing Width and Depth
Boltless workbenches come in four widths (48, 60, 72 and 96 inches) and four depths (24, 30, 36 and 48 inches), sixteen footprints in all. Height is fixed at 36 inches for this line, which suits standing work for most people. If several operators of different heights share a bench, look at the height adjustable option further down this page.
| Depth | How it feels in use | Typical fit |
|---|---|---|
| 24 in. | Everything within easy reach; fits against a wall without eating the aisle. | Assembly lines, electronics, narrow back rooms, benches in a shelving aisle. |
| 30 in. | The general-purpose depth; room for a job plus tools. | Maintenance benches, repair counters, light kitting. |
| 36 in. | Space for mid-size cartons or a disassembled unit. | Packing stations, receiving, parts teardown. |
| 48 in. | A table rather than a bench; reachable from both sides. | Island packing tables, large carton building, layout and sorting worked from both sides. |
For width, match the bench to the job rather than the wall. A 48 inch bench suits one person doing one task. A 72 inch bench gives one person a clean work zone plus a staging zone for incoming and finished items, and is the width we recommend most often for packing. A 96 inch bench can host two people side by side or one long process such as building, checking and bagging. Before settling on 96 inches, read the capacity section below; longer spans carry less than shorter ones.
Measure the path, not only the space
Boltless benches arrive knocked down, so doorways are rarely a problem. The questions to answer are how much aisle clearance stays in front of the bench once someone is standing at it, and whether carts or pallet jacks need to pass behind the operator.
Worksurfaces: Particle Board, Laminated Board or No Deck
Jaken publishes the Series 200B workbench with or without 1/2 inch particle board decking, and our catalog lists every size in both a particle board and a laminated board version. Each has a clear role.
Particle board is the economical default. It is flat, takes a screw if you want to mount a tape dispenser or a small vise pad, and is inexpensive to replace if a top is damaged. It does not like standing water or oils left on the surface.
Laminated board adds a smooth, sealed face. It wipes clean, resists spills better and lets cartons and paperwork slide easily, which packers appreciate. Choose it for shipping, clean assembly and any bench that gets wiped down daily.
No deck suits buyers who already have tops, want a custom surface such as ESD matting over their own board, or are replacing worn decks on existing frames. Decking choices for shelving levels follow the same logic; our boltless shelving decking options guide compares particle board, laminated board, wire and steel in more depth.
Capacity: What Span Does to a Boltless Bench
Capacity on any beam-framed bench depends on three things: the beam style, the span between posts, and the deck. The longer the span, the less a level carries, which is why the same beam that is comfortable at 48 inches is rated lower at 96 inches.
Jaken’s published numbers show the pattern clearly. Series 200B shelving, which uses the same double rivet design as the Series 200B workbench, is rated from 600 to 2,000 pounds per shelf depending on the width and which beam is fitted. Its heavy-duty FastRak workbench is rated 2,000 pounds at 48 inches wide, 1,800 pounds at 72 inches and 1,600 pounds at 96 inches. Jaken’s workbench brochure does not print a separate per-level rating for the Series 200B bench, so we confirm the rating for your exact size and beam on the quote rather than quote a generic number here.
List what goes on it
Note the heaviest single item and whether it is set down gently or dropped.
Spread the load
Uniform loads across the top are what ratings assume. Point loads on a board top need a support underneath.
Pick the span
If one heavy item lives on the bench, a 48 or 60 inch width is stiffer than 96.
Choose the bench type
Pounding, vises and anvils belong on a welded bench; light assembly and packing suit boltless.
If the job is closer to storage than work, such as holding heavy cases at bench height, our heavy-duty boltless shelving page covers the beam and support options that raise shelf ratings. Replacement beams, deck supports and decks are listed on our boltless shelving accessories page.
Boltless vs FastRak vs Mobile vs Height Adjustable vs Welded
A boltless bench is the right answer for many rooms, but not all of them. Jaken builds four bench styles and welded industrial benches cover the heaviest work. Here is how they compare.
| Bench type | Construction | Published specifics | Choose it when |
|---|---|---|---|
| Boltless (Series 200B) | Angle posts, double rivet beams, board deck | 36 in. top; riser 24 in. above, 12 in. deep; 16 sizes | Packing, light assembly, repair, receiving; benches that match boltless shelving |
| FastRak | Heavy uprights, step beams, 3/4 in. board on steel supports | 1,600 to 2,000 lb per shelf; about 36 in. high | Shipping and receiving or assembly lines with heavy parts |
| Mobile | Boltless frame on two swivel and two rigid 5 in. casters | 36 in. overall; 600 lb capacity | Work that moves to the job: line-side kitting, moving stock between rooms |
| Height adjustable | Welded steel legs, shop or steel top | Top adjusts 30-1/2 to 36-1/2 in. | Seated and standing users share a bench; ergonomics matter |
| Welded industrial | Welded frame, steel or hardwood top, drawer options | Varies by manufacturer | Pounding, vises, heavy fixtures, drawers and tool storage built in |
FastRak is Jaken’s heavy-duty option. It uses the same components as FastRak bulk shelving: heavier uprights that knock down for shipping, step beams, and a thick 3/4 inch particle board top that fits inside the beams on steel supports. It is the better pick when the bench carries heavy castings, motors or full cartons, and it is available with a single shelf or a lower shelf too.
Jaken also publishes a height adjustable bench with welded legs and either a shop top or steel top, adjustable from 30-1/2 to 36-1/2 inches. It is not a boltless bench, but it is the one to choose when a fixed 36 inch surface is wrong for the people using it.
Mobile boltless benches put the same kind of frame on four 5 inch casters, two swivel and two rigid, with a 36 inch overall height and a published 600 pound capacity. They are useful as roaming kitting tables or as a second surface you wheel beside a fixed bench during busy periods.
When the bench needs drawers, a vise mount, a pegboard back or a top that takes hammering, step up to a welded unit. Our industrial workbenches page covers open-leg, drawer-base and specialty benches for those jobs. Many Utah shops use both: a welded bench for heavy repair and boltless benches for packing and parts handling nearby.
Where Boltless Workbenches Work Well in Utah
Most boltless benches we see along the Wasatch Front end up in one of five jobs. Each needs a slightly different configuration.
Several of our Utah projects show the pattern of benches and shelving working together. A data center operator in West Jordan combined boltless shelving, bins and workbenches in one tool room fit-out, with the bench serving as the receiving and preparation zone. Granite School District’s carpenter shop in Salt Lake City equipped its storage with heavy-duty boltless shelving, the kind of room where a matching bench at the end of the run is a natural next step. In Cedar City, Tinks Superior Auto Parts reshelved its whole parts room in RiveTier rivet shelving.
The practical lesson from those rooms is to plan benches and shelving as one layout. When the bench uses the same posts, beams and decks as the shelving, spare parts are interchangeable, the room looks consistent, and a future change, such as turning a shelving bay into a bench, is a matter of moving beams rather than buying a new product. Our parts room shelving guide covers the storage side of that plan.
Planning Checklist Before You Order
- Write down the task at each bench: packing, repair, assembly, inspection or sorting.
- Decide who uses it and whether they sit or stand. Fixed 36 inch tops suit standing work.
- List the heaviest item that will sit on the top, and whether anything is struck or dropped.
- Choose depth first (reach and item size), then width (people and process steps).
- Pick the configuration: open, bottom shelf, top shelf, or both.
- Choose particle board, laminated board or no deck, based on spills and cleaning.
- Check aisle clearance behind the operator once the bench is in place.
- If the bench joins existing boltless shelving, note the brand and beam style so parts match.
- Decide whether you will assemble in-house or want installation quoted.
Want to see a layout before you commit? Our Jaken shelving and rack designer lets you configure boltless units online, and our team can add benches to the same quote. If you already know the parts you need, you can order boltless shelving directly.
Delivery and Assembly in Salt Lake City and Across Utah
Boltless benches ship knocked down: posts and beams in bundles, decks stacked flat, usually on a pallet by LTL freight. Some common sizes are in stock at select manufacturers, subject to confirmation at the time of order, and we confirm lead time and freight on every quote. Tell us if the delivery address has no dock, has limited access, or needs a liftgate, so the right service is booked the first time.
Assembly is straightforward. Stand the posts, tap the beams into the slots at the heights you want, drop in the decks, and check the bench is level. Most crews assemble a bench in well under an hour once they have built one. For larger rooms, or if you would rather not assemble in-house, we can quote boltless shelving installation in the Salt Lake City area and along the Wasatch Front, including benches.
For Utah projects, call our Salt Lake City line at 801-328-8788. We quote benches on their own or as part of a full boltless shelving room; the statewide Utah boltless shelving overview and our Salt Lake City boltless shelving page cover the shelving side.
About the specifications on this page
Dimensions, configurations and capacities quoted here come from Jaken’s published workbench and boltless shelving brochures and from our online catalog. Where a manufacturer does not publish a rating, we say so and confirm it on your quote instead of estimating.
Shop Jaken Boltless Workbenches Online
Buy select items directly from our online store, or request a quote for volume, custom sizes and freight-rated orders.
Frequently Asked Questions
What is a boltless workbench?
How tall is a boltless workbench?
What sizes do boltless workbenches come in?
How much weight can a boltless workbench hold?
Is a boltless workbench strong enough for a vise or hammering?
Particle board or laminated top?
Can a boltless workbench match my existing boltless shelving?
Do you deliver and install boltless workbenches in Salt Lake City?
