Engineering Drawing, Plan and Map Storage on Mobile Shelving

Drawings break the rules that records shelving is built around

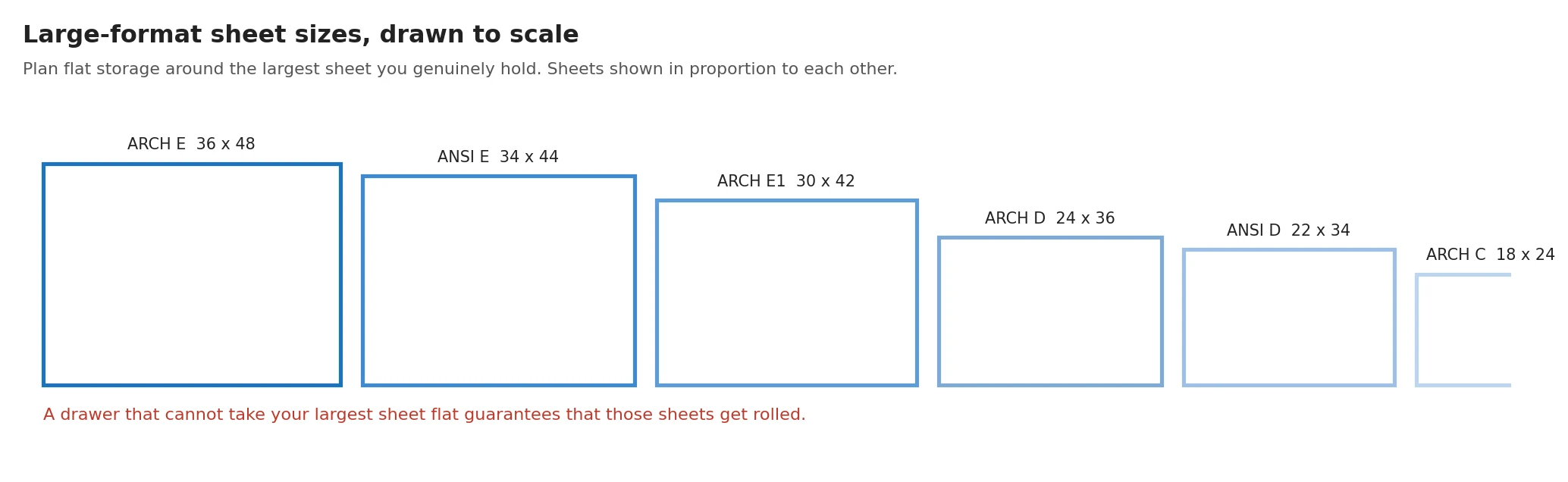

A records room is a solved problem: cartons and file folders are modular, and shelving is sized to them. Large-format drawings are not modular. A single ARCH E sheet is four feet wide, cannot be folded without damaging it, is handled with two hands and is usually filed as part of a set that has to stay together. Put that collection on standard shelving and one of three things happens: the sheets get rolled and never lie flat again, they get folded, or they occupy an enormous amount of floor space in flat cabinets that nobody can afford to house.

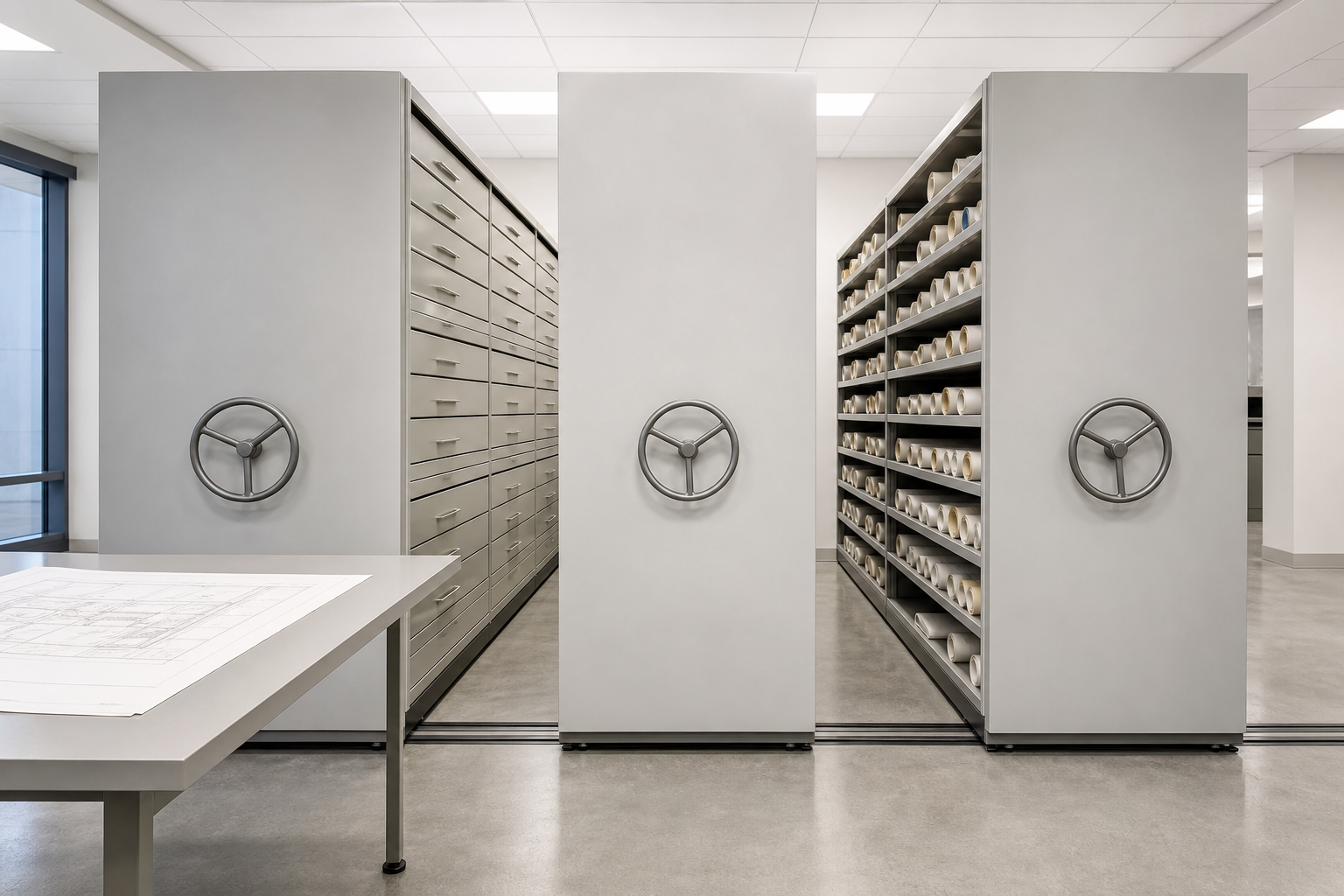

Track-mounted mobile shelving is a good answer to the third problem, because it removes the fixed aisles between cabinet runs while keeping the sheets flat. But the transfer is not automatic: drawers extend, paper is dense, and preservation requirements are stricter than for ordinary records. This page covers what has to be planned differently.

The collections that usually drive these projects are recognisable: municipal engineering and public works plan rooms, utility and water district as-builts, campus facilities archives, architecture and engineering firm records, survey and plat collections, GIS and mapping departments, and museum print and map collections. If your collection is primarily artefacts rather than documents, the museum and archival collections guide is the closer fit.

Flat, rolled or hung: choosing by how long you keep it

All three methods are legitimate. The choice follows retention and handling, not price.

Flat storage in shallow drawers

The archival standard. Federal regulations for cartographic and related records direct that permanent maps and drawings be stored flat in shallow drawer map cases in acid-free folders, that rolling and folding be avoided, and that original oversize records not be laminated. Flat storage is also the easiest to browse: a drawer opens and the whole sheet is visible. It costs the most floor space per sheet, which is precisely why mobile carriages are attractive underneath it.

Rolled storage

Efficient, cheap and hard on paper. Rolled sheets acquire a set curl, are awkward to reproduce and are easily crushed. Rolled storage is defensible for active working prints, superseded sets awaiting disposal and reference copies, and it is a poor choice for anything permanent. Where rolls are unavoidable, plan the housing around tube length and diameter and keep the rolls horizontal in divided compartments rather than standing in bins.

Vertical hanging systems

Sheets are gripped in clamps and hung so they can be flipped through like files. This is fast for active plan rooms, uses little floor area and keeps sets in order. The trade-off is mechanical stress at the clamp and handling wear on the sheet edges, so it suits working sets rather than permanent originals. Hanging racks are also a natural fit on a mobile carriage, since they are shallow and tall.

Most real collections use two methods

A working municipal plan room typically ends up with flat drawers for permanent as-builts and plats, a hanging or rolled section for current project sets, and ordinary filing for half-size prints and correspondence. Trying to force one method across the whole collection is what produces both the crushed rolls and the half-empty flat cabinets.

Splitting by method also makes the mobile system easier to plan, because each housing type can occupy its own carriages with the aisle width and level spacing that suits it, as covered in the guide to shelf depth and level spacing.

Paper is heavy: loads and floors

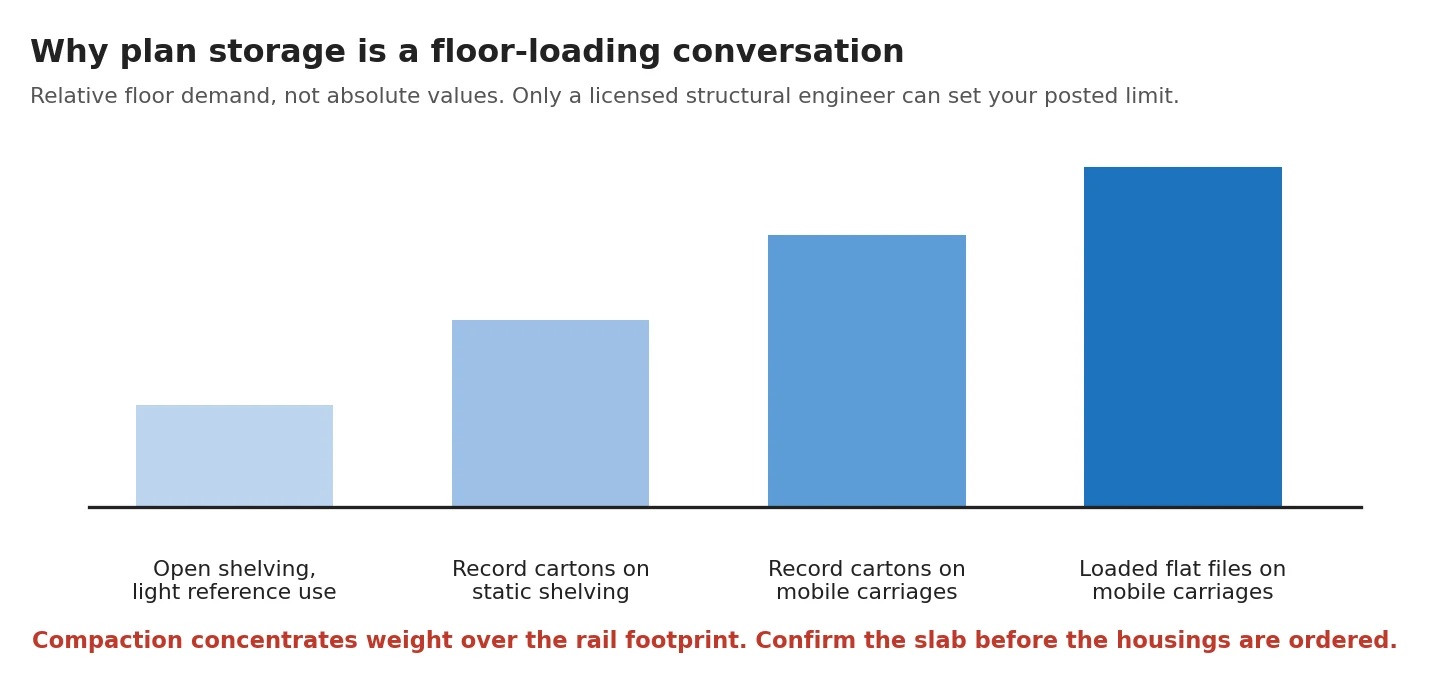

This is the technical point that catches most plan-room projects. A bank of loaded flat files concentrates a great deal of paper into a small footprint, and putting it on carriages concentrates it further when the system compacts. Two limits have to be respected at once: the housing and carriage ratings, and the building.

• Confirm the slab, in writing. Compacted mobile systems are assessed on the loaded weight over the rail footprint, not on an average floor pressure. Federal records-facility rules require the floor load limit to be established by a licensed structural engineer, posted conspicuously and not exceeded — a good discipline on any project. See the floor load requirements guide.
• Read housing ratings as tested. Published capacities for shelving and drawers assume a uniformly distributed load. A drawer filled edge to edge with large sheets is close to that; a drawer with a stack in one corner is not.
• Watch the extended drawer. A fully extended loaded drawer shifts weight forward of the cabinet. Anti-tip provisions and interlocks matter more here than in shelving-only systems, and the manufacturer’s arrangement should be stated in the submittal.
• Count growth in the load, not just the space. Plan rooms grow by project, in bursts. Size the system for the collection you will have, using the method in the capacity and sizing calculation guide.

Laying the room out around drawer extension

Everything about a plan-room layout follows from one dimension that a records room does not have: how far the drawer comes out.

Open aisle width

Size the aisle from the fully extended drawer plus the person handling the sheet, plus room for a second person on large sheets. This is one of the few storage applications where the aisle is genuinely driven by ergonomics rather than by code minima, and it is a common cause of disappointment when the aisle was sized as if the housings were shelves.

Reach and stack height

Drawers above shoulder height are difficult to use with a large sheet, and drawers near the floor are worse. The usable band on a flat-file stack is narrower than the usable band on shelving, which affects how much of the room’s height you can actually count as capacity.

Work surface and transfer

Plan an adjacent flat surface. A dedicated table beside the system removes the single largest handling risk and keeps the aisle clear while a set is being reviewed.

Access and egress

Drawings are often consulted by people who are not the room’s regular staff — engineers, contractors, title researchers. Keep the retrieval path simple, keep egress out of the moving aisles, and keep controlled material separate if the room is used by visitors.

Specifying a drawing-storage system

Use the general specification and submittal checklist as the frame and add the items that are specific to large-format material:

• Sheet inventory by size and series, with the largest size to be stored flat stated explicitly.
• Housing schedule: flat file drawer sizes and counts, roll compartment dimensions, hanging rack capacity, oversize box shelving.
• Open aisle width derived from drawer extension plus handling space, shown on the layout drawing.
• Drawer and carriage load basis, anti-tip provision, and behaviour with a fully extended loaded drawer.
• Environmental target for the room, referencing the applicable standard for permanent records where the collection warrants it.
• Air circulation and fire protection arrangement for the compacted condition.
• Enclosure and folder specification — acid-free interior housings for permanent material.
• Location coding and labelling scheme, and the index handover.
• Handling plan for the move: how sheets travel from existing storage into the new system without being rolled.

Where the project sits inside a wider design or construction package, the architects’ and specifiers’ page covers the coordination items, and the deck and shelf selection detail for the non-drawer parts of the system is in the guide to wire and solid shelf decks.
