Vidir VLM: Vertical Lift Module with Height-Sensing Trays
The Vidir VLM stores parts on trays in two enclosed towers and brings the tray you call to a waist-height opening. Laser height sensors measure every load, so trays are stored in roughly 1.2-inch steps and almost no space is wasted. Specs, all 33 standard models, software, the Vidir VLM app and options are below.
Authorized Vidir dealer · nationwide delivery · see all 33 standard models
Up to 85%
Floor space Vidir says a VLM recovers
132,000 lb
Overall load capacity
37 to 165
Trays per standard model
1.2 in
Tray storage increment
What Is the Vidir VLM?
A vertical lift module (VLM) is an automated storage machine. Inventory sits on steel trays in two columns, one tower at the front and one at the back, with an elevator running up the middle. When an operator asks for a part, the elevator pulls that tray out of its slot, carries it down and presents it at an access opening at waist height. The operator picks or stocks, sends the tray back, and the machine files it away again.
The Vidir VLM is Vidir’s version of that machine. Vidir is the Manitoba manufacturer best known for vertical carousels; it designs and builds the VLM in Canada and sells it in the U.S. through dealers. Material Handling USA is an authorized Vidir dealer, so we size, quote, deliver and coordinate installation of Vidir VLMs nationwide, and support them afterwards.
Most VLM buyers come to us with the same three problems: a stockroom of shelving that keeps growing, pickers who spend more time walking and searching than picking, and inventory that is hard to secure or count. A VLM answers all three by moving the inventory to the person, using the building’s height instead of its floor, and putting every tray behind a login. If you are still deciding between machine types, our vertical lift modules guide covers VLMs from every manufacturer, and the vertical lifts page covers bar stock, sheet metal and equipment lifts.
How the Vidir VLM Works: Height Sensing and Variable Tray Spacing
Height sensing is what separates a VLM from a carousel or a cabinet of shelves. As a loaded tray is drawn back onto the elevator, Vidir’s laser height sensors read the tallest item on it. The controller then works out the tightest open slot that tray will fit in, in either tower, and stores it there.
Because the tower rails support trays at many positions, Vidir lists a storage increment of about 1.2 inches. A tray of flat gaskets takes a thin slot; a tray of fixtures up to 30 inches tall takes a tall one. On fixed shelving the gap above short items is simply lost, and that is where most of the density gain comes from. Vidir describes the result as three to four times more inventory in the same footprint as standard shelving.
Request
The operator calls a tray by part number, tray ID or pick list on the 12-inch touchscreen or connected software.
Extract
The servo-driven elevator travels to the tray, pulls it out of the front or rear tower and carries it down.
Present
The tray arrives at the access opening at working height, behind a light curtain.
Pick or stock
The operator picks or loads, confirms the transaction and sends the tray back.
Measure and store
Height sensors read the load and the machine files the tray in the most efficient free slot.

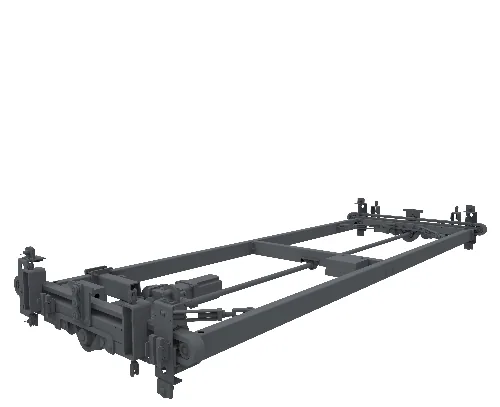

The part doing the work is the extractor, the carriage that rides the elevator and slides trays on and off the tower rails. Vidir drives it with a 10 HP vertical servo motor and a 2 HP horizontal servo motor on a chain drive. Vidir’s current product page lists a maximum vertical speed of 2.3 ft per second and a horizontal feed of 0.83 ft per second; an earlier sales package listed 1.67 ft per second vertical, so confirm the figure for the revision on your quote.
Real pick rates depend on machine height, where trays sit and how the inventory is slotted, so we do not quote picks per hour until a machine has been configured for your item list.
From Rows of Shelving to One Vidir VLM
Vidir publishes floor savings of up to 85% compared with open shelving or conventional racking, and gives the example of 1,000 sq ft of shelving consolidating into roughly 150 to 200 sq ft of VLM. Your own number depends on ceiling height, item sizes and how full your current shelving really is, which is why we model it from your item list before quoting. The floor you get back usually goes to production, staging or a second process instead of a building expansion.
Vidir VLM Specifications
The standard package below is what Vidir lists on its current VLM product page. Every standard model is the “3296” frame: trays 96 inches wide by 32.5 inches deep, items up to 30 inches tall, and the same tower footprint regardless of height. Height sets the tray count, which is why the model numbers run from VLM118 to VLM342.
Vidir’s 2025 brochure also lists wider and shallower builds: tray widths of 96, 120 or 144 inches, tray depths of 25.5 or 32.5 inches, tray pitch options and trays rated up to 1,500 lb. Those are configured to order, so we confirm them on the quote rather than list them as standard.
| Item | Vidir standard package |
|---|---|
| Tray size (3296 models) | 96 in W x 32.5 in D, items up to 30 in tall |
| Load per tray | 600 lb or 1,000 lb options; each tray’s load is monitored in software |
| Overall capacity | 132,000 lb (60,000 kg) |
| Tower size (3296 models) | 9 ft 9 in W x 9 ft 7 in D |
| Standard heights | 9 ft 10 in (37 trays) to 28 ft 6 in (165 trays) |
| Storage increment | About 1.2 in, with automatic laser height sensing |
| Drives | 10 HP vertical servo, 2 HP horizontal servo, chain drive |
| Speeds | Vertical up to 2.3 ft/s (earlier literature: 1.67 ft/s); horizontal up to 0.83 ft/s |
| Electrical | 480 V, 3-phase, 20 A, fed from the top right of the machine |
| Controls | Auto retrieval tray control with 12 in HMI touchscreen, left or right side |
| Safety | Light curtains and variable height sensors included; full enclosure |
| Finish | VM textured white; RAL color change optional |
| Listing and design | cCSAus mark; seismic ready design |
| Warranty | 2-year manufacturer’s warranty |
Download the Vidir VLM brochure
Prefer the PDF? Our copy of the Vidir VLM sales package (PDF) has the drawings and option list. It is an earlier revision, so where it differs from the table above (vertical speed, for example), the current Vidir figure and your quote govern.
All 33 Standard Vidir VLM Models
Pick the tallest model your clear height allows. Every model below shares the 9 ft 9 in by 9 ft 7 in tower, so going taller adds trays and storage volume without adding floor. Model numbers step up about 7 inches at a time, adding four trays per step.
Clear height is measured to the lowest obstruction above the machine: sprinkler heads, lights, ducts, joists or a door header on the way in. Several units can stand side by side when one machine is not enough. Don’t see a height that works? Vidir invites requests for sizes outside this list, and we can ask on your behalf.
| Model | Height | Width x depth | Max trays | Storage volume |
|---|---|---|---|---|
| VLM118-3296 | 9′ 10″ | 9′ 9″ x 9′ 7″ | 37 | 238 cu ft |
| VLM125-3296 | 10′ 5″ | 9′ 9″ x 9′ 7″ | 41 | 262 cu ft |
| VLM132-3296 | 11′ 0″ | 9′ 9″ x 9′ 7″ | 45 | 288 cu ft |
| VLM139-3296 | 11′ 7″ | 9′ 9″ x 9′ 7″ | 49 | 312 cu ft |
| VLM146-3296 | 12′ 2″ | 9′ 9″ x 9′ 7″ | 53 | 338 cu ft |
| VLM153-3296 | 12′ 9″ | 9′ 9″ x 9′ 7″ | 57 | 362 cu ft |
| VLM160-3296 | 13′ 4″ | 9′ 9″ x 9′ 7″ | 61 | 388 cu ft |
| VLM167-3296 | 13′ 11″ | 9′ 9″ x 9′ 7″ | 65 | 412 cu ft |
| VLM174-3296 | 14′ 6″ | 9′ 9″ x 9′ 7″ | 69 | 438 cu ft |
| VLM181-3296 | 15′ 1″ | 9′ 9″ x 9′ 7″ | 73 | 462 cu ft |
| VLM188-3296 | 15′ 8″ | 9′ 9″ x 9′ 7″ | 77 | 488 cu ft |
| VLM195-3296 | 16′ 3″ | 9′ 9″ x 9′ 7″ | 81 | 512 cu ft |
| VLM202-3296 | 16′ 10″ | 9′ 9″ x 9′ 7″ | 85 | 538 cu ft |
| VLM209-3296 | 17′ 5″ | 9′ 9″ x 9′ 7″ | 89 | 562 cu ft |
| VLM216-3296 | 18′ 0″ | 9′ 9″ x 9′ 7″ | 93 | 588 cu ft |
| VLM223-3296 | 18′ 7″ | 9′ 9″ x 9′ 7″ | 97 | 612 cu ft |
| VLM230-3296 | 19′ 2″ | 9′ 9″ x 9′ 7″ | 101 | 638 cu ft |
| VLM237-3296 | 19′ 9″ | 9′ 9″ x 9′ 7″ | 105 | 662 cu ft |
| VLM244-3296 | 20′ 4″ | 9′ 9″ x 9′ 7″ | 109 | 688 cu ft |
| VLM251-3296 | 20′ 11″ | 9′ 9″ x 9′ 7″ | 113 | 712 cu ft |
| VLM258-3296 | 21′ 6″ | 9′ 9″ x 9′ 7″ | 117 | 738 cu ft |
| VLM265-3296 | 22′ 1″ | 9′ 9″ x 9′ 7″ | 121 | 762 cu ft |
| VLM272-3296 | 22′ 8″ | 9′ 9″ x 9′ 7″ | 125 | 788 cu ft |
| VLM279-3296 | 23′ 3″ | 9′ 9″ x 9′ 7″ | 129 | 812 cu ft |
| VLM286-3296 | 23′ 10″ | 9′ 9″ x 9′ 7″ | 133 | 838 cu ft |
| VLM293-3296 | 24′ 5″ | 9′ 9″ x 9′ 7″ | 137 | 862 cu ft |
| VLM300-3296 | 25′ 0″ | 9′ 9″ x 9′ 7″ | 141 | 888 cu ft |
| VLM307-3296 | 25′ 7″ | 9′ 9″ x 9′ 7″ | 145 | 912 cu ft |
| VLM314-3296 | 26′ 2″ | 9′ 9″ x 9′ 7″ | 149 | 938 cu ft |
| VLM321-3296 | 26′ 9″ | 9′ 9″ x 9′ 7″ | 153 | 962 cu ft |
| VLM328-3296 | 27′ 4″ | 9′ 9″ x 9′ 7″ | 157 | 988 cu ft |
| VLM335-3296 | 27′ 11″ | 9′ 9″ x 9′ 7″ | 161 | 1,012 cu ft |
| VLM342-3296 | 28′ 6″ | 9′ 9″ x 9′ 7″ | 165 | 1,038 cu ft |
Source: Vidir Regular Duty model table (imperial), current Vidir VLM product page. Storage volume is Vidir’s figure. Models and dimensions are confirmed on your quote.
Vidir VLM Software, Inventory Control and the Vidir VLM App
Every VLM runs auto retrieval tray control from its 12-inch touchscreen. On top of that, Vidir offers its inventory control software. Older literature calls it the Full Inventory Control System (VIP). Vidir’s current software platform, presented on its Vidir OS page as Vidir Vantage, is built around six capabilities: complete inventory control, guided pick and stock, machine control, diagnostics and alarms, security and access control, and ERP/WMS integration.
In practice that means items are tracked down to the tray position and the location on the tray. Pick and stock lists can be built by scanning bar codes. A tray visualizer shows the operator which cell to pick from, and every transaction is confirmed before the next one starts, which leaves a timestamped audit trail.
- ERP and WMS integration: Vidir says the VLM connects to major platforms through standard API connections, and its software team confirms compatibility with your system before installation.
- Reports and counts: transaction history and real-time inventory counts, run from a connected PC.
- Vidir Remote Service: software assistance, troubleshooting and training by remote access.
- Data backup and auto learning: faster setup and easier resets after maintenance.
- Power-saving eco mode: reduces energy use while the machine is idle.
The Vidir VLM app
Vidir publishes a Vidir VLM app for iOS (Apple App Store) and Android (Google Play). The download links are on Vidir’s app page. Ask us which app and software features apply to the machine and software package on your quote, since they vary by configuration.
Vidir VLM Options and Accessories
The standard package runs on its own. These are the options Vidir lists for the VLM; we help you choose the ones that match how your team picks and who needs access.

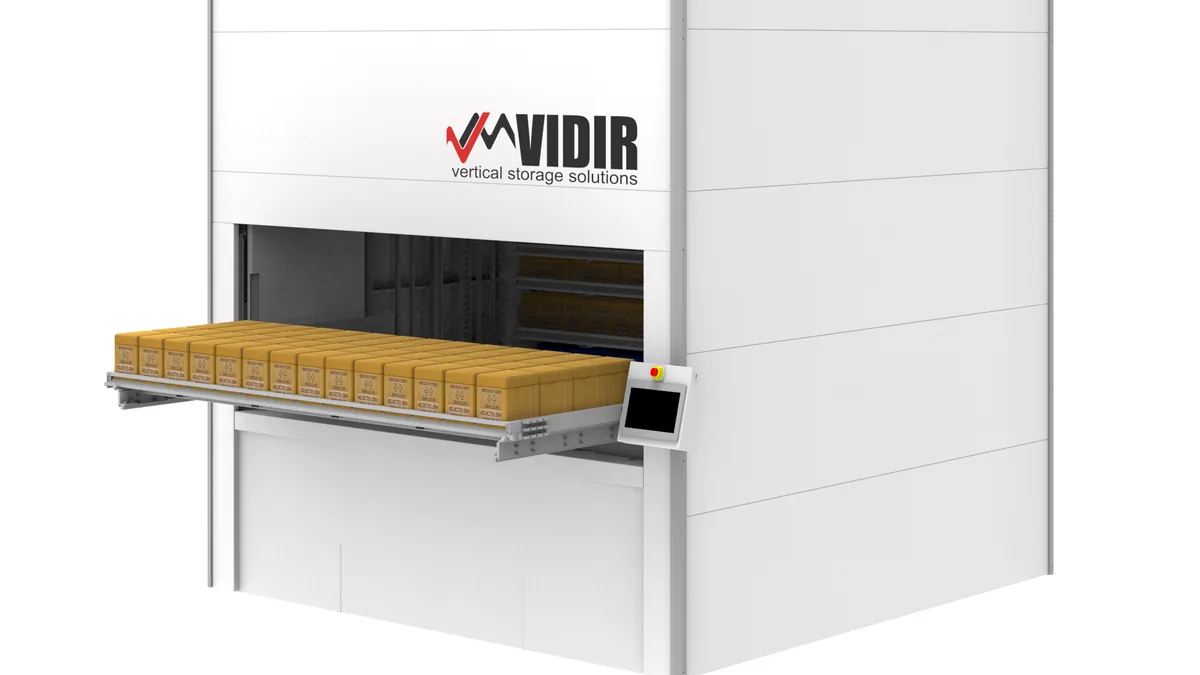

Power DrawerExtends the presented tray out in front of the machine, so heavy or deep items can be reached without leaning into the opening.

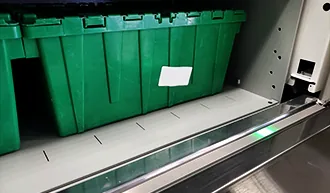

Pick-to-LightAn alphanumeric display or horizontal LED strip lights the spot on the tray where the item lives, which speeds picks and stocks.
Badge ReaderOperators log in by scanning their badge, keeping user permissions in place without typing passwords at the machine.| Option | What it does |
|---|---|
| Security gate | Restricts the opening so only authorized users reach critical inventory. |
| Bar code scanner | Pick or store with a scan; build long pick and stock lists quickly. |
| Multiple load capacities | Choose tray capacity for your stock; each tray’s load is monitored in software. |
| Customizable trays | Dividers and layouts that match your bins, kits or parts. |
| Color change (RAL) | Match the enclosure to company colors. |
| PM packages | Annual inspection programs, in several lengths, to keep the VLM running reliably. |
Safety, Reliability and Service
The access opening is guarded by light curtains, which are part of the standard package. The rest of the machine sits inside a full enclosure, so nothing is reachable except the presented tray. Because everything arrives at waist height, operators stop climbing ladders, bending to floor shelves and reaching overhead. Vidir points out that these are the most common causes of warehouse injuries.
Vidir lists dual redundant DC power to keep the machine working through a power supply failure, a seismic ready design and the cCSAus mark.
Maintenance is planned for. Vidir builds the VLM with front-facing maintenance access, so a technician can service it without moving it or shutting down the machines beside it. The lift runs on a chain drive Vidir chose for durability. Through its partnership with Schneider Electric, Vidir standardizes components so replacement parts are easier to source.
Material Handling USA coordinates delivery and installation, and afterwards handles parts and service requests. See vertical storage installation services for what an installation involves and Vidir parts and service support to request parts or a service visit.
Vidir VLM vs. Vertical Carousel vs. Shelving
Vidir builds both VLMs and vertical carousels, so the choice comes down to your items rather than the brand. A carousel rotates fixed shelves on a loop, which suits uniform items in one size range. A VLM stores trays independently and measures each one, which suits mixed sizes and heavier parts. Our vertical carousel vs. vertical lift module guide goes deeper, and the Kardex Remstar vs. Vidir comparison covers the most common brand question.
| Vidir VLM | Vertical carousel | Static shelving | |
|---|---|---|---|
| How it stores | Trays in two towers, placed by measured height | Fixed carriers rotating on a loop | Fixed shelves in aisles |
| Best for | Mixed sizes, heavier parts, tooling, kits | Uniform items: tires, wire, garments, small parts | Low counts, plenty of floor |
| Space use | Variable spacing in about 1.2 in steps | Carrier pitch fixed when ordered | Gap above every item is lost |
| Access control | Full enclosure, login, optional badge reader | Enclosure and keypad or gate options | Open unless caged |
| Vidir product | This page | Pan and shelf carousels and more | Not applicable |
The Vidir VLM Family and Where It Is Used
Vidir uses the same lift-and-tray idea in several machines. These pages cover the versions and applications we see most often.
VLM Mini for HealthcareA compact VLM under 10 ft tall for pharmacies, clinics and hospital supply rooms.
Bar Stock Vertical LiftVidir’s lift system for long bar, pipe and structural stock in fabrication shops.
VLM for Aerospace SuppliersHow Utah aerospace and defense suppliers use the VLM for kitted parts and tooling.
Sports Equipment LiftA Vidir lift that stores wheeled equipment trunks for teams and venues.Industries: Vidir lists automotive and aviation, construction, energy, government, healthcare, manufacturing, retail and warehousing as VLM markets. We have industry pages for manufacturing, aerospace and aviation MRO, military and government, hospitals and healthcare, automotive dealerships, tool cribs and die storage and warehousing and logistics. The same machine also powers Vidir’s merchandise vending machine for retail and team stores.
Watch the Vidir VLM in Action
Vidir’s VLM highlights video (Vidir YouTube channel).
Planning a Vidir VLM Project
A good VLM quote starts with the inventory, not the machine. Send us what you store and where it will go, and we configure the model, tray capacity, opening side and options with Vidir. We also show how much floor the machine frees up in your space.
- Item list with rough sizes, weights and quantities (a spreadsheet export is ideal)
- Clear height to the lowest obstruction, plus door and path dimensions for delivery
- Floor condition and location; 480 V 3-phase power availability
- Picks per day and how many people pick at once
- Access rules: who may open which trays
- Software: standalone, or connected to your ERP/WMS
Review
We review your item list, room and power, and confirm a VLM is the right machine.
Configure
Model height, tray capacity, opening side, software and options are set with Vidir.
Quote
You receive a written quote for supply, or supply and installation.
Install and train
Delivery and installation are scheduled around your operation, then operators are trained.
What affects VLM price: machine height and tray count, tray capacity (600 vs 1,000 lb), the number of machines, options such as a power drawer, pick-to-light or badge reader, the software package and ERP integration, freight, and installation conditions. Our vertical storage cost and pricing guide explains each factor. On installation time, Vidir says a standard single unit typically takes one to three days, while multi-unit or integration projects take longer. Your quote states the actual schedule.
