Automated vertical tire storage that brings any stored tire to the operator at a comfortable height and recovers up to 70% of the floor space static tire racks use. Standard models hold 65 to 352 tires.
Authorized Vidir dealer · nationwide delivery · compare all 22 standard models
Discover the innovative Vidir Tire Carousel – a game-changer in tire storage. Learn how it simplifies storage for car dealerships, municipalities, and more. Explore features and benefits today!
See how the carousel rotates stored tires to a comfortable loading height, so technicians retrieve them without ladders.
Four reasons dealerships, fleets and tire shops move from ladder-and-shelf racks to a motorized carousel.
The carousel rotates its carriers and stops the requested tire set at a comfortable working height, so nobody climbs a ladder, reaches overhead with a 50–80 lb tire or waits for a forklift.
Real installation: Honda of Fishers in Fishers, Indiana sized an 11-carrier unit with a horizontal security gate for its service department.
T39 for passenger and light-truck tires up to 28″, T45 for truck and SUV tires up to 33″, and heavy-duty HT54 for commercial truck and aviation tires up to 44″. T39 and T45 carriers are rated 1,000 lb, HT54 carriers 2,000 lb, and the largest standard model stores 352 tires. Each unit is specced around your tire mix and ceiling height.
Forward/reverse push-button controls, a security keypad and an emergency stop come standard, with mesh guarding front and back. The chain drive is rated 13,000 lb overall, with off-balance ratings up to 2,500 lb depending on carrier. Units carry the cCSAus mark and a 2-year manufacturer’s warranty.
Vertical storage recovers up to 70% of the floor space static tire racks need, space that can go back to service bays, inventory or other revenue work. At about 26.5 ft per minute, the carousel brings a carrier to the opening in seconds, so a vehicle isn’t waiting on the lift.
Request a Quote

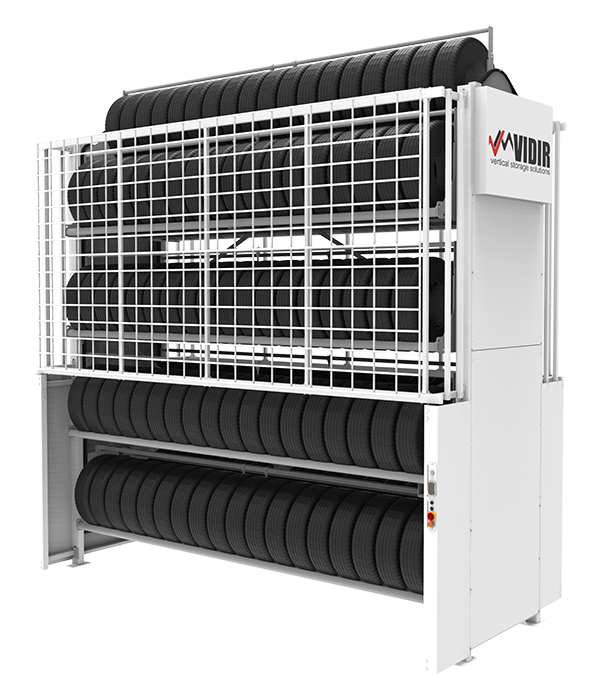

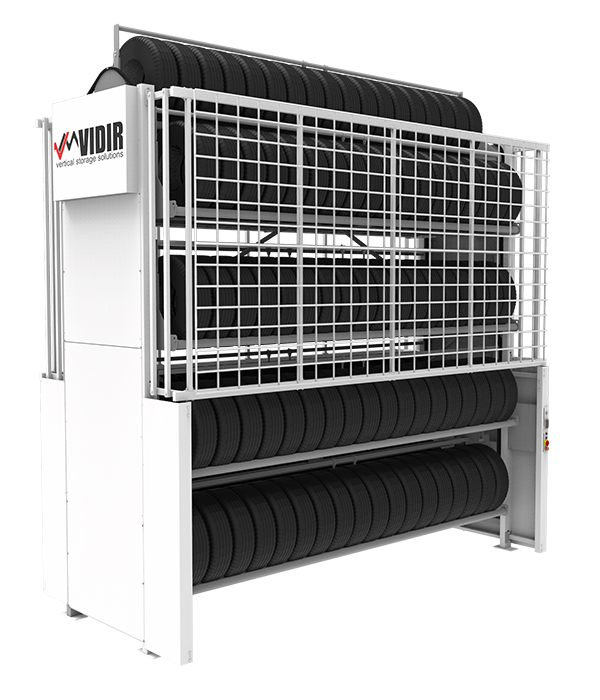

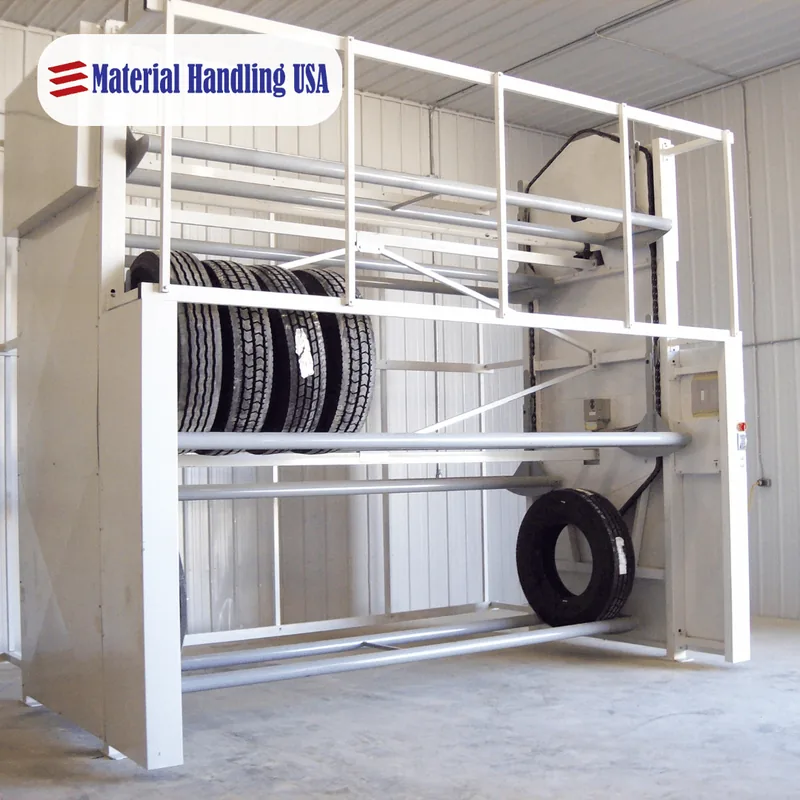

Tire carousels are motorized vertical storage machines. Each tire carousel is a tall steel frame with tire carriers on a chain loop that rotate up, over and down, bringing any carrier to one loading opening near the floor.
Instead of spreading tires across rows of static racks, a Vidir Tire Carousel stacks the carriers vertically inside a footprint roughly the size of a parking space or two, and uses the room’s ceiling height for capacity. Each carrier holds a row of tires standing on their tread, separated by two tire dividers that come standard.
Because the machine moves the tire to the operator, nobody climbs a ladder or reaches over their head with a 50–80 lb tire. The operator enters a code on the security keypad, presses forward or reverse, and the chain drive brings the selected carrier to the opening at about 26.5 feet per minute. Mesh guarding front and back keeps hands and tires inside the machine while it moves.
Authorized staff enter a code on the security keypad, so only trained people can run the machine.
Forward/reverse push buttons index the carriers; the E-stop halts motion instantly.
The selected carrier stops at the opening, so tires are rolled in or out at a comfortable working height.
Stored tires stay behind mesh guarding, or behind solid panels and a lockable gate if you add the security options.
Vidir builds the tire carousel in three carrier families sized by the largest tire diameter you store: T39 (28″), T45 (33″) and HT54 “heavy tire” (44″). Each family comes in several heights, and the T39 and T45 also come in wider 15 and 18 versions that add tires per carrier without adding height.
| Max tire Ø | Model | Height | Footprint (W × D) | Carriers | Tires | Floor area · tires per sq ft |
|---|---|---|---|---|---|---|
| 28″ | T39148-0740-12 | 13′ 2″ | 14′ 9″ × 6′ 8″ | 7 | 147 | 98 sq ft · 1.5 |
| 28″ | T39188-0940-12 | 16′ 6″ | 14′ 9″ × 6′ 8″ | 9 | 189 | 98 sq ft · 1.9 |
| 28″ | T39228-1140-12 | 19′ 10″ | 14′ 9″ × 6′ 8″ | 11 | 231 | 98 sq ft · 2.3 |
| 28″ | T39268-1340-12 | 23′ 2″ | 14′ 9″ × 6′ 8″ | 13 | 273 | 98 sq ft · 2.8 |
| 28″ | T39308-1540-12 | 26′ 6″ | 14′ 9″ × 6′ 8″ | 15 | 315 | 98 sq ft · 3.2 |
| 28″ | T39148-0740-15 | 13′ 2″ | 17′ 9″ × 6′ 8″ | 7 | 189 | 118 sq ft · 1.6 |
| 28″ | T39188-0940-15 | 16′ 6″ | 17′ 9″ × 6′ 8″ | 9 | 243 | 118 sq ft · 2.1 |
| 28″ | T39228-1140-15 | 19′ 10″ | 17′ 9″ × 6′ 8″ | 11 | 297 | 118 sq ft · 2.5 |
| 28″ | T39148-0740-18 | 13′ 2″ | 20′ 9″ × 6′ 8″ | 7 | 224 | 138 sq ft · 1.6 |
| 28″ | T39188-0940-18 | 16′ 6″ | 20′ 9″ × 6′ 8″ | 9 | 288 | 138 sq ft · 2.1 |
| 28″ | T39228-1140-18 | 19′ 10″ | 20′ 9″ × 6′ 8″ | 11 | 352 | 138 sq ft · 2.5 |
| 33″ | T45156-0744-12 | 14′ 3″ | 14′ 9″ × 7′ 6″ | 7 | 119 | 111 sq ft · 1.1 |
| 33″ | T45200-0944-12 | 17′ 11″ | 14′ 9″ × 7′ 6″ | 9 | 153 | 111 sq ft · 1.4 |
| 33″ | T45244-1144-12 | 21′ 7″ | 14′ 9″ × 7′ 6″ | 11 | 187 | 111 sq ft · 1.7 |
| 33″ | T45156-0744-15 | 14′ 3″ | 17′ 9″ × 7′ 6″ | 7 | 147 | 133 sq ft · 1.1 |
| 33″ | T45200-0944-15 | 17′ 11″ | 17′ 9″ × 7′ 6″ | 9 | 189 | 133 sq ft · 1.4 |
| 44″ | HT54162-0563-12 | 15′ 2″ | 14′ 11″ × 9′ 1″ | 5 | 65 | 135 sq ft · 0.5 |
| 44″ | HT54193-0663-12 | 17′ 7″ | 14′ 11″ × 9′ 1″ | 6 | 78 | 135 sq ft · 0.6 |
| 44″ | HT54225-0763-12 | 20′ 3″ | 14′ 11″ × 9′ 1″ | 7 | 91 | 135 sq ft · 0.7 |
| 44″ | HT54256-0863-12 | 22′ 10″ | 14′ 11″ × 9′ 1″ | 8 | 104 | 135 sq ft · 0.8 |
| 44″ | HT54288-0963-12 | 25′ 6″ | 14′ 11″ × 9′ 1″ | 9 | 117 | 135 sq ft · 0.9 |
| 44″ | HT54319-1063-12 | 28′ 1″ | 14′ 11″ × 9′ 1″ | 10 | 130 | 135 sq ft · 1.0 |
Tire counts are Vidir’s published figures based on 7″-wide tires (28″ models), 9″-wide tires (33″) and 11″-wide tires (44″); wider tires or mounted wheel assemblies reduce the count. Floor area and tires per square foot are our arithmetic from the published width and depth, for comparing models, and exclude the clear space in front of the loading opening.
Reading the table: the cheapest square footage in a building is the air above the floor. A 13′ 2″ T39 holds 147 tires on about 98 sq ft; the same footprint at 26′ 6″ holds 315. If ceiling height is limited, the wider -15 and -18 versions add capacity sideways instead — the T39228-1140-18 stores 352 tires under a 19′ 10″ ceiling line. Need taller, larger-diameter or aviation tire storage? Vidir also builds custom configurations; call (800) 326-4403.
| Controls | Forward/reverse push buttons with security keypad and E-stop |
| Overall capacity | 13,000 lb (5,896 kg) chain rating |
| Carrier capacity | T39 and T45: 1,000 lb (454 kg) per carrier · HT54: 2,000 lb (909 kg) per carrier |
| Off-balance load | T39 and T45: 1,800 lb (818 kg) · HT54: 2,500 lb (1,136 kg) |
| Retrieval speed | 26.5 ft (8,077 mm) per minute |
| Electrical | 208/230 V, 15 A, 60 Hz, 3-phase; 415 V, 15 A, 50 Hz, 3-phase; other options on request |
| Variable frequency drive | HT54 heavy-tire models only |
| Included | 2 tire dividers per carrier; 2″ (51 mm) mesh guarding front and back |
| Standard colors | White panels and structure; grey carriers and mesh (custom RAL colors available) |
| Certification and warranty | cCSAus mark; 2-year manufacturer’s warranty |
These are Vidir’s standard published configurations. Custom heights, footprints, RAL colors and multi-unit banks are available — call (800) 326-4403 to confirm the model that fits your tire mix and ceiling clearance. Utah buyers can also see our Utah tire carousel page for local delivery, permit and install planning.
Most buyers start with the standard package and add only the options that match how their team loads tires and how secure the stored inventory needs to be.

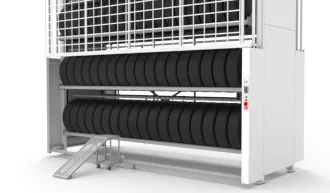

Lets the operator roll tires in and out of the bottom carrier instead of lifting them.

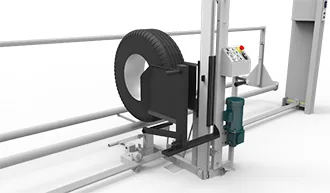

A motorized loader for large, heavy tires, used instead of the ramp where tire weight is an issue.

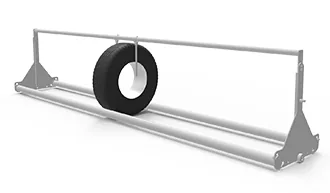

Two dividers per carrier are included; add more to keep customer sets, sizes or SKUs separated.

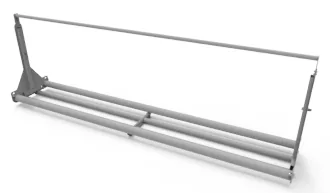

Let smaller tires sit beside larger ones without sinking too deep into the carrier.

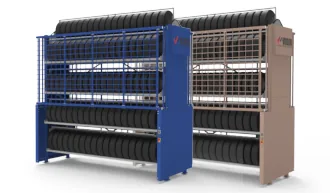

Match the carousel to your dealership, brand or showroom colors instead of the standard white.

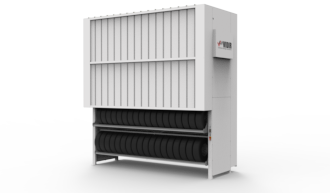

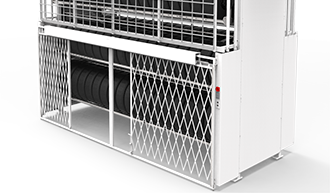

Security options — a lockable horizontal security gate or a full enclosure that swaps the mesh for solid panels — are covered in the security section further down this page. Vidir also offers preventive maintenance packages (annual inspections, several program lengths) and optional inventory software integration that logs tire location and usage; ask us which combination fits your operation. For accessories across all Vidir carousels, see vertical carousel accessories and options.
Material Handling USA sells both. Here's an honest look at where each one fits.
| Vidir Tire Carousel | Static Tire Rack | |
|---|---|---|
| Floor space for ~150 tires | Roughly the footprint of one carousel column | Multiple rows of open steel shelving |
| Retrieval | Tire delivered to the operator at push-button height | Operator climbs, bends, or reaches into open bays |
| Access control | Keypad and optional enclosed security gate | Open access unless the whole room is secured |
| Inventory accuracy | One tire per defined carrier location | Relies on manual labeling and organization |
| Footprint growth | Adds vertically without a larger building footprint | Adding capacity means adding floor-level rack rows |
| Best fit | High tire counts, tight floor space, security concerns | Lower tire counts, ample floor space, lower budget |
A tire carousel earns its place where tire counts are high, floor space is expensive and stored tires need to be found quickly and kept secure.
Customer seasonal sets, tire-hotel programs and service stock in the back of shop, next to the bays instead of in an off-site container.
Fast-moving sizes and customer sets staged near the install bays, with the keypad limiting who can pull inventory.
Truck and bus tires on HT54 heavy-tire carriers (up to 44″ diameter, 2,000 lb per carrier) instead of floor stacks.
Vehicle tires for fleet maintenance in a controlled-access machine that keeps accountable inventory behind a keypad and optional gate.
Aircraft and GSE tires stored by size with a tire lifter for heavy assemblies; larger diameters are handled as custom builds.
Pick-face storage for mixed sizes beside bulk pallet rack, so fast movers come to the picker while reserve stock stays in racking.
Send us the items below and we can usually recommend a model, or tell you honestly that static tire racks are the better buy, in one conversation.
Sizes, counts, ceiling height and a rough floor sketch or photos.
We match a T39, T45 or HT54 model (or a bank of units) to the list and the room.
Machine, options, freight and installation scope, plus the site-prep items you own.
Delivery and installation coordinated with your schedule; staff shown how to run it safely.
We do not publish one price because no two tire carousels are quoted the same. The main cost drivers are the carrier family (heavy-tire HT54 machines carry more steel and a variable frequency drive), the height and width of the model, how many units are in the bank, options such as gates, enclosures, ramps or a lifter, freight distance, and installation scope including any electrical or slab work on your side. Our vertical storage cost and pricing guide explains the budget side, and the Vidir tire carousel buyer’s guide walks through model selection step by step. For site preparation and what the install crew needs from you, see vertical storage installation services; to measure the room and build the tire list, use our tire carousel sizing and cost guide.
Some buyers ask whether a tire carousel can hold cable drums or wire reels. It can in some cases — one Florida electrical distributor stores drums on tire-carousel carriers — but a dedicated wire and cable reel carousel is usually the better fit for heavy reels.

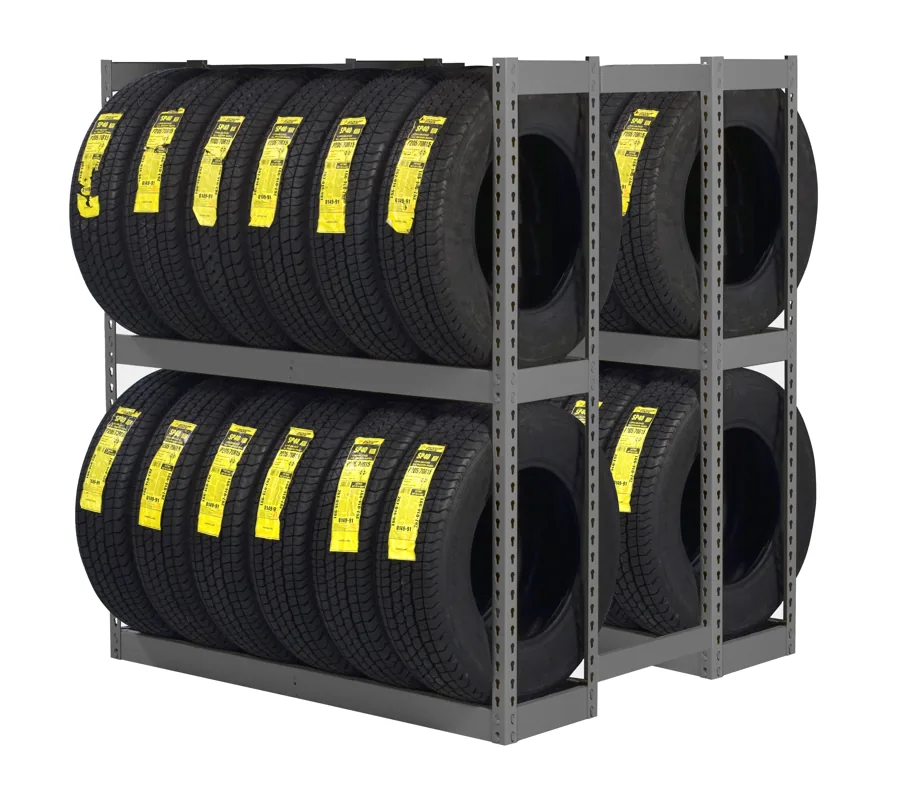

For lower tire counts, plenty of floor space or a tight budget, conventional tire racks usually win on cost, and we sell those too. Compare rack styles on our commercial tire storage racking hub, or size a rack layout yourself:
Free Tire Rack Builder. Enter your tire sizes and counts and get a rack layout and parts list for a quote request; ideal for checking whether racks or a carousel make more sense.
Open the Tire Rack BuilderMaterial Handling USA is an authorized Vidir dealer headquartered in Salt Lake City. We quote, ship and coordinate installation of tire carousels nationwide.
We have supplied Vidir tire carousels from Indiana dealerships to Florida distributors. Call (800) 326-4403.
Over 30 Years Of Experience
We design and install the right storage solutions for your specific needs
Custom Options
We offer a range of customizable options to meet your unique needs
Customer Satisfaction
We are committed to excellent service and support, ensuring satisfaction with every purchase
Competitive Pricing
We offers competitive pricing, making it easy to find a solution that fits any budget
What changes after a shop installs a tire carousel, from safer handling to multi-level and multi-unit layouts.
“When we were stacking tires on the ground, it was a workers’ compensation issue: guys would bend over and hurt their backs… It not only solved our problem, it holds a lot of tires in a minimum amount of square footage.”David Floyd, President, Professional Auto Transport

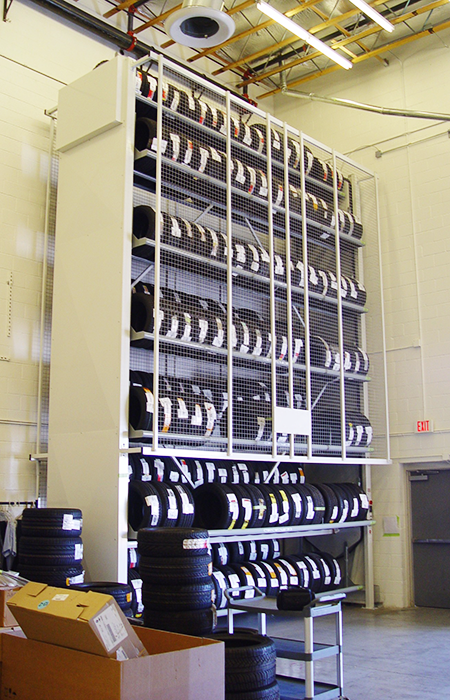

Pulling 50–80 lb tires from the floor or an overhead rack every day is a real injury exposure. The carousel presents each carrier at a comfortable working height, and an optional loading ramp lets heavier tires roll on instead of being lifted.

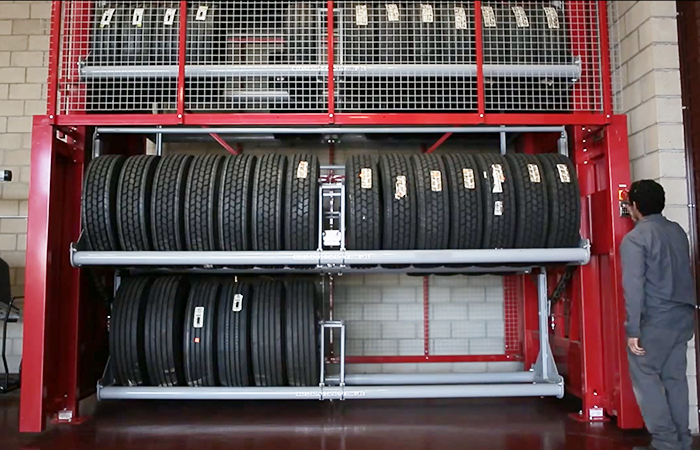

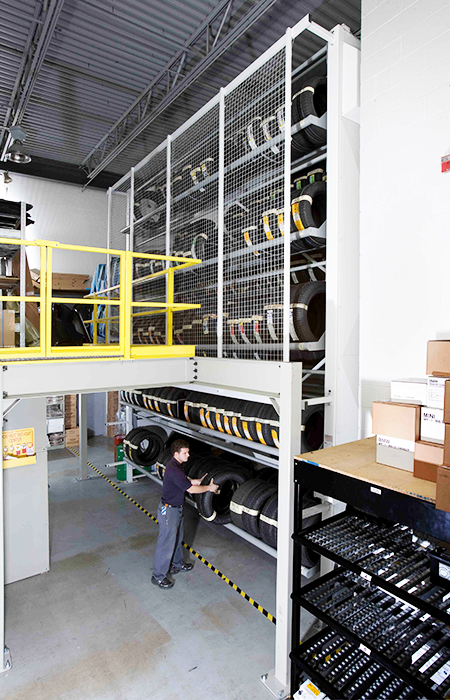

Because the carriers travel vertically, a carousel can be installed through a mezzanine so tires are loaded or picked on more than one level, which suits buildings where the parts room sits above the service floor. We confirm the opening, headroom and floor loading during layout.
Larger operations run several units side by side in one aisle. Start with the carousel your current tire count needs and add units as storage grows, keeping every set in the same footprint pattern.
Every set lives on a numbered carrier and position, so technicians stop searching a back room and customer or seasonal sets go out on time. Vidir’s optional inventory management software tracks tire location, tread depth and stock levels in real time, reducing missed sales from misplaced tires.

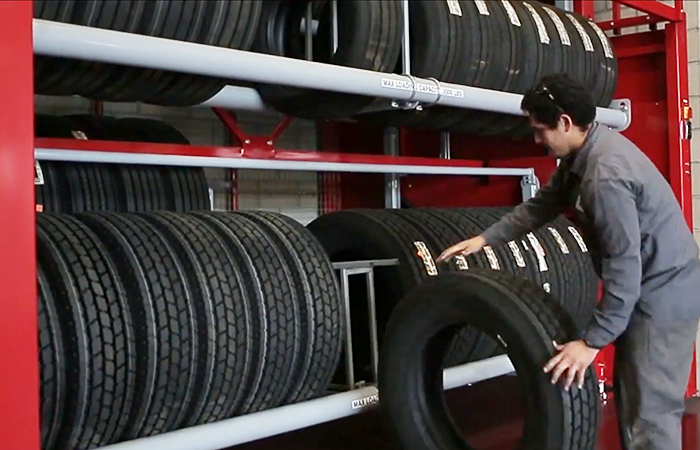

For fleets and truck shops, heavy-duty HT54 units hold commercial tires up to 44″ on carriers rated to 2,000 lb.
A Vidir Tire Carousel pays off where tire counts are high, floor space near the service bays is tight or expensive, and the building has the ceiling height to store vertically. It removes ladder work and overhead lifting, keeps customer and seasonal sets behind a keypad, and gives floor space back to revenue-producing work.
If you store fewer tires, have low ceilings or need the lowest upfront cost, static tire racks are often the better buy, and we sell both. Send us your tire sizes, quantities, ceiling height and available floor area, and we will recommend a carousel model or tell you plainly that racks fit better.
Get a tire carousel quote. Share your tire mix and space and we will size the right model, or point you to racks if they fit better.

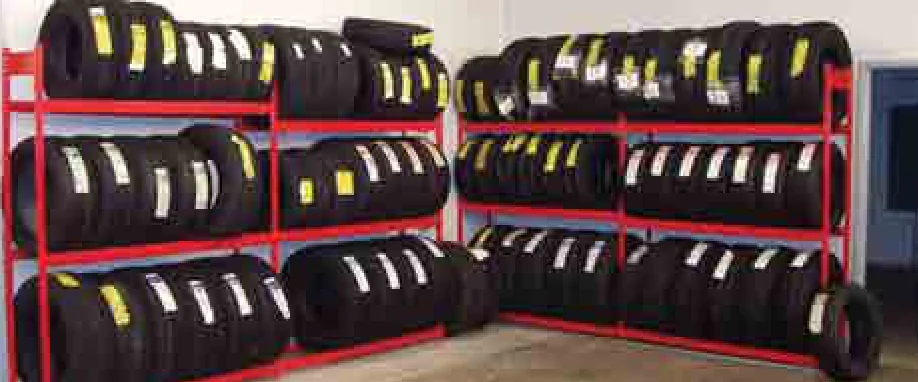

Tire carousels are quoted per project and are not sold through our online store. If your tire count or budget points to conventional racking, these are the genuine tire racks we sell online. Prices shown are the current online price of the lowest-priced in-stock starter unit in each line; add-on bays, other sizes and freight are in each category, and some common sizes are in stock at select manufacturers, subject to confirmation.
