Security Cage Permits and Building Code in Utah

The short answer for Utah facilities

Most buyers ask this question after they have picked a cage, not before — and in Utah the answer can change the schedule. A small, movable wire partition under shoulder height is usually treated like furniture. A typical anchored security cage, eight to twelve feet tall, with a door, sometimes a mesh ceiling and sometimes a card reader, is a fixed installation that a building official may want to review. Whether yours needs a permit is decided by the city or county building department where the building sits, not by the cage manufacturer and not by us.

This guide is the permitting companion to our Utah security cage services page. It explains which codes apply in Utah today, how the permit exemption for partitions actually reads, what a plan reviewer and fire inspector tend to look at on a cage, and what paperwork to have ready so review does not stall the install. It is general guidance for facility managers, owners’ reps and contractors — not a code opinion for a specific building.

What usually decides it

• Height and fixing: is the enclosure taller than 5′-9″, and is it anchored to the slab rather than freestanding and movable?

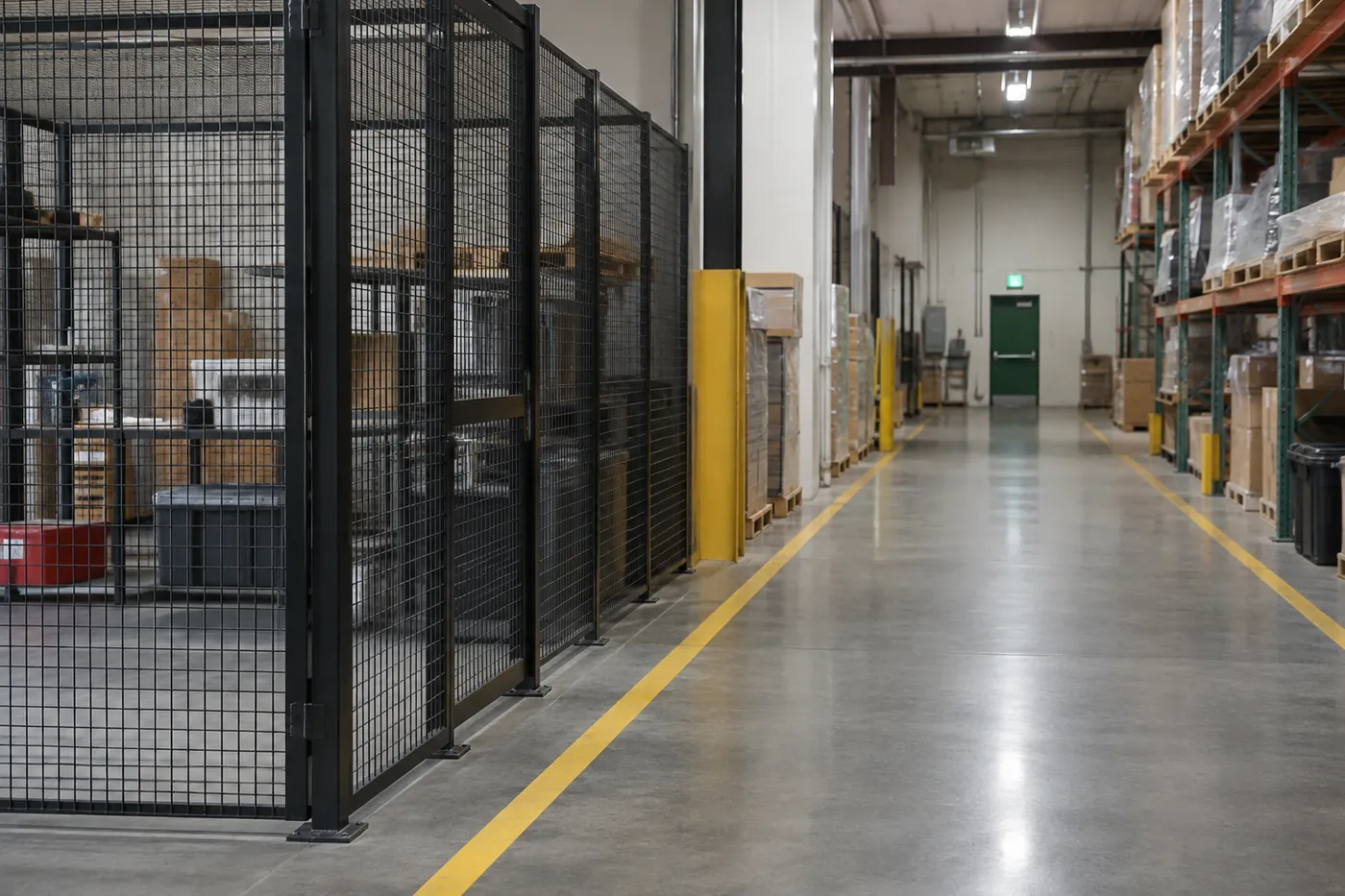

• Exit paths: does it change how people get out of the space, or put people behind a door that locks?
• Fire protection: does a ceiling or solid panel interfere with sprinkler coverage, or change how storage is protected?
• Structure: is it braced to the building, attached to racking, or tall enough that seismic anchorage needs engineering?
• Power: does it add electrified locks, card readers, lighting or receptacles?

Does a security cage need a building permit?

The International Building Code starts from the position that altering a building needs a permit, then lists work that is exempt. The list in IBC Section 105.2 includes one line that is often quoted for wire partitions: nonfixed and movable fixtures, cases, racks, counters and partitions not over 5 feet 9 inches (1753 mm) in height.

Read that line carefully against a real security cage. Two conditions have to be met — the partition must be nonfixed and movable, and it must be no taller than 5′-9″. Security cages are almost always anchored to the slab through post base plates, and most stand eight feet or more. So the typical cage does not fall inside that particular exemption. That does not automatically mean a permit is required — building officials have discretion, and many jurisdictions have their own guidance on interior partitions — but it does mean you should not assume the exemption covers you. The code also says plainly that exempt work still has to comply with the code.

Why height and anchoring change the picture

A shoulder-height, movable partition does not create a room, does not reach the sprinkler zone and can be pushed aside. A tall, anchored cage does all three things a reviewer cares about: it forms an enclosed space people may be inside, it sits closer to the sprinkler heads, and it becomes a fixed element that has to stay put in an earthquake. Along the Wasatch Front, that last point gets attention on its own.

The practical move is a short call or email to the building department with the height, the location in the building and a sketch. Building departments field “is this permitted work” questions routinely, and the answer is worth having in writing.

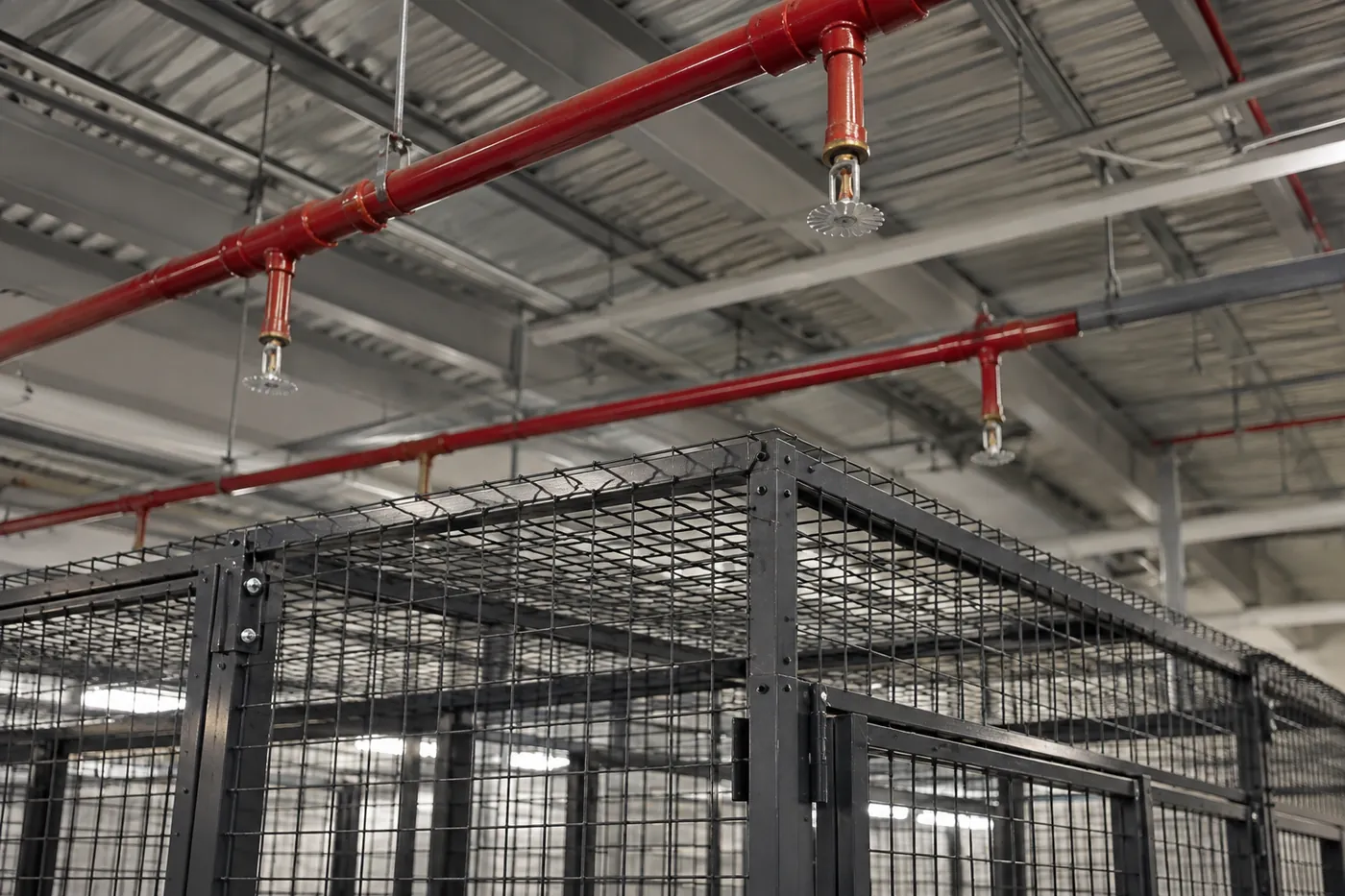

Sprinklers, storage height and the fire code

Open welded wire mesh lets sprinkler water and heat through, which is a large part of why it is used for security cages in sprinklered buildings. Problems start when the top of the cage is closed. A solid sheet top can shield the contents from overhead sprinklers, and the usual fix is additional sprinkler heads inside the enclosure — with its own design, contractor and permit. Even a mesh ceiling puts something between the sprinkler deflectors and the goods, so the fire protection engineer and fire code official may want to see it. We cover ceiling options and sprinkler coordination in depth on our security cage ceilings page.

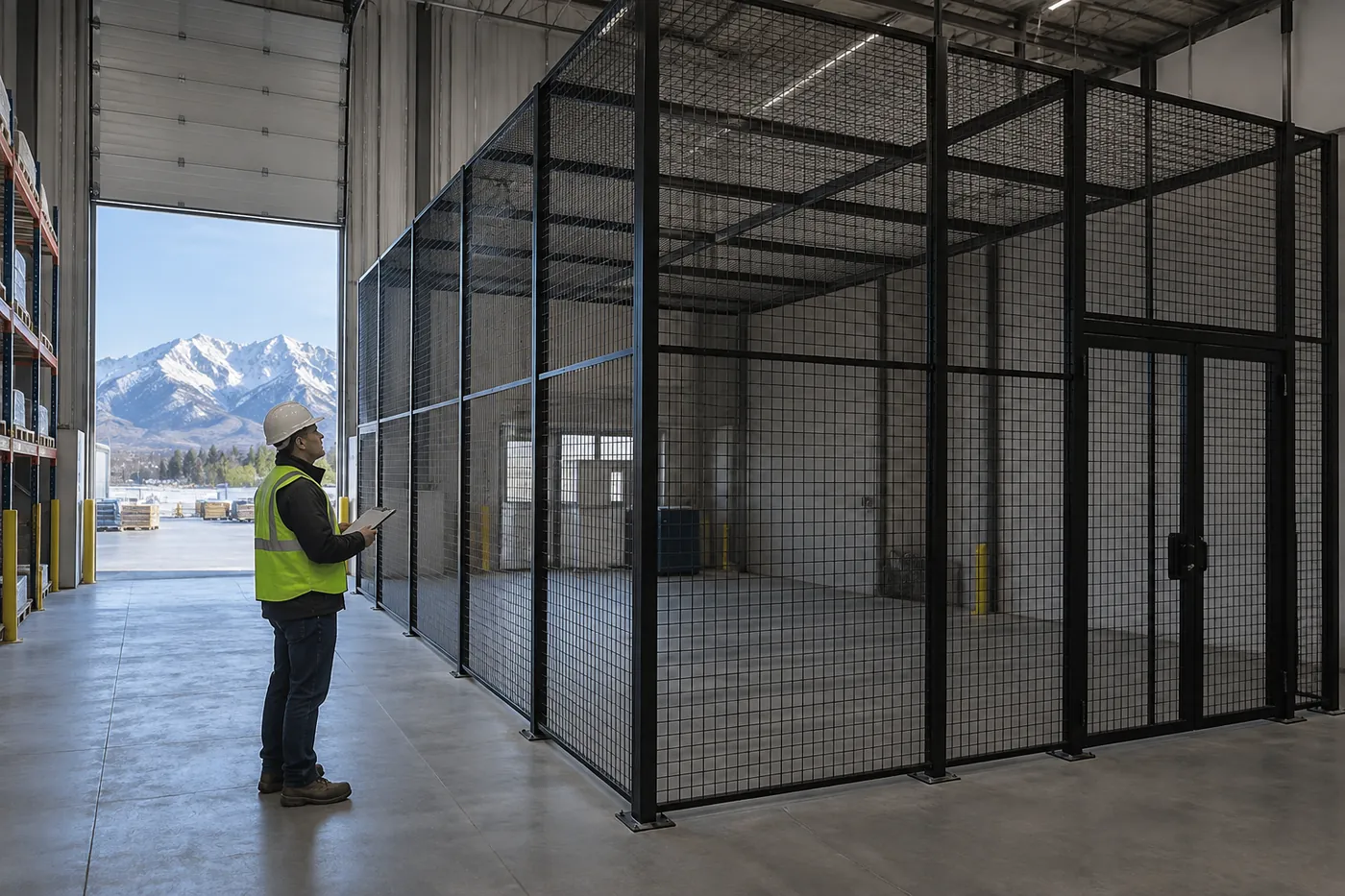

What fire reviewers commonly check

• Clearance kept below sprinkler deflectors — nothing stored or built up into the spray pattern
• Whether a ceiling or solid panel creates an obstruction that NFPA 13 requires to be addressed
• Storage height inside the cage: tall storage of combustibles can trigger the high-piled storage chapter of the IFC regardless of the cage
• Fire department access to valves, risers, panels and hose connections that end up inside or behind the cage
• Locked doors on required exit paths, which need fire code approval when electrified

Watch the building services

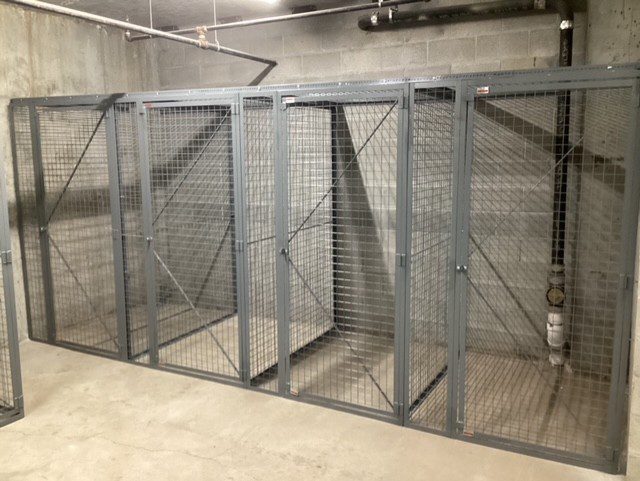

Retrofits in older Utah buildings often put cages along walls that carry standpipes, sprinkler risers, water valves or electrical panels. Enclosing those inside a locked cage is a common inspection comment: the fire department and maintenance staff still need access. Mark every riser, valve, panel and cleanout on the layout, and either leave a clear zone around it or plan an access arrangement the fire code official accepts.

The same applies to overhead: ducts, cable tray and light fixtures crossing a ceilinged cage need framed cutouts or hinged access panels, decided before panels are ordered.

Electrical work and access control on a cage

A mechanical lock on a cage door is hardware. A card reader, keypad, electric strike or magnetic lock is electrical work, and in Utah electrical work generally requires a licensed electrician and its own permit — separate from any building permit for the cage itself. Two more points tend to come up:

• Locking on exit paths. Electrified locking on doors that people use to get out has specific code conditions, and the fire code official typically reviews it. Plan it with the reviewer if anyone will be inside the cage.
• Lighting and power inside. A ceilinged cage may shade existing lights. Adding fixtures or receptacles inside the enclosure is electrical work too.

We keep hardware discussions general on this page. Lock and door options are covered on our cage doors page, and the specific access design for a regulated space is something we work out privately with each customer.

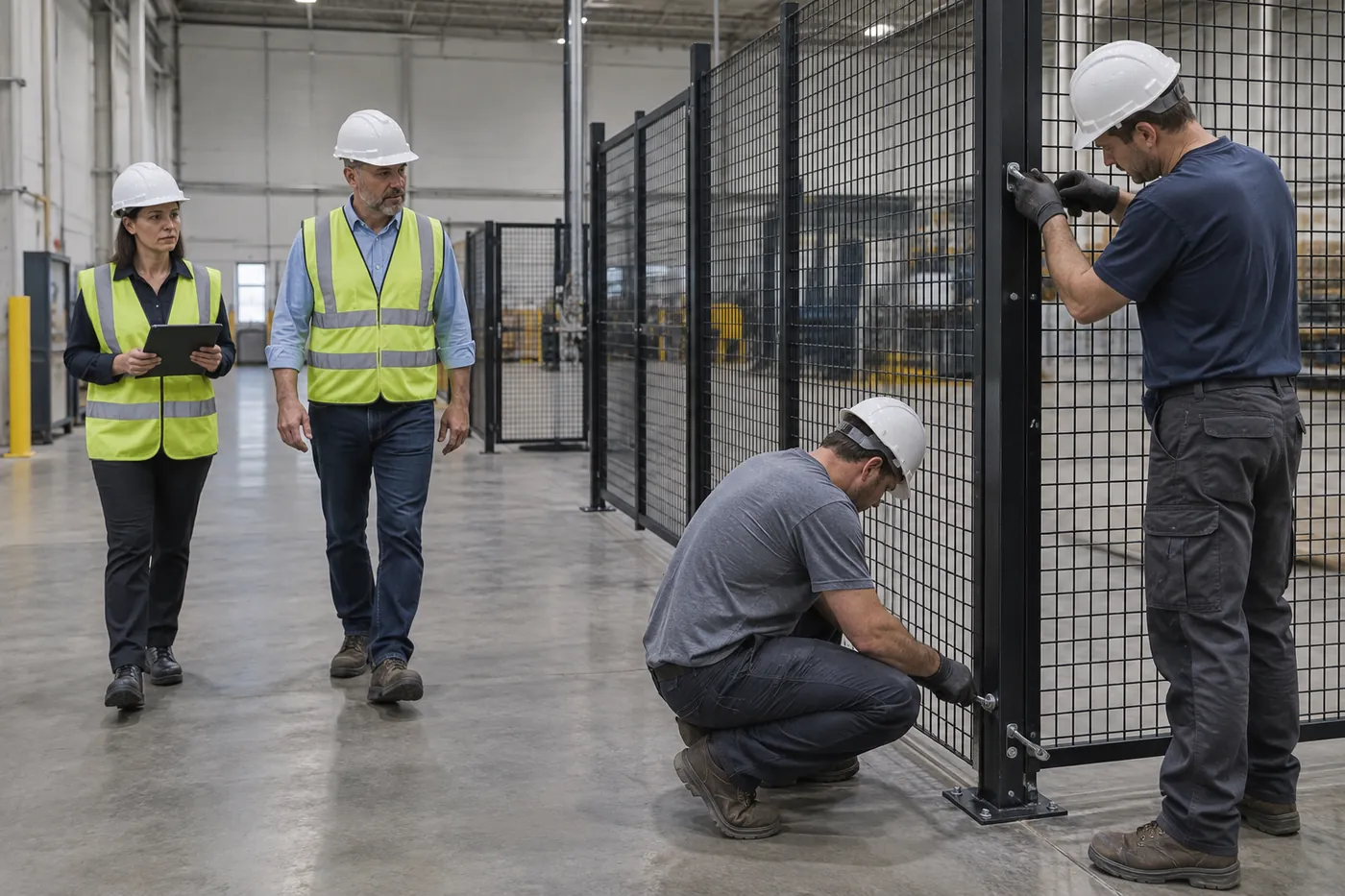

Sequence that avoids rework

Set the post and door locations first, then give the electrician the drawing so conduit runs to the right post and the reader mounts where the door hardware expects it. Retrofitting a reader after the cage is installed usually means drilling posts in place and running surface conduit that nobody wanted.

If the cage and the electrical work are permitted separately, make sure both permits reference the same drawing so the inspectors see a consistent layout.

What to have ready for plan review

Whether you submit a full permit application or just ask the building department whether one is needed, the same information gets you a faster answer. For a security cage, that usually means:

Our security cage specifications page has the standard panel, post and mesh data reviewers ask for. On Utah projects we provide a CAD layout and a line-item quote, and we hand your permit applicant or plan reviewer the drawing and product data they request. Salt Lake City, for example, lists its commercial application requirements on the Salt Lake City Building Services permit page; other Wasatch Front cities publish similar checklists.

Utah Security Cage Permit FAQs
